Waterfowl 36-Key Split Keyboard Kit

IMPORTANT INFORMATION FOR ORDERS PLACED BEFORE 20th OF MARCH 2023!

The designer informed us about the following issue:

The OLED displays have the wrong pinout. The VCC and GND pins are swapped. This means that the OLED will never display and get pretty warm. Please remove them from the keyboard.

Waterfowl 36-Key Split Keyboard Kit

Designed and Created by CyanDuck.

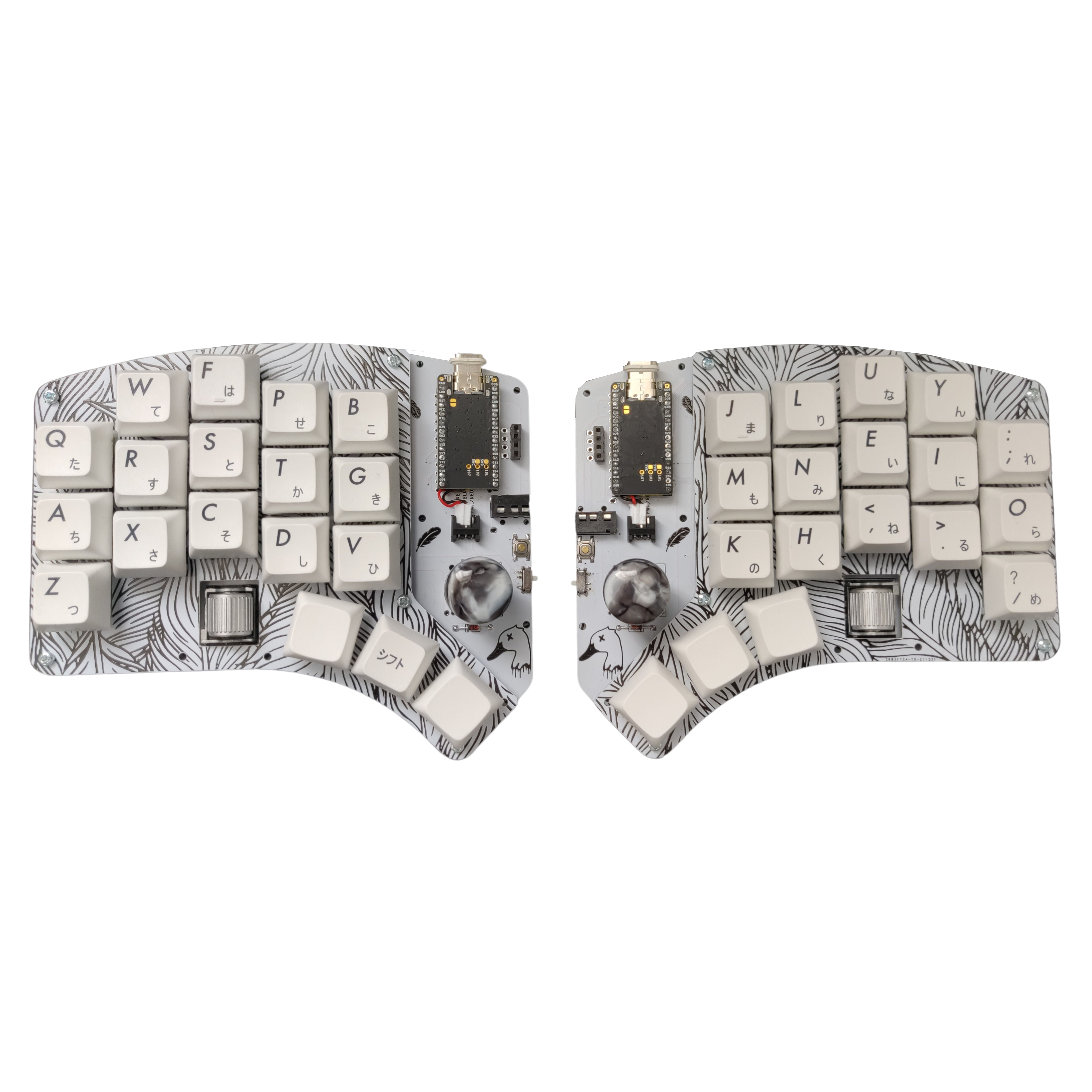

The Waterfowl is a 36-key split keyboard inspired by the Kyria and Arch-36.

Specifications:

• 36-key layout with Kyria stagger

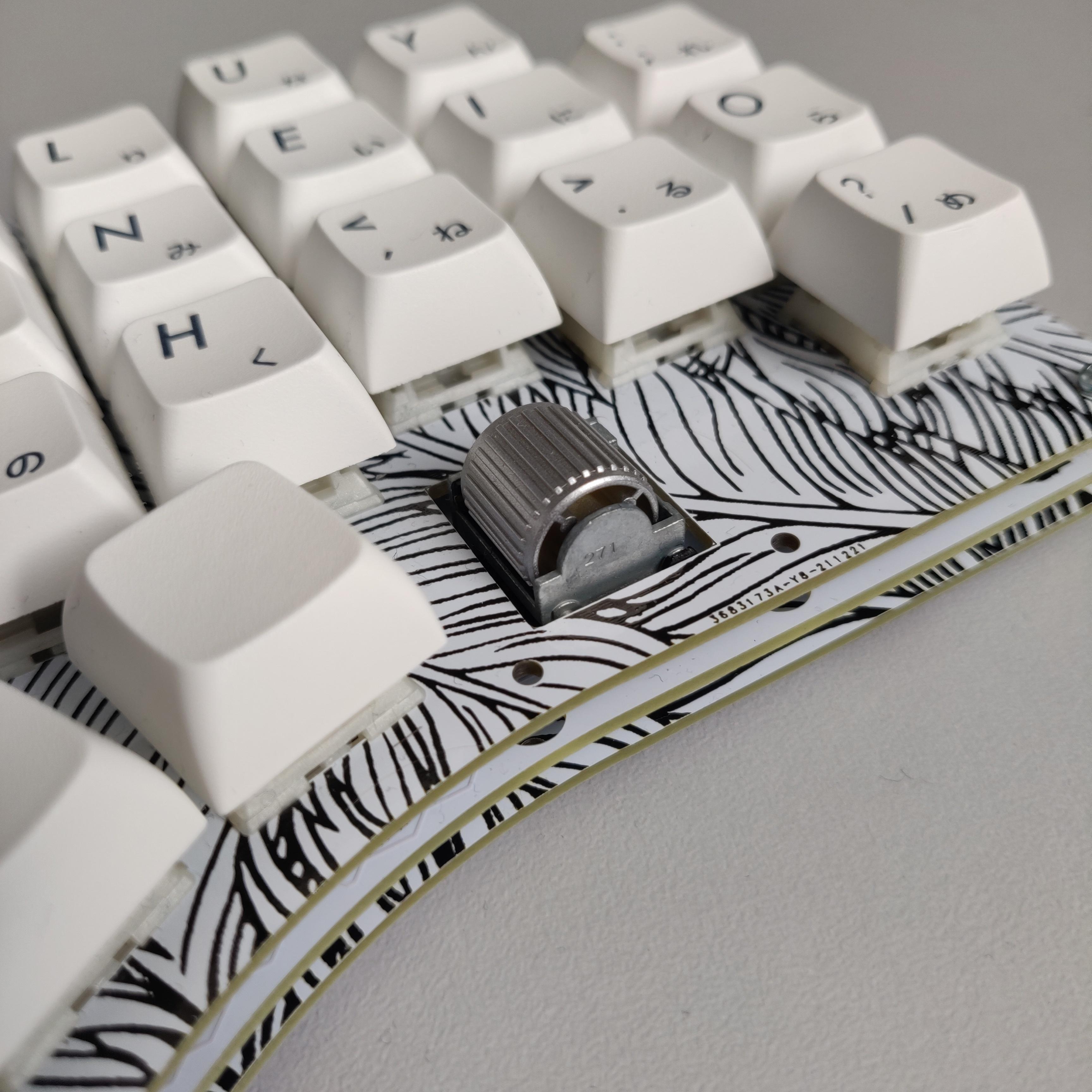

• Individually controllable rotary and roller encoders
• MX and Choc V1 hotswap supported
• Large vertical OLEDs
• Reversible design

The board also supports JST battery connectors and a low-profile power switch for wireless builds using the nice!nano and ZMK.

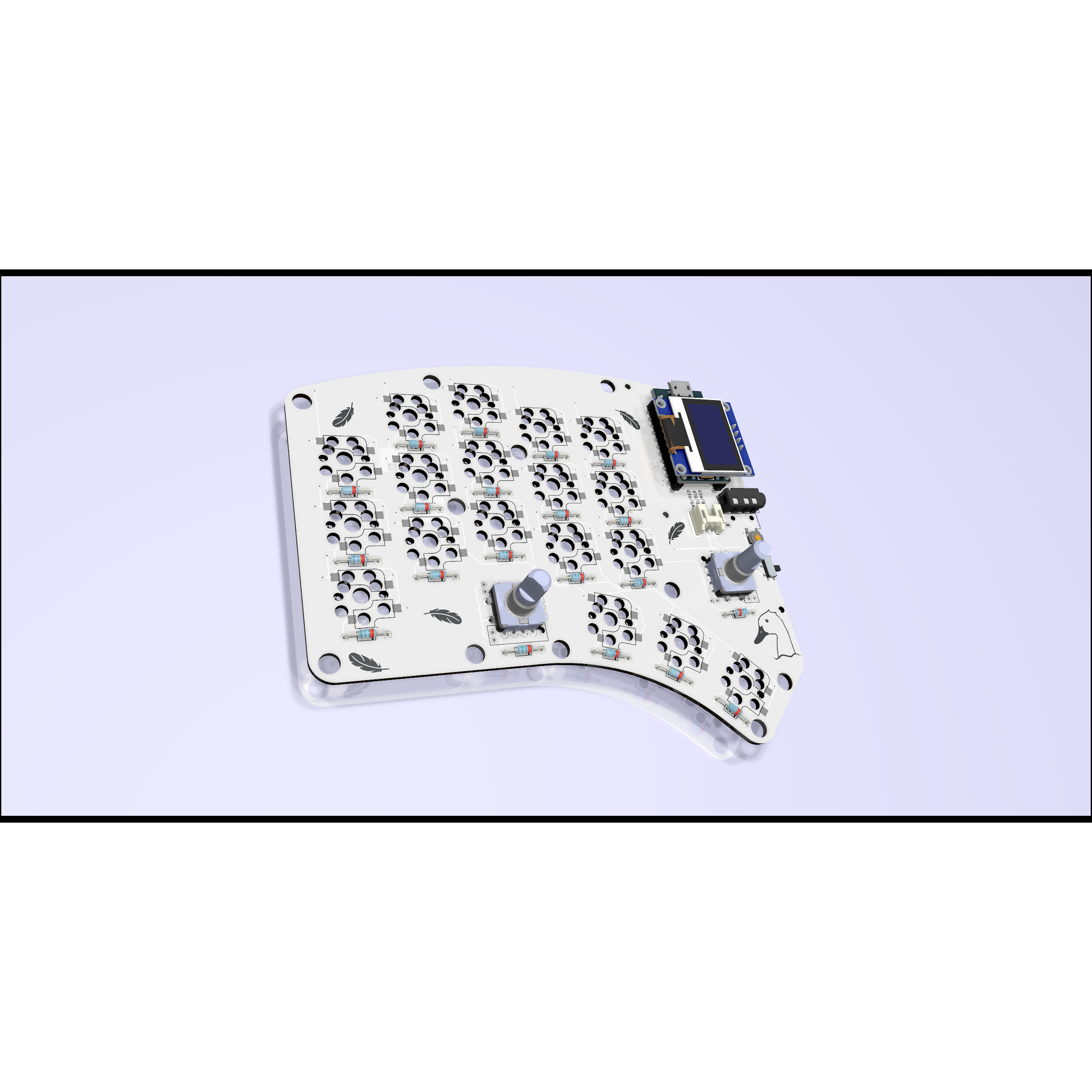

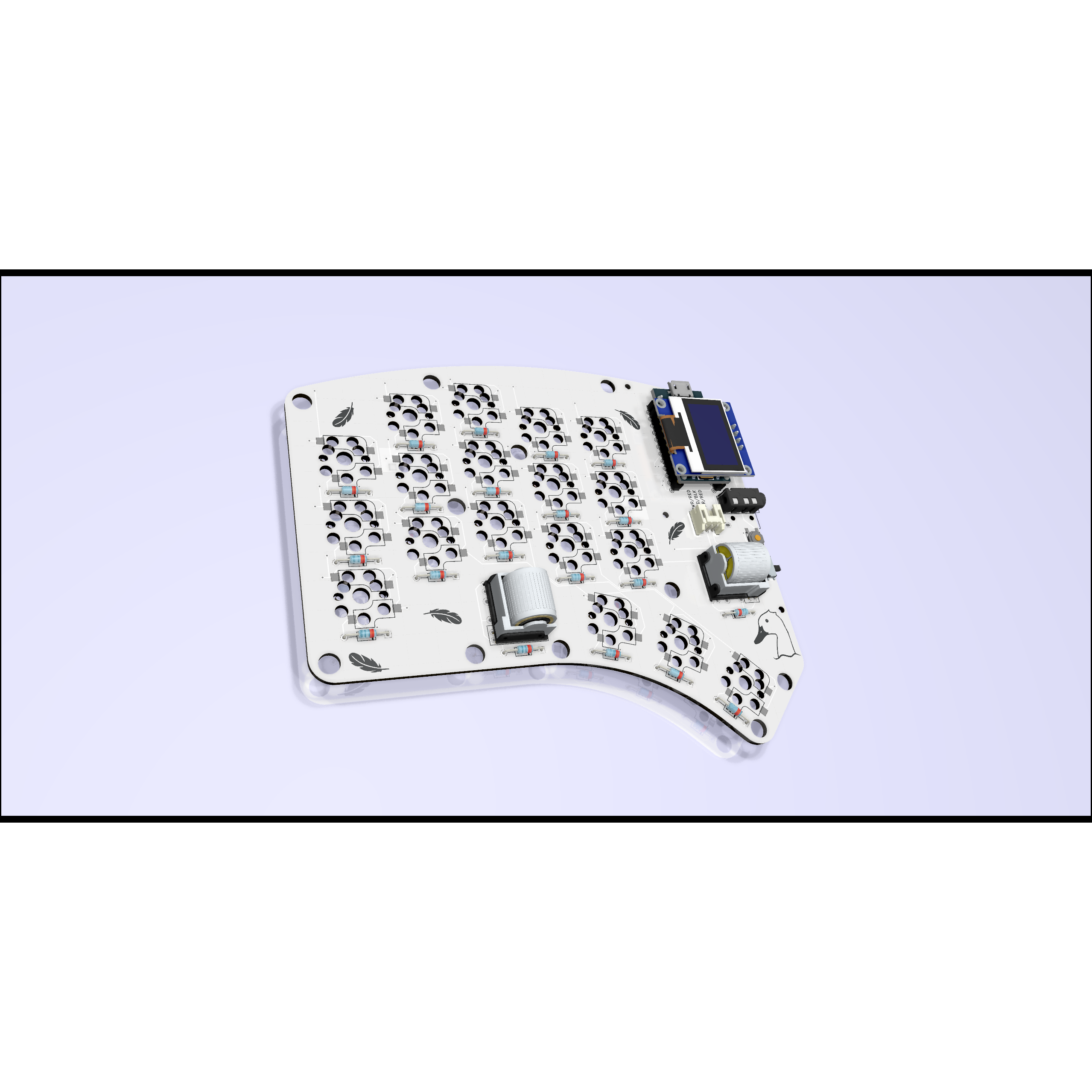

Note: Image of severed duck head shown in the original product pictures has been replaced with a regular looking duck, as seen in the rendered images

What’s included?

• Waterfowl PCB x 2
• Waterfowl Top Plate x 2
• Waterfowl Bottom Plate x 2
• 40 TH Diodes
• TRRS Jacks and Cable
• MX or Choc Hotswap Sockets (depending on the selected kit)
• Rotary Encoders with Knobs x 2
• Rollers x 2
• 128x64 OLED x 2
• Screws, Standoffs, & Feet

Other Vendors:

UK - Mechboards

US - Keebio

Only the parts mentioned in the Kits are included. No Stabilizer, Switches or Keycaps.

If you have questions regarding this product or need any other assistance please contact us via our contact form or write us an E-Mail to: support@keygem.com

You can also join our Discord Community to get the latest news and support here: KEYGEM Discord

Frequently asked questions will be added to our FAQ.
