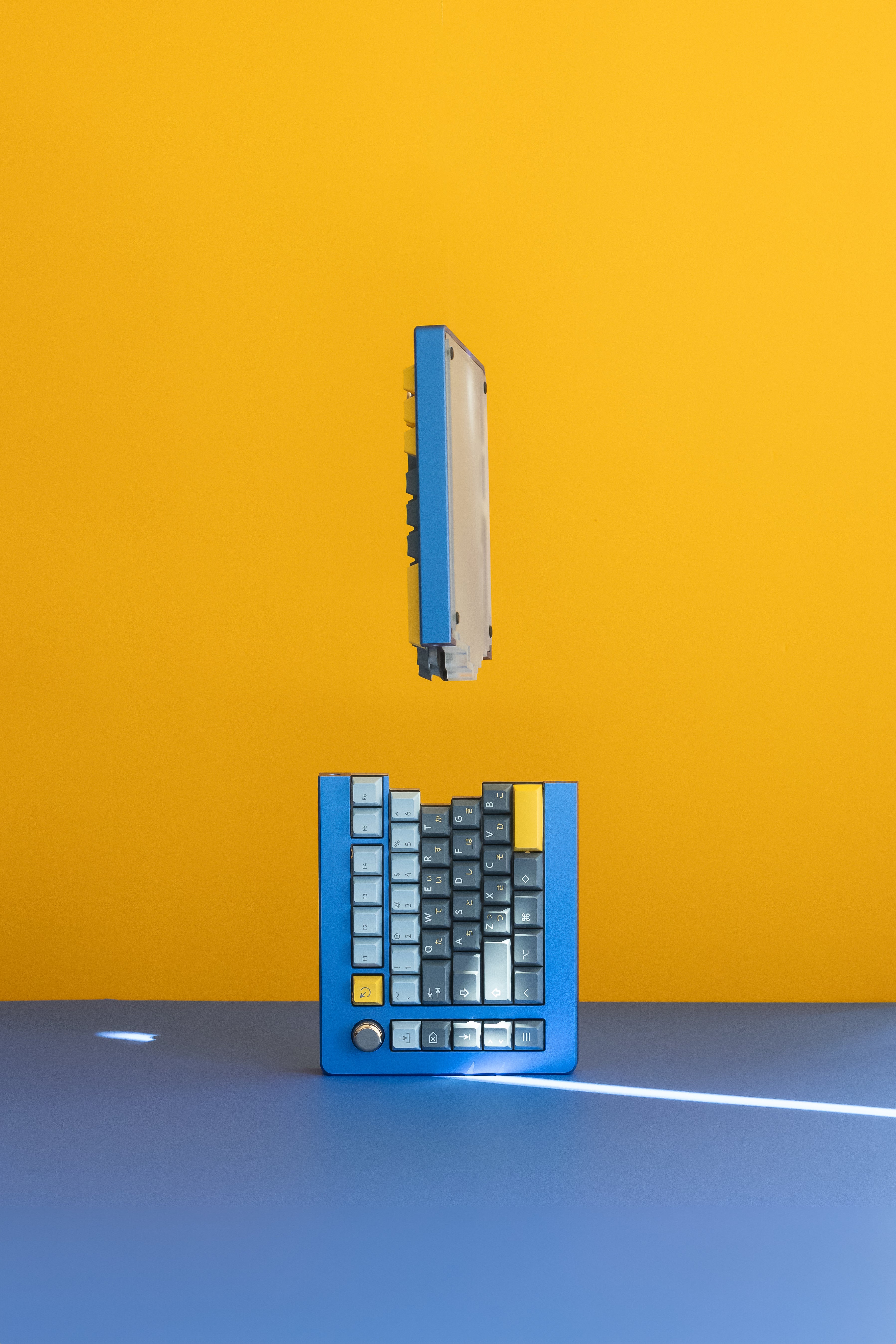

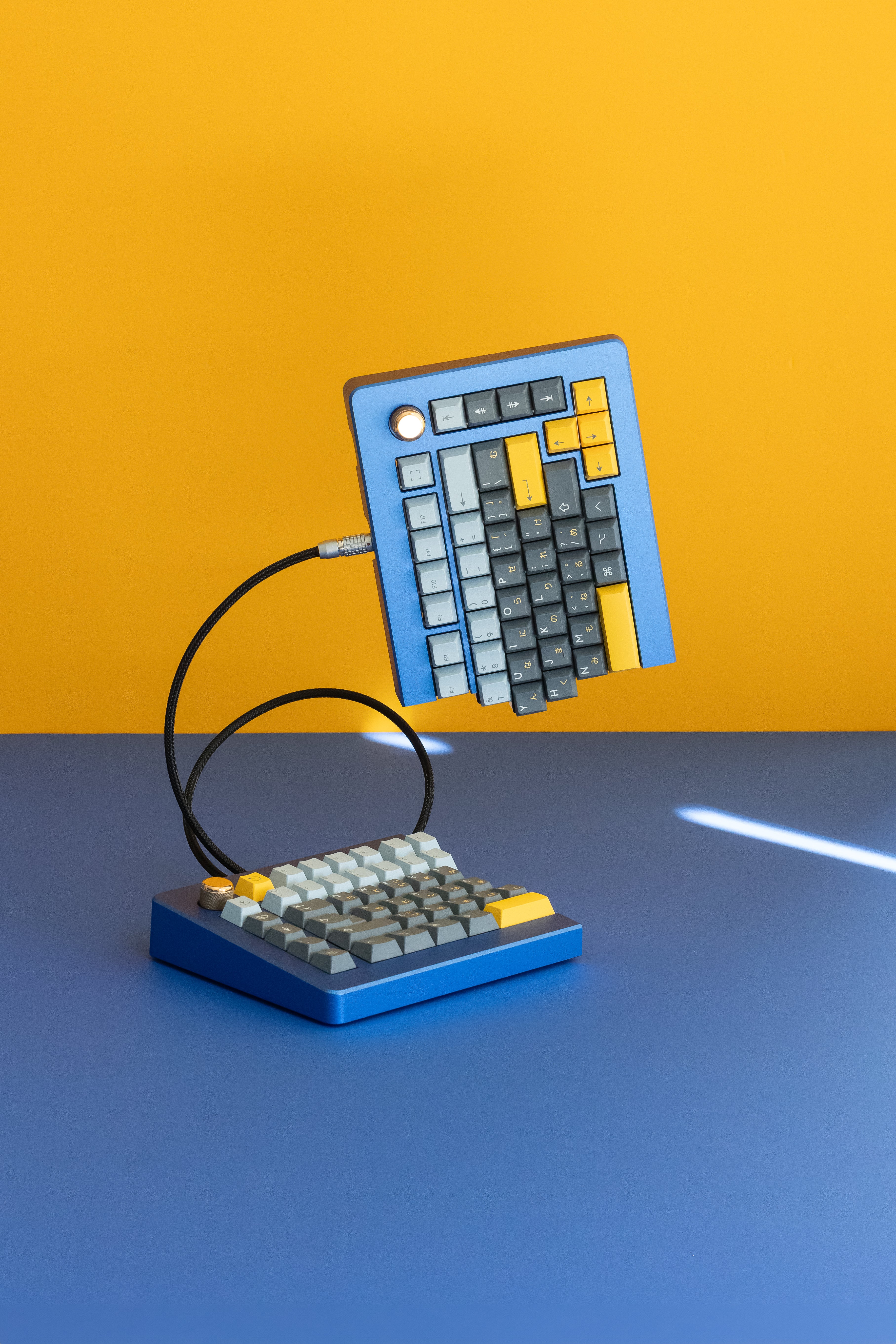

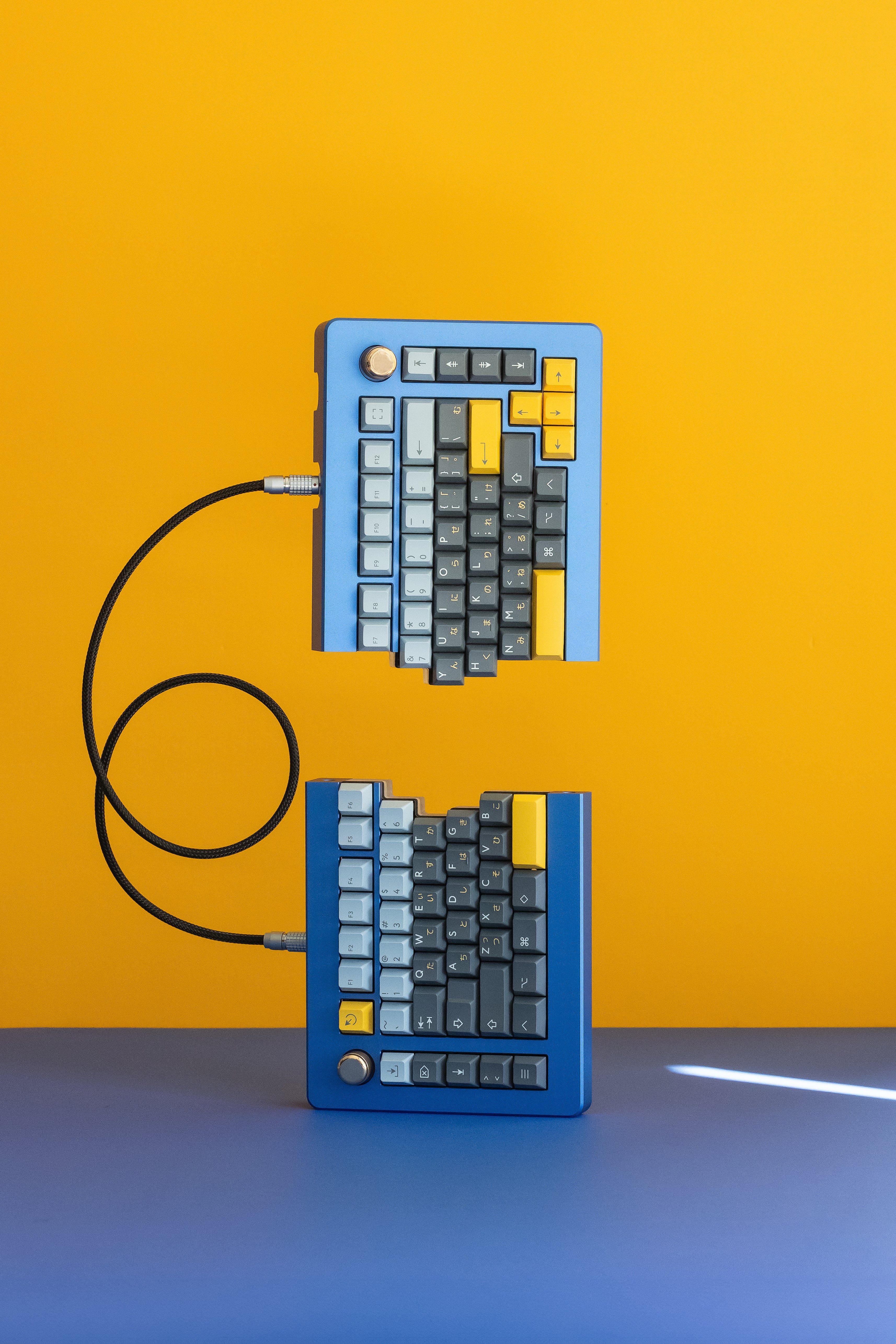

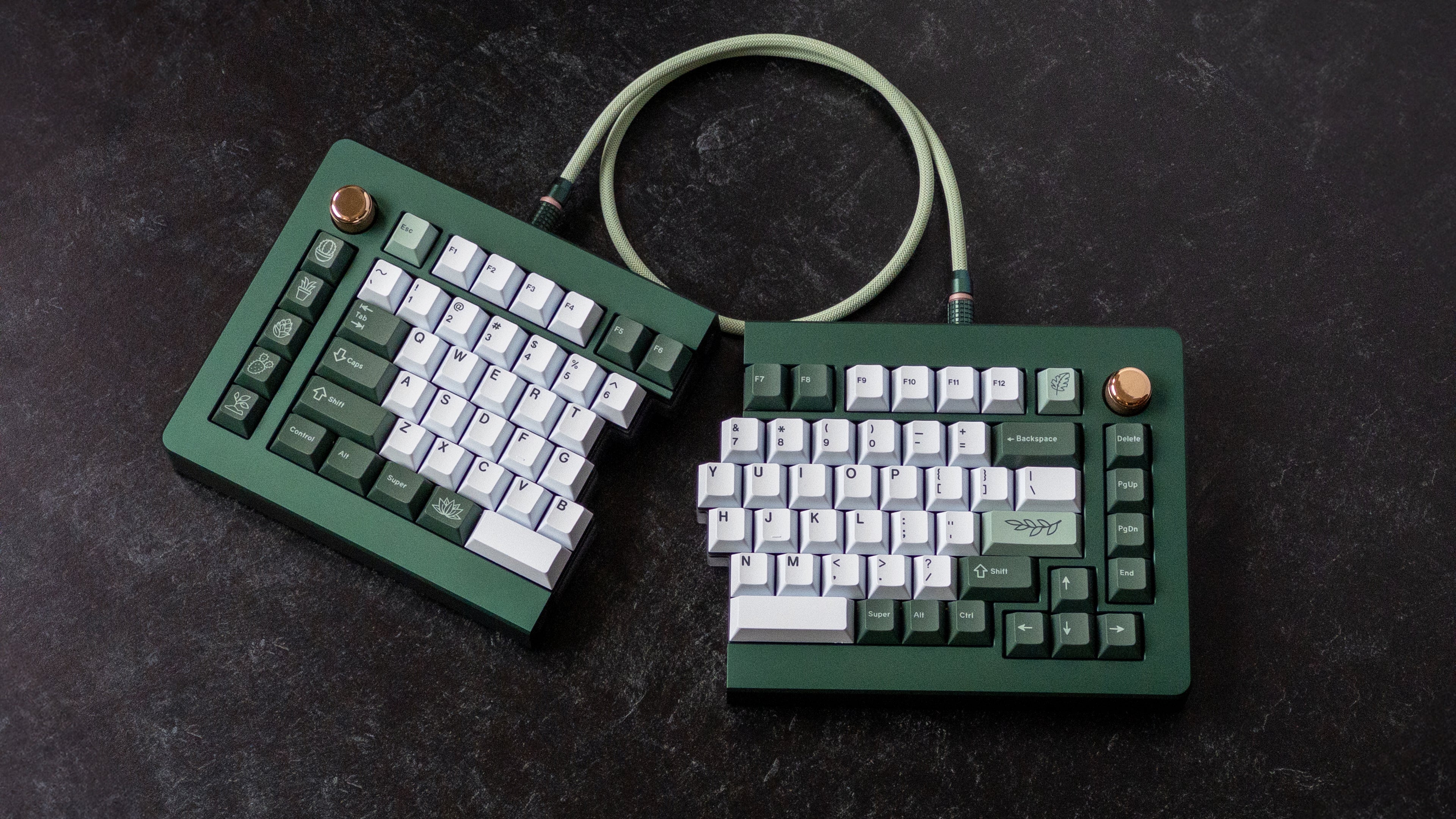

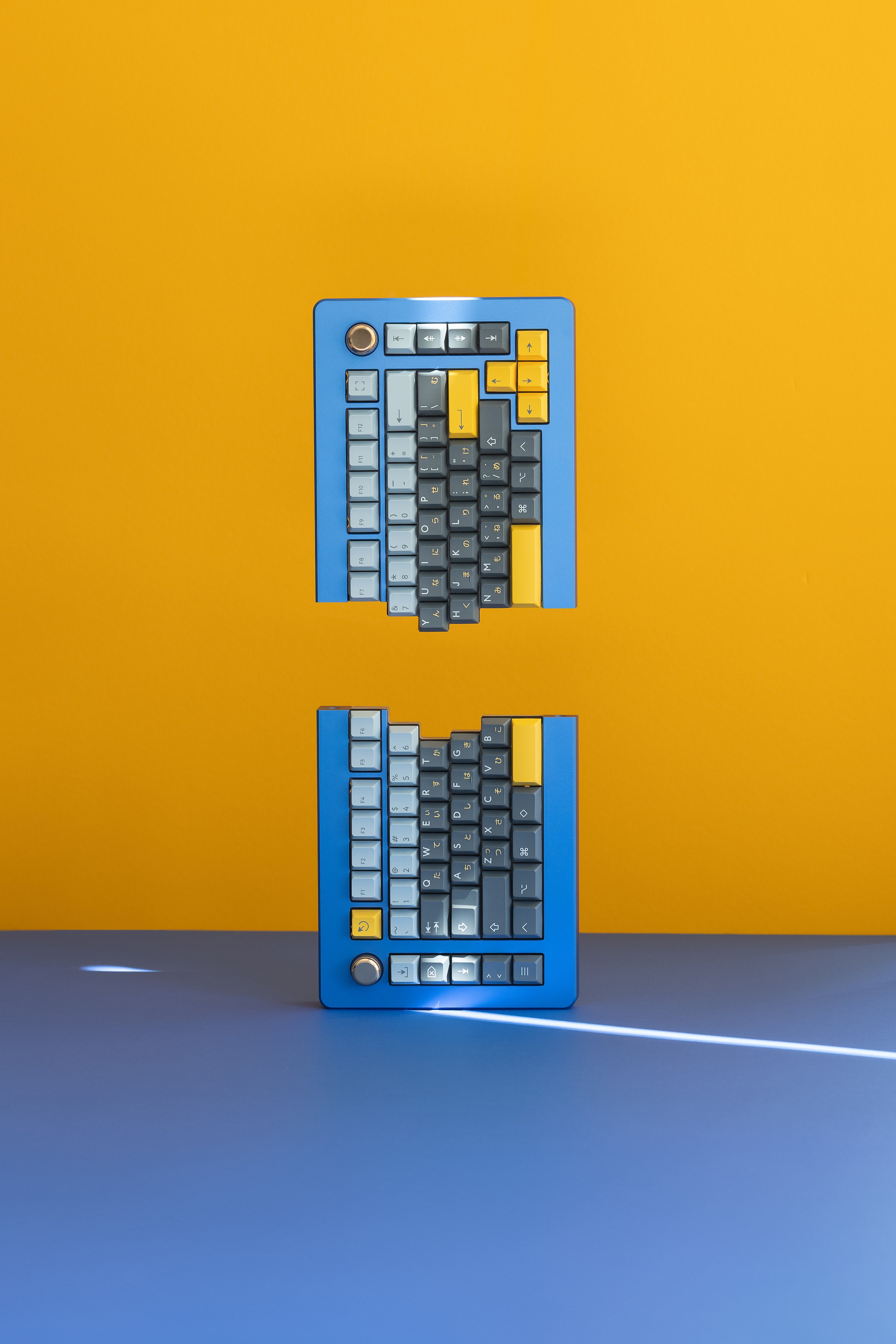

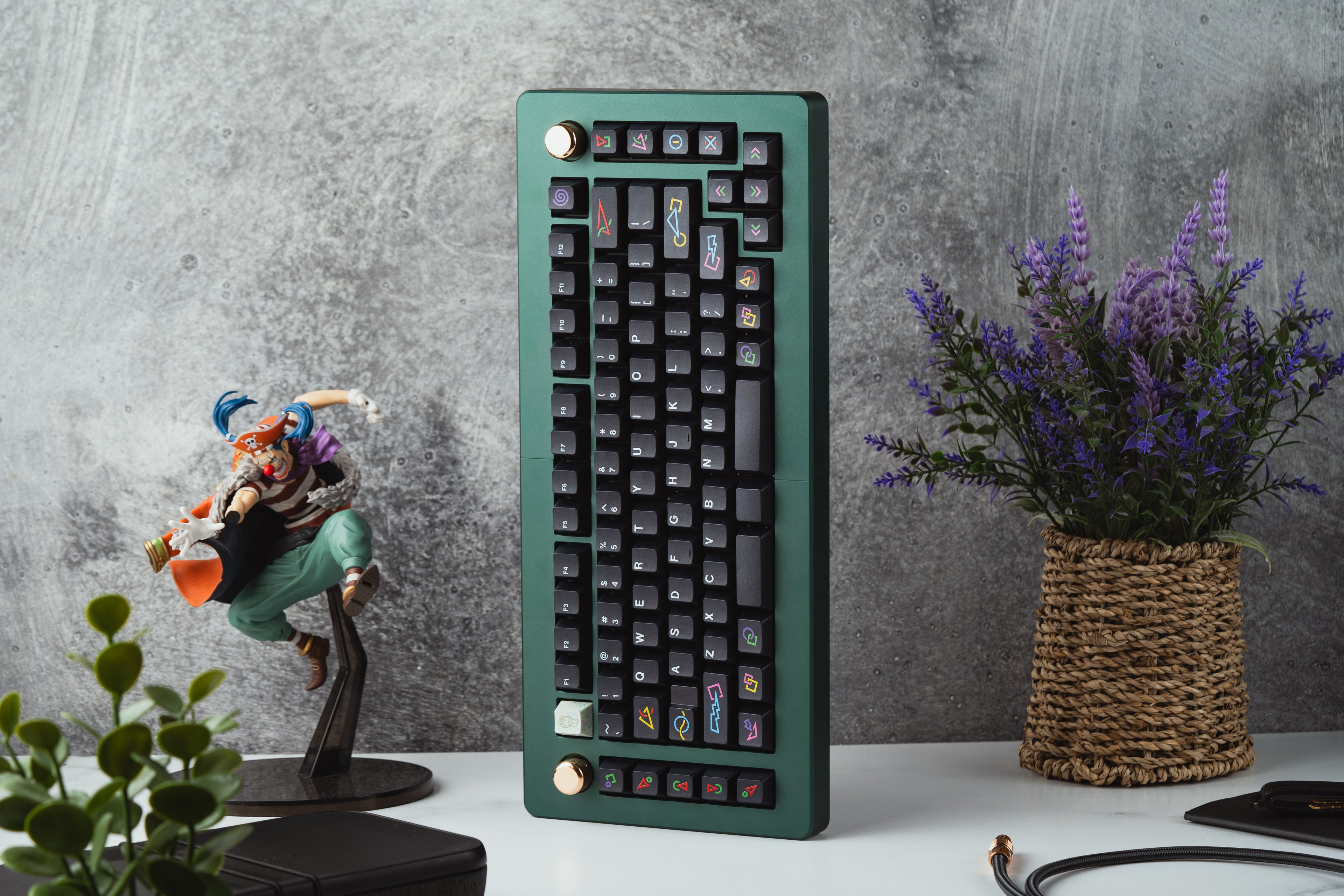

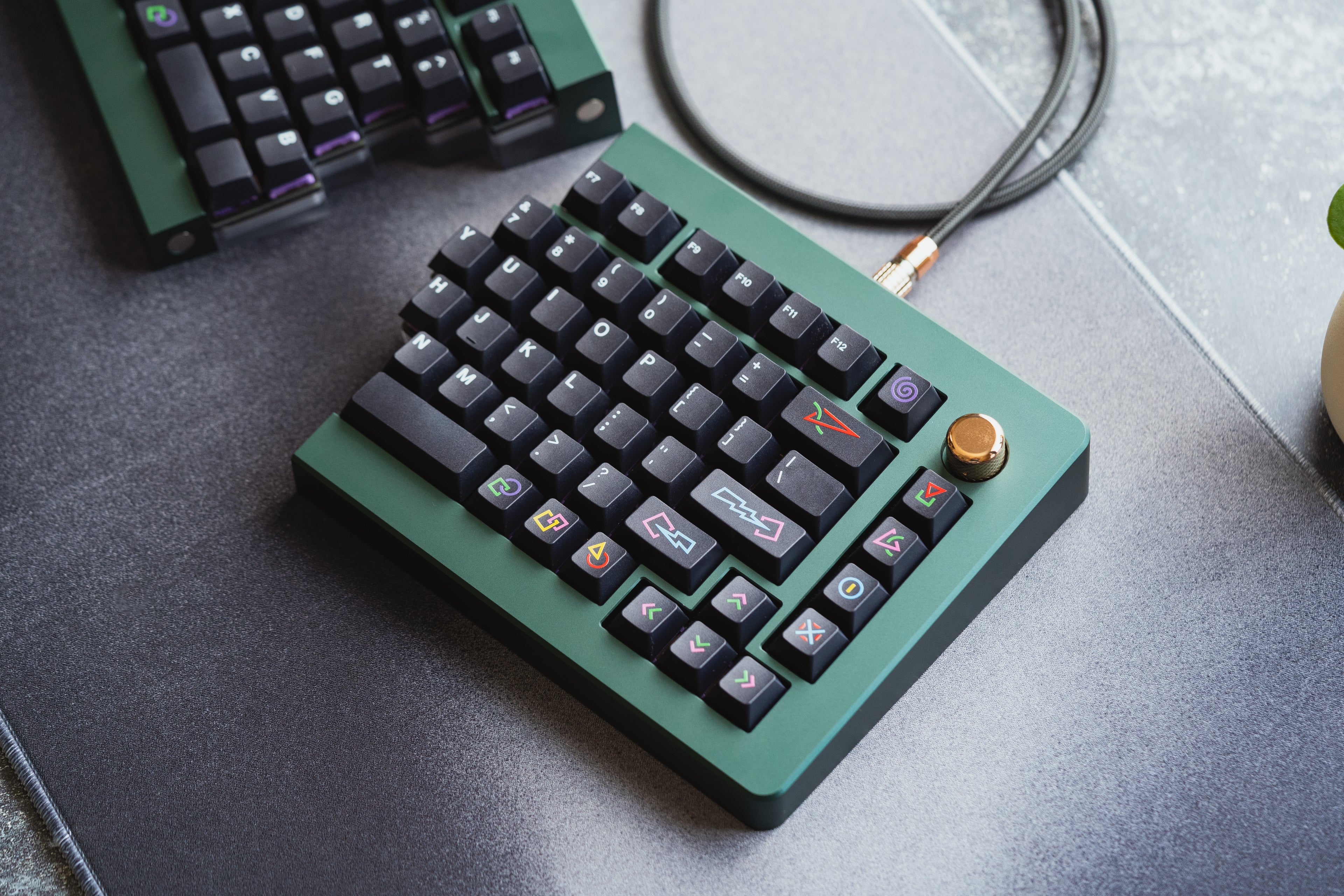

Haverworks Theseus75 - Group-Buy
Starting: 1st July 2024
Ending: 2nd August 2024
Shipping Estimate: Q4 2024 - Q1 2025
Specifications:
- Measurements:
- 6° typing angle
- 20mm front height
- 36.6mm total height (case bottom to top)
- Kit content weight: 6.44 lbs (2.923 kg)

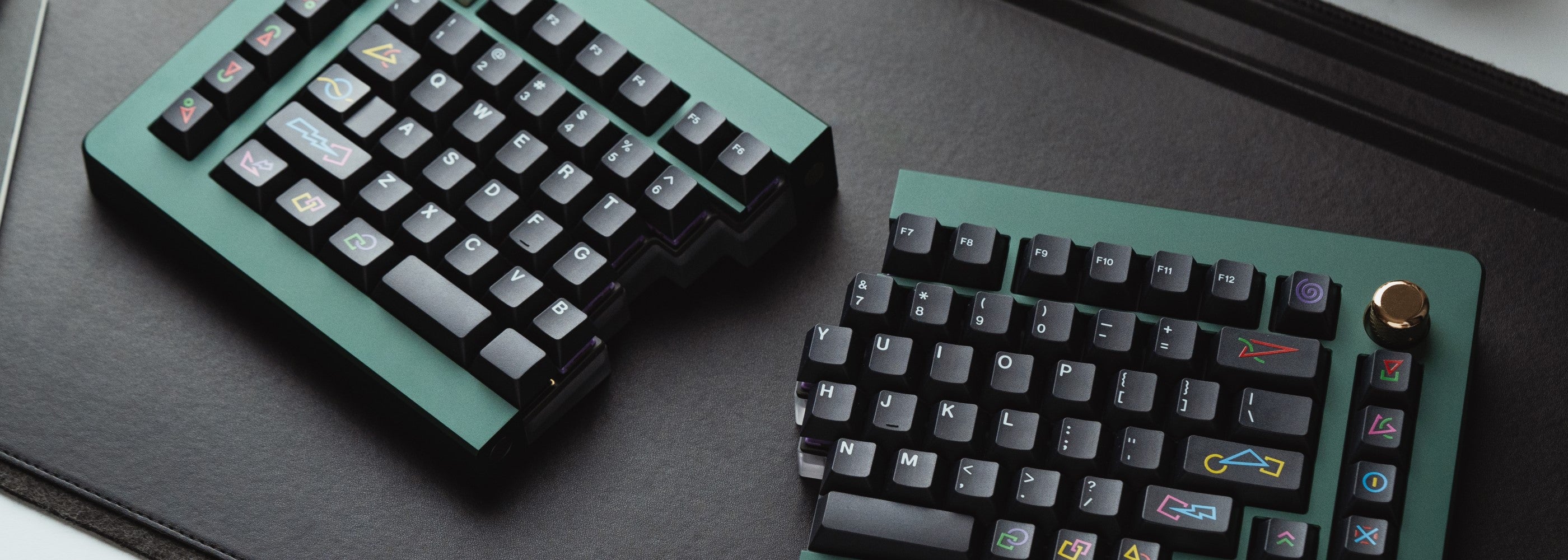

- Layout:
- 75% XT (single macro column)
- Switches: 88-91
- Stabilizers: 3-5 (2U)
- Exploded navigation cluster
- Two 1U rotary encoders

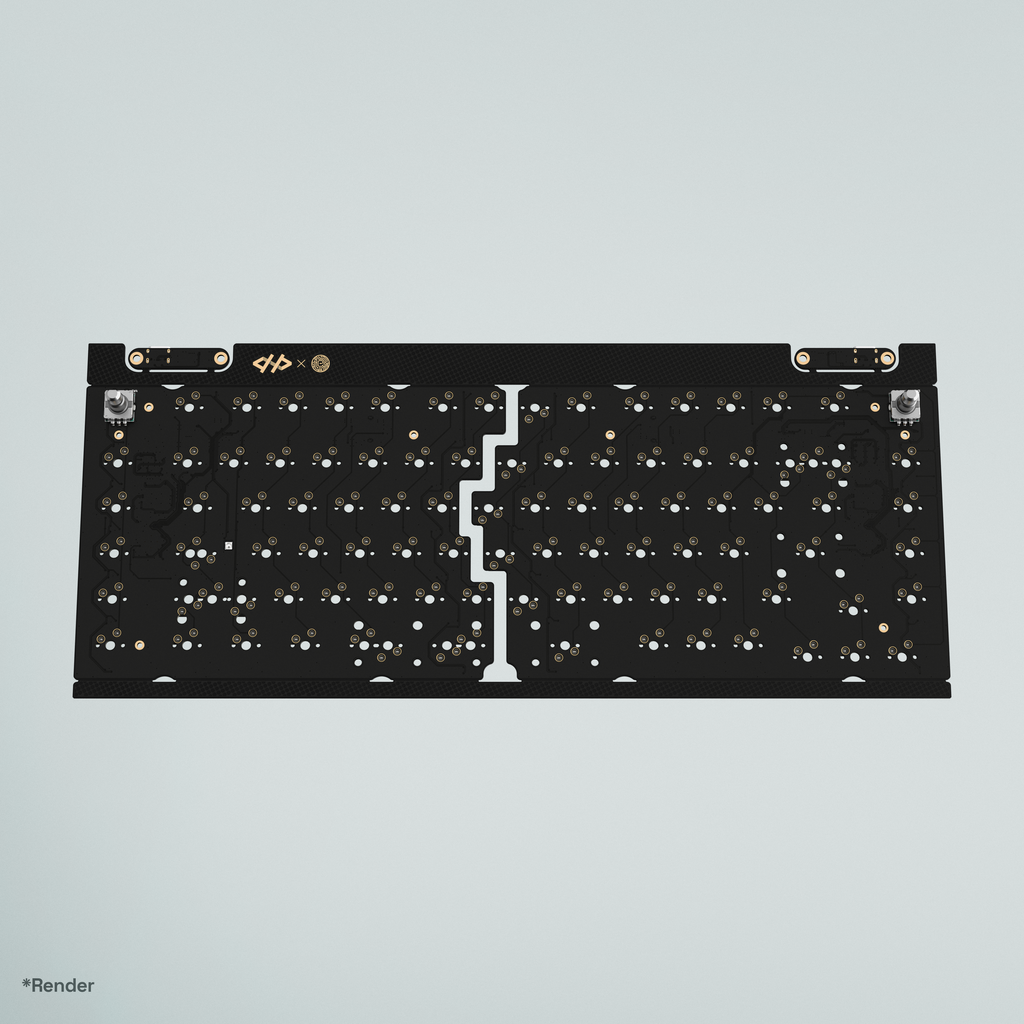

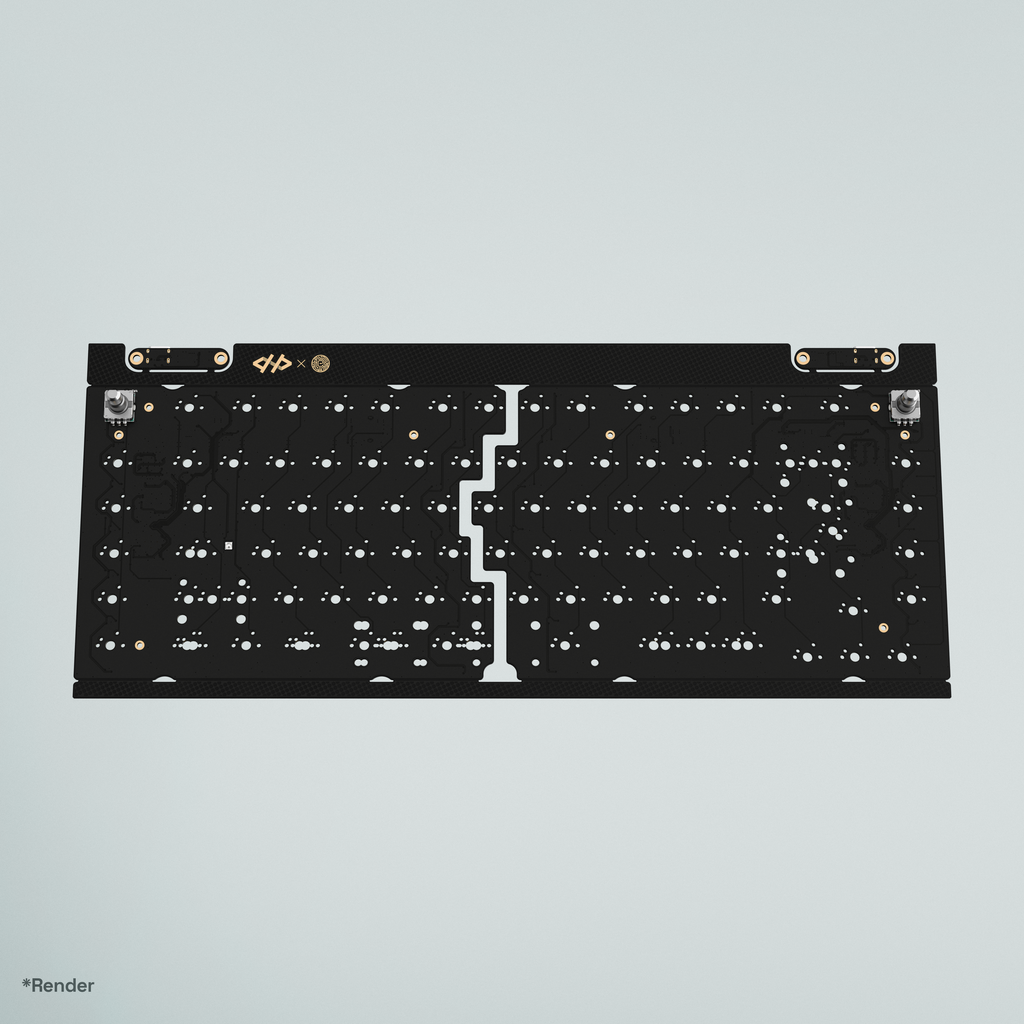

- PCB:
- Designed by ebastler
- QMK firmware w/ VIA support
- RGB LED underglow
- Caps lock LED (with VIA customization support)
- Integrated USB 2.0 hubs
- Dual-role USB-C ports (either port can function as hub or host connection)
- Alps EC11 encoders w/ 1.5mm push travel
- STM32G431 microcontrollers
- uDB S1-inspired form-factor daughterboards
- 1.6mm black-core FR4, ENIG finish
- Materials:

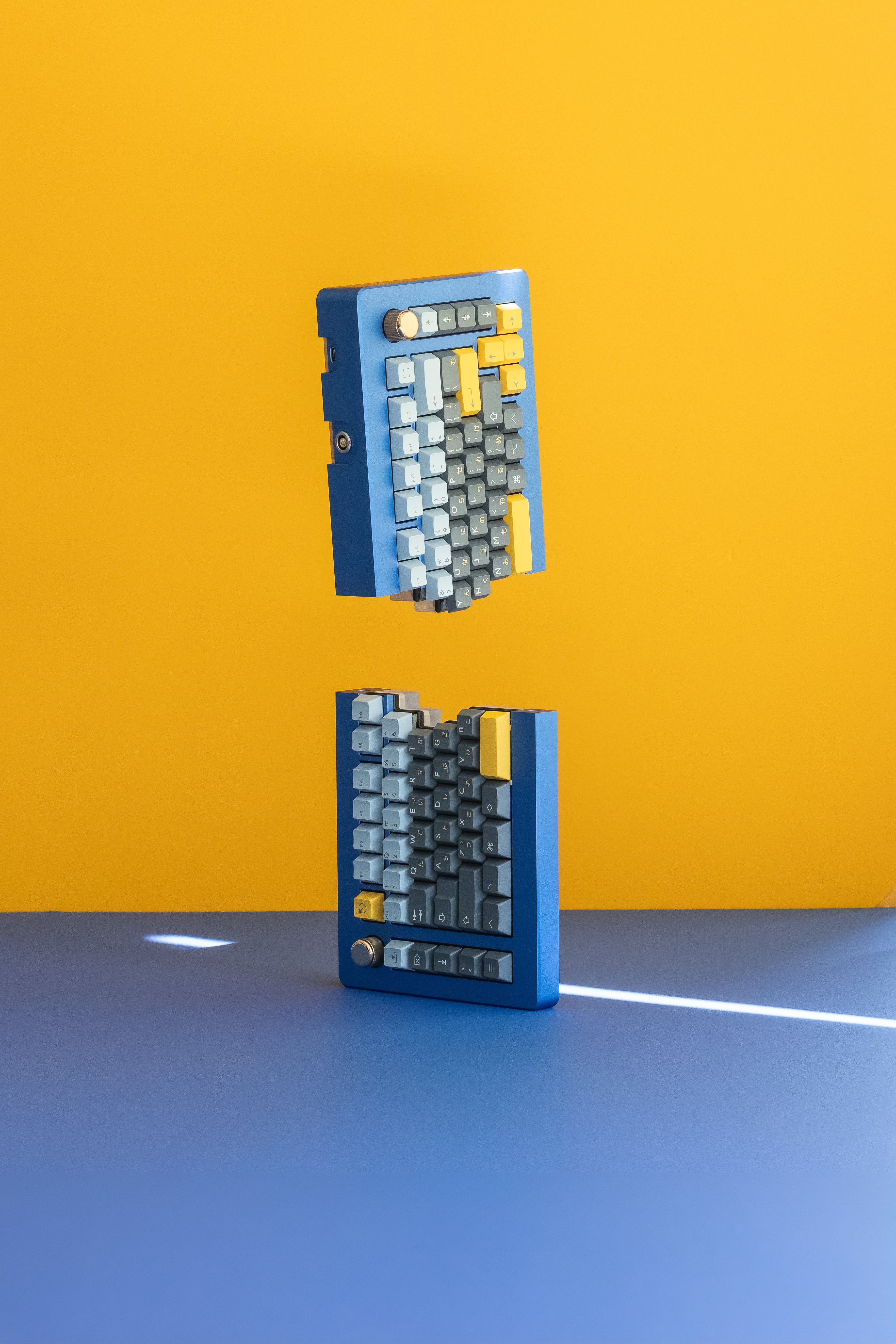

- Keyboard:

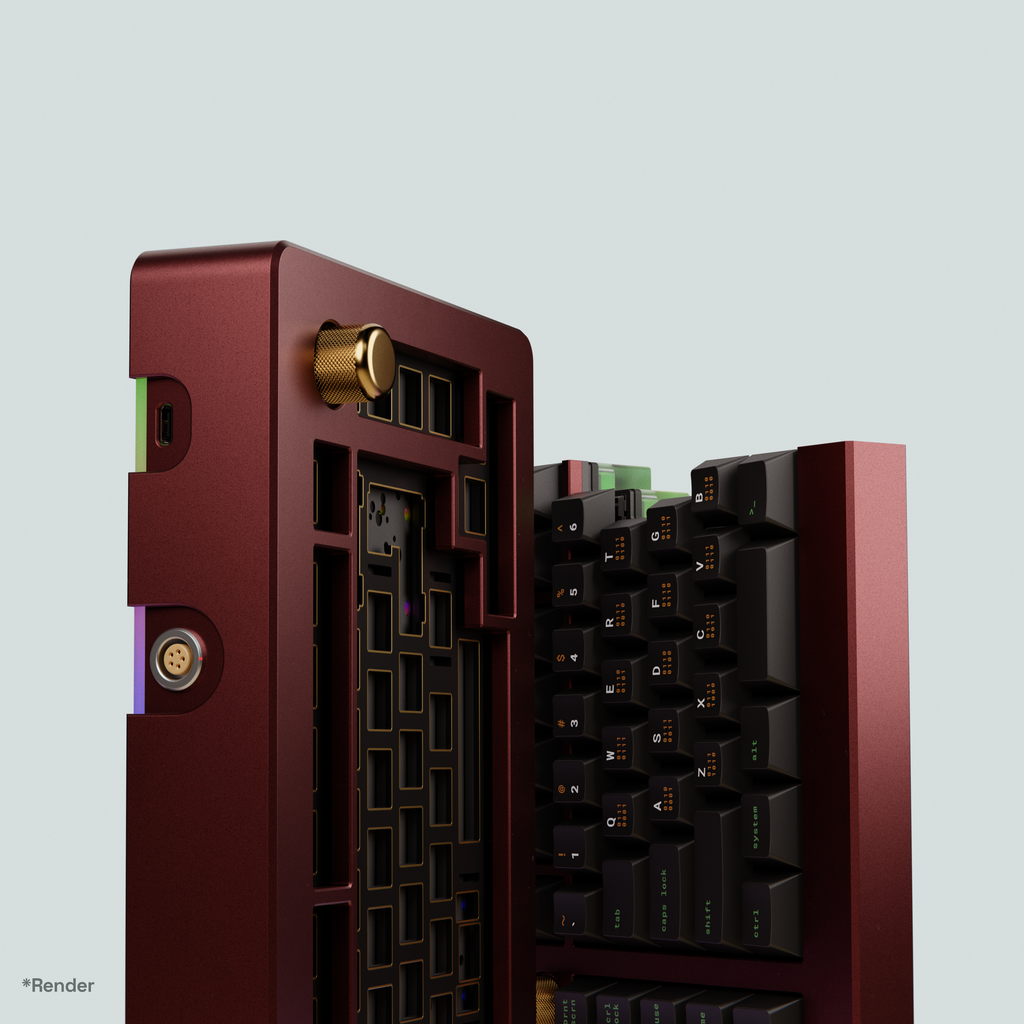

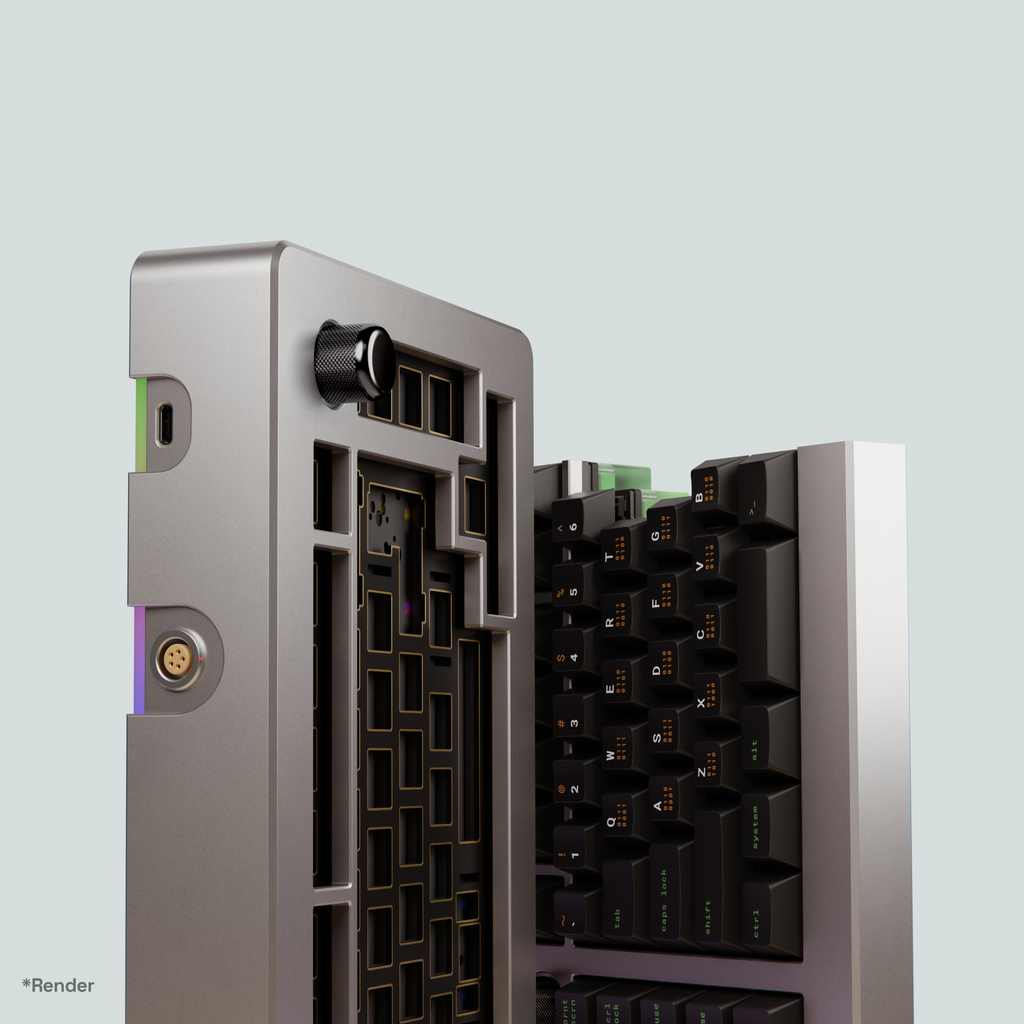

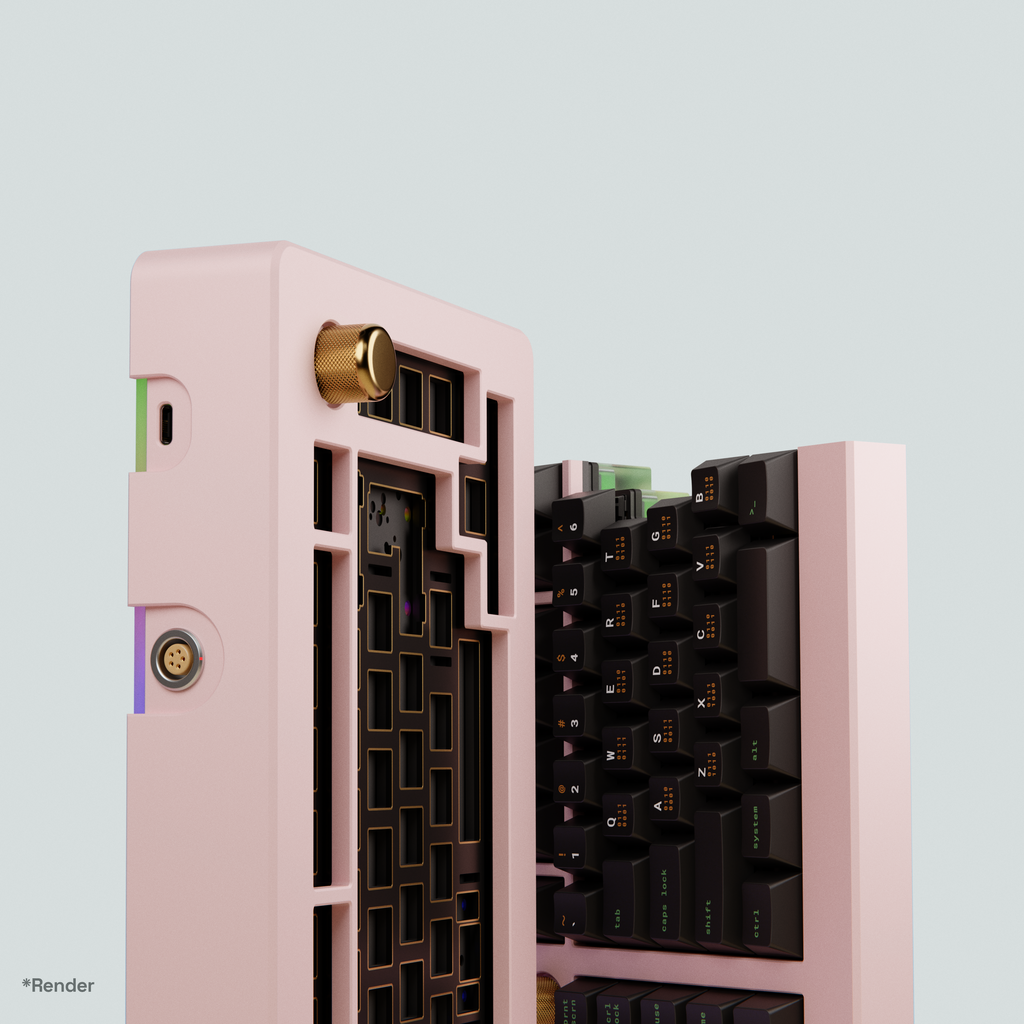

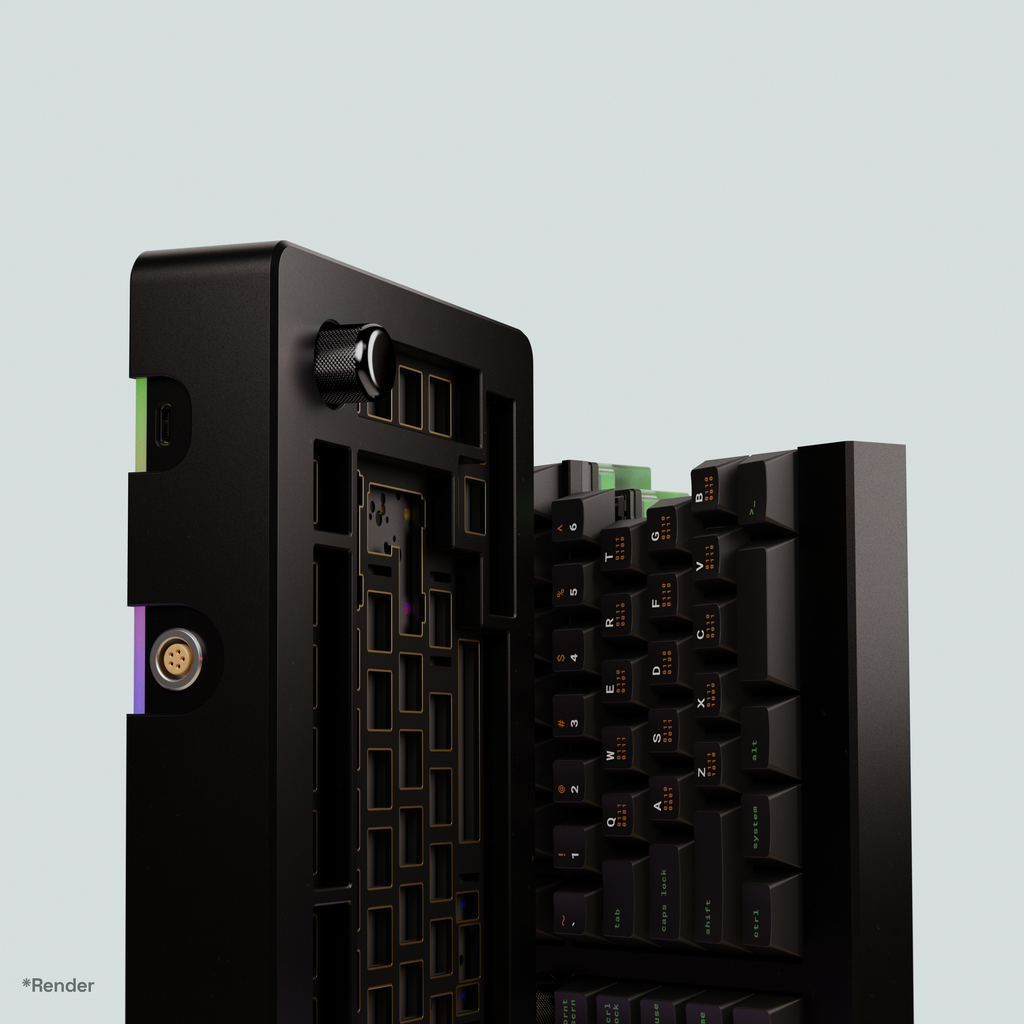

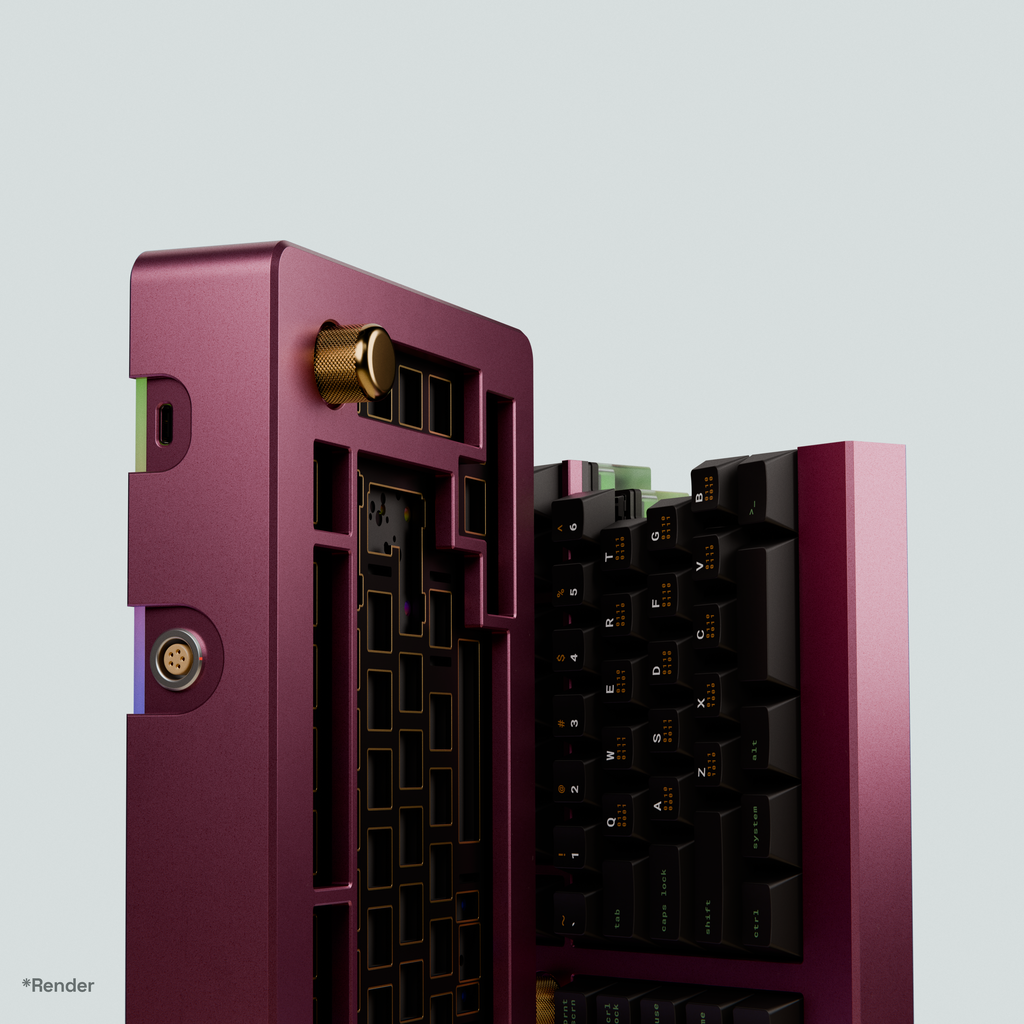

- 6063 aluminum frame w/ anodized or electrophoretic finish

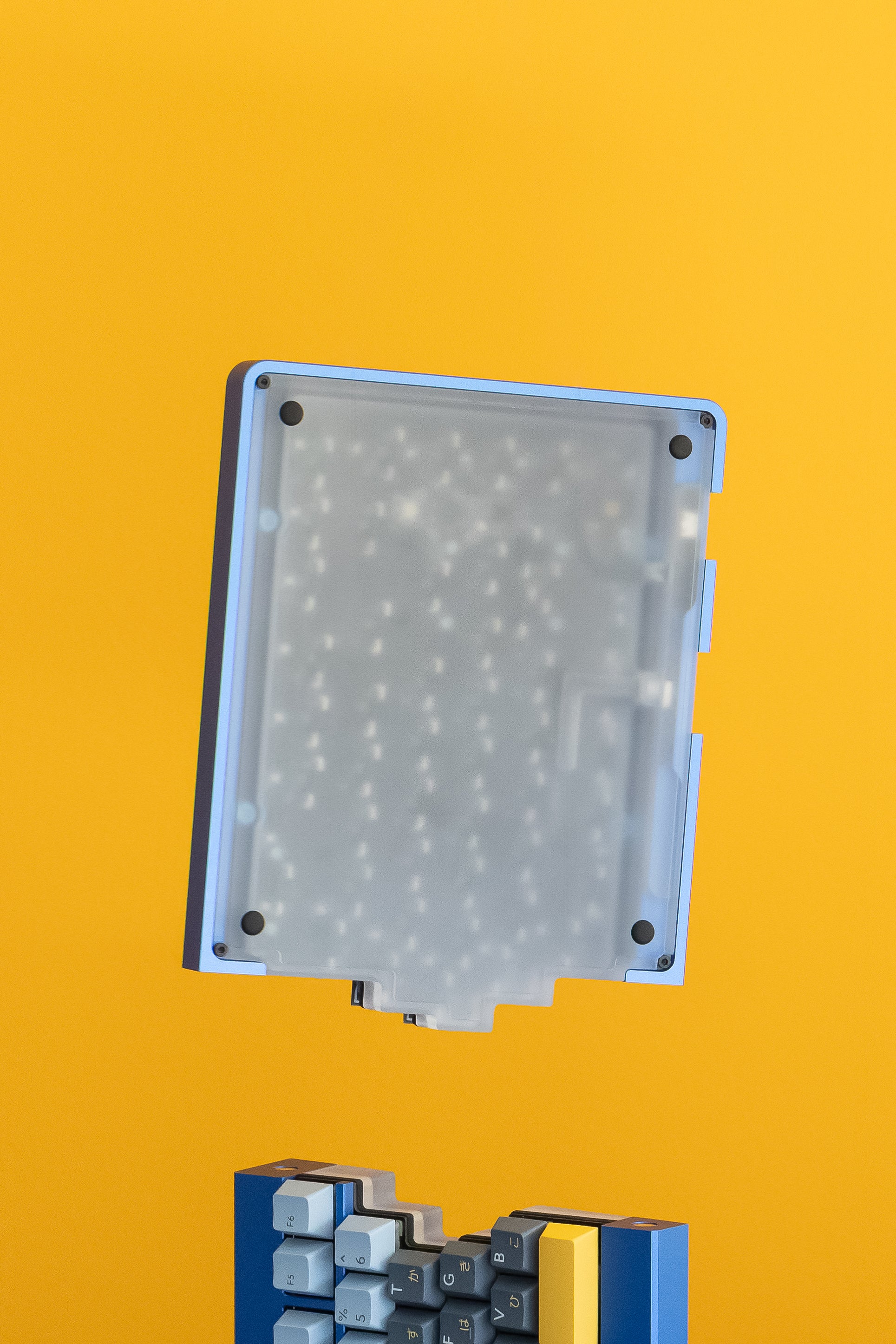

- Polycarbonate base w/ frosted finish

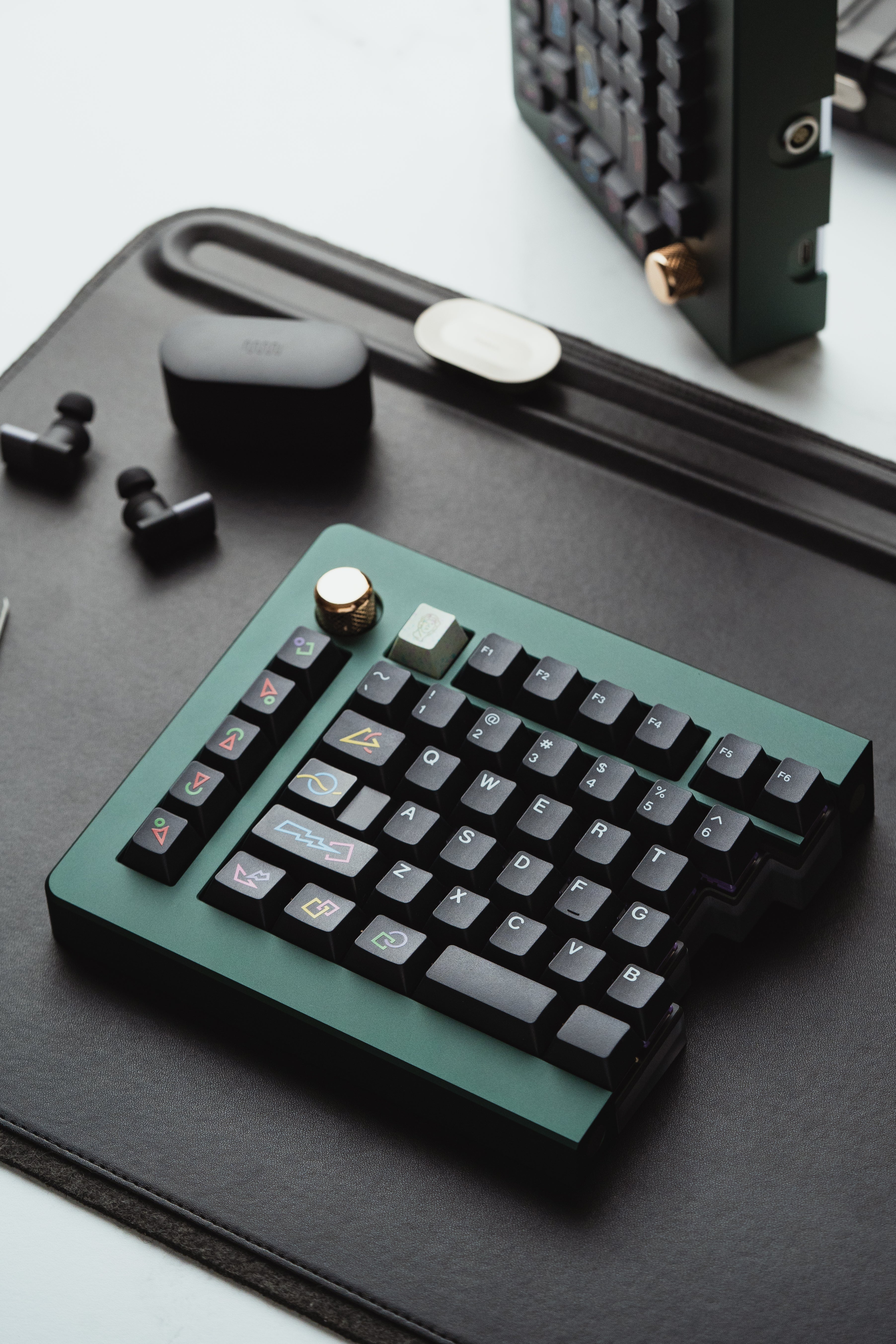

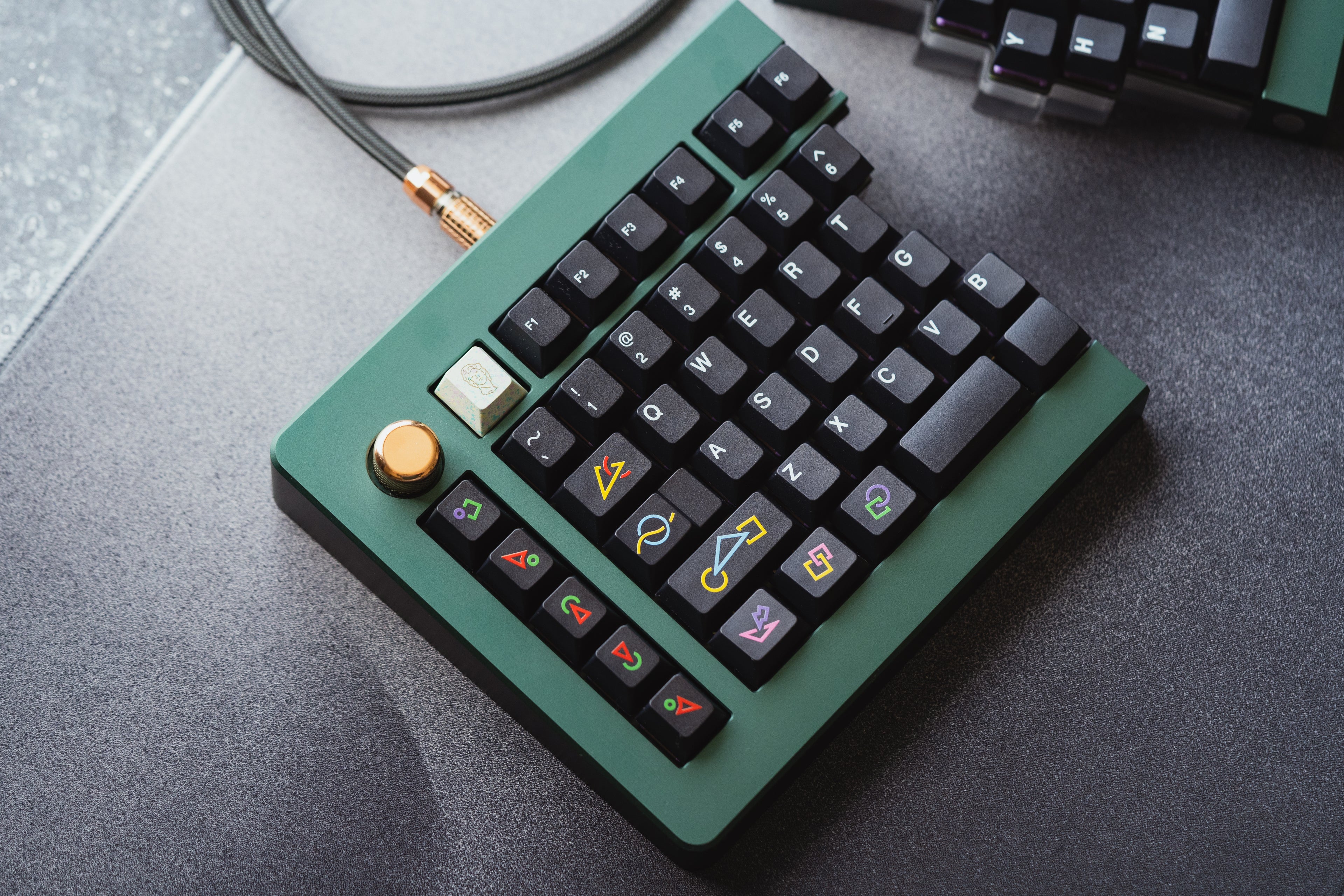

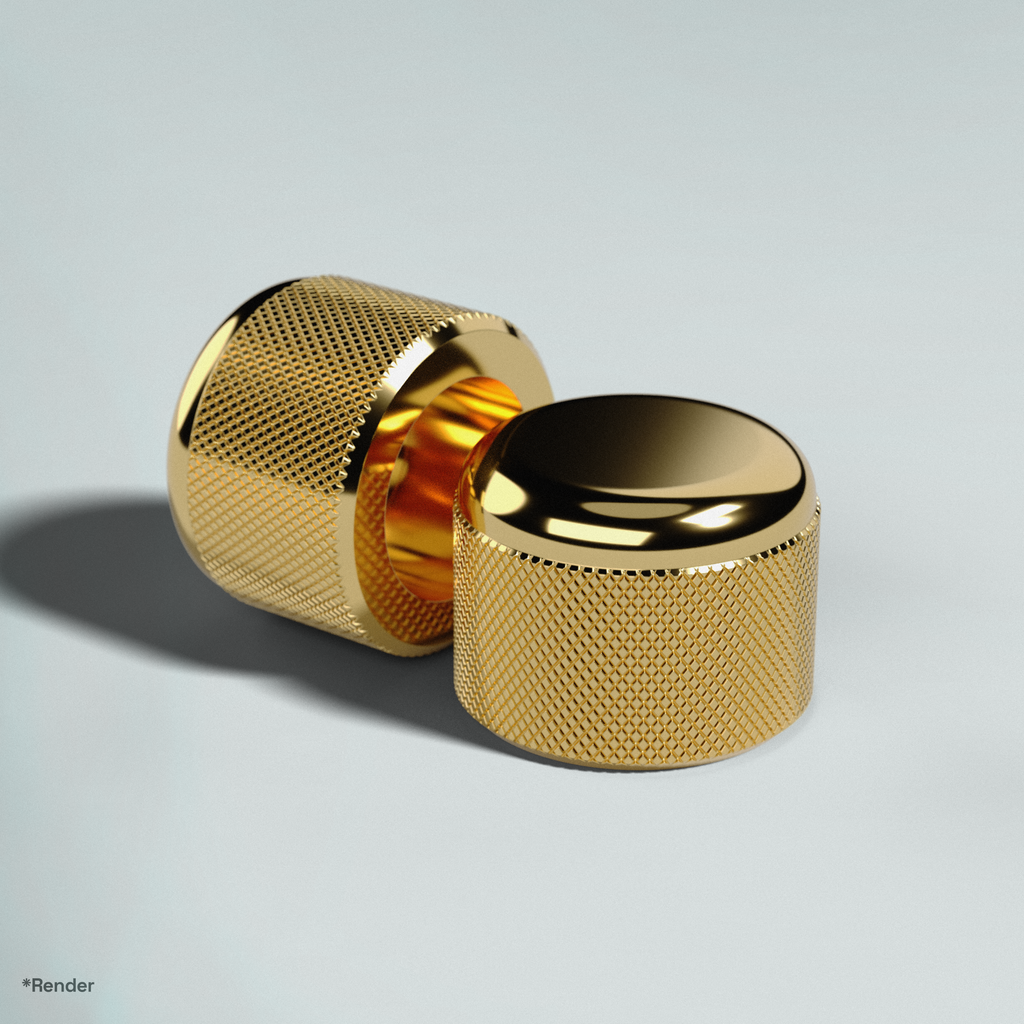

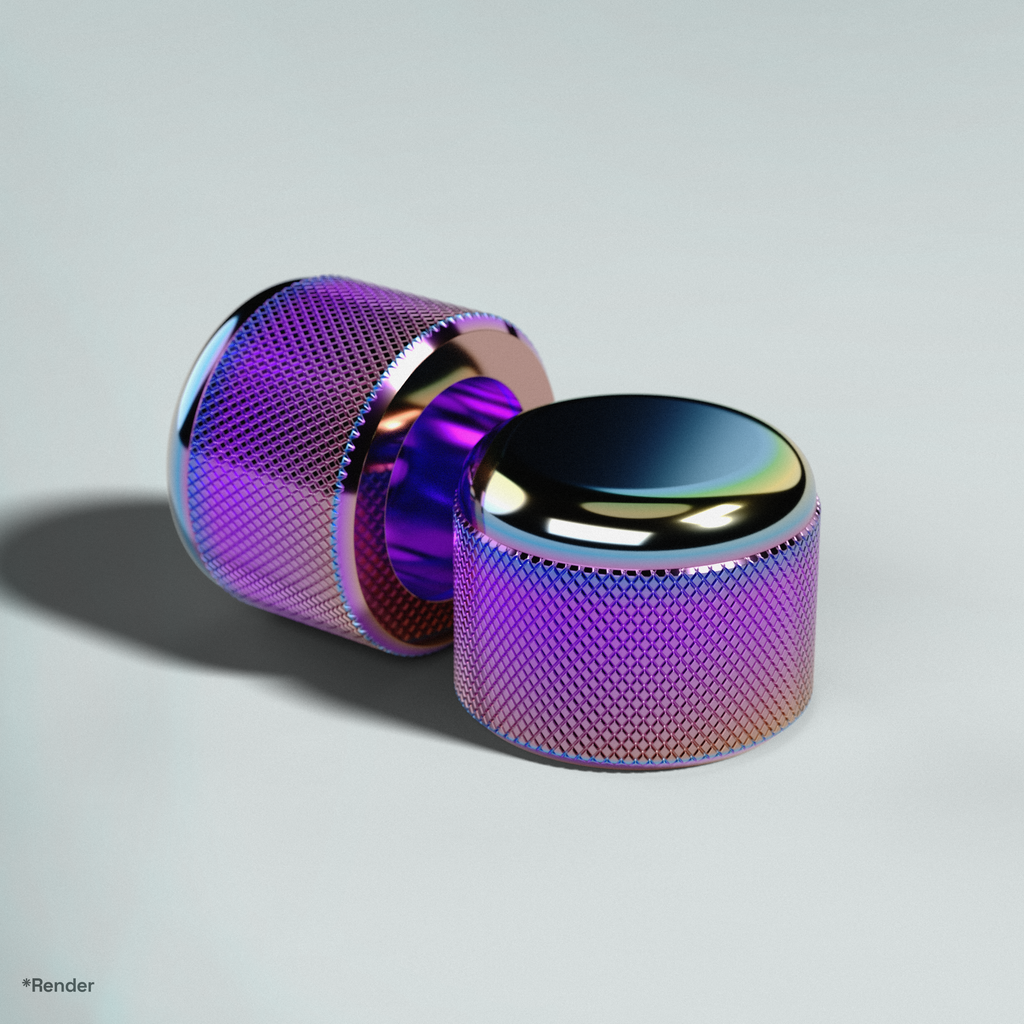

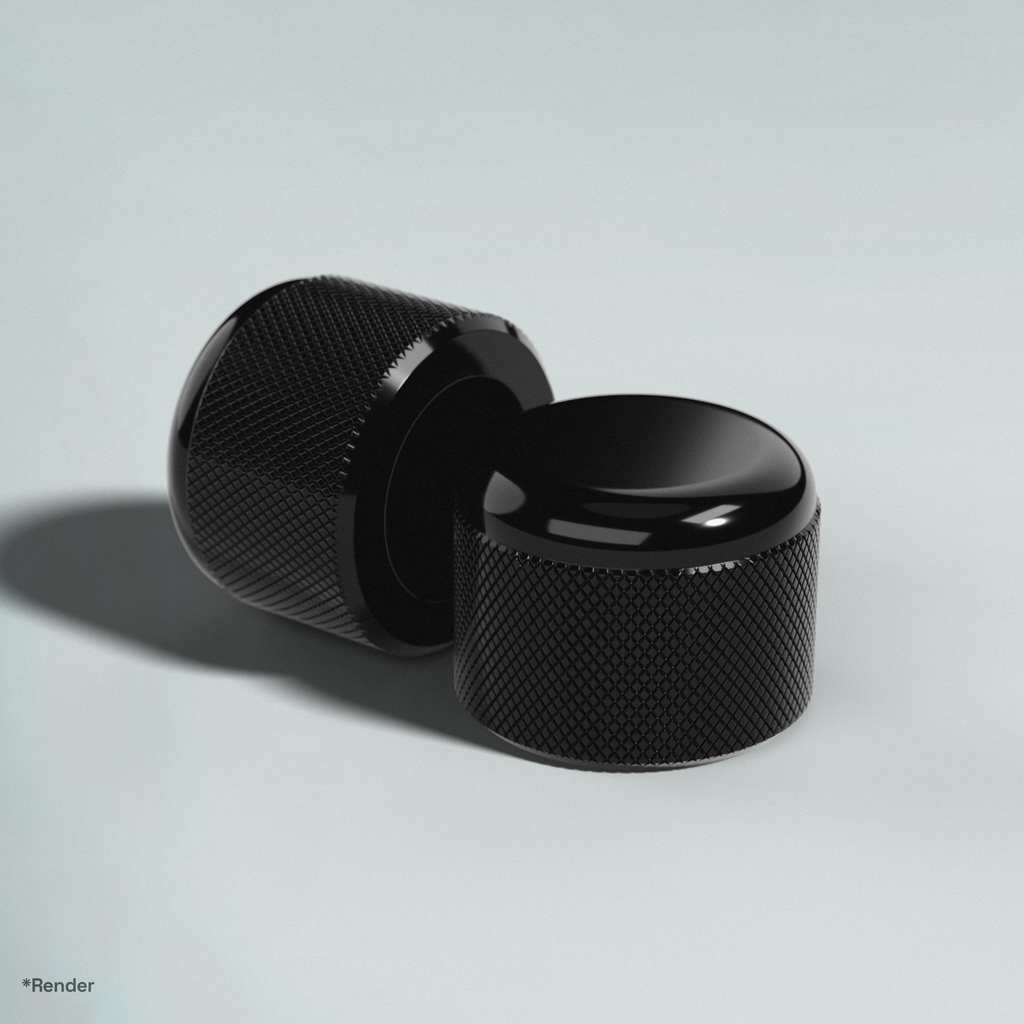

- PVD coated brass knobs w/ gold, black, or chroma (rainbow) finish
- Aluminum knob mounts
- PORON gaskets and switch pads
- Plates:

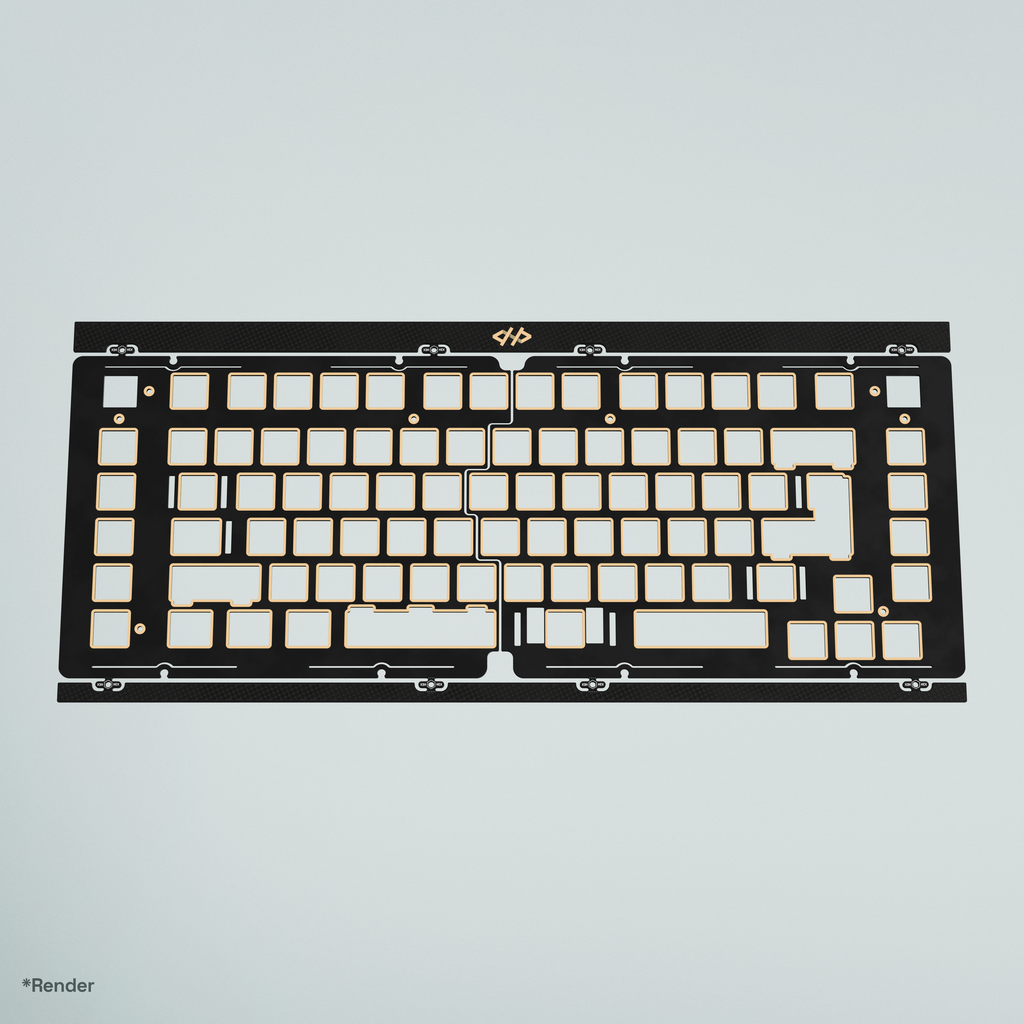

- Black-core FR4, ENIG finish (included)

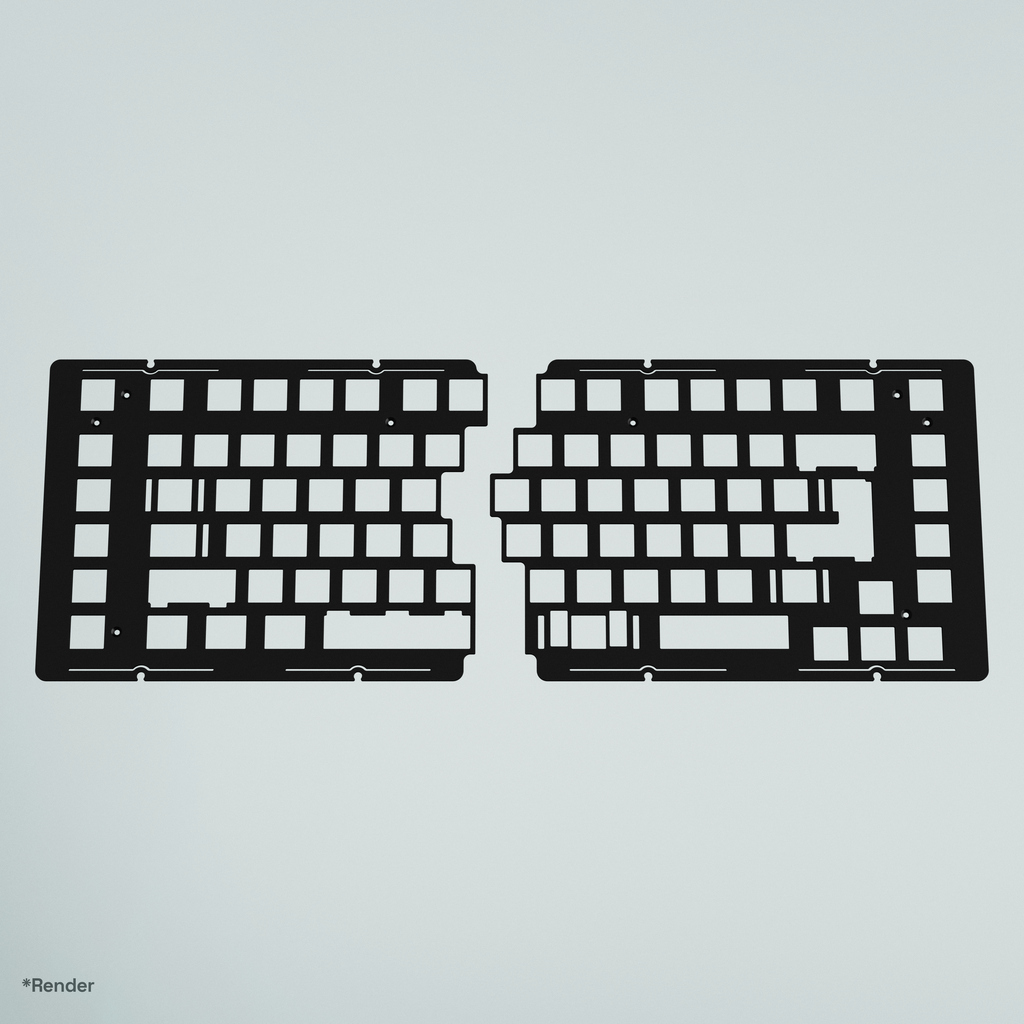

- 5052 aluminum, anodized black

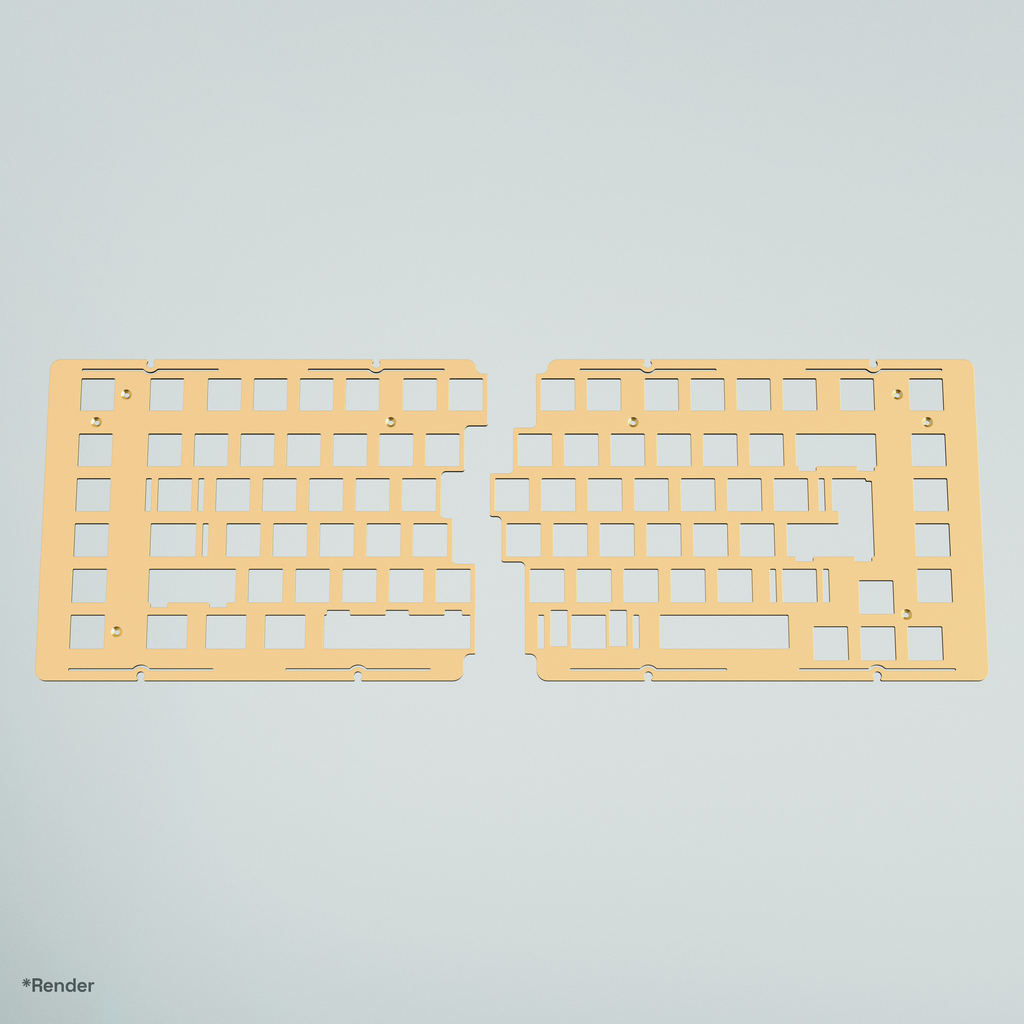

- Brass

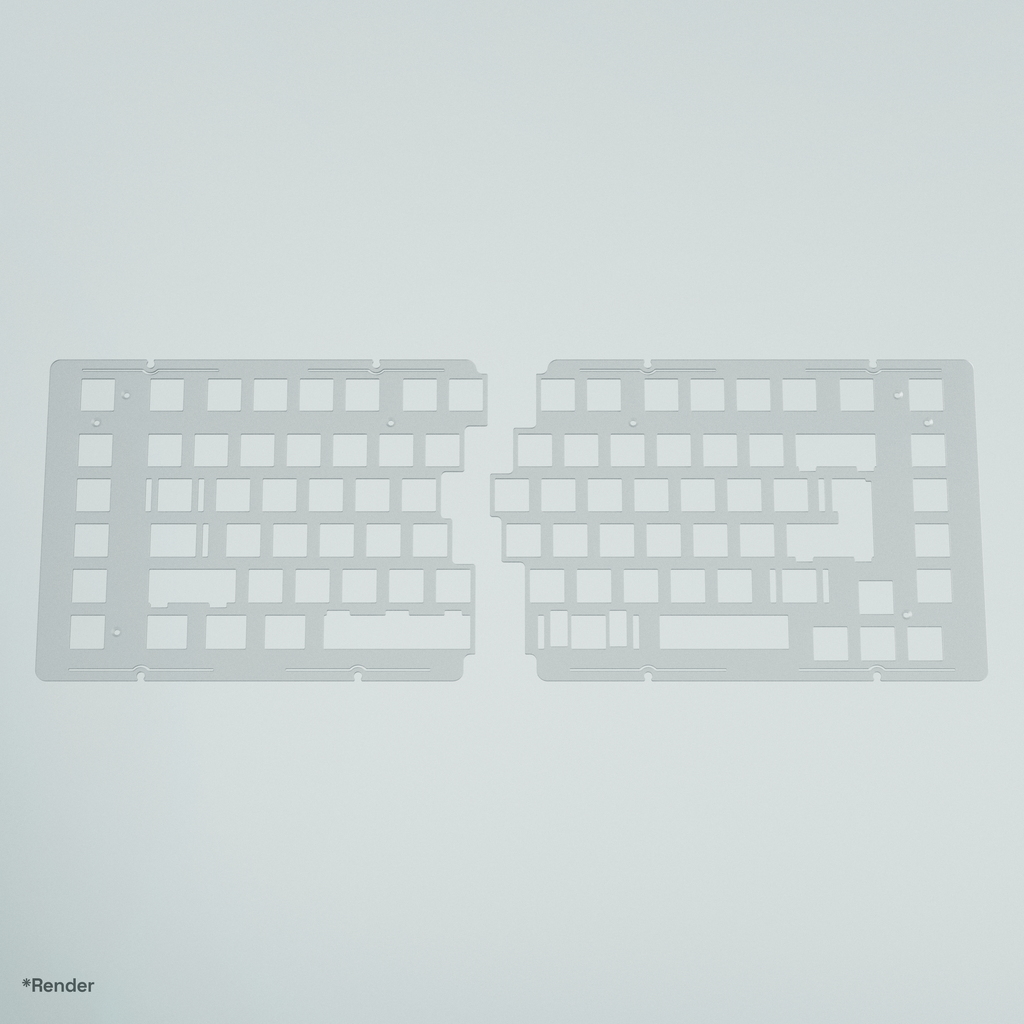

- Polycarbonate, clear

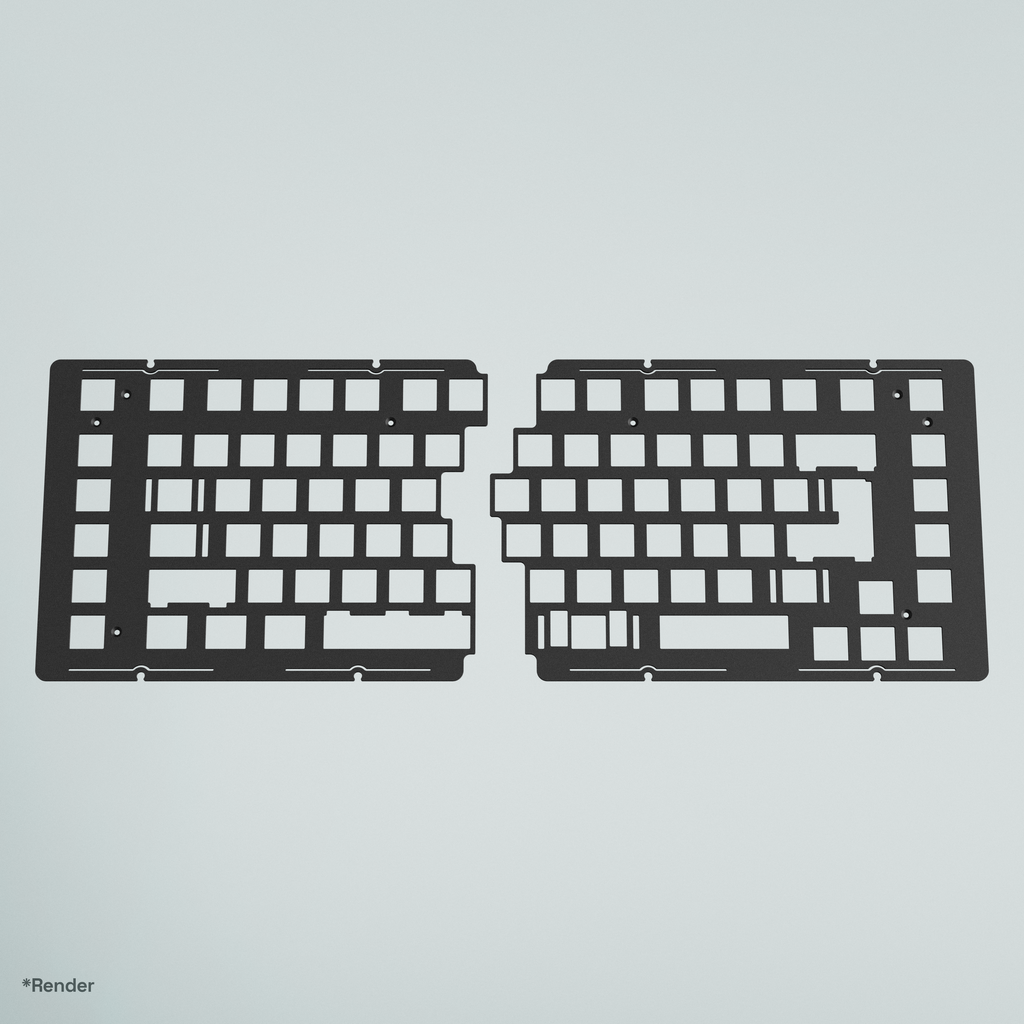

- POM, black
- Carbon fiber

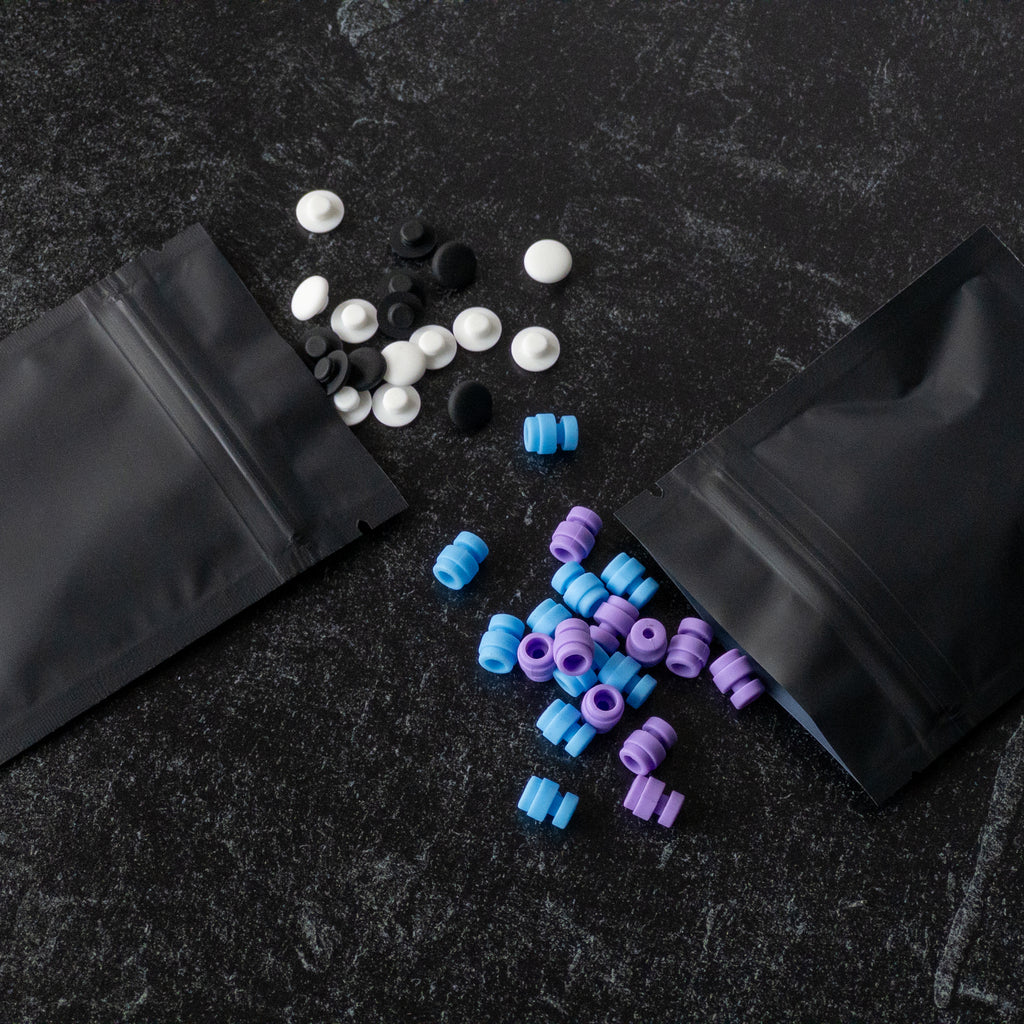

- Silicone Parts:
- 50A and 70A grommets
- 70A knob mount O-rings
- 50A friction-fit feet (no adhesive required)
- Keyboard:
- Mounting:

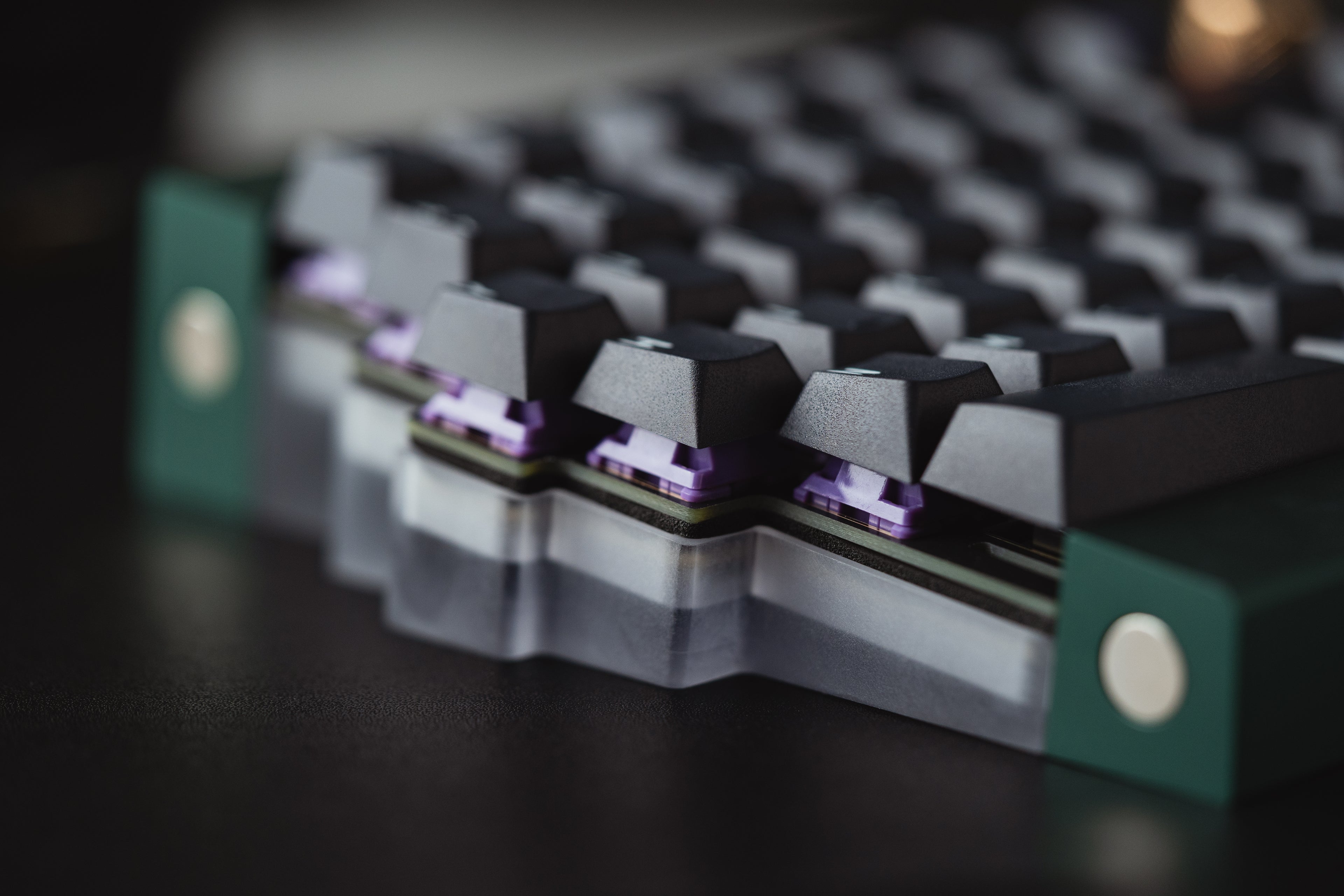

- Hybrid system combining PORON foam gaskets and snap-in silicone grommets
- Foam gaskets double as acoustic dampening between switch plate and PCB
- Silicone grommets support both top-mount (with M2 screws) and friction-mount (screw-less) styles
- Cable & Connections:
- Wired USB-C connectivity

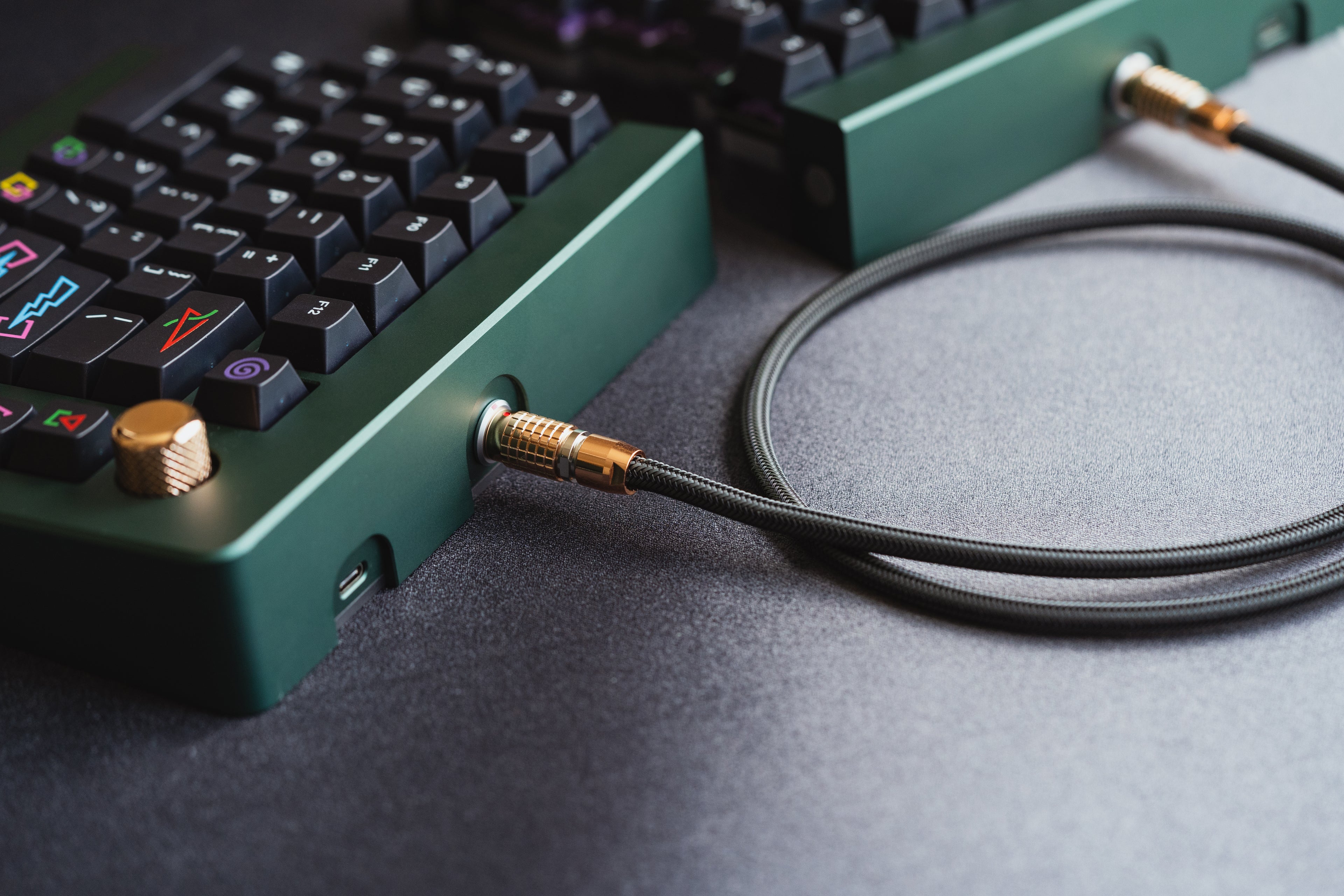

- LEMO-compatible EGG.1B.305 panel-mount sockets

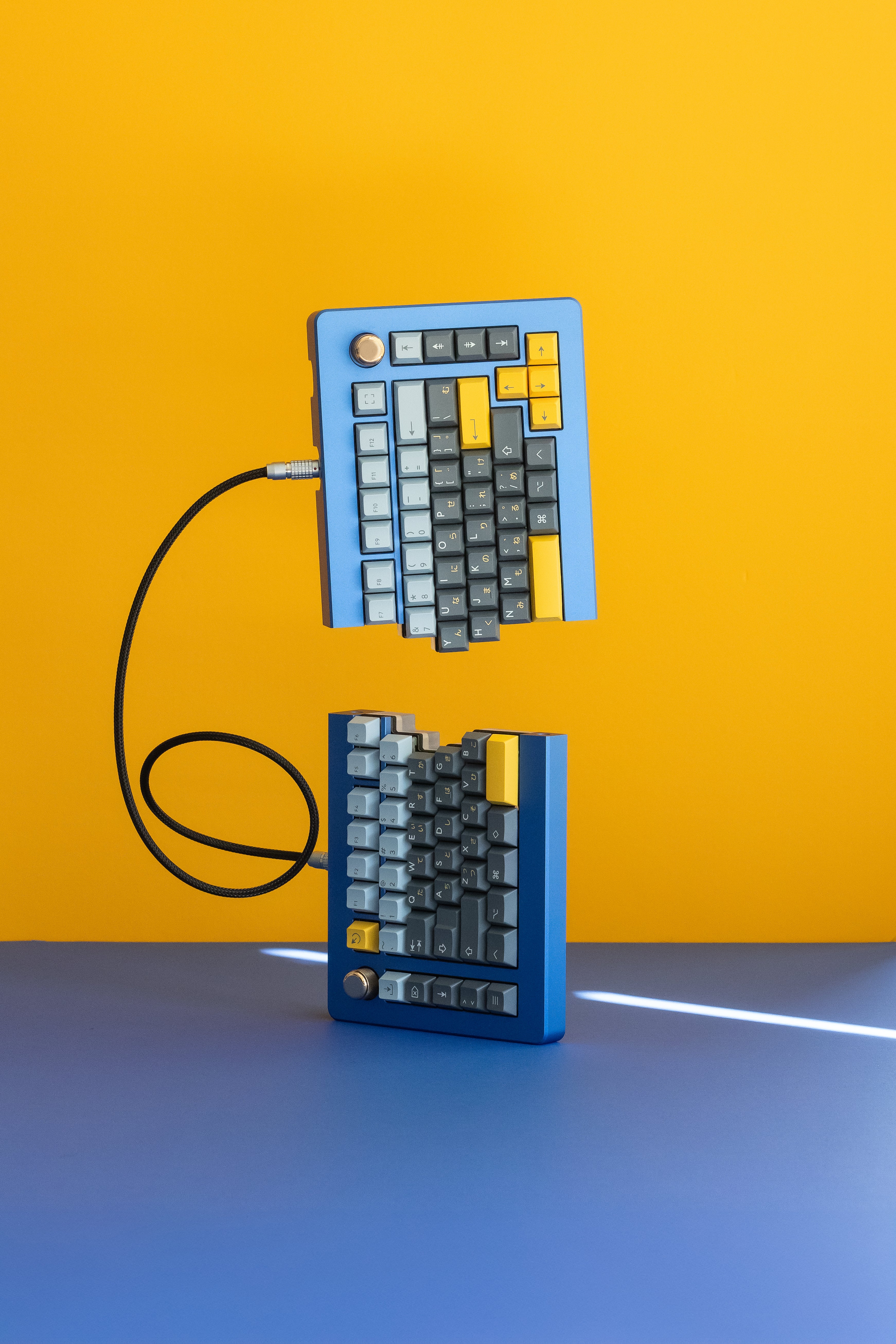

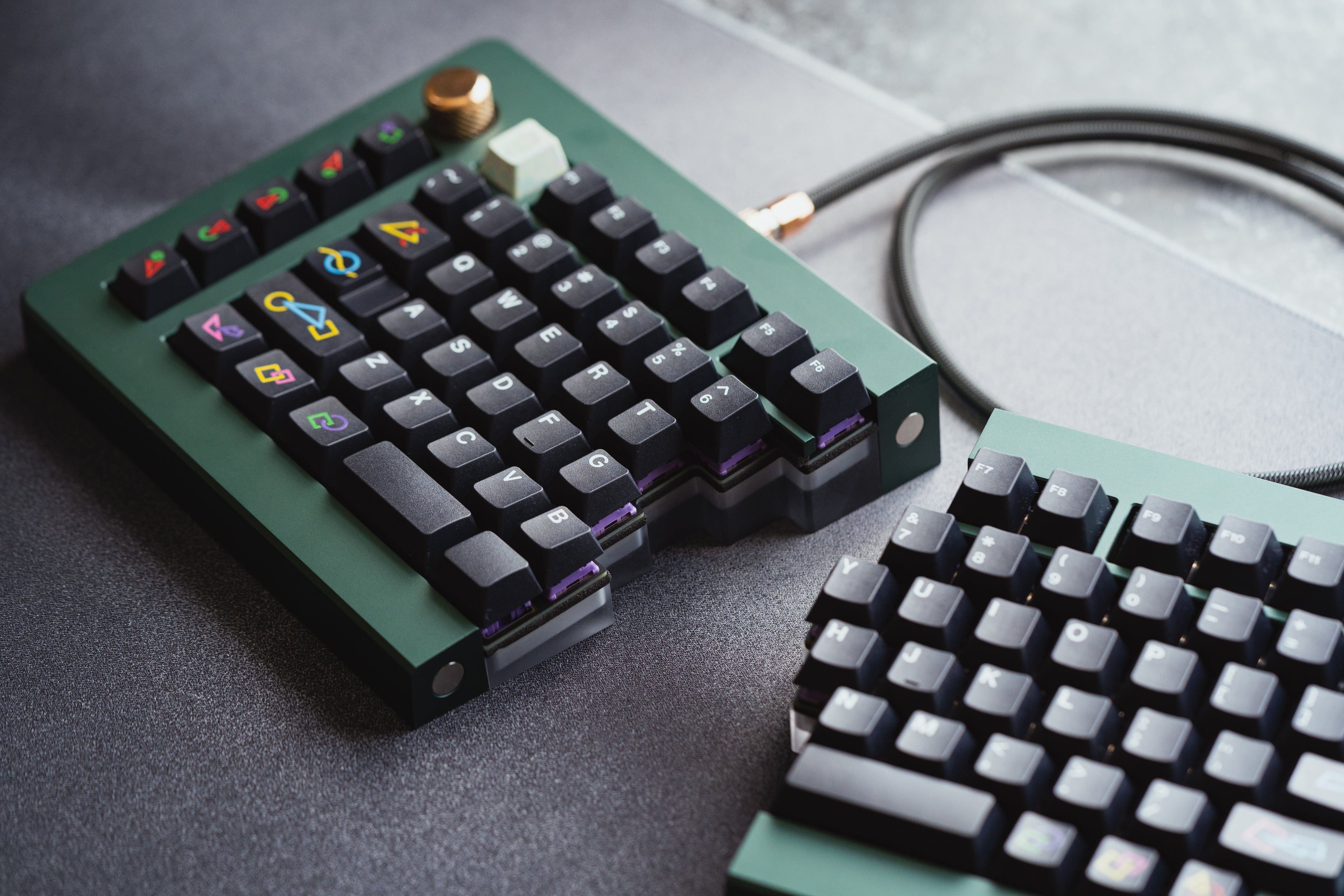

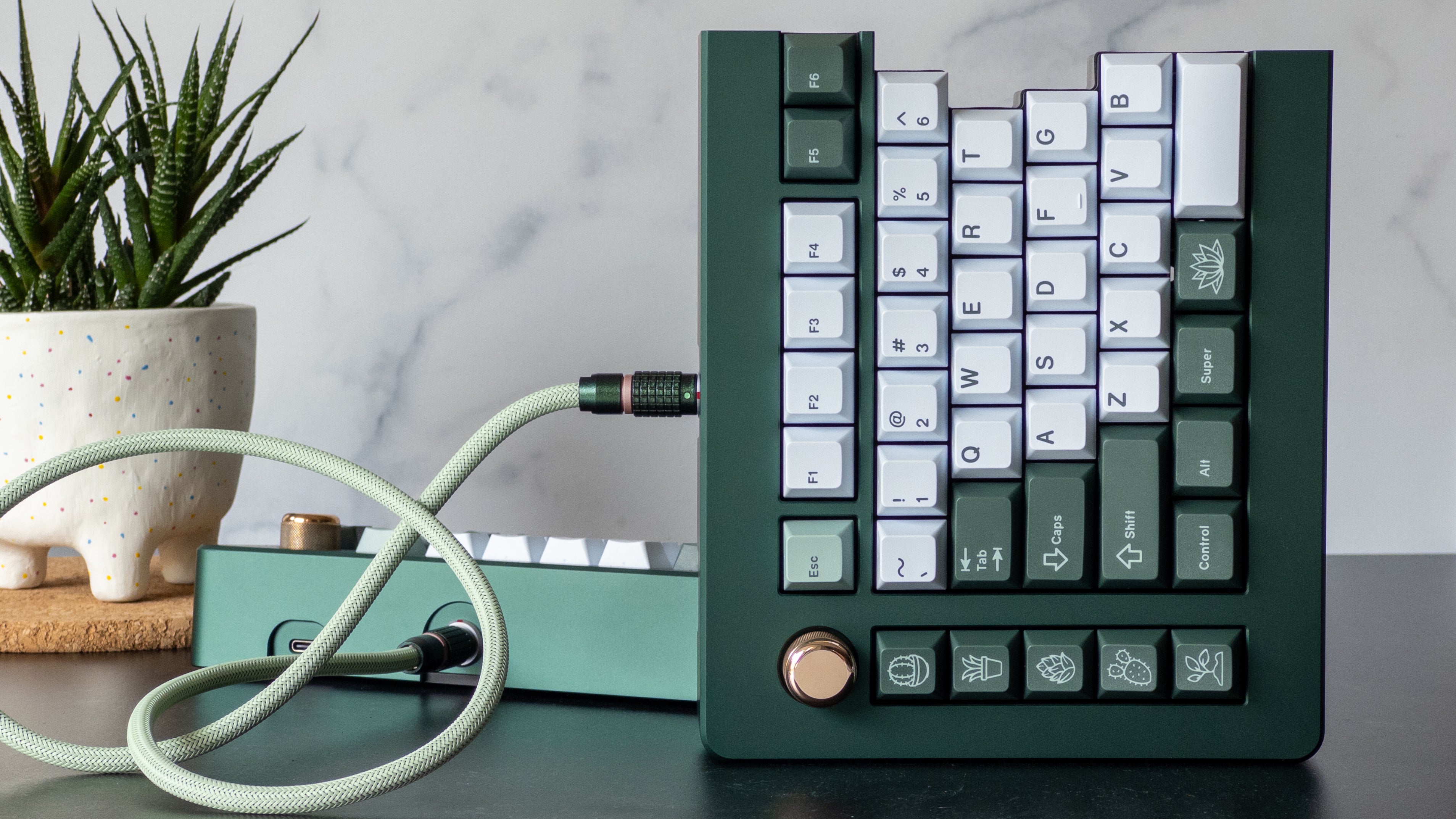

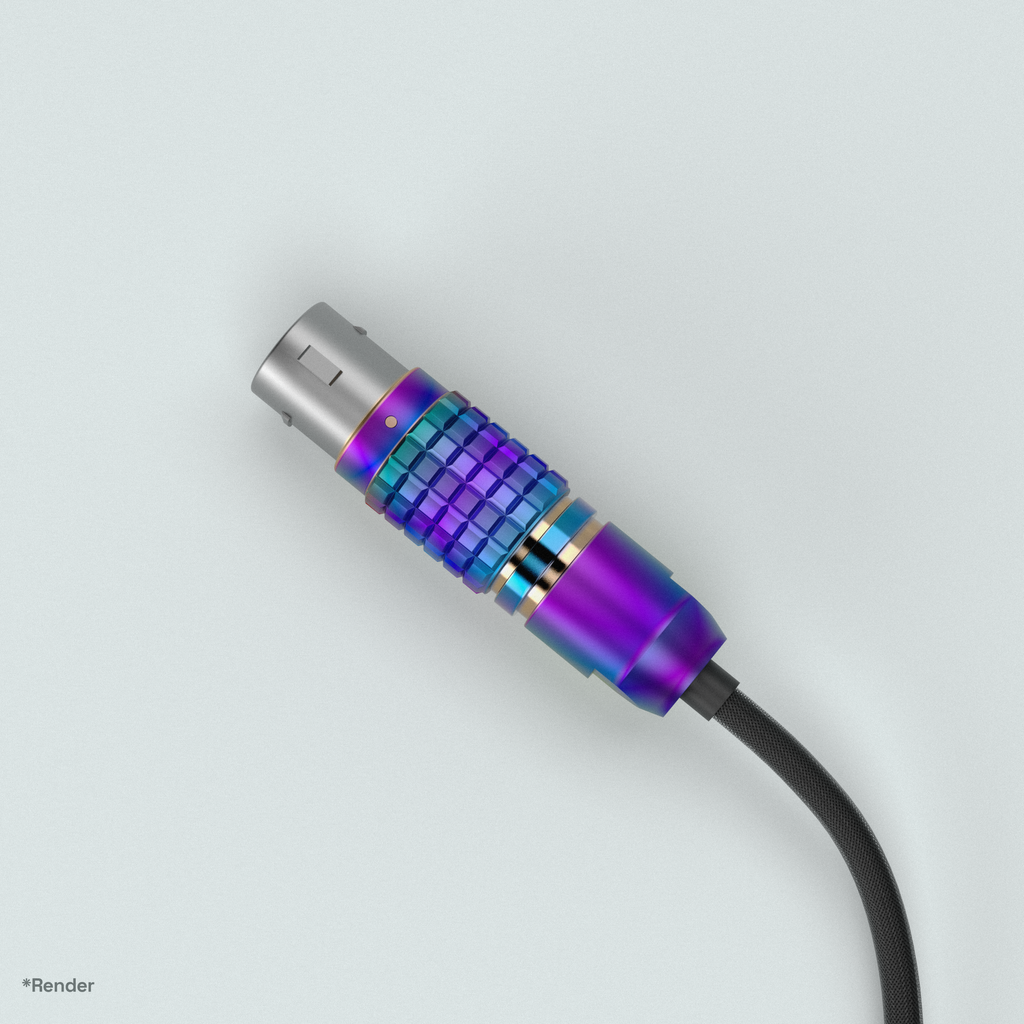

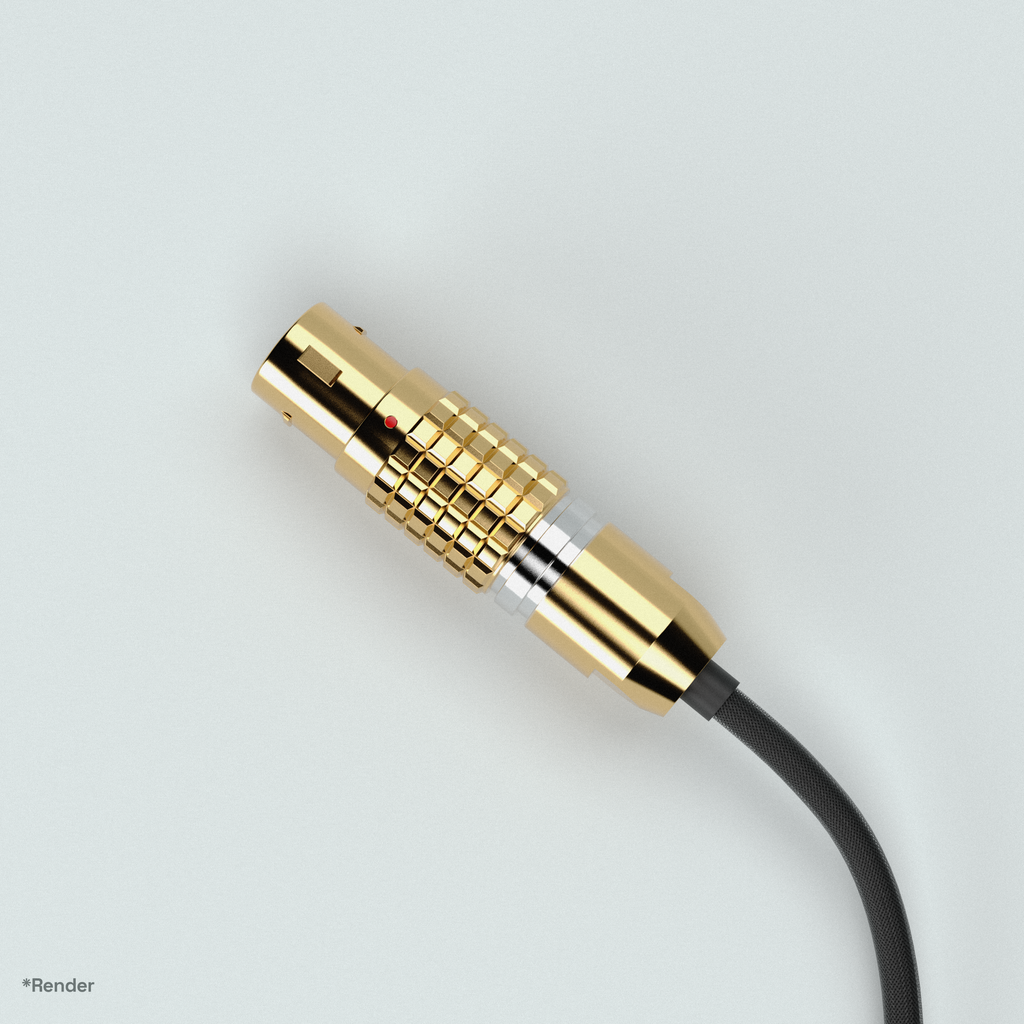

- Interconnect cable:
- 0.8m length
- Woven PET outer sleeving
- 22/28 AWG conductors
- Shielded USB data lines
- LEMO-compatible FGG.1B.305 push-pull connector
Kit Contents:
- Keyboard case (aluminum frame + polycarbonate base)
- PCBs & daughterboards
- Flat flexible cables (FFCs) for daughterboards
- LEMO-compatible panel-mount connectors w/ cable
- LEMO-compatible interconnect cable
- FR4 plate

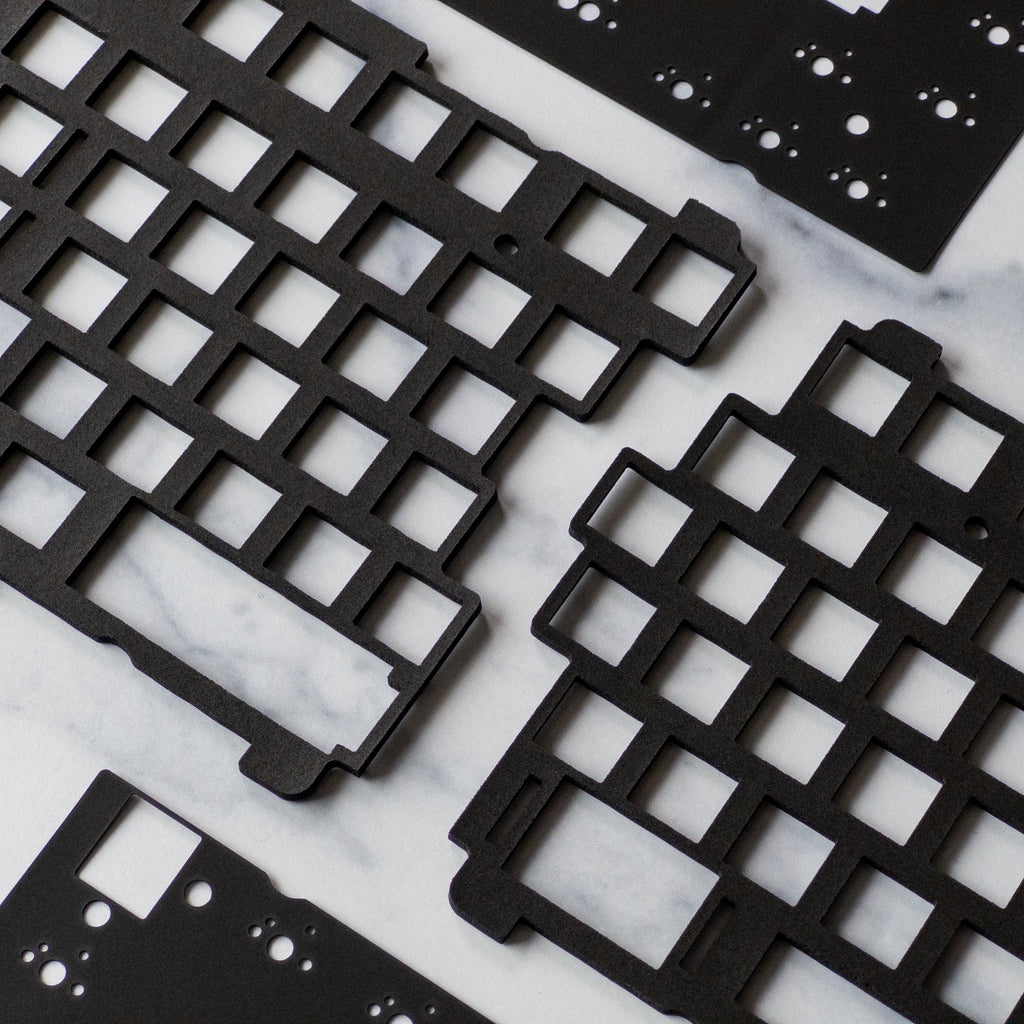

- PORON plate gaskets
- PORON switch pads
- Magnets
- Knobs
- Knob mounts
- Knob mount set screws
- Knob mount silicone o-rings
- Friction-fit silicone feet (1 set black + 1 set white)
- Silicone grommets (1 set 50A (blue) + 1 set 70A (purple))
- Grommet screws
- Daughterboard screws
- Case screws
- Magnet screws
- Plate standoffs and screws
- Assorted tools
- Custom carrying case

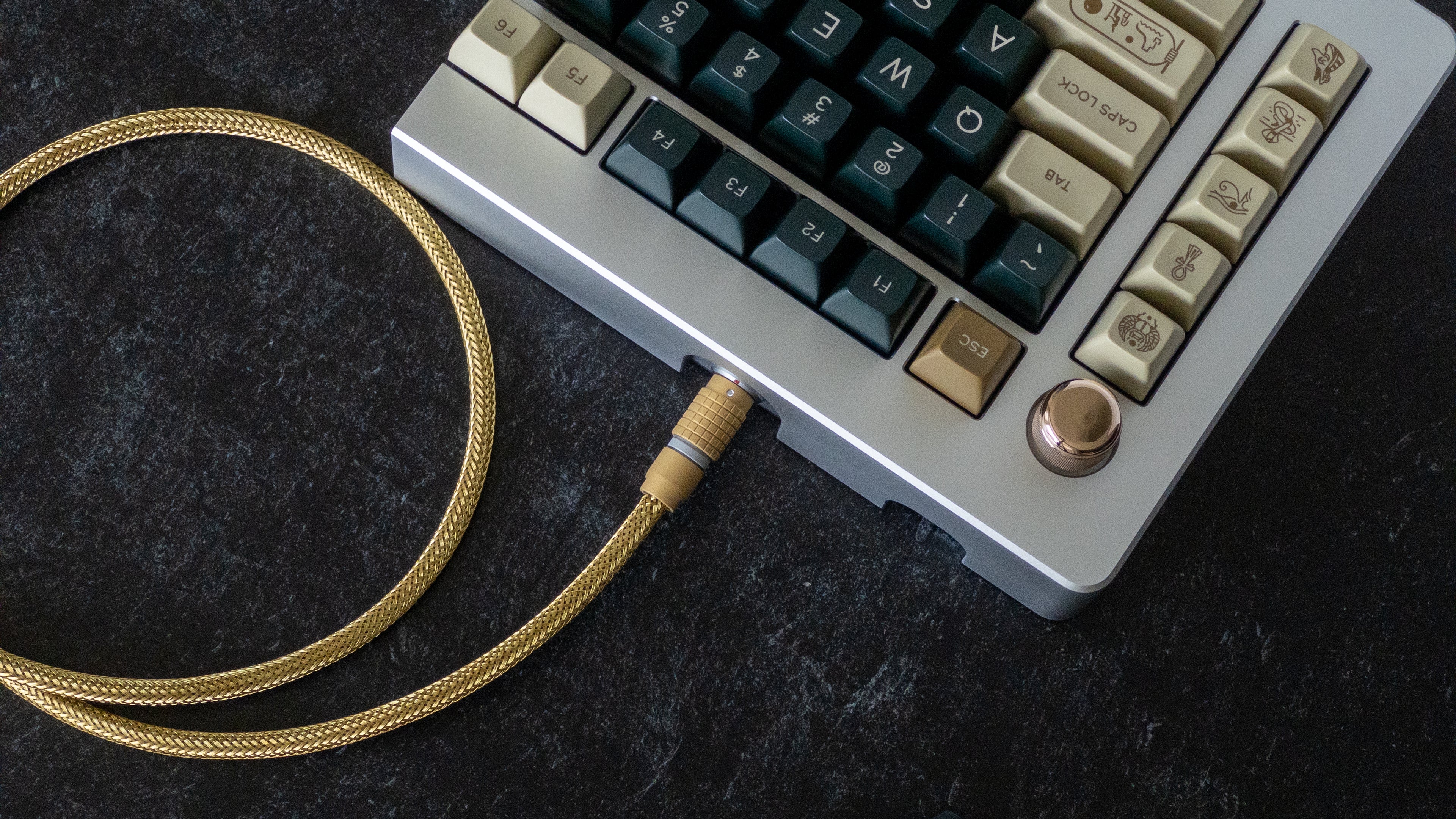

Theseus75 x VoxelMods Cables:
https://www.voxelmods.com/official-theseus-75-collab

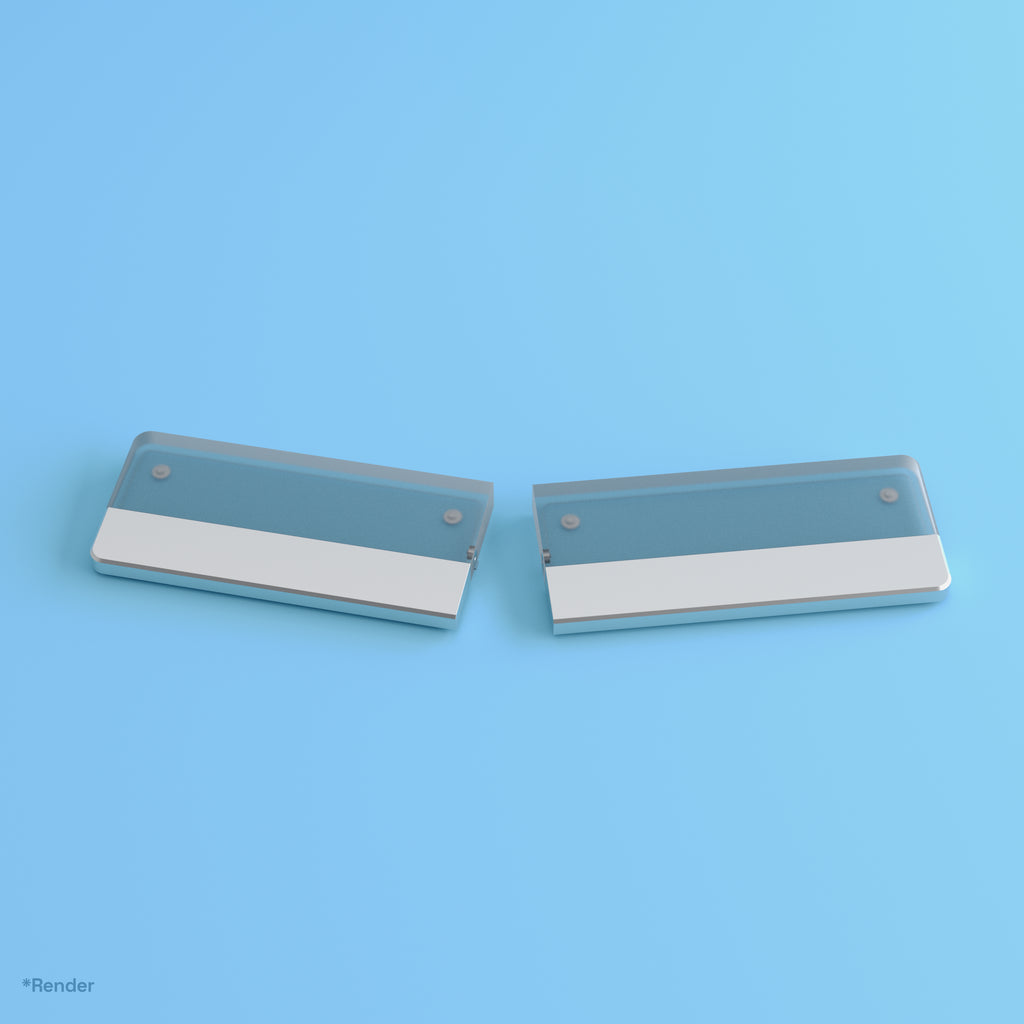

Wrist Rest Specifications:
- Magnetic
- Polycarbonate body
- Aluminum front lip
International Vendors:
- US: Dangkeebs
- Canada: Deskhero
- UK: Proto[Typist]
- EU: KEYGEM
- Oceana: ALL CAPS
- Philippines: Zion Studios
- Singapore: iLumkb
- Vietnam: MOKB Store
- China: zFrontier
