DEADLINE Studio NewRetro#66v3 Keyboard Kit - Group-Buy

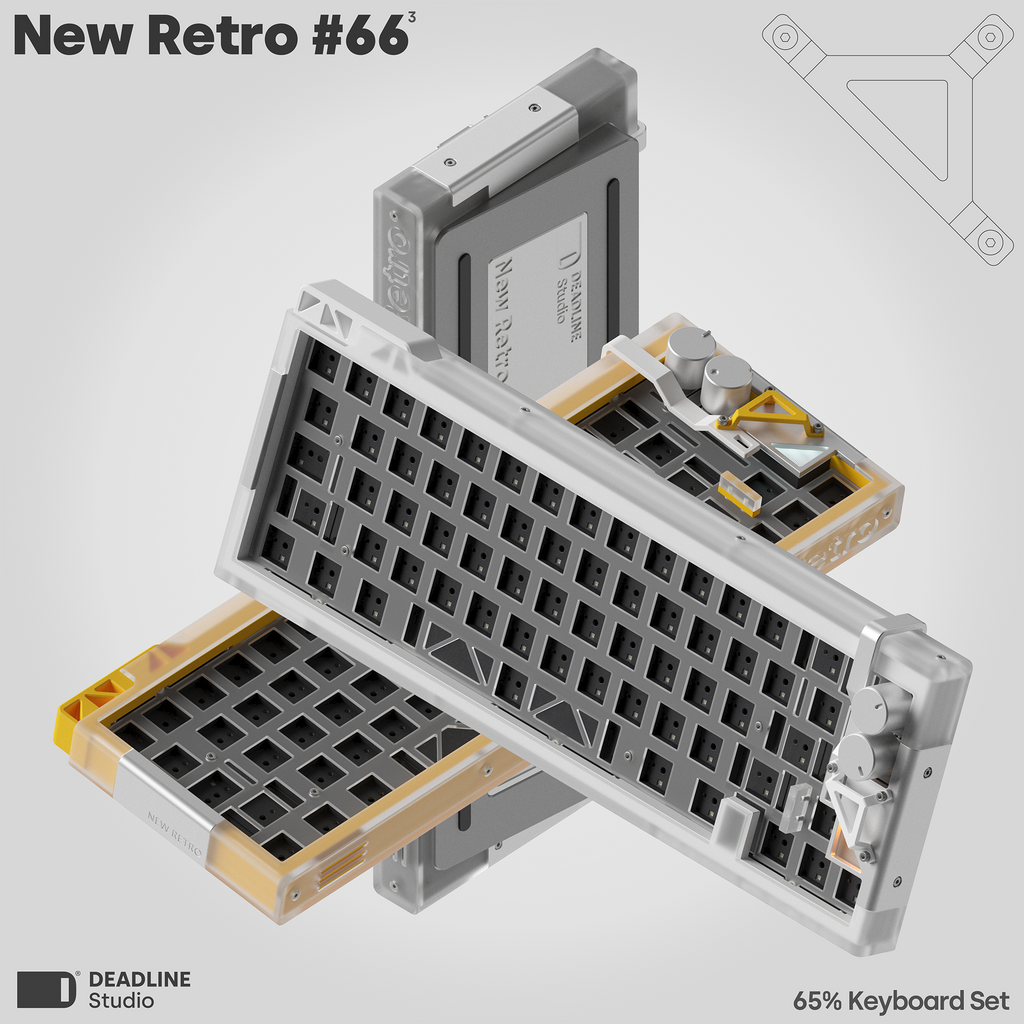

New Retro v3 continues the previous retro-futuristic deconstructivism, employing triangular three-dimensional support brackets and connecting rods as the dividing anchor points for the input area.

The material and form factor have been refined based on v1, inheriting and further enhancing the design language of the NR66 series.

Preorder Starts: 1st January 2026

Preorder End: 31st January 2026

Shipping ETA: Q3 2026

Key updates in the appearance of v3 compared to v1/v2 include:

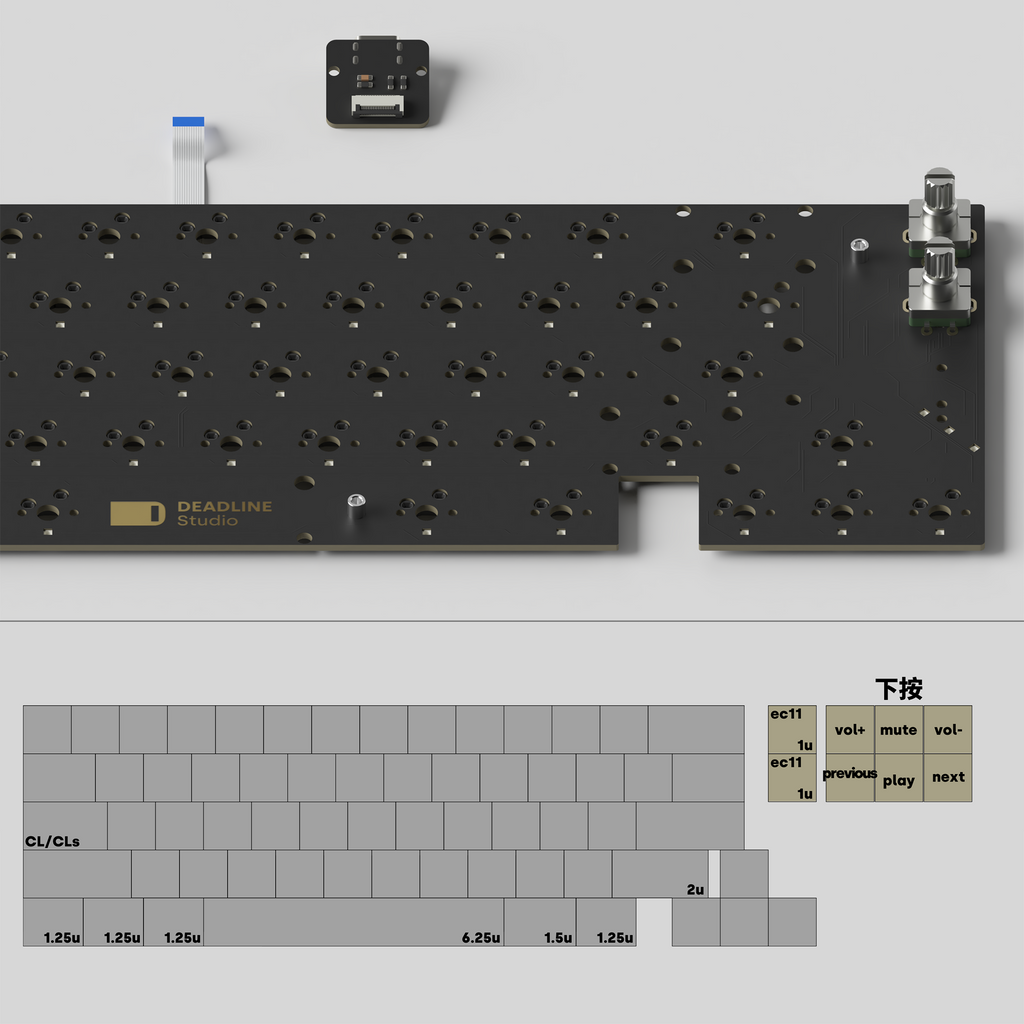

• The PCB retains support for solderable knobs while adding a status indicator light in the bottom-right corner, along with a new layout and mounting points for the positioning plate.
• Adjusted internal gasket structure.
• The transparent front and rear covers have been updated from PC to acrylic to eliminate purple/blue tints.
• The internal weight has been replaced with an external weight module that also functions as a battery compartment.

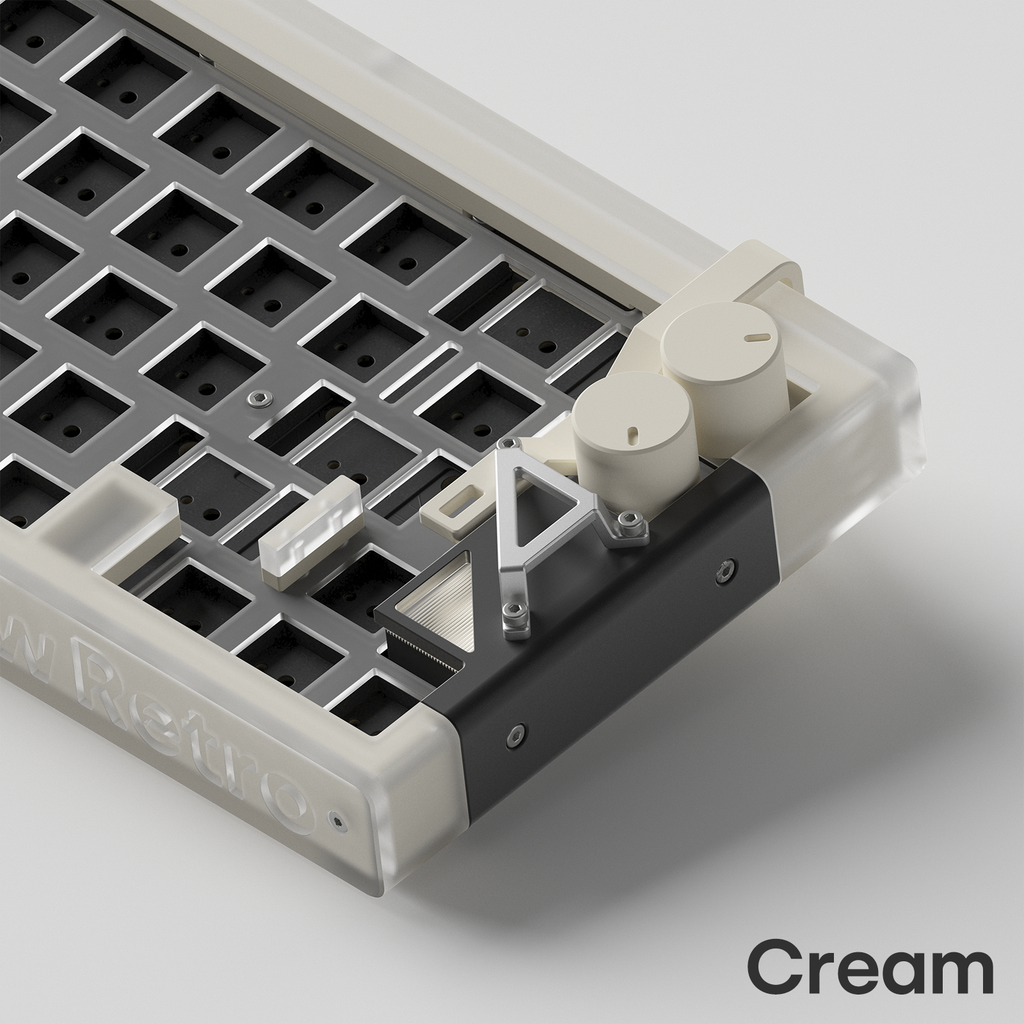

• Introduction of five new color options.

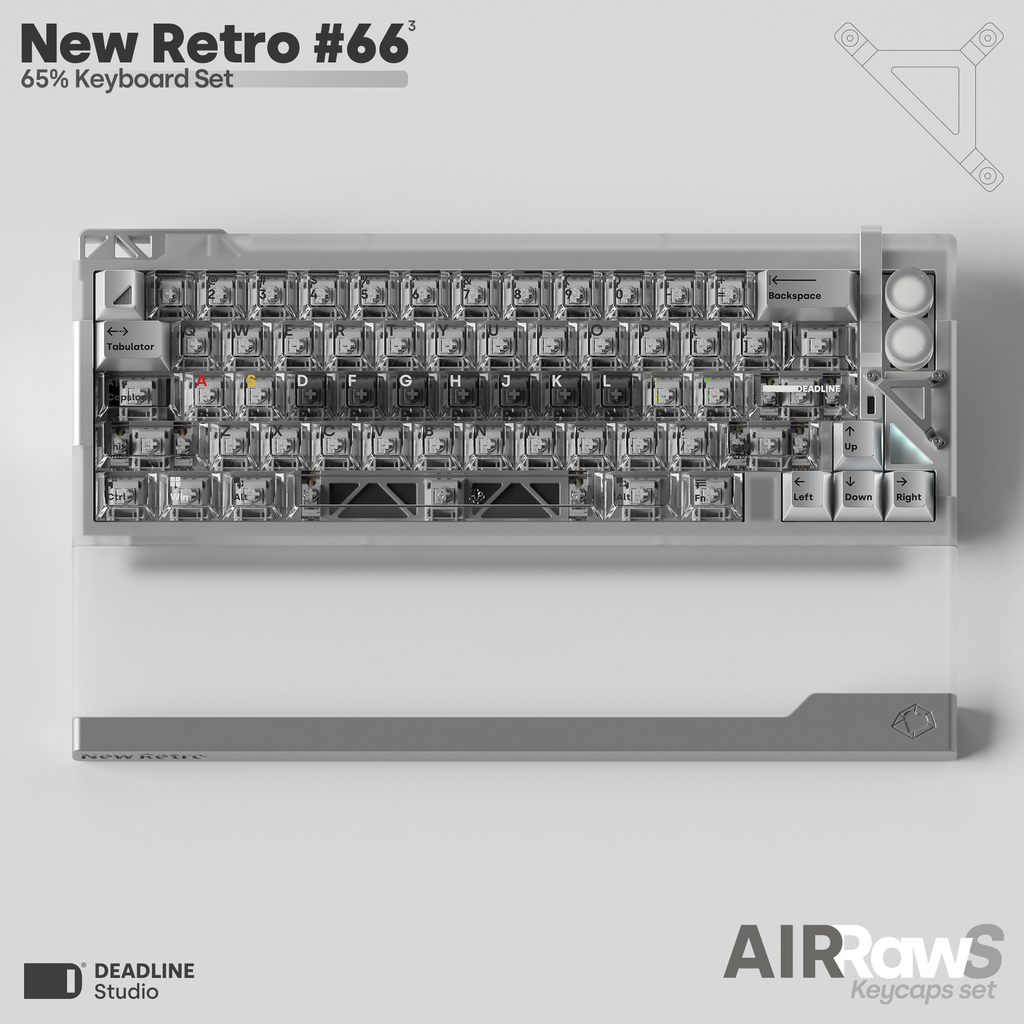

• Addition of a matching wrist rest design.

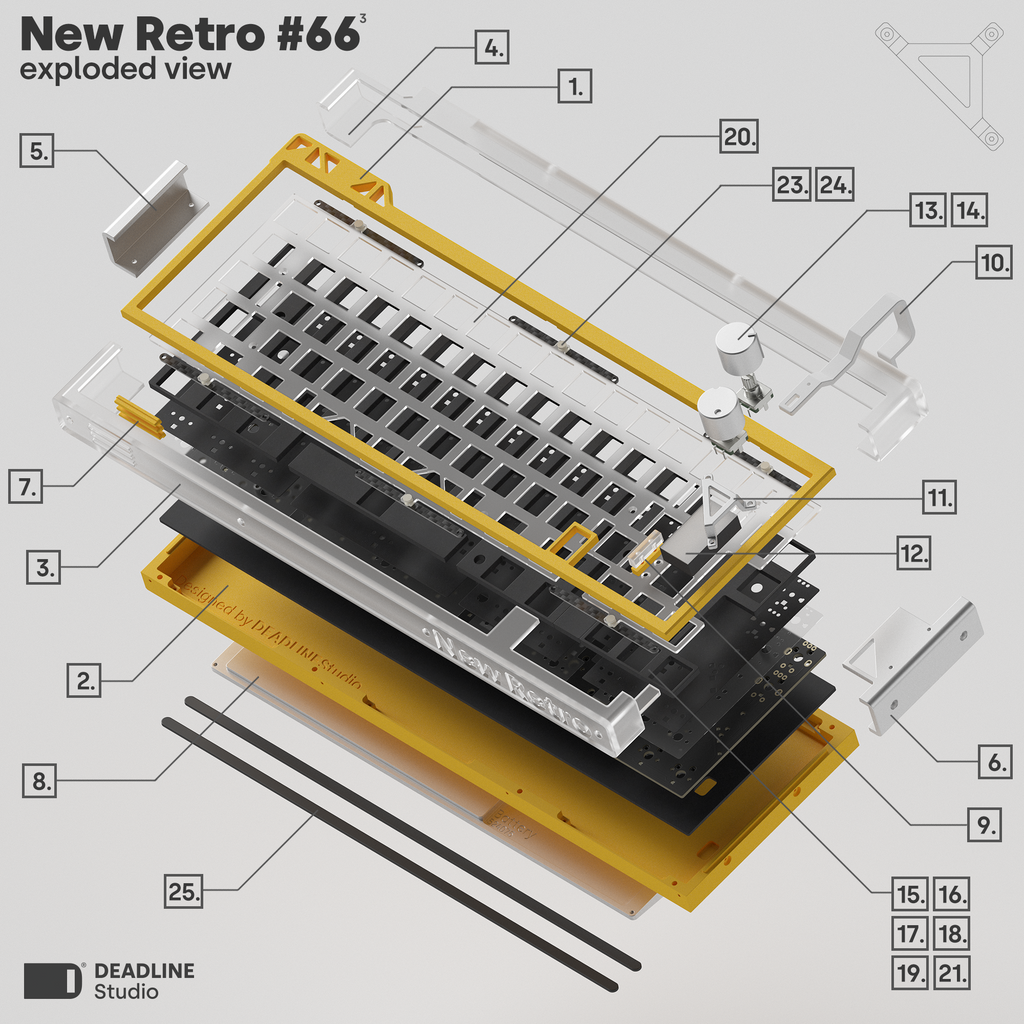

New Retro#66 v3 keyboard kit list：

• Top Cover
• Bottom Cover
• Back Panel
• Left Side Panel
• Right Side Panel
• Front Decorative Plate
• Internal Weight
• 0.25u Decorative Strip
• Weight Nameplate
• Connecting Rod
• Triangle Bracket
  13.PCB Decorative Block
• Knobs x2
• EC-11 Knob Encoders x2 (Knobs require removing the corresponding hot-swap
• switch sockets and soldering the encoders)
• Poron Bottom Foam
• Poron Plate Foam
• IXPE Switch Pad
• Plate ( PC/alu)
• Hot-swap PCB
• PCB Daughter-board
• Silicone Feet
• Carbon fiber gasket rubber
• Battery 2000mah
