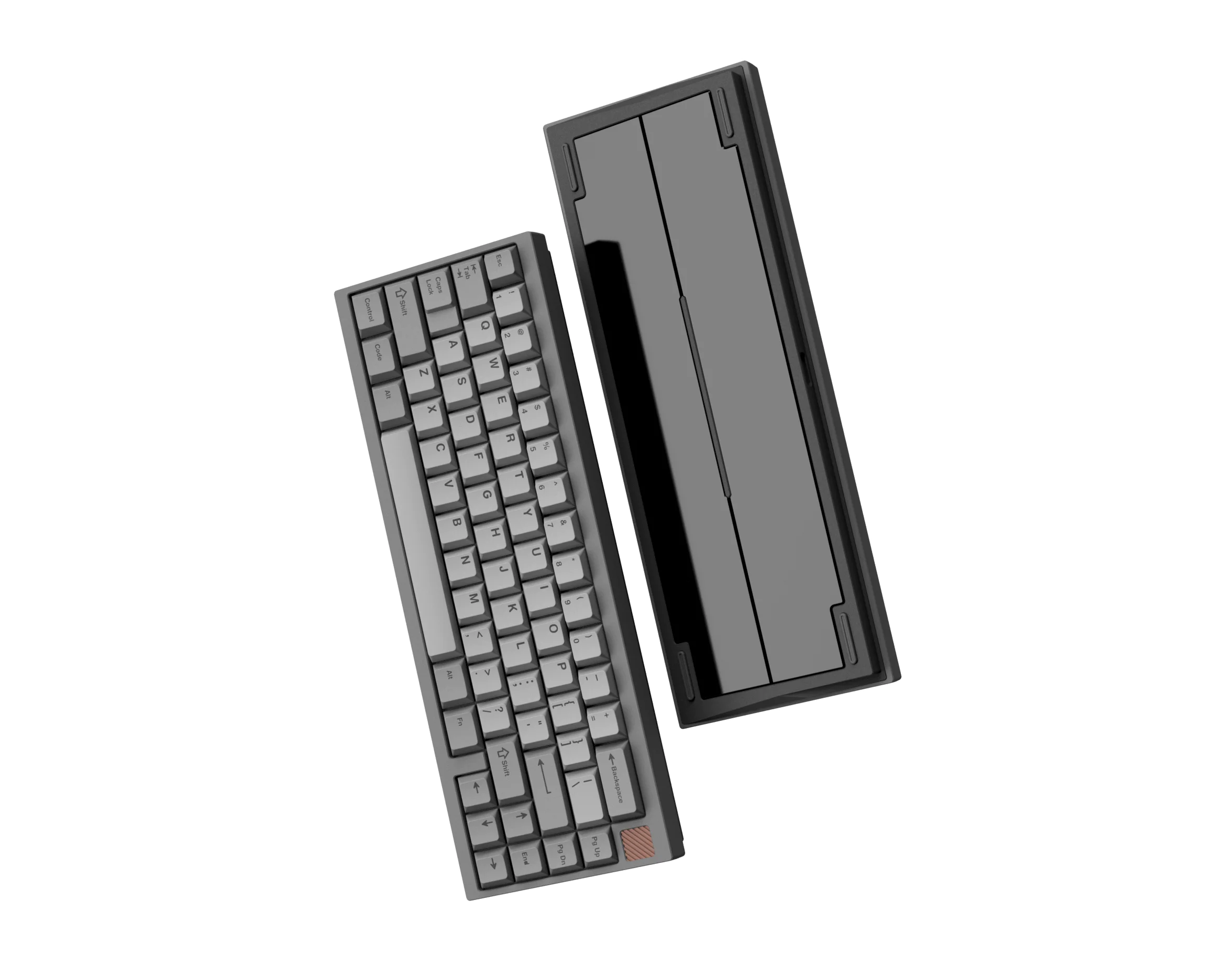

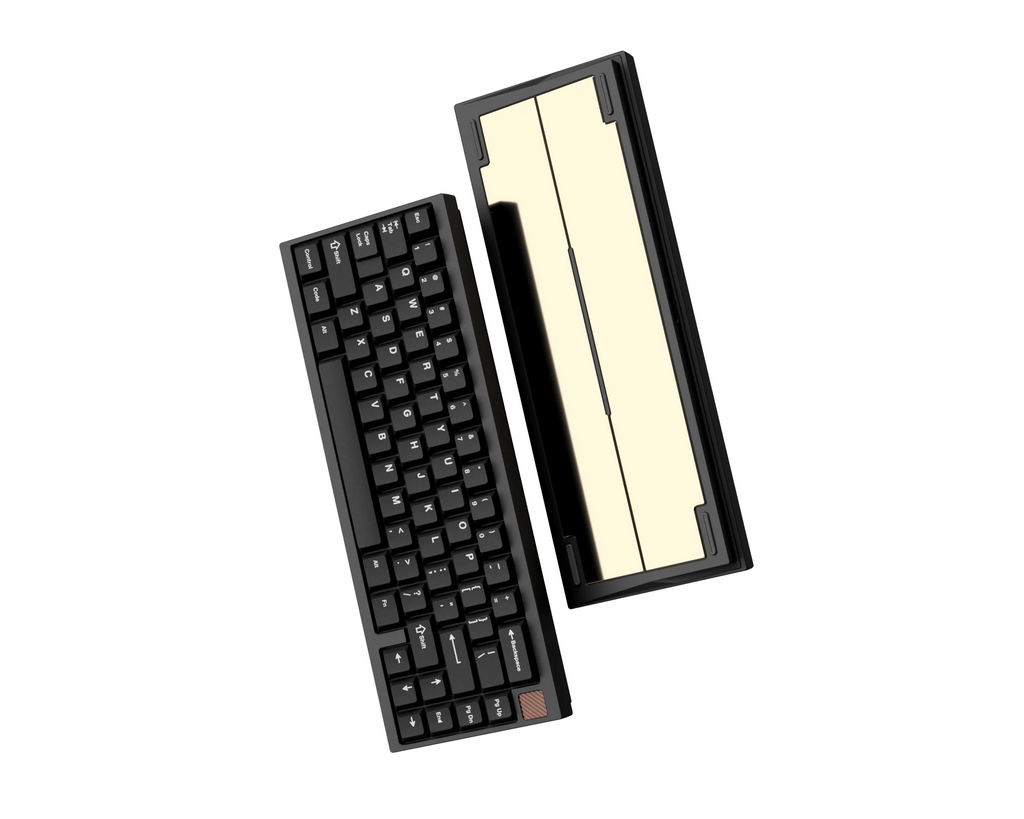

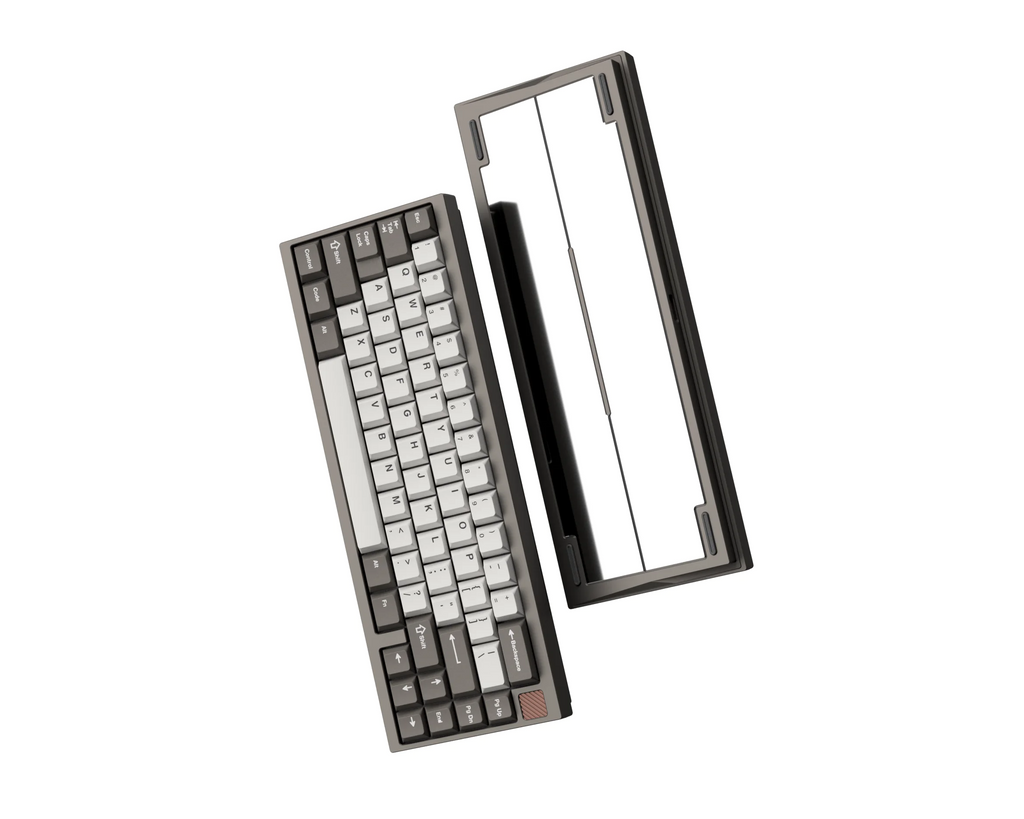

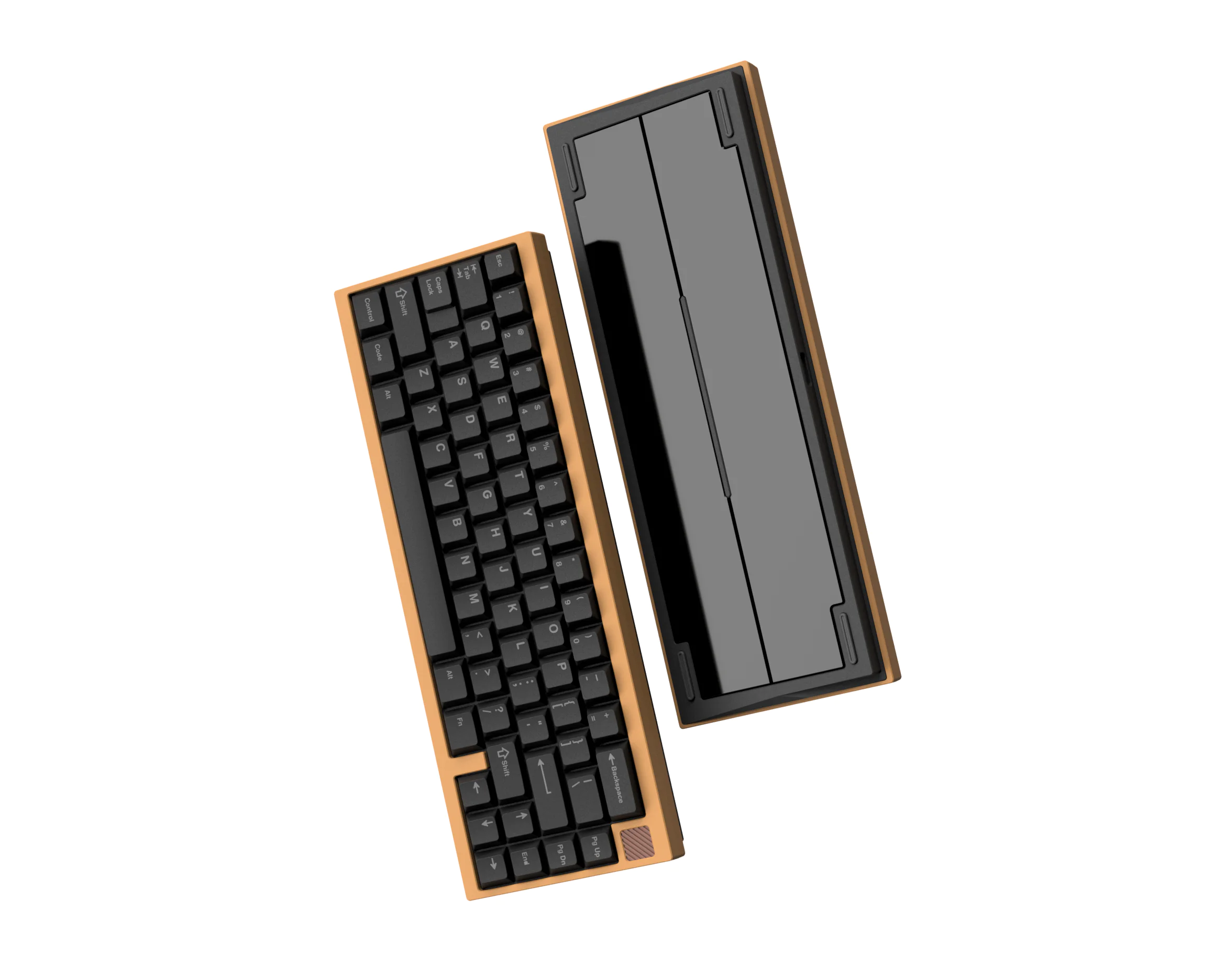

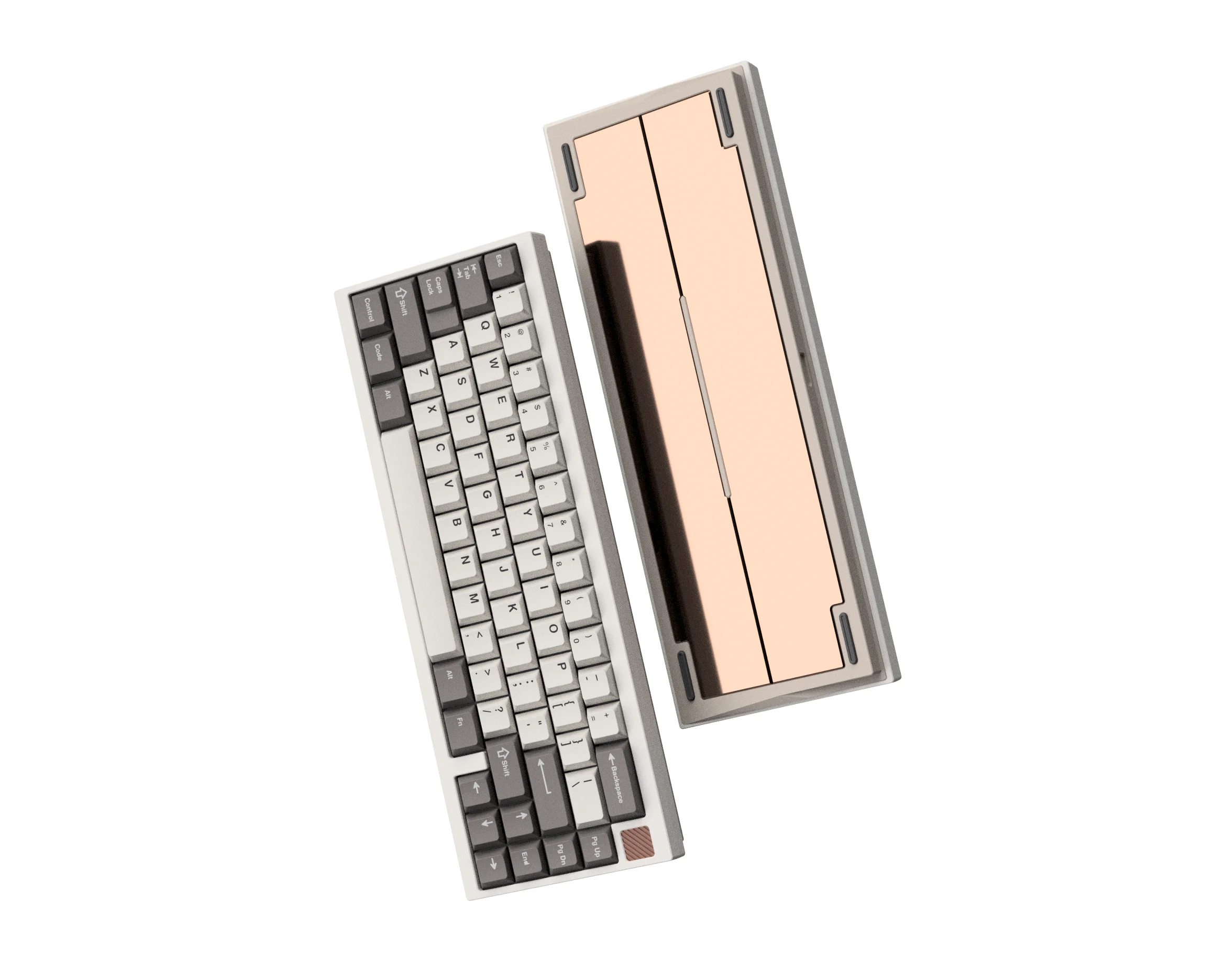

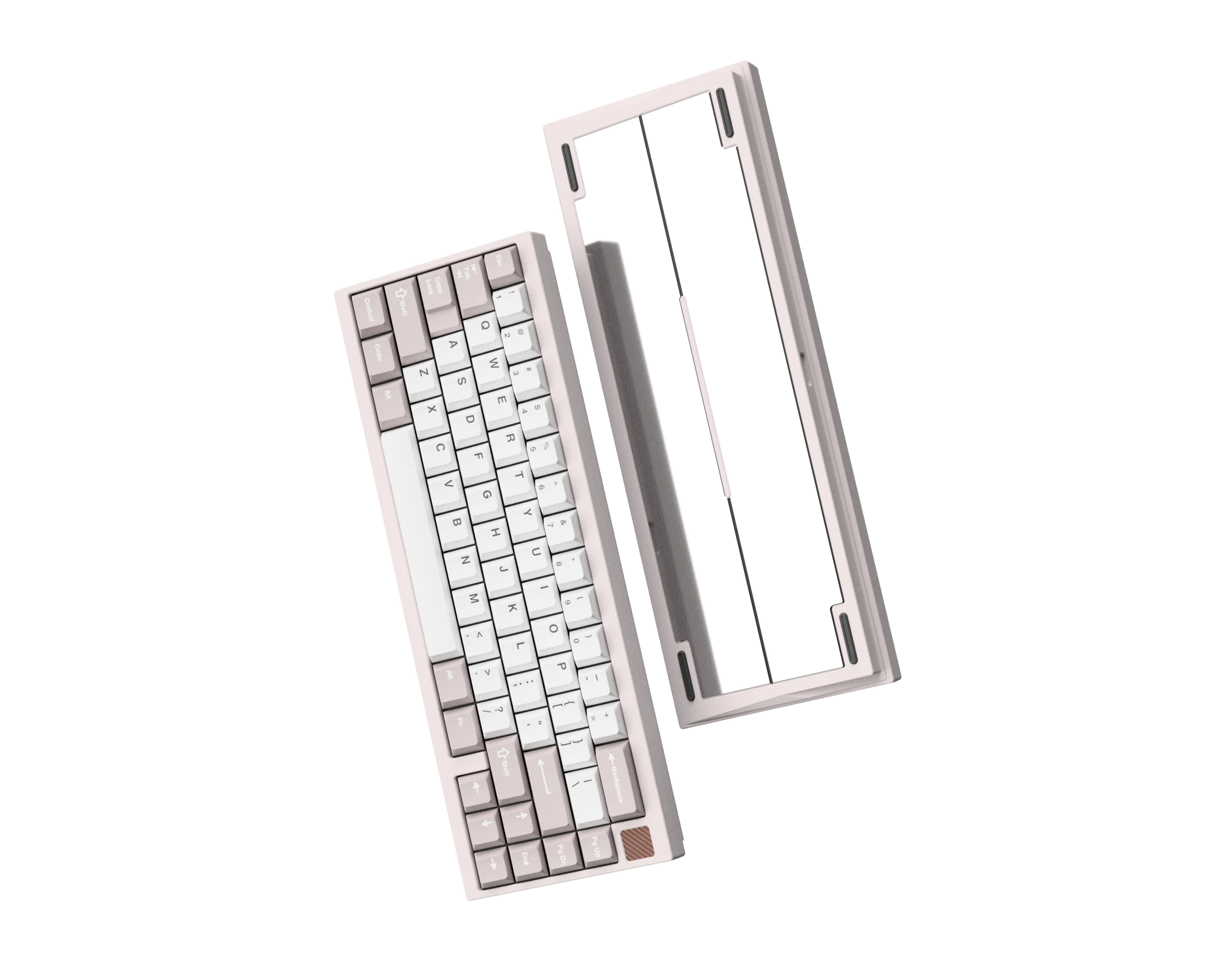

KV1-65 Keyboard Kit

KV1-65% is a minimalist 65% keyboard designed by GDK Lab, marking the studio's first entry in the K series. GDK Lab opted for a subtractive design approach, resulting in an overall shape that is both simple and restrained, with fluid lines that convey a sense of vitality. After completing the standard structure, the team focused on refining the details and texture, and the 220-mesh aluminum case makes each touch of the keyboard truly impressive.

Specifications:

• Mount    Gasket mount
• Connectivity    Single mode / Tri-mode

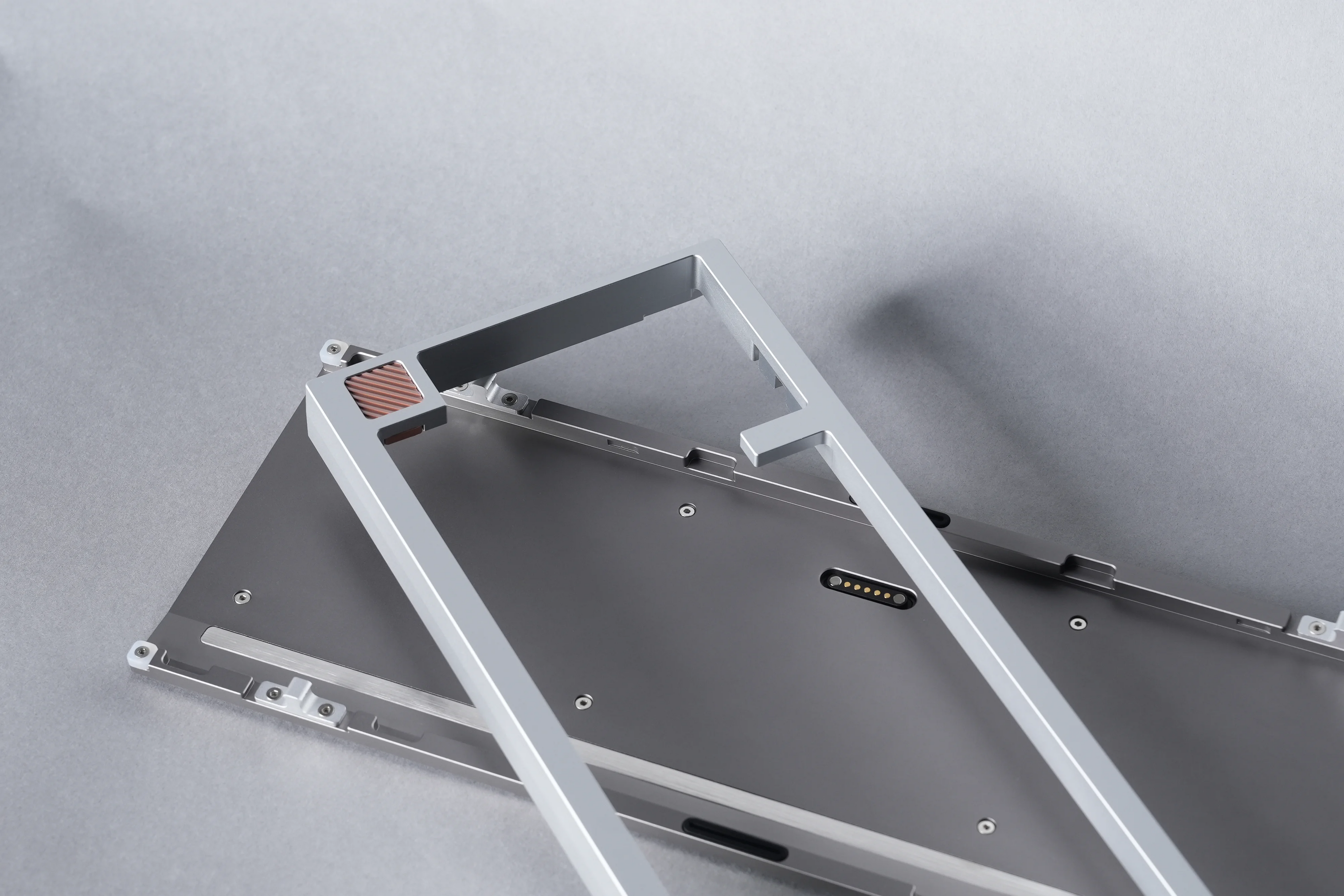

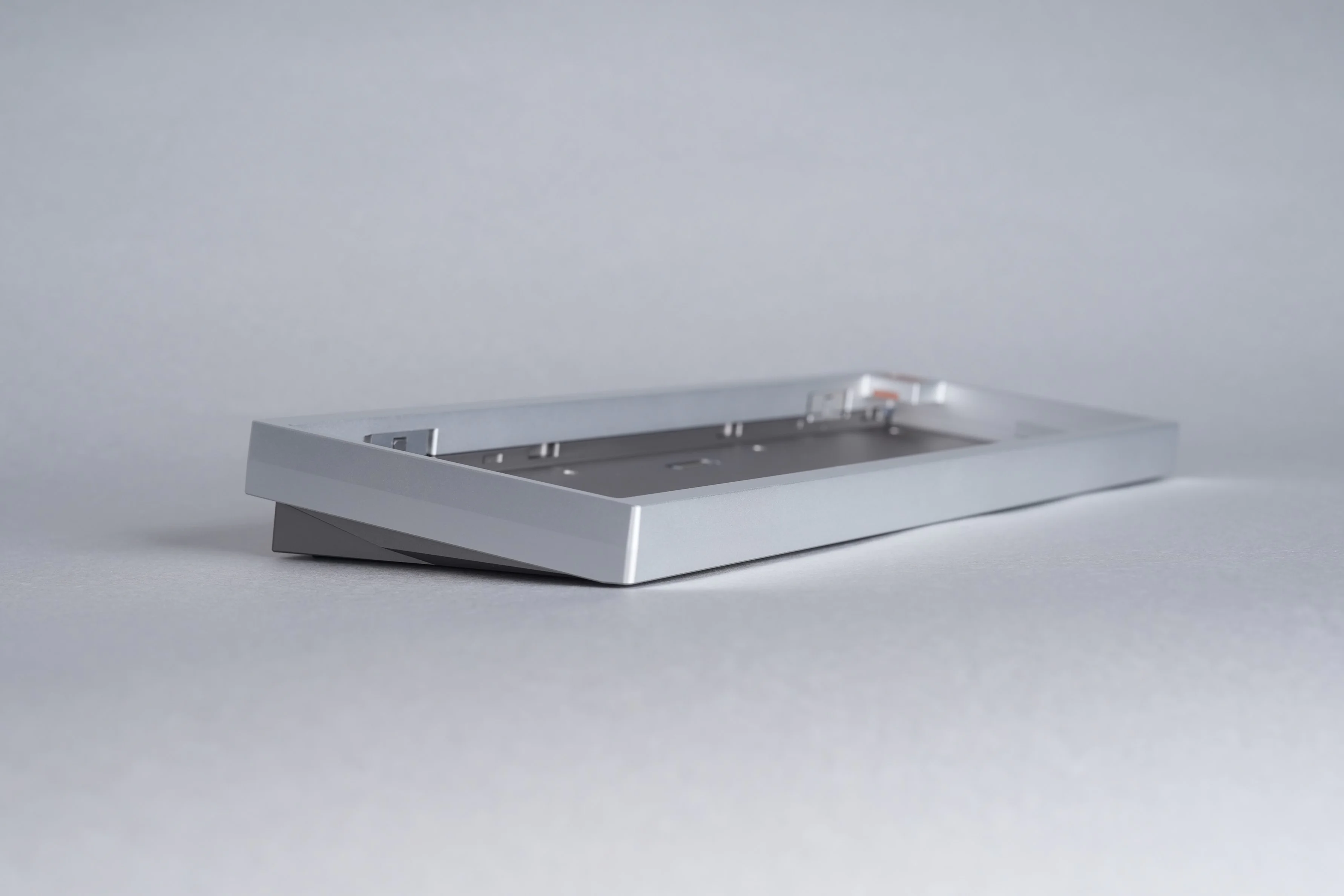

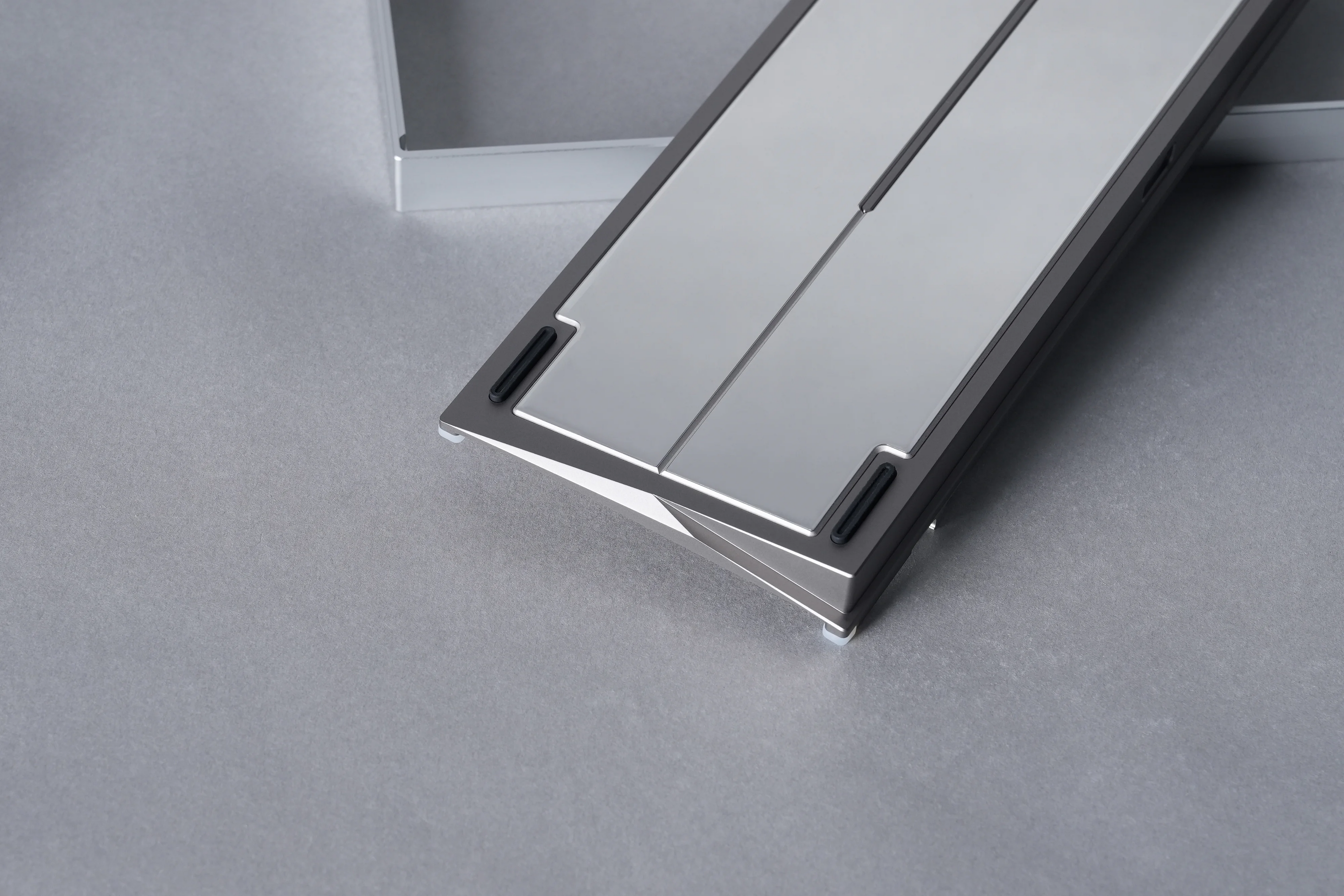

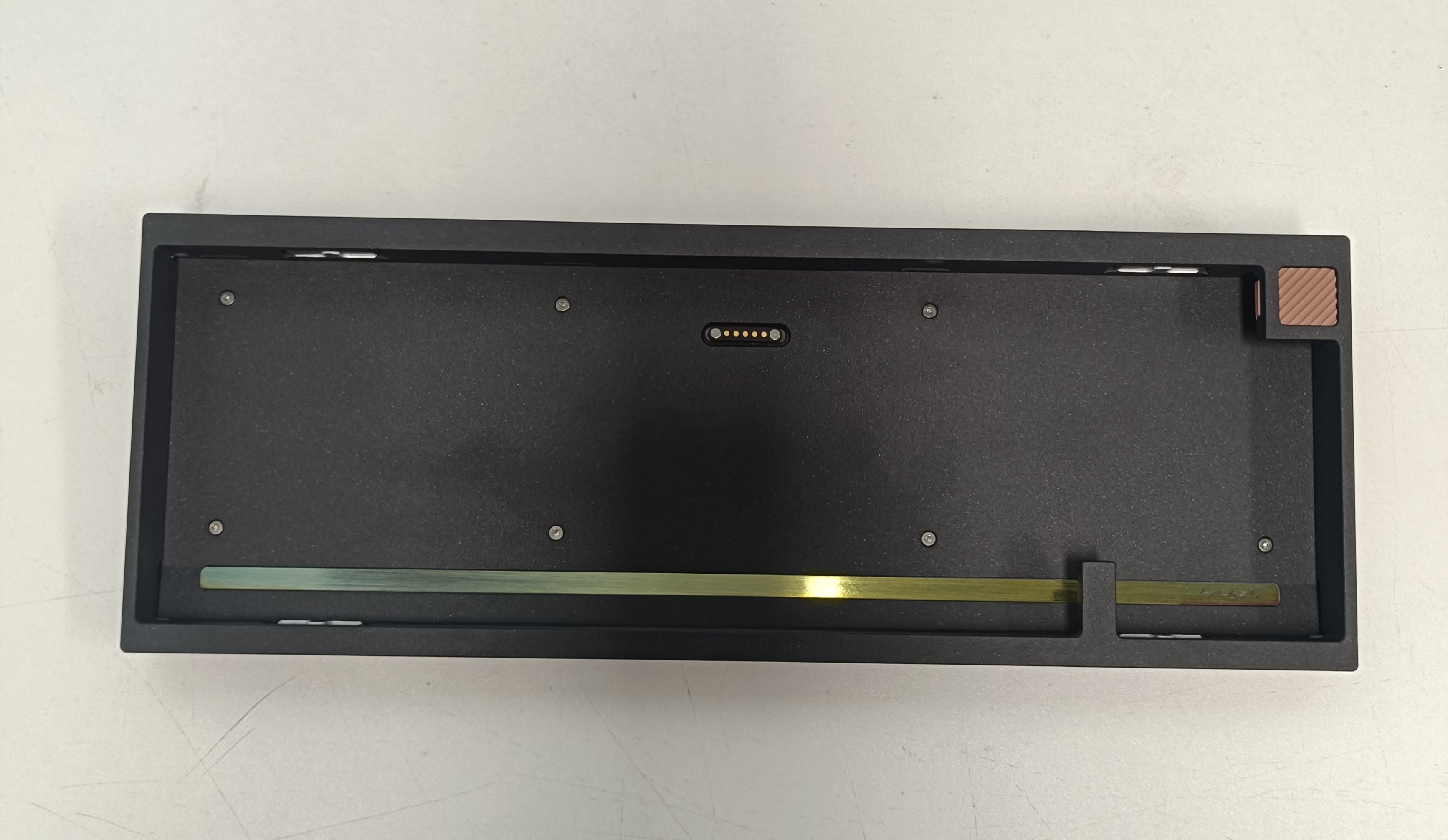

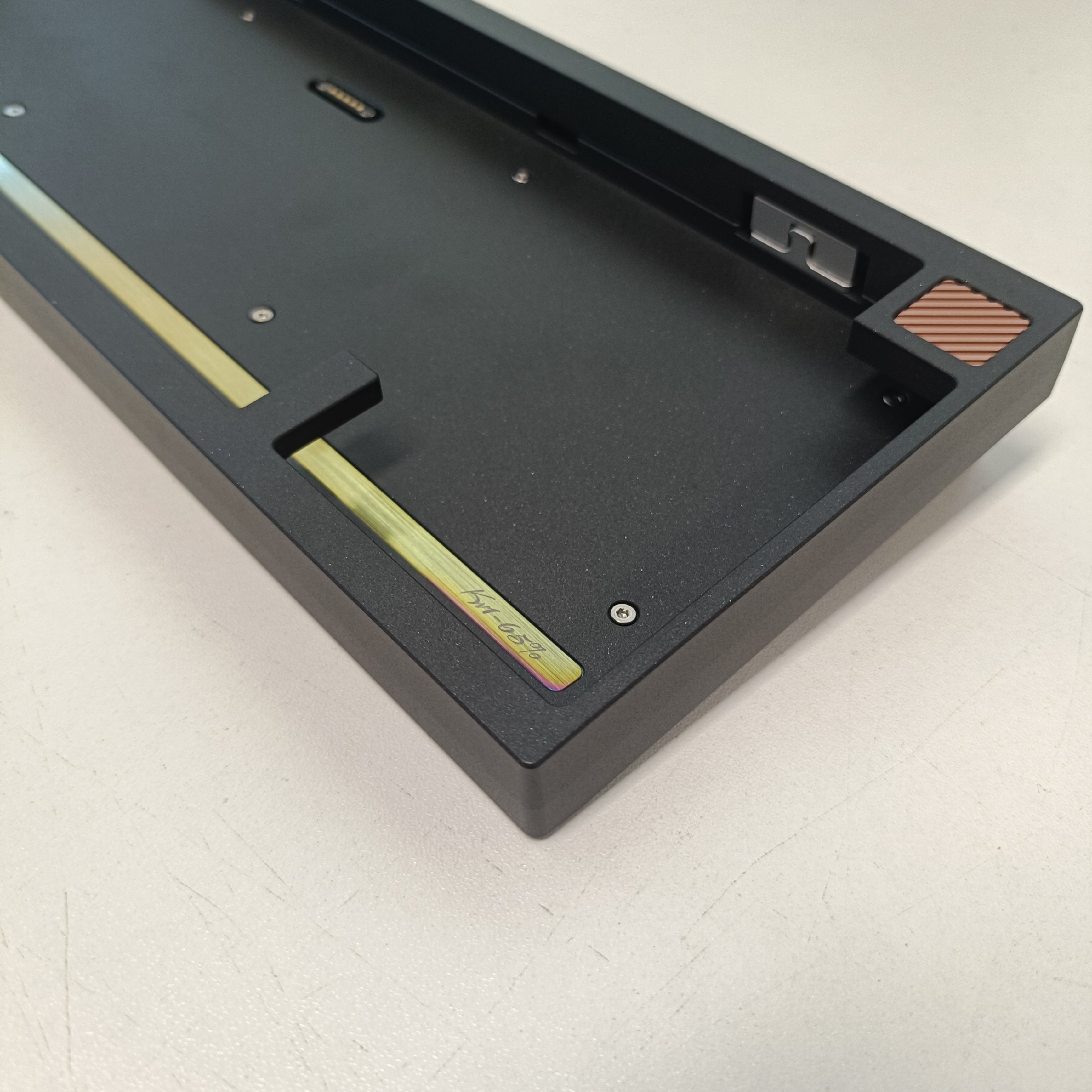

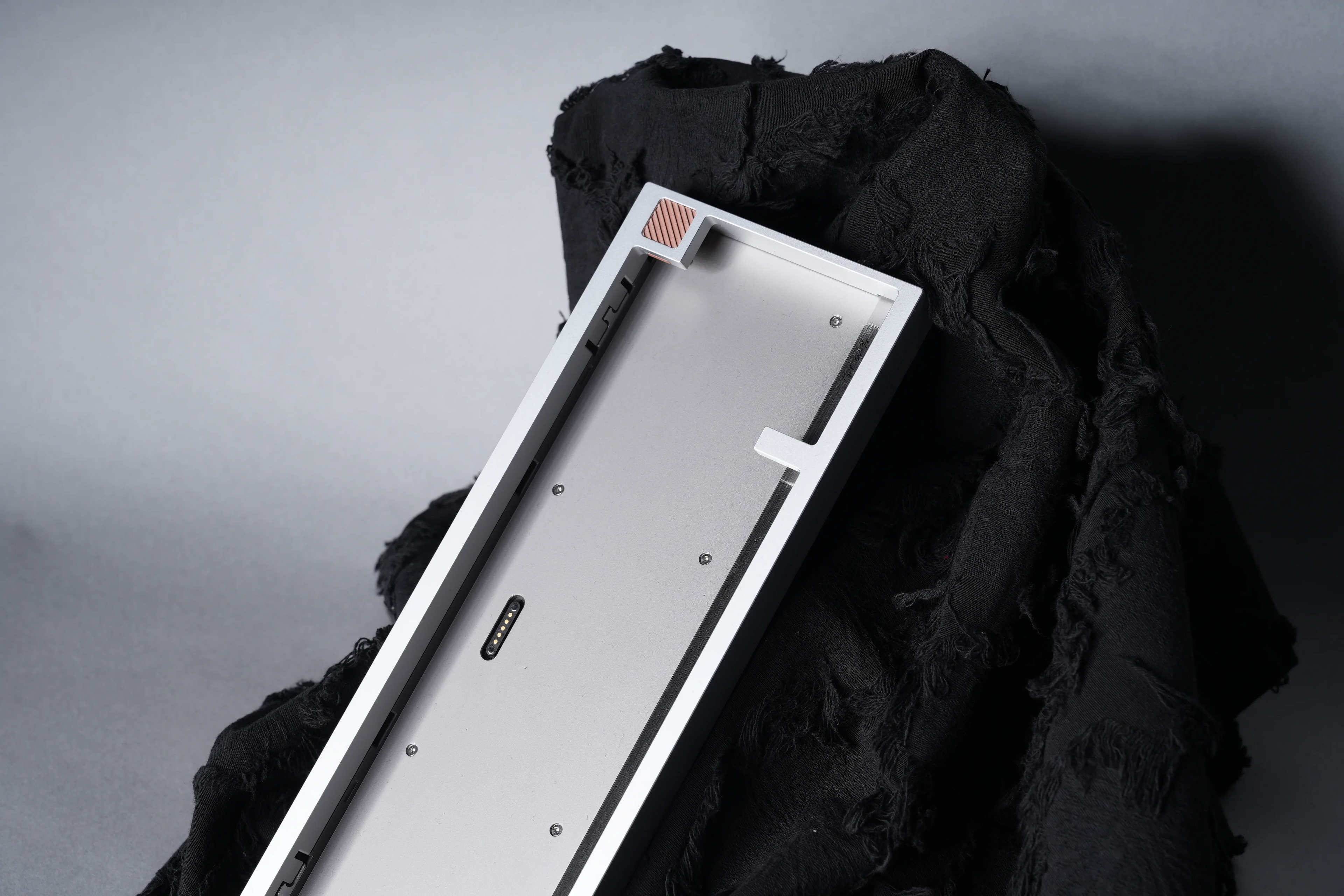

• Material    6063 CNC Aluminum (220 mesh)
• Surfacing    Anodized, Spray paint
• Acoustic
  • Poron pad *1
  • Bottom pad *1
  • Customers can try not adding any padsand still get a good typing sound

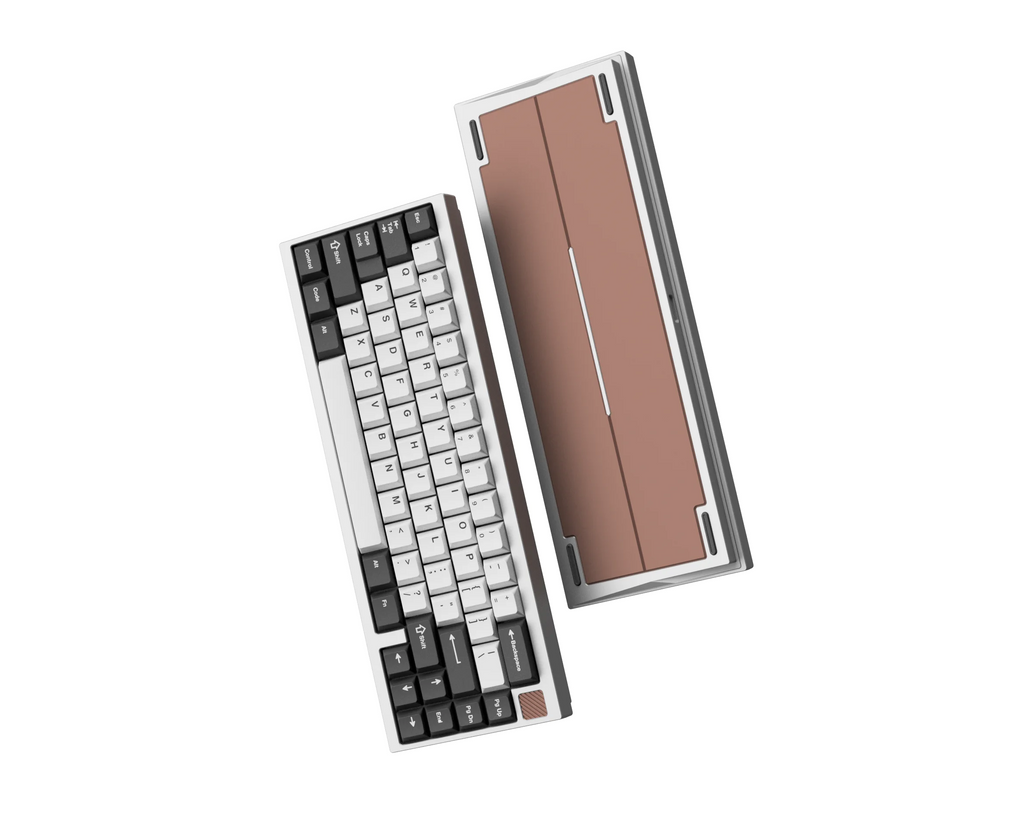

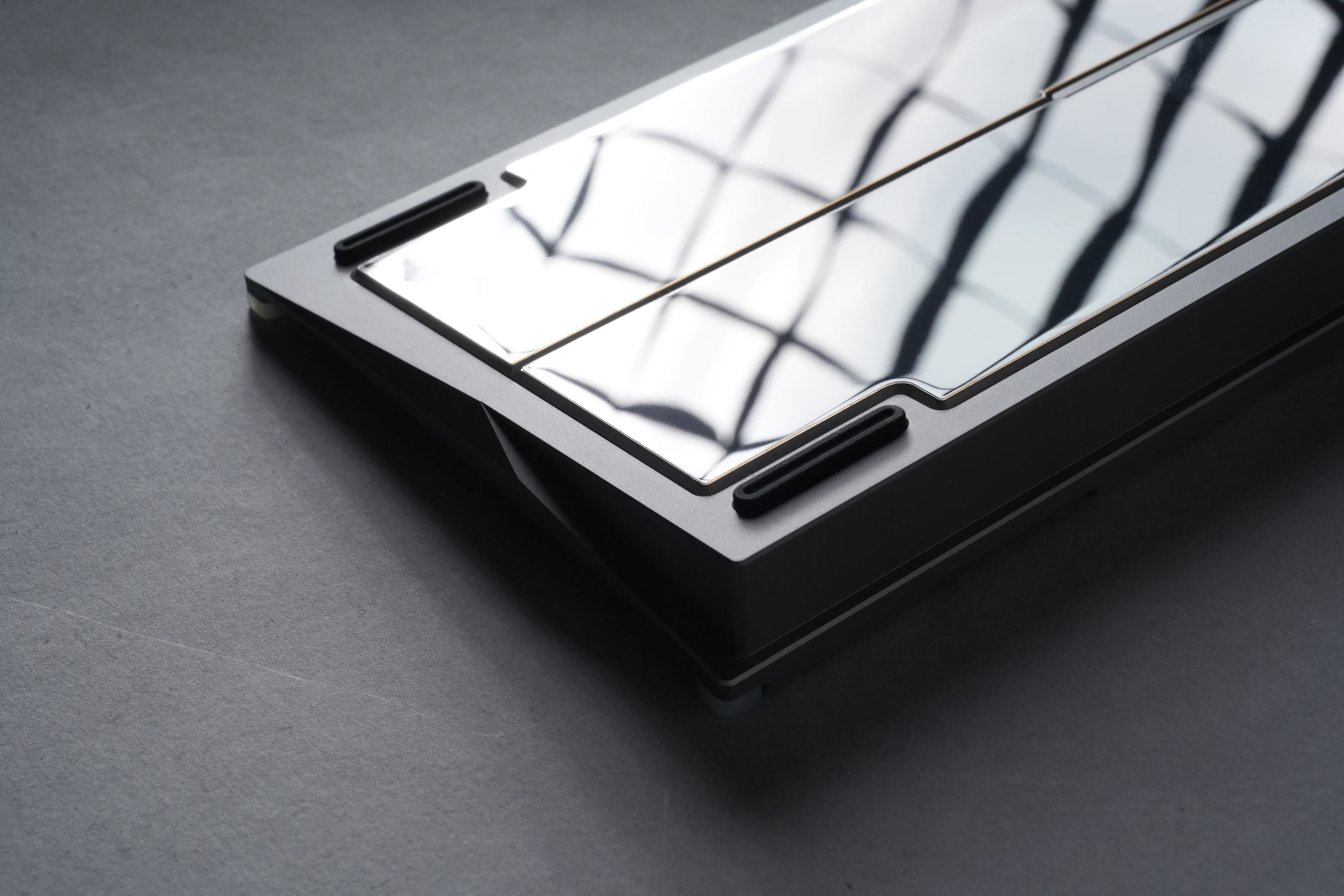

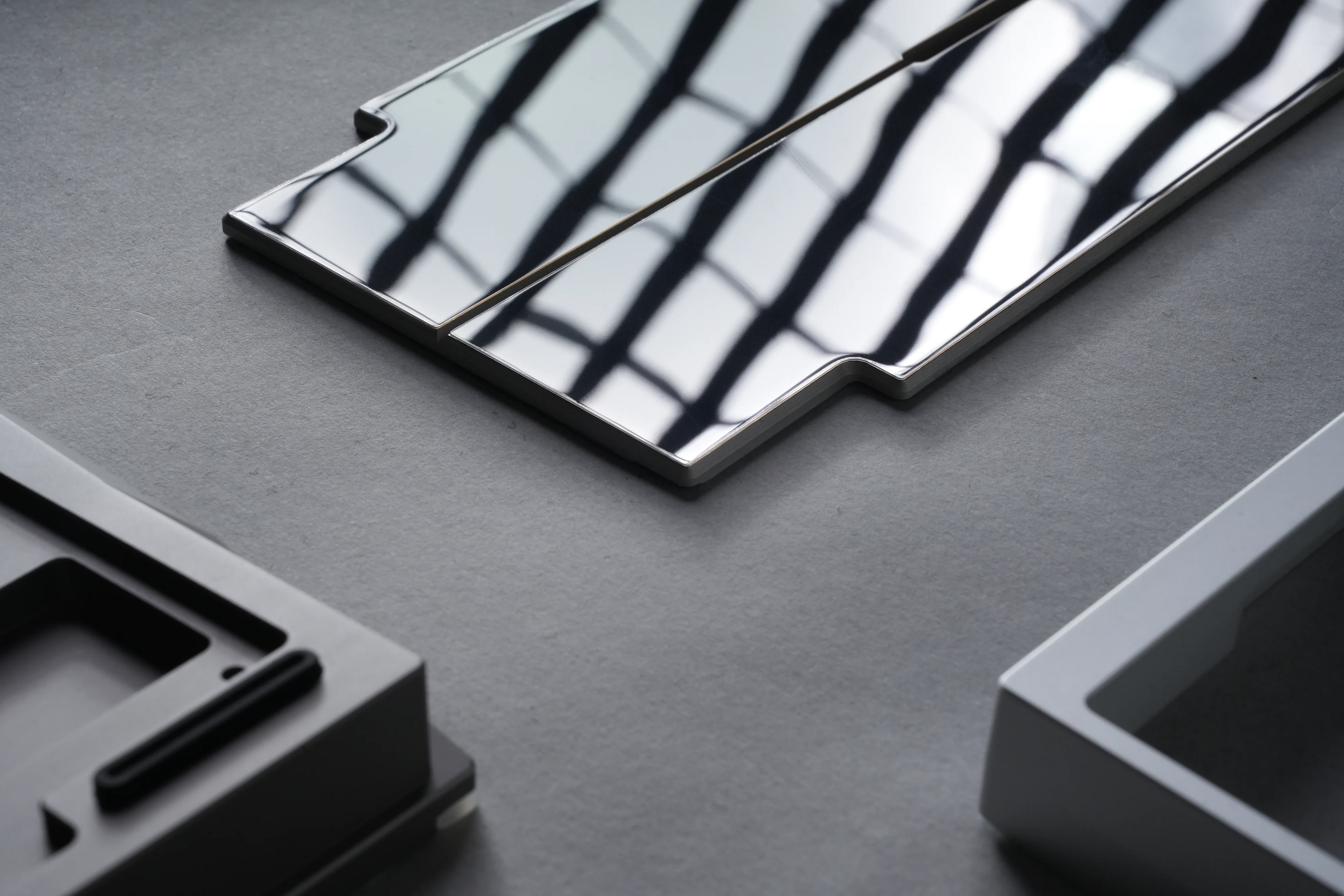

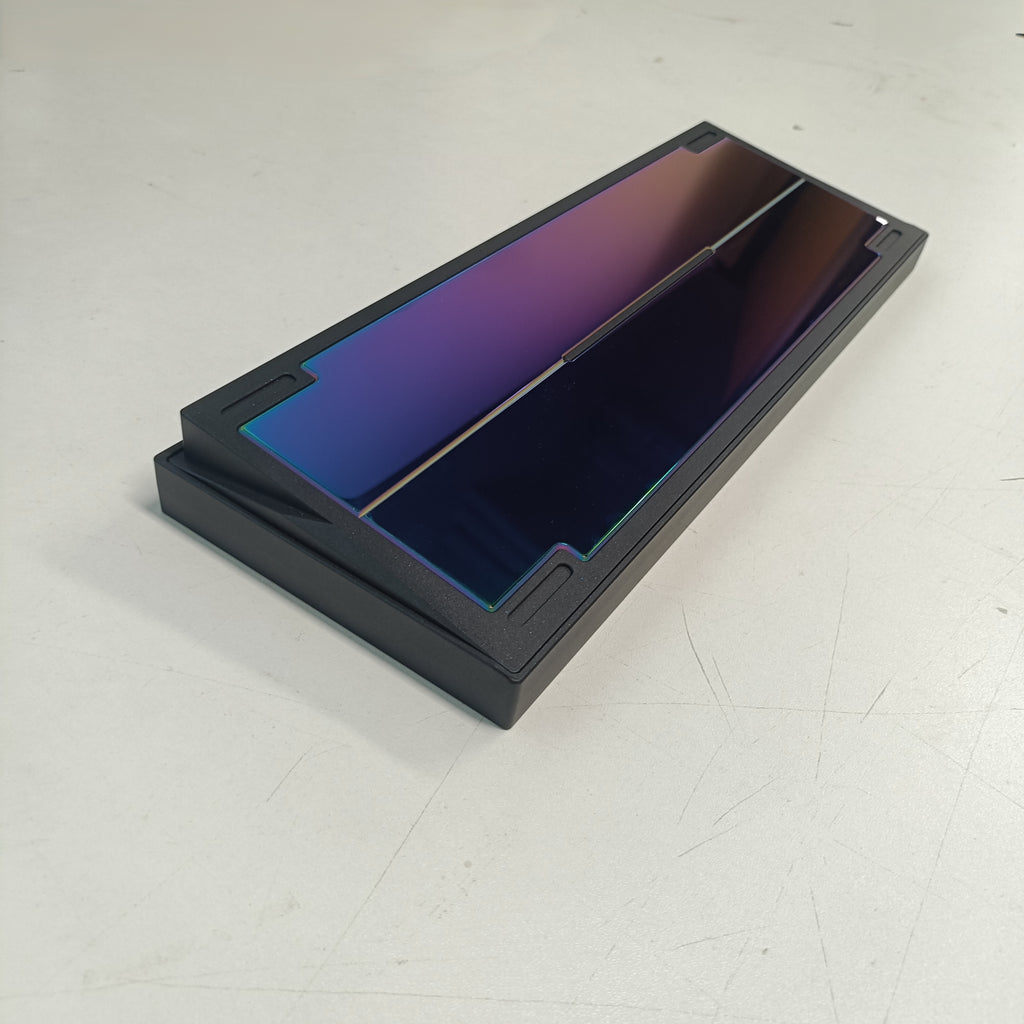

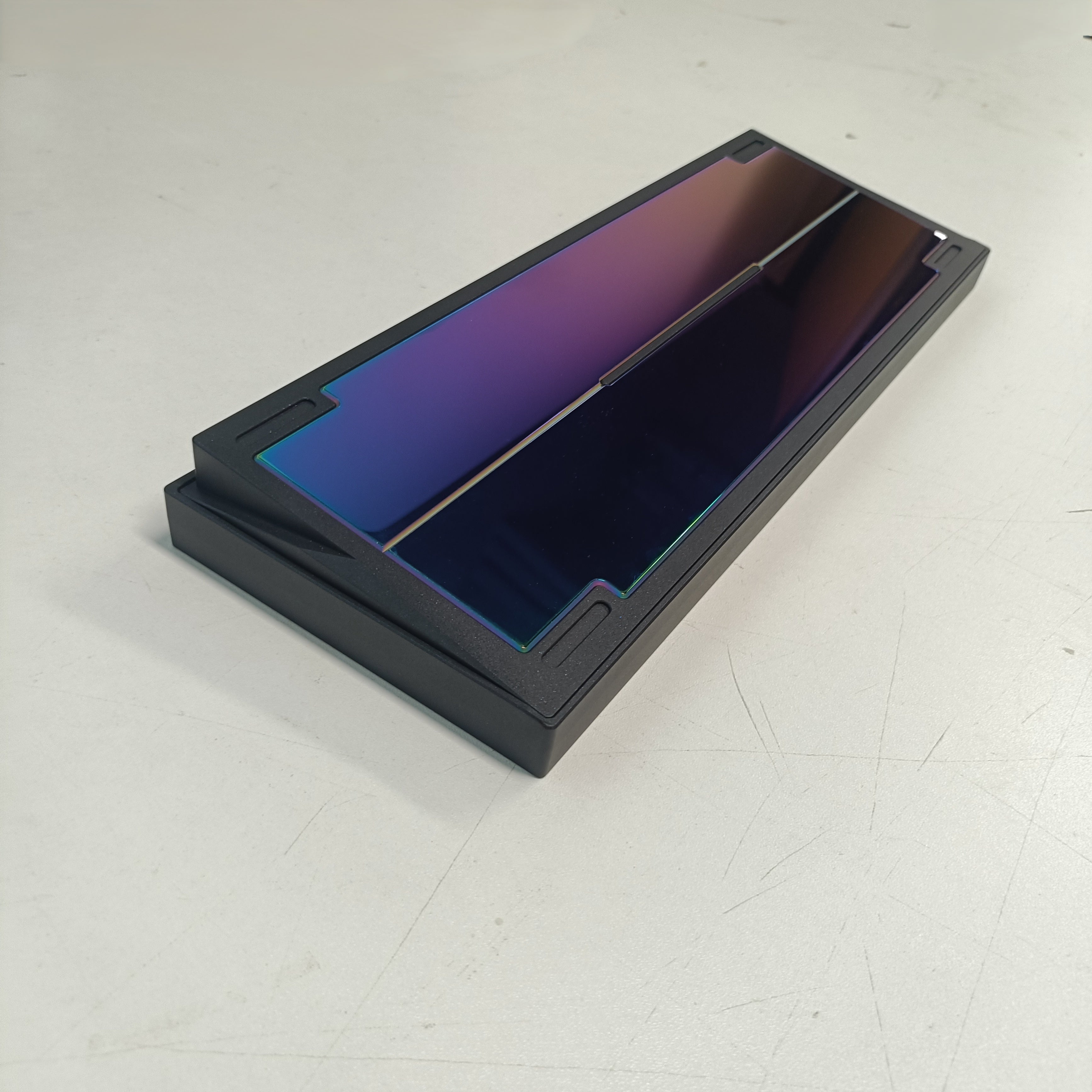

• Weight    Stainless steel matte PVD / Mirror PVD / Red copper

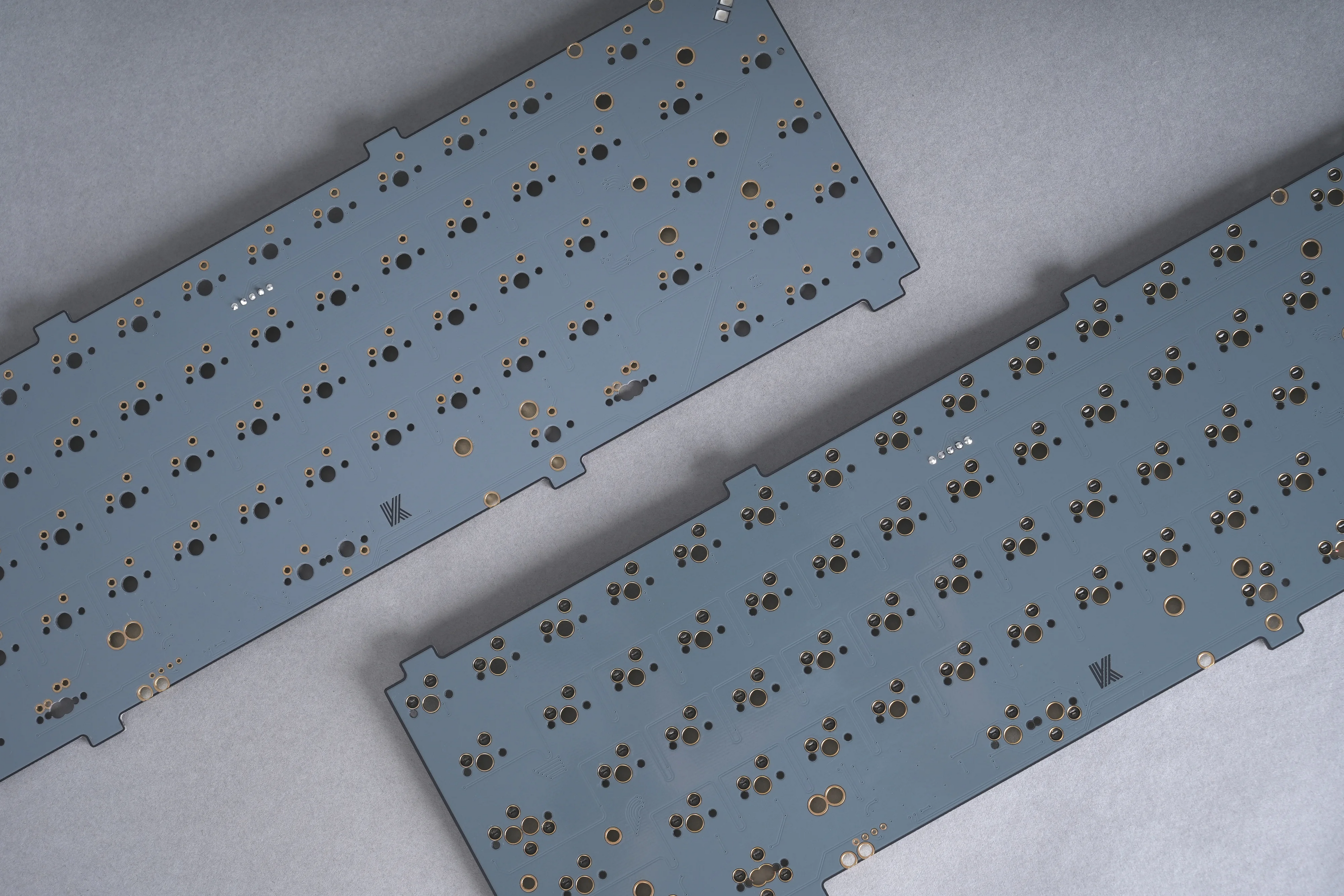

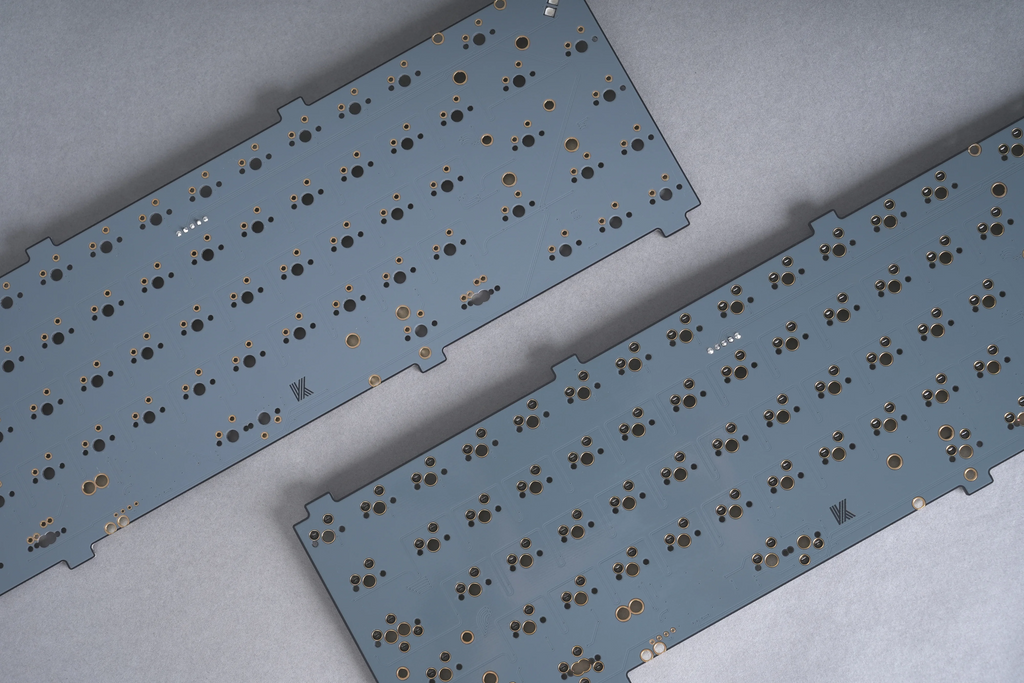

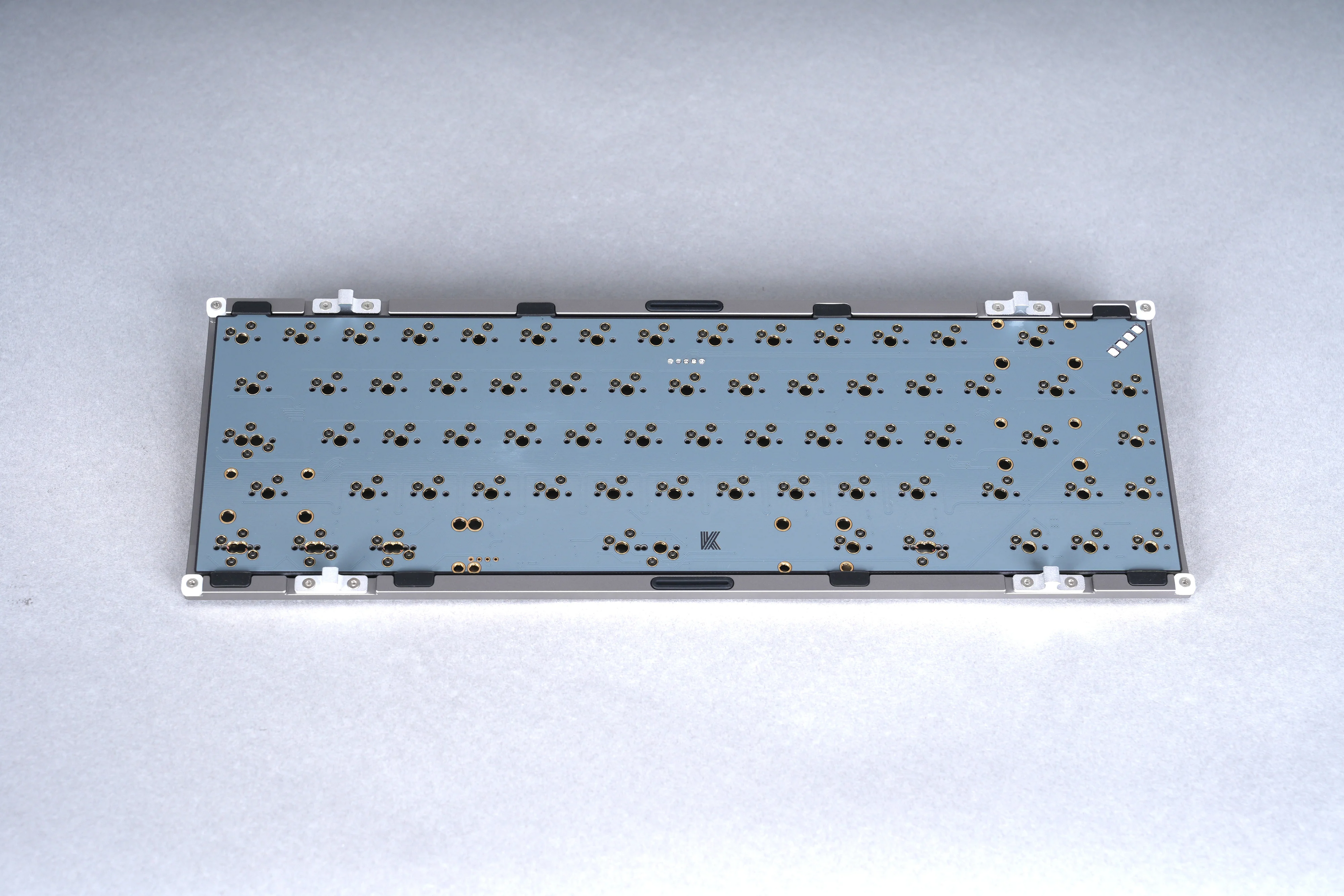

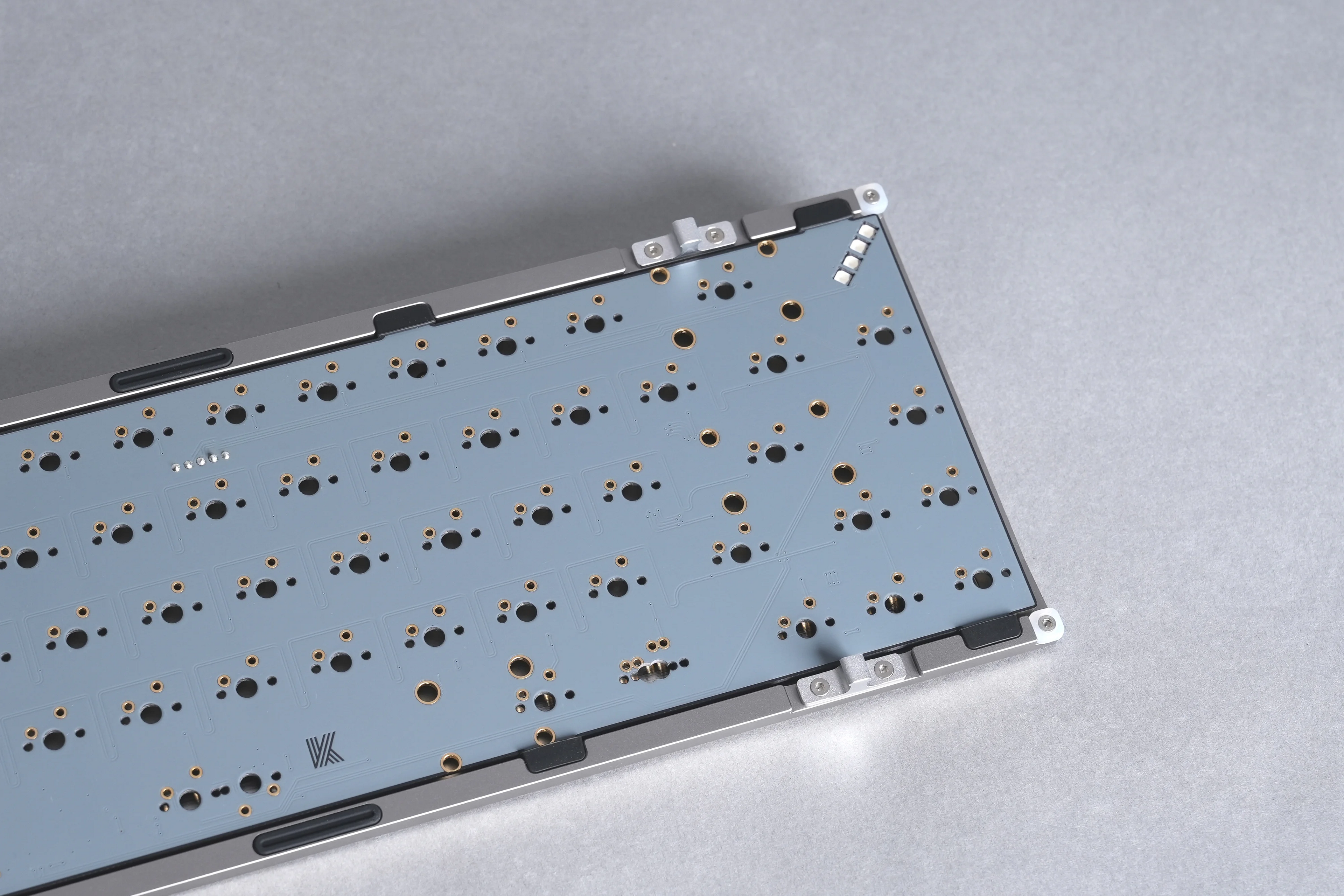

• PCB
  • Hotswappable

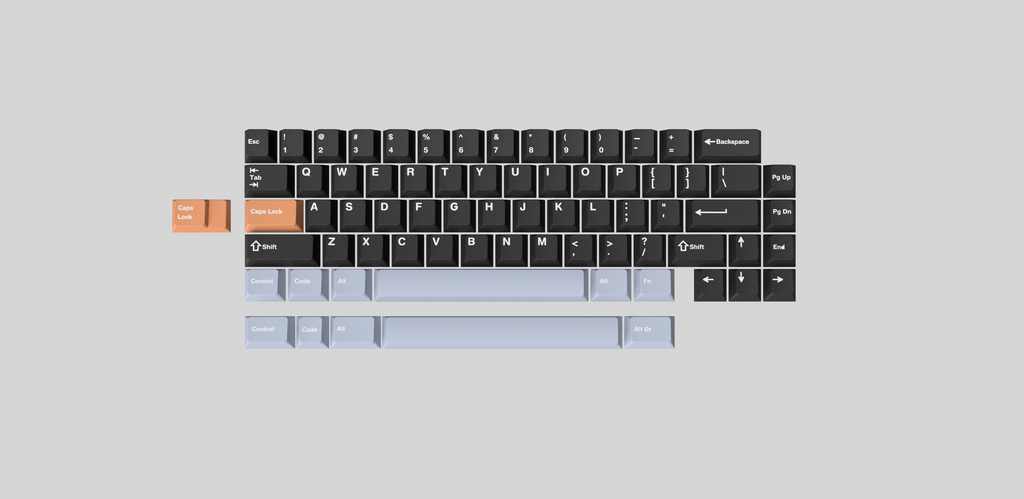

  • Support ANSI & ISO layout
  • Support VIA & QMK (Wired connection)
  • Support stepped caps lock
  • Support 7U, 6.25U spacebar
  • No per-key RGB
• Case Weight    1.4kg
• Weight with switches and keycaps    1.76kg
• Size    313×113mm

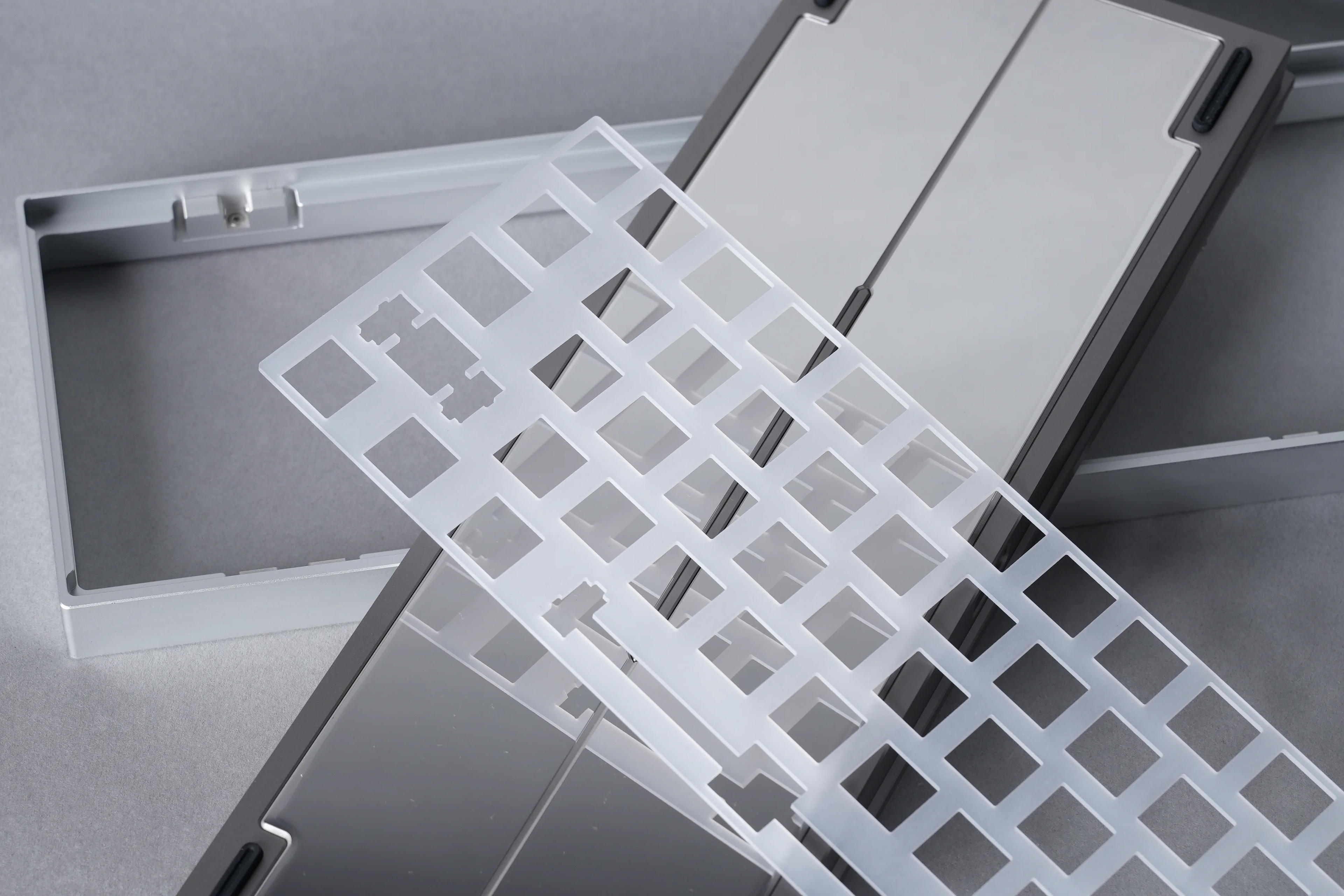

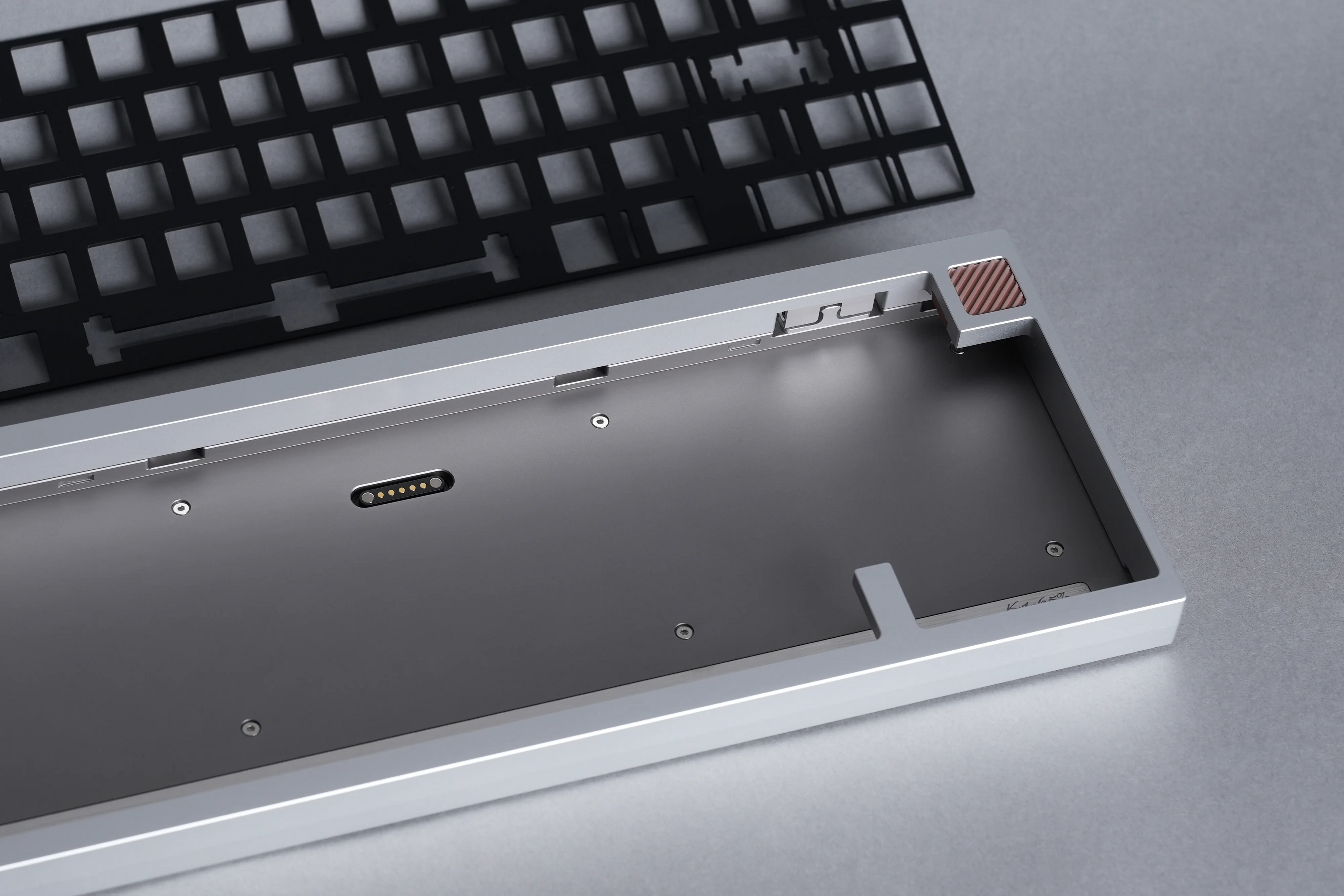

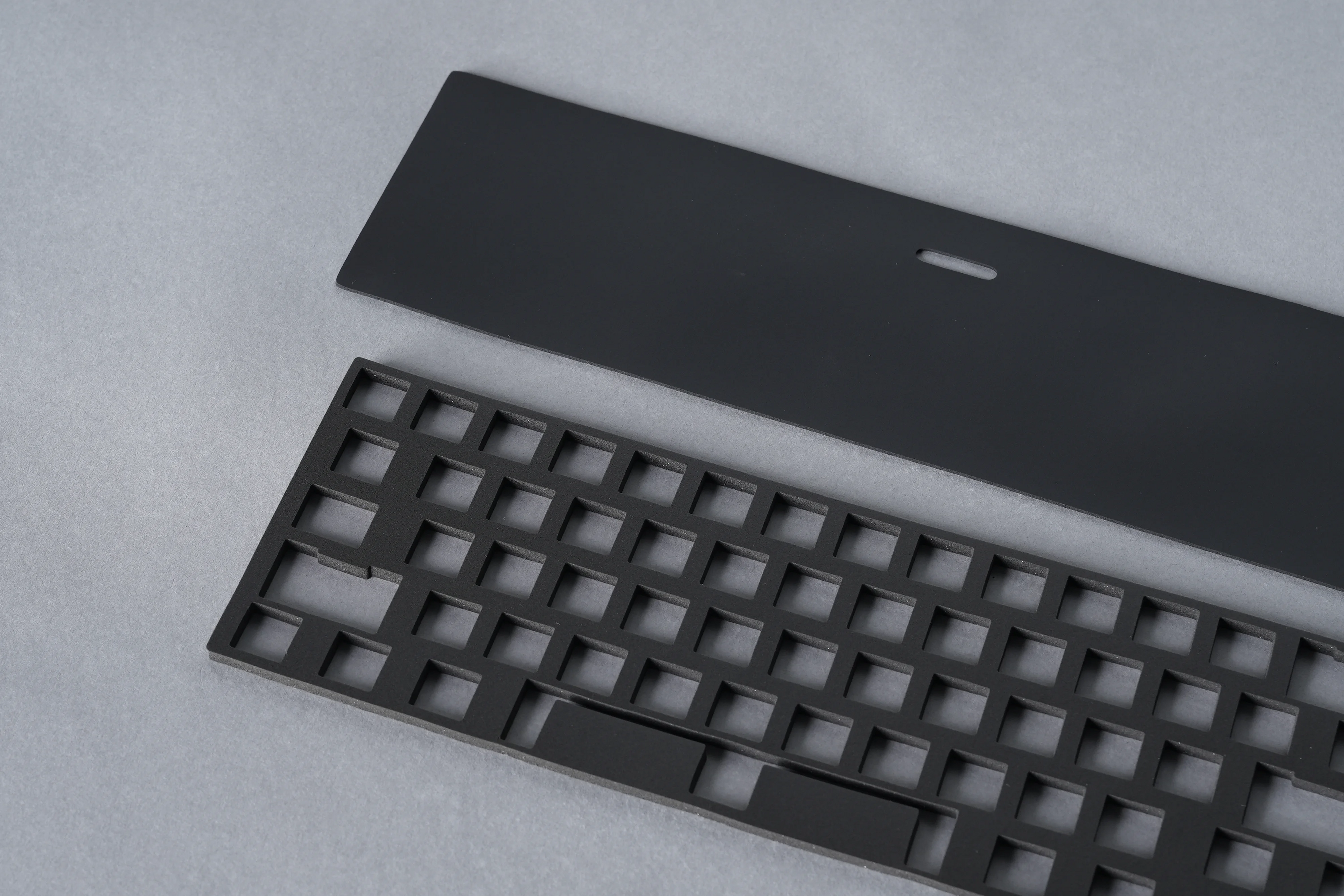

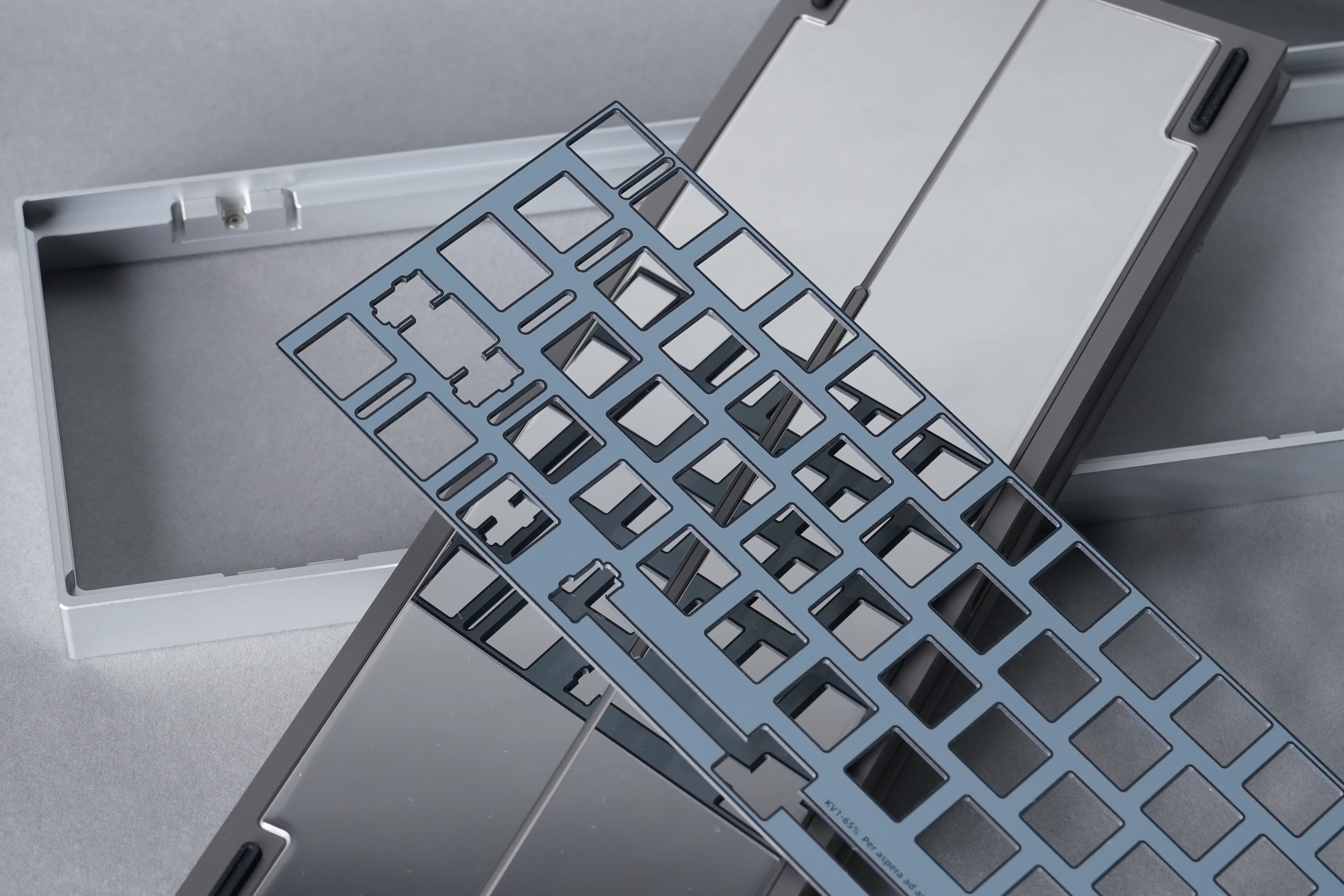

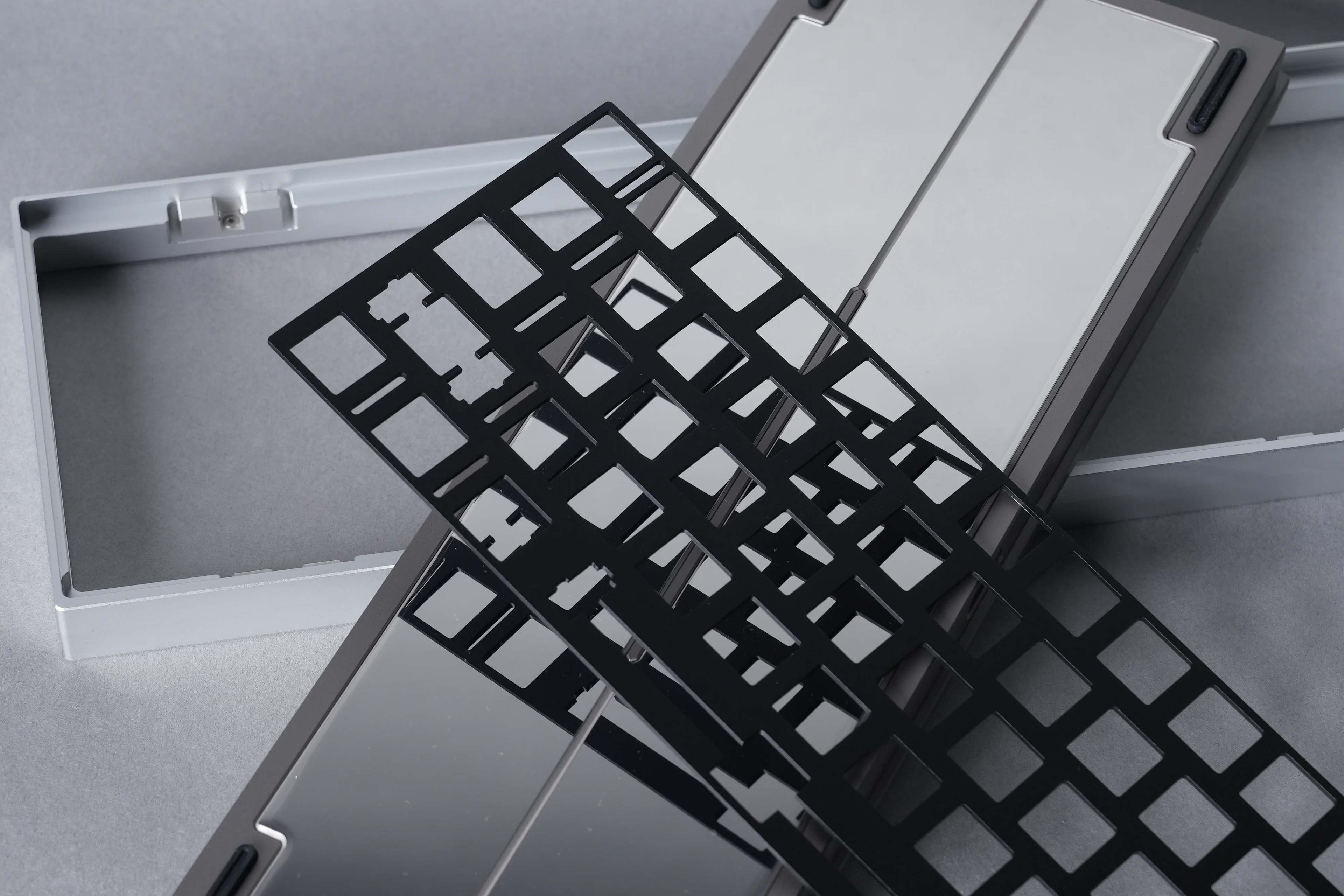

• Default Plate
  • 1.6 mm thickness
  • No flex-cuts
  • FR4 material
  • Support 7U, 6.25U spacebar
  • Compatible with PCB stabilizers
• Typing Angle 8°
• Compatible System    Support Windows & Mac
• Battery 5000mAh (2500mAh*2)
• Rolling rate    1000Hz (Wired), 125Hz (Bluetooth, 2.4G)

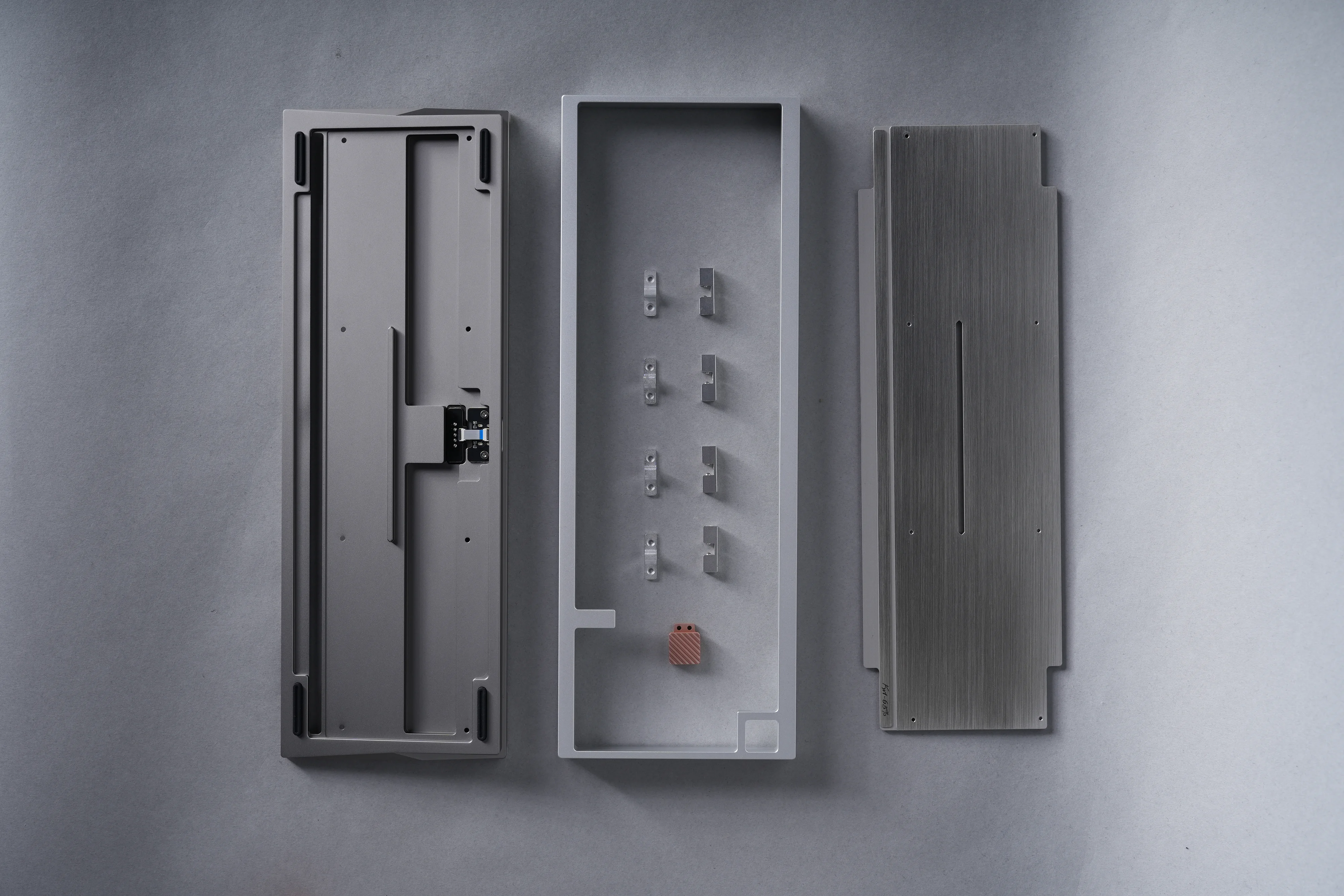

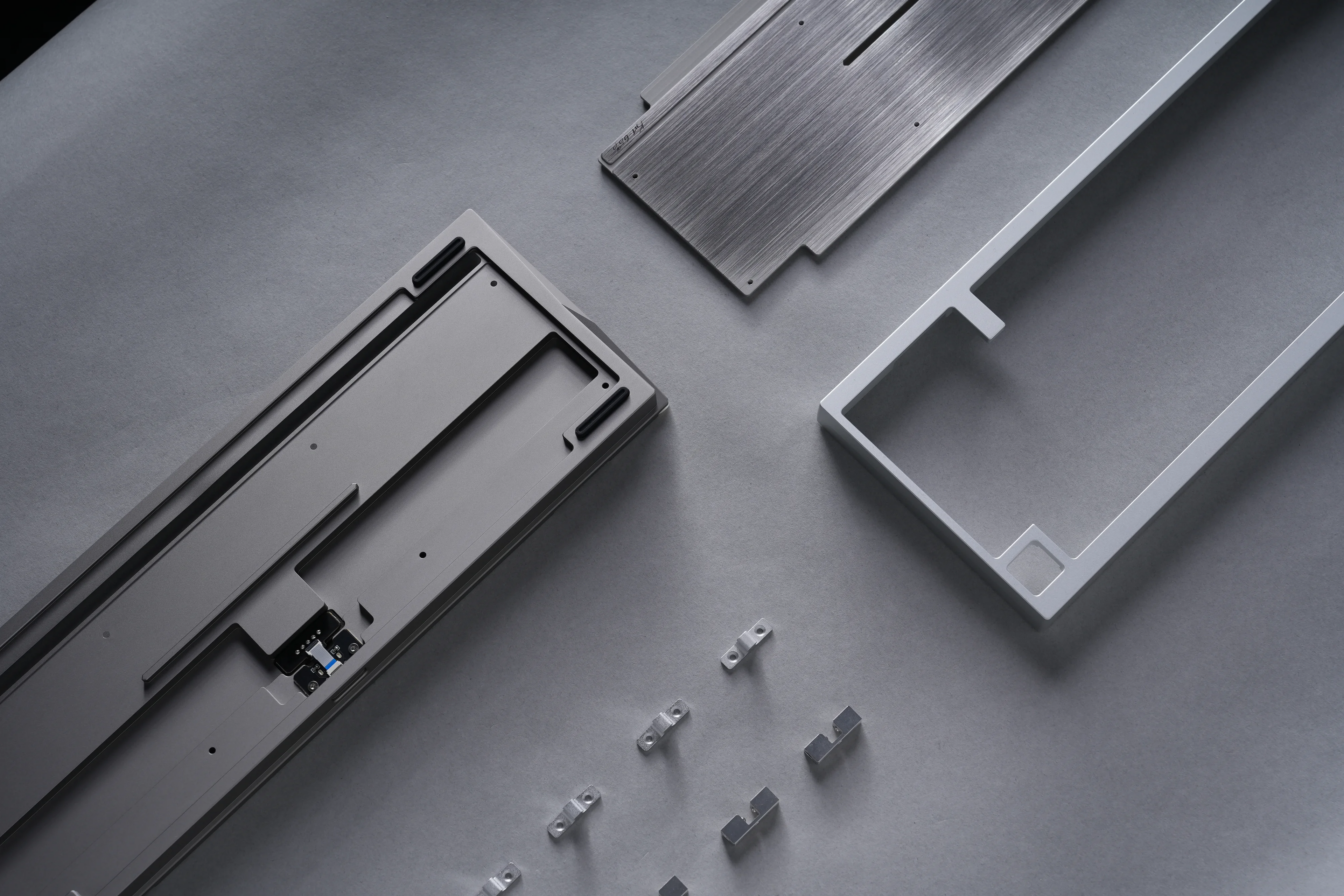

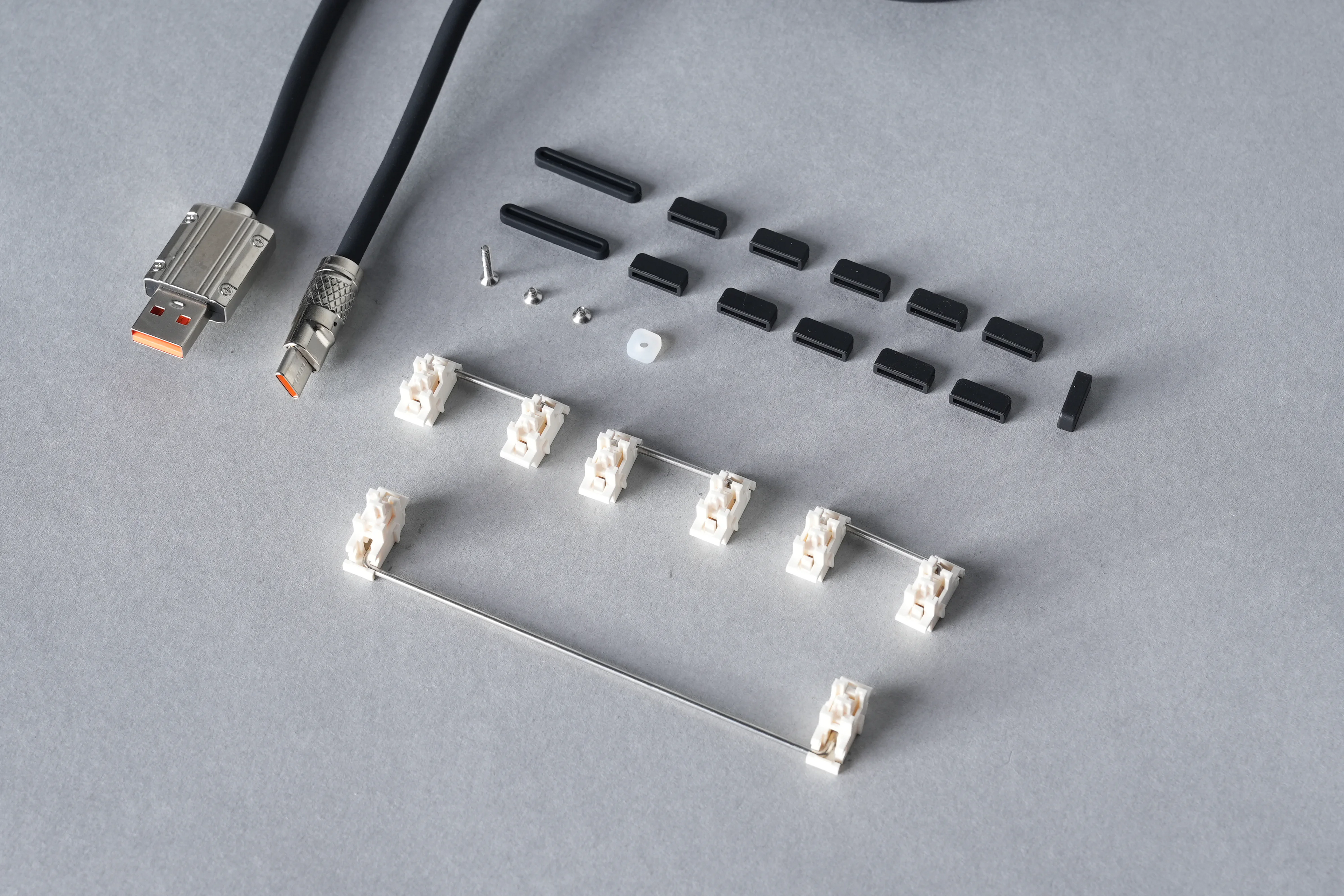

• Including
  • Aluminum case * 1
  • FR4 plate * 1
  • Type-C  cable * 1
  • Hot-swappable PCB * 1
  • Pads bag *1
  • screw bag * 1
  • Foot pad * 4
  • Packaging box * 1
• Front Height 16.9mm
• Badge Red copper
• Back light    No
• Latency 3ms(Wired),  8ms(Bluetooth)
