€ 240,00
Taxes included.
Shipping calculated at checkout.
Zoom75

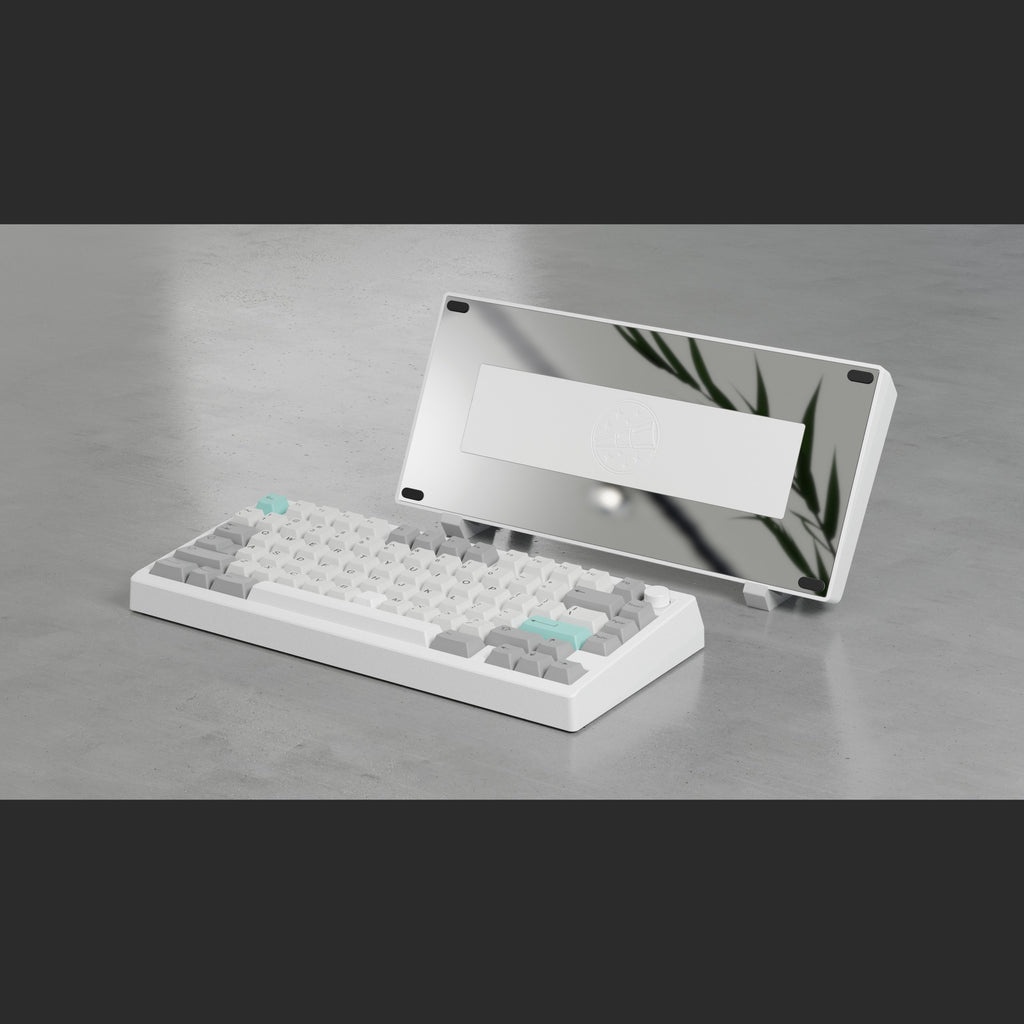

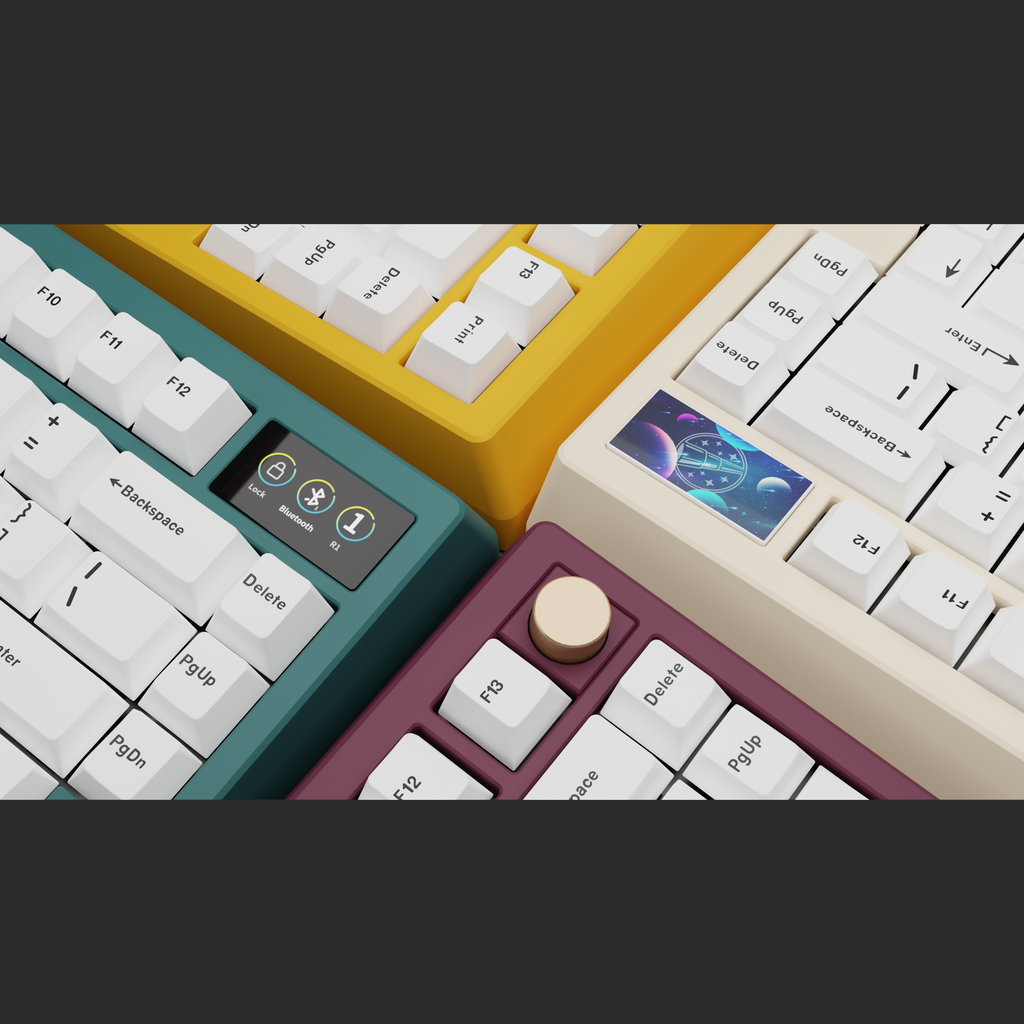

THE MELETRIX ZOOM75 KEYBOARD KIT IS A CUSTOMIZABLE MECHANICAL KEYBOARD KIT.
Specifications:

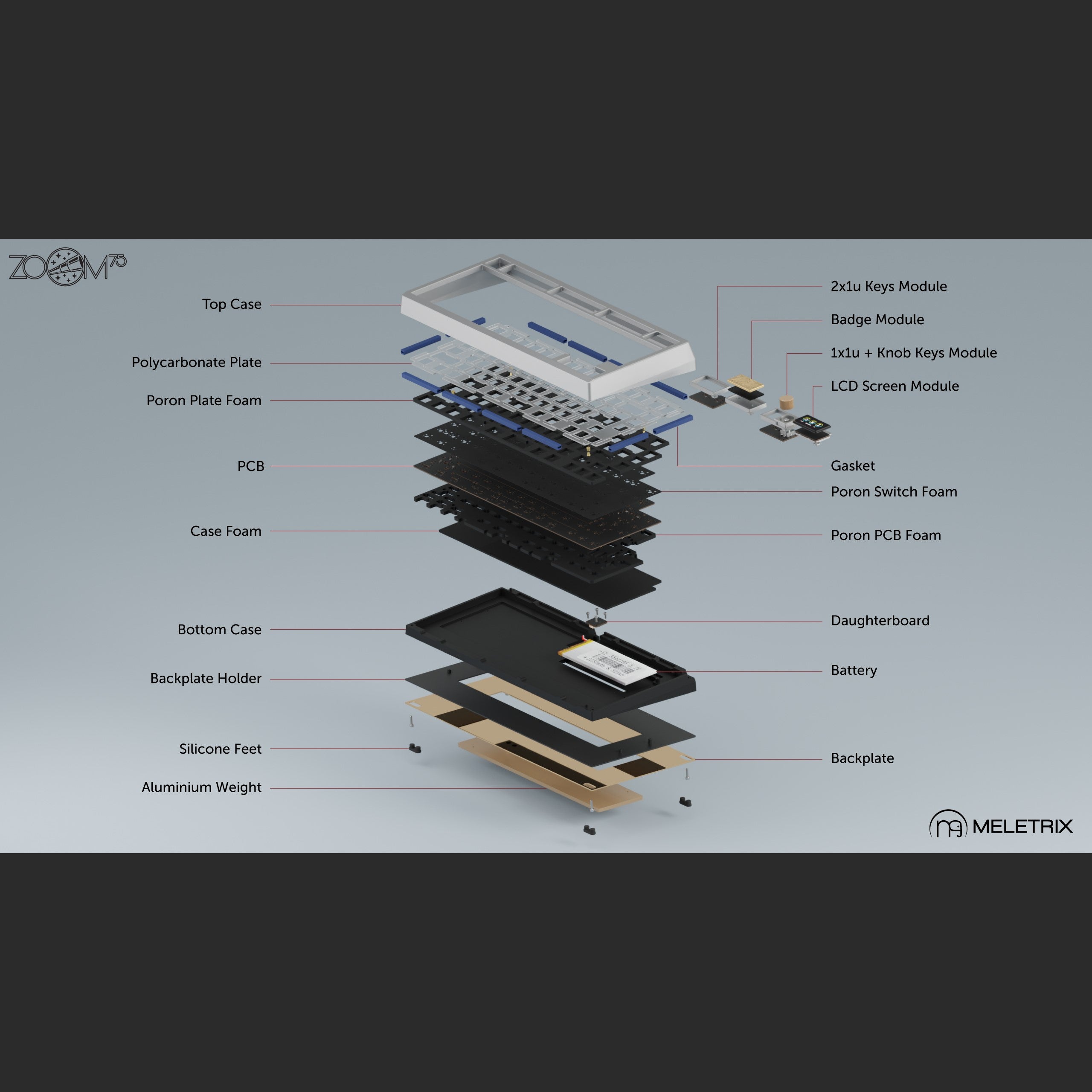

- Gasket mount design
- 75% Layout
- PCB: 1.2mm, with Ai03 DB
- 5° Typing angle
- 22.14 mm front height

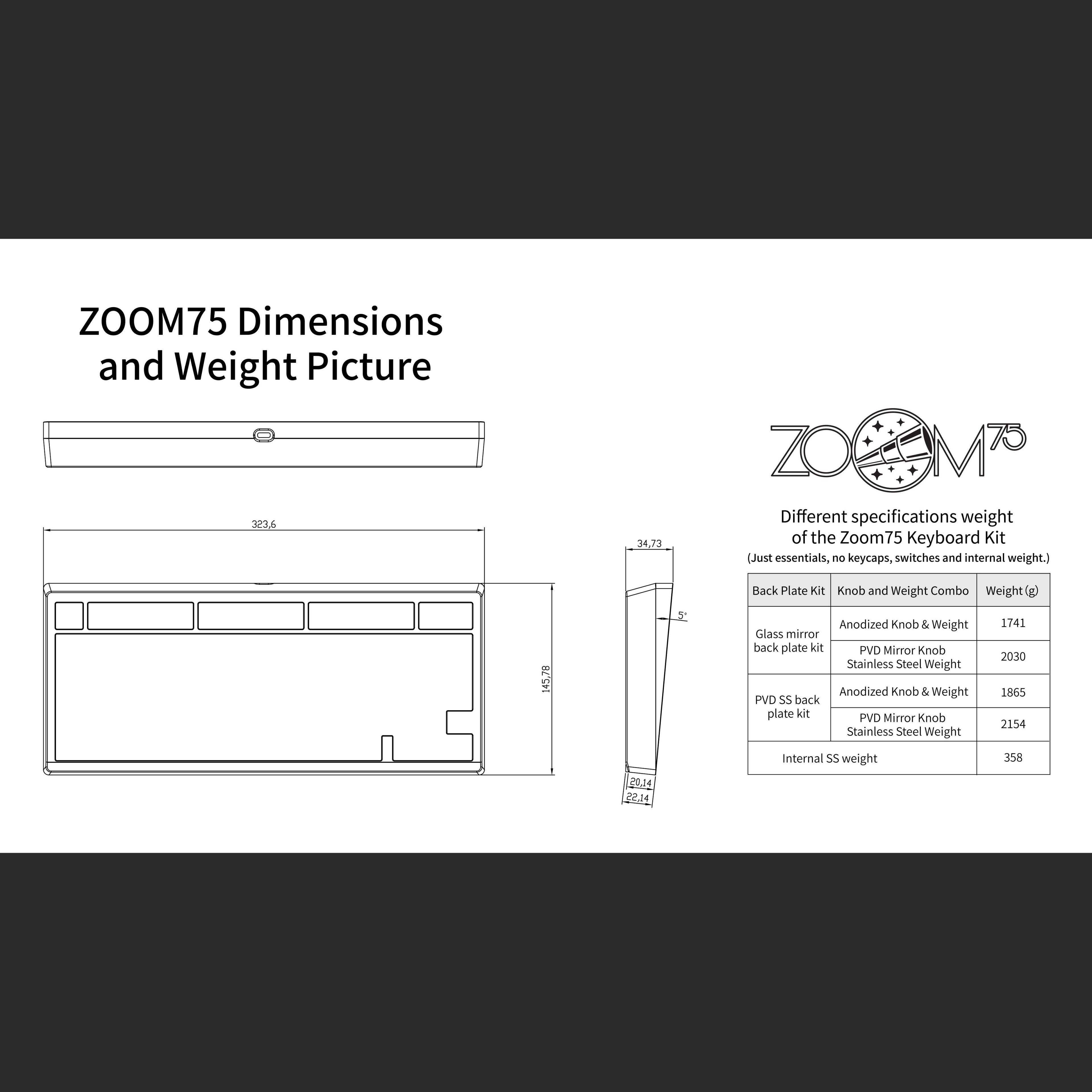

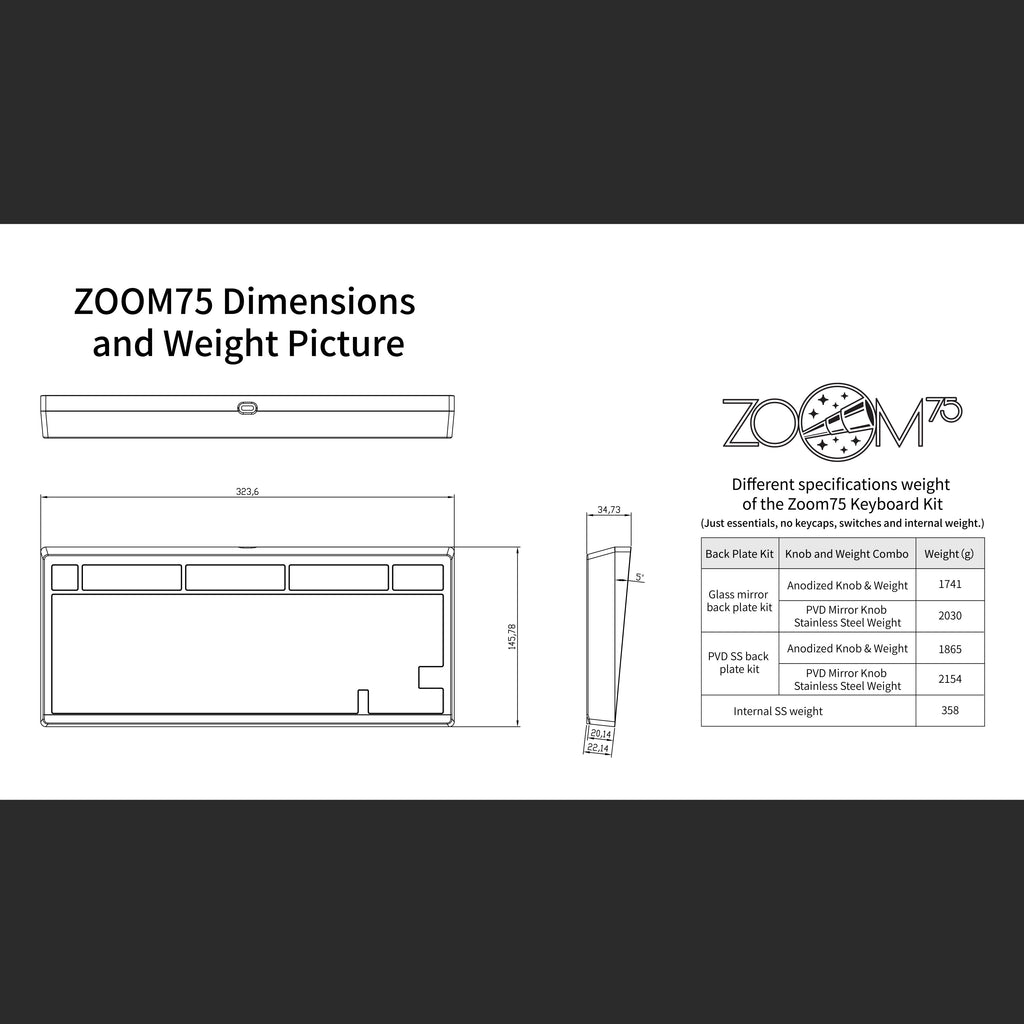

- Dimension: 323.6 x 145.78 x 34.73 (mm)

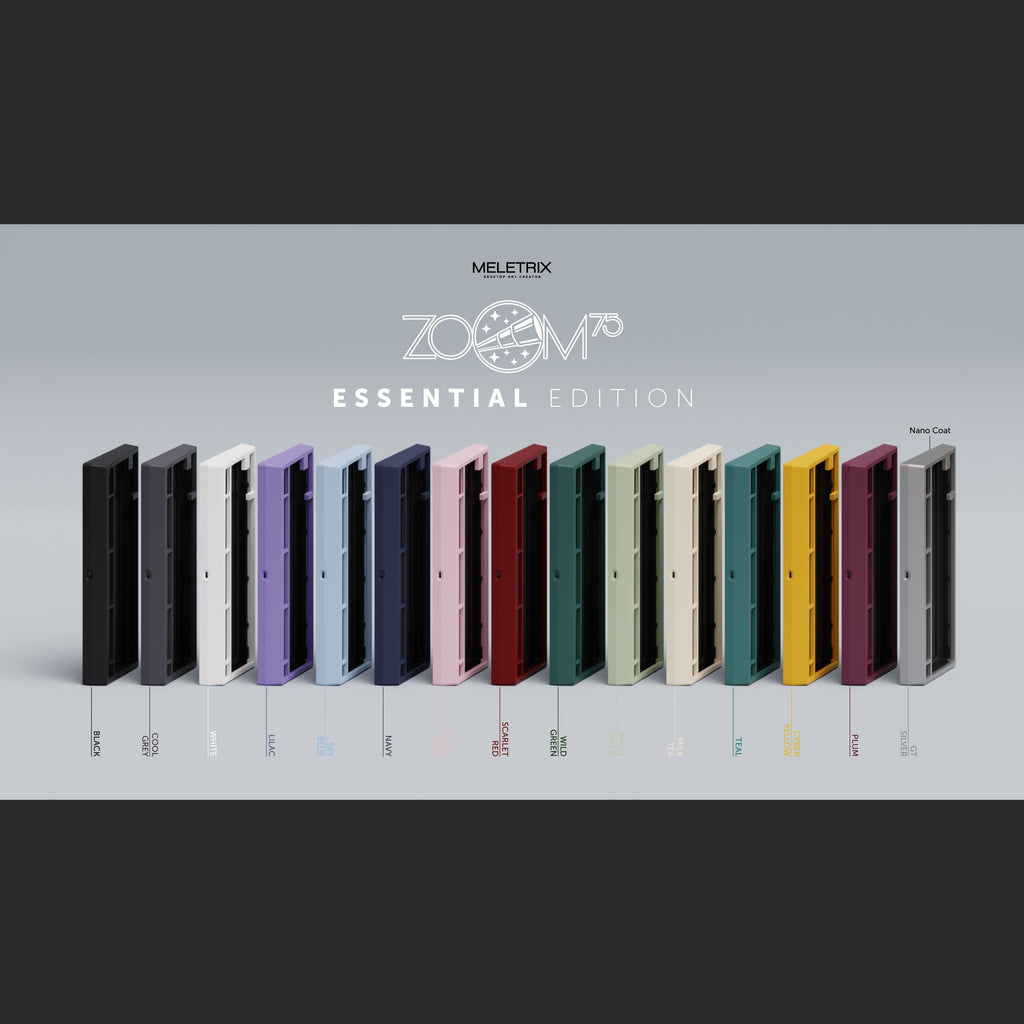

- Finish treatment: electrostatic coated, anodized, E-white, nano coated（GT Silver only)
- Default plate: PC
- Zoom75 Bluetooth PCB polling rate: 125hz
- Zoom 75 2.4GHz Polling Rate: 1000hz
- Zoom 75 Wired Polling Rate: 1000hz
- Bluetooth PCB can be used in wired or wireless mode.
- Tri-mode PCB support VIA. Wired PCB support QMK, not VIA.

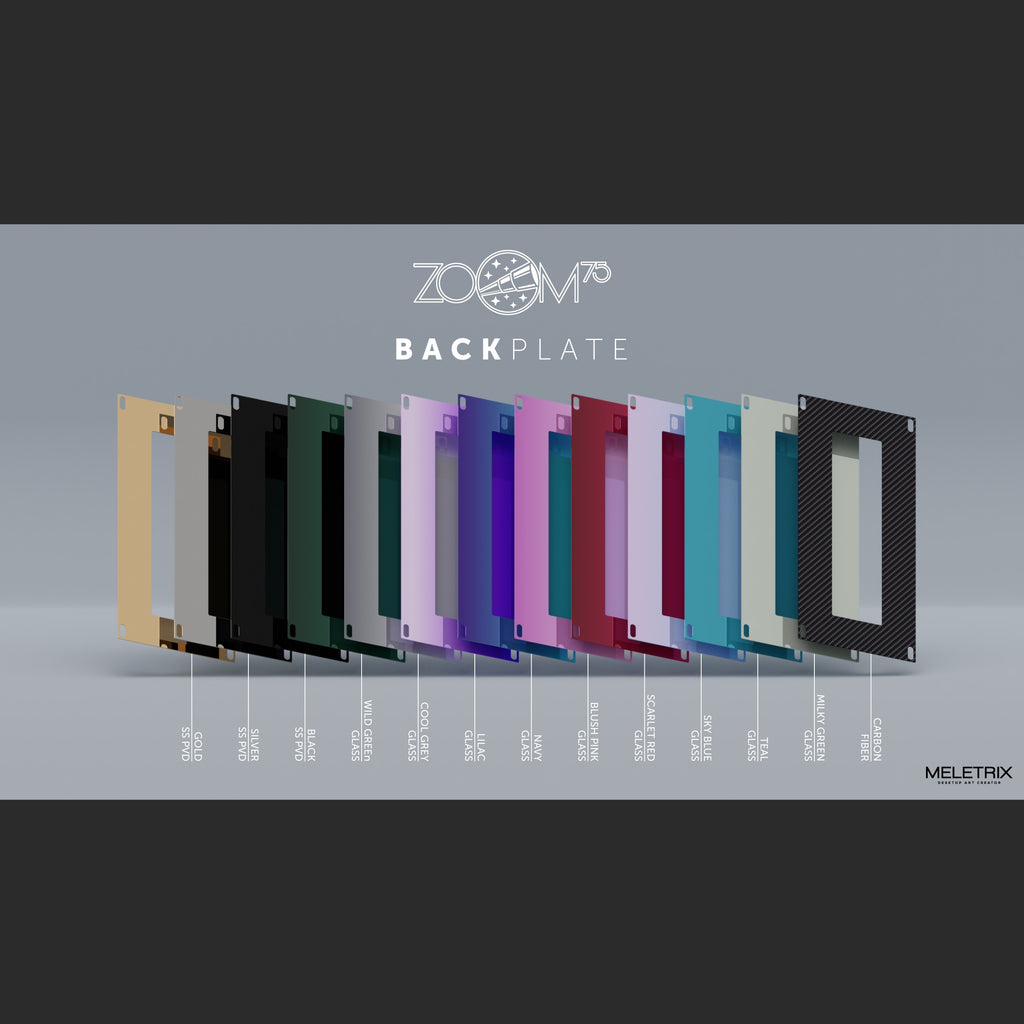

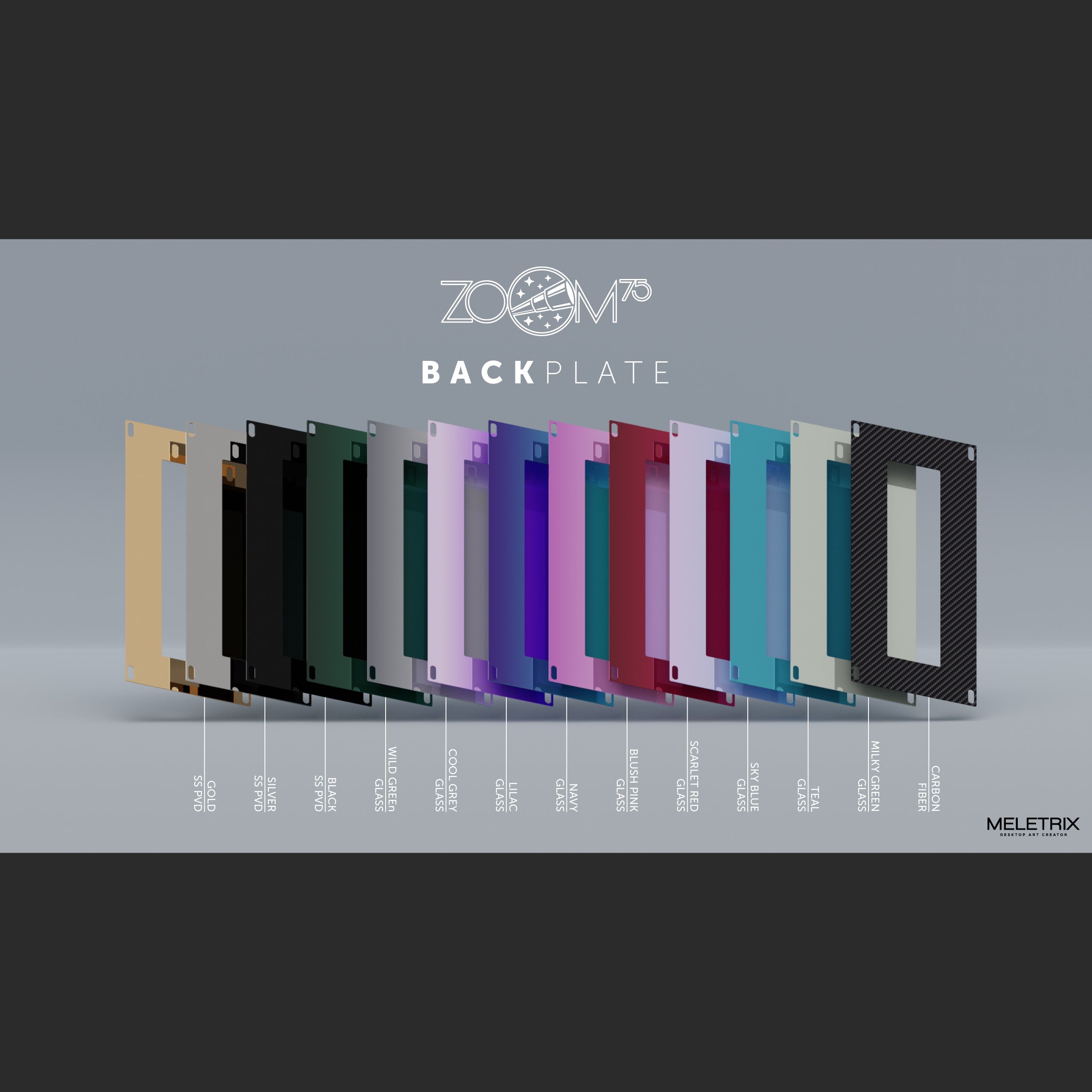

- Essential kit with Alu knob / weight / Glass Mirror Back Plate: 1.74 kg
- Essential kit with brass knob / PVD SS weight / Glass Mirror Back Plate: 2.03kg
- Essential kit with Alu knob / weight /PVD Back Plate: 1.87 kg
- Essential kit with brass knob / PVD SS weight / PVD Back Plate: 2.15 kg
Quality Disclaimer

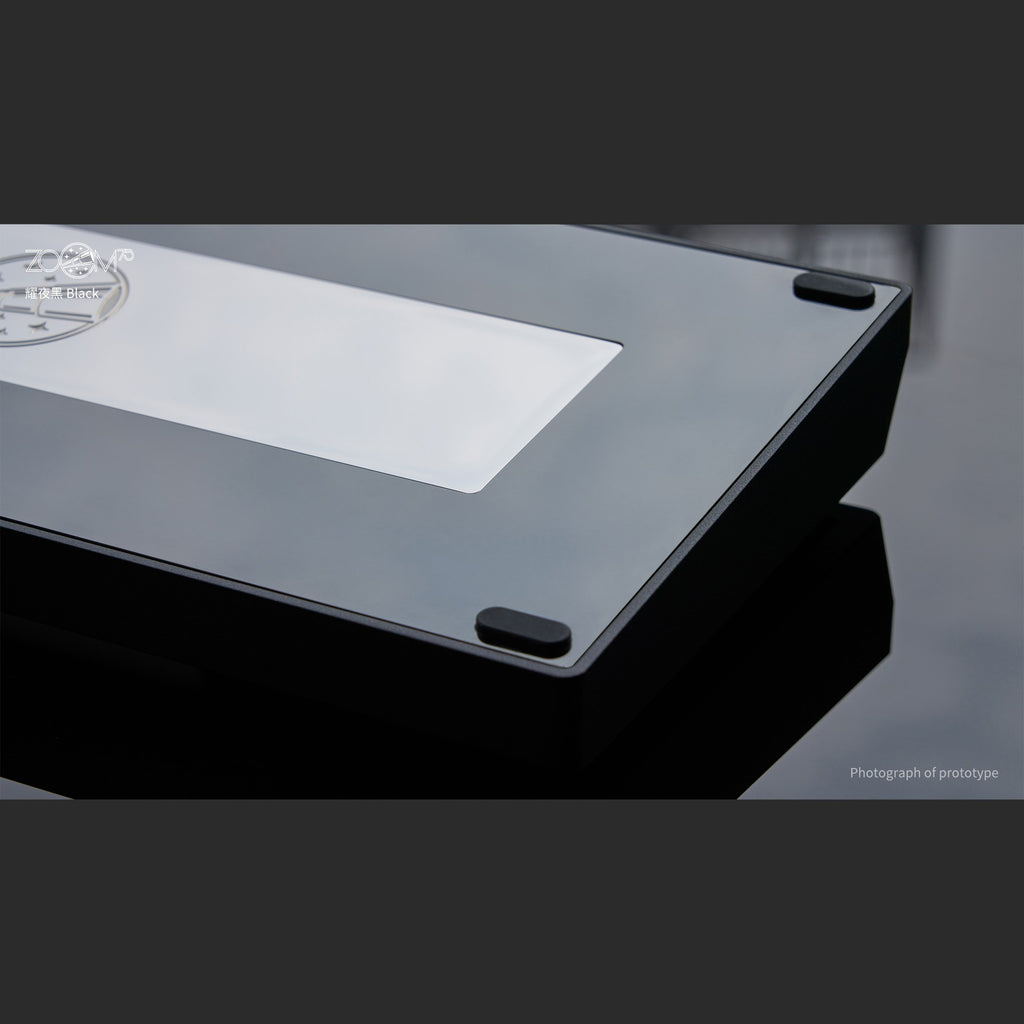

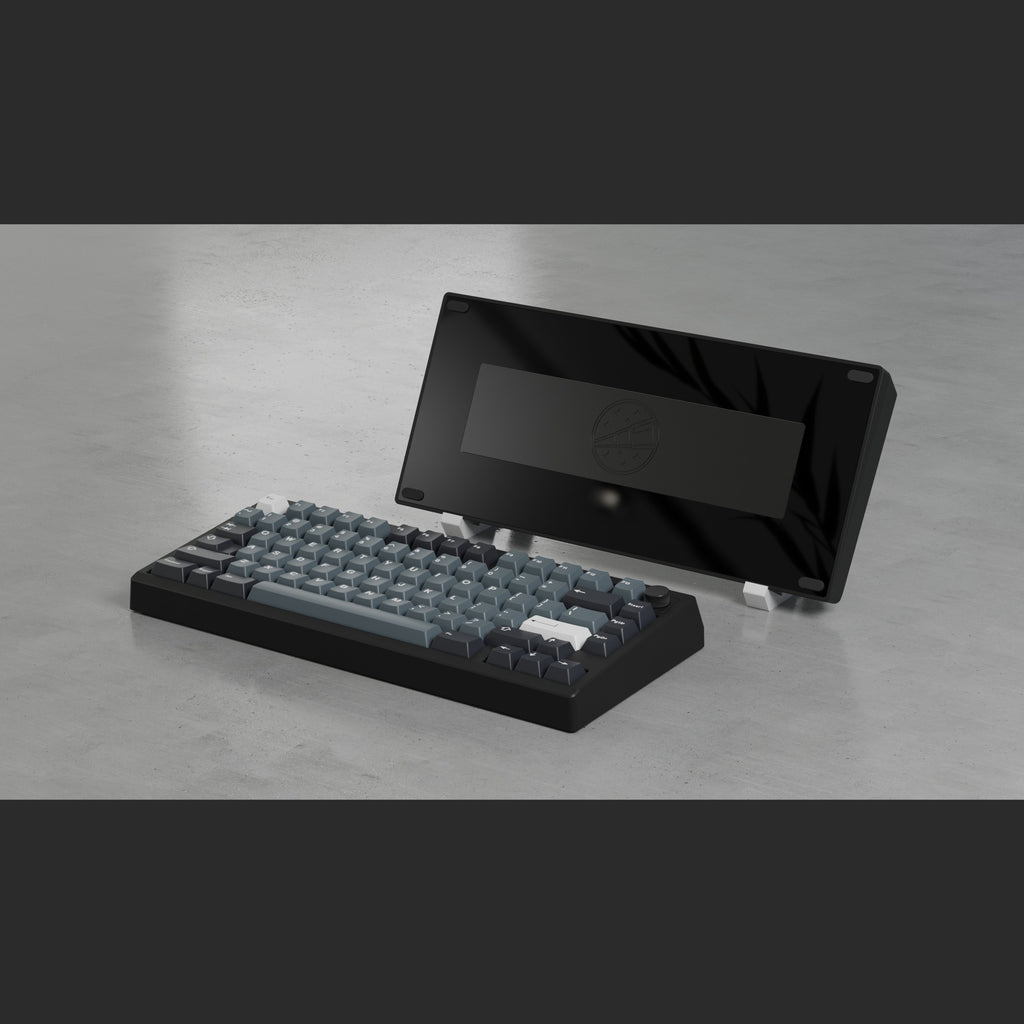

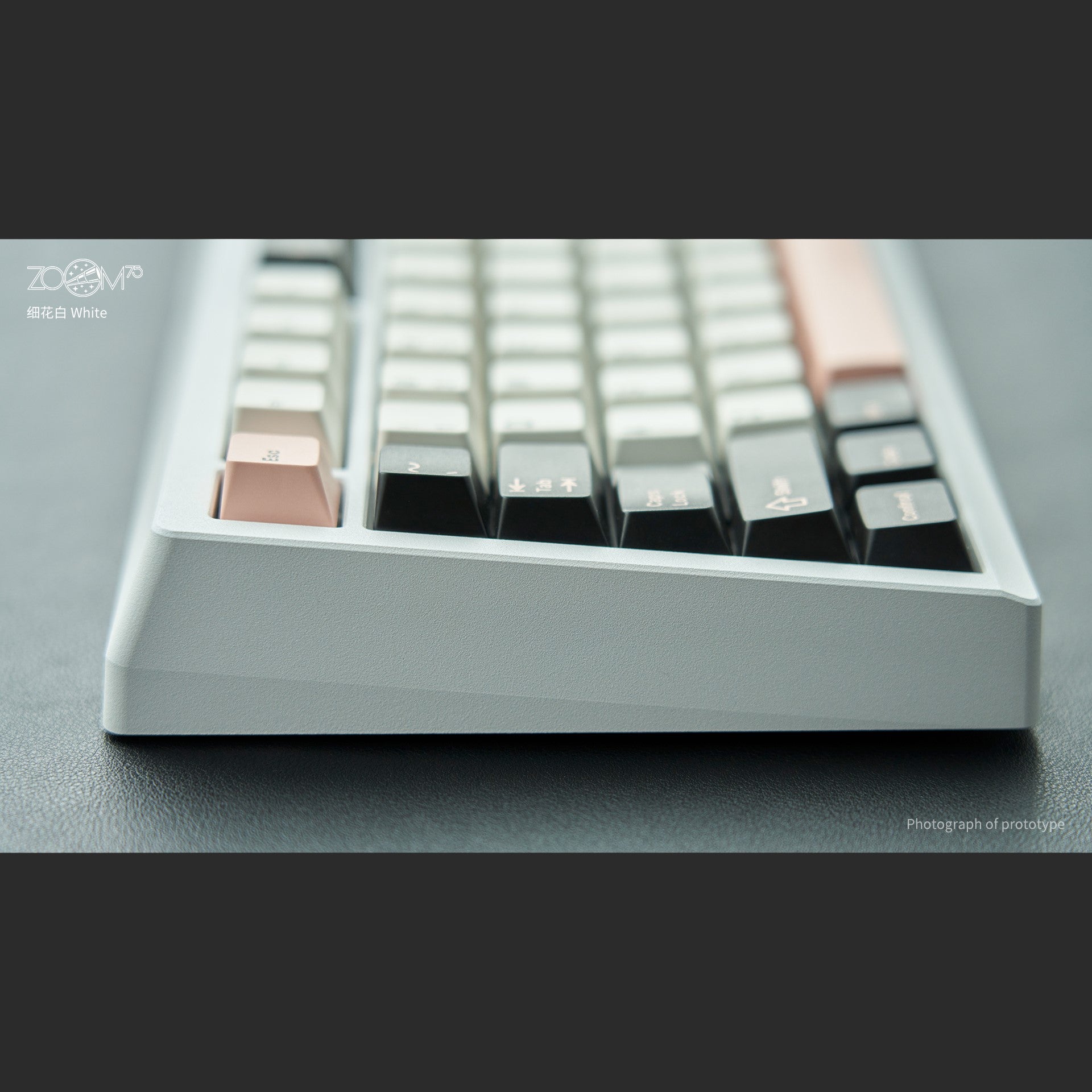

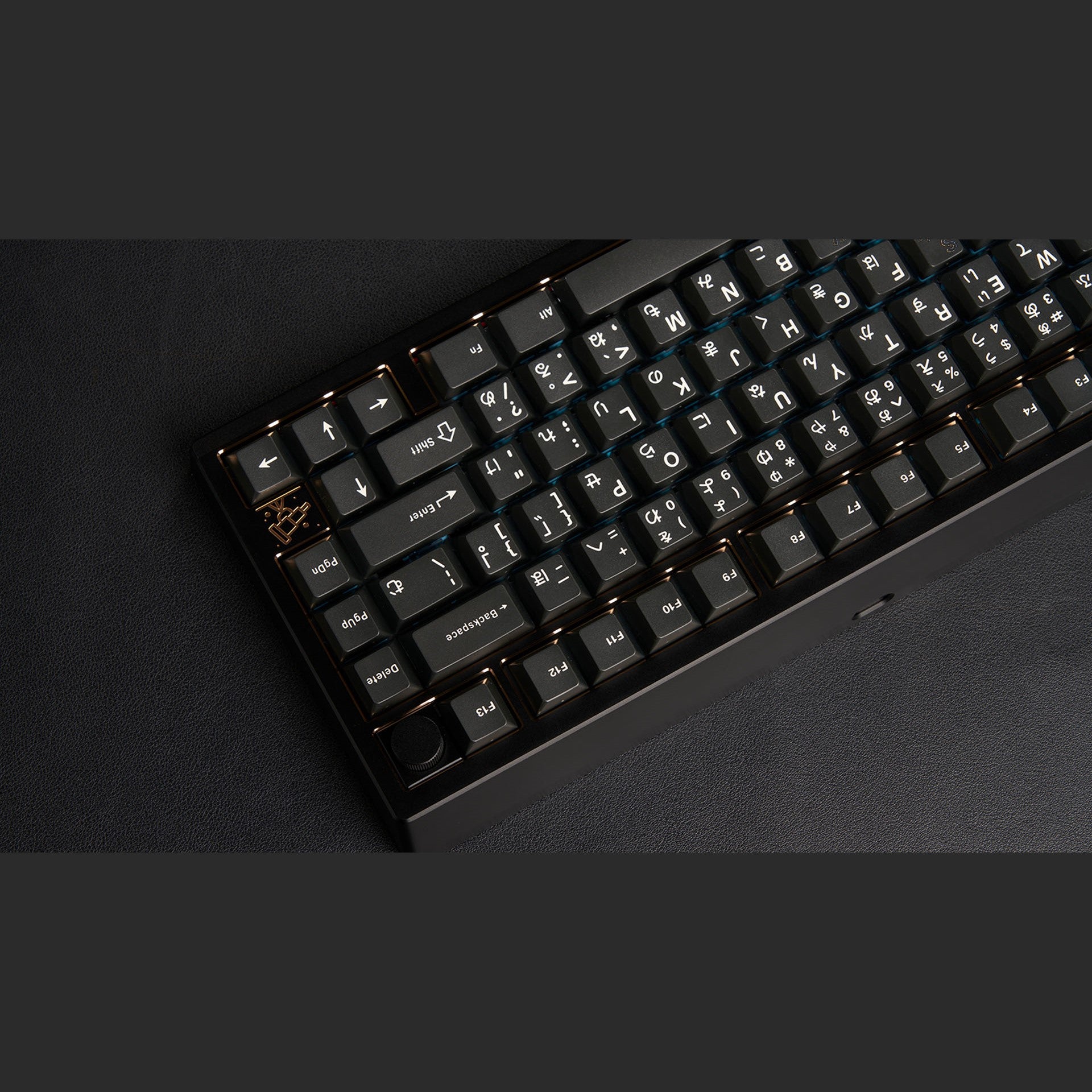

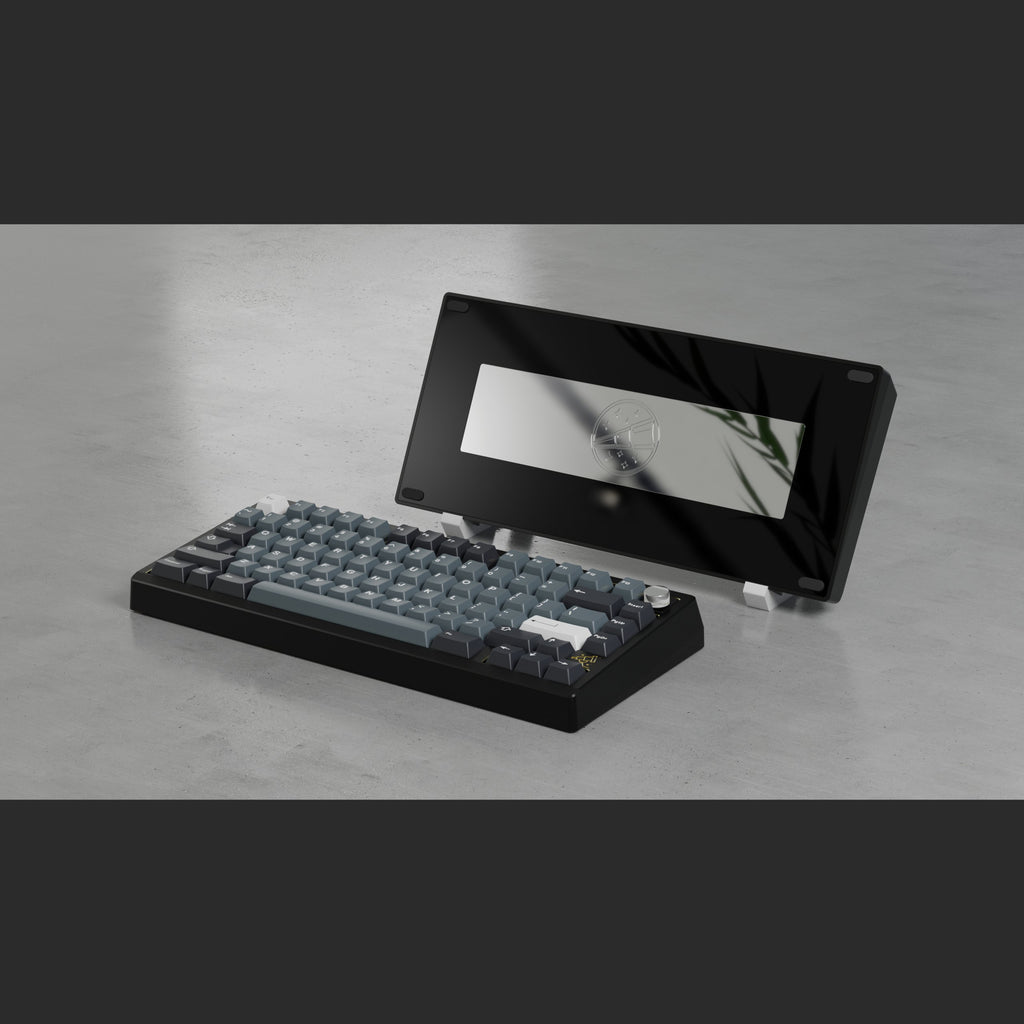

Since there are so many variations, images provided on the product page are renders or prototypes and are for display purposes only. Please also refer to the prototype's video as a reference before purchasing.
ZOOM75 quality disclaimer.
Support
If you have questions regarding this product or need any other assistance please contact us via our contact form or write us an E-Mail to: support@keygem.com
You can also join our Discord Community to get the latest news and support here: KEYGEM Discord
Frequently asked questions will be added to our FAQ.
