IDOBAO - ID80V2

Specifications:

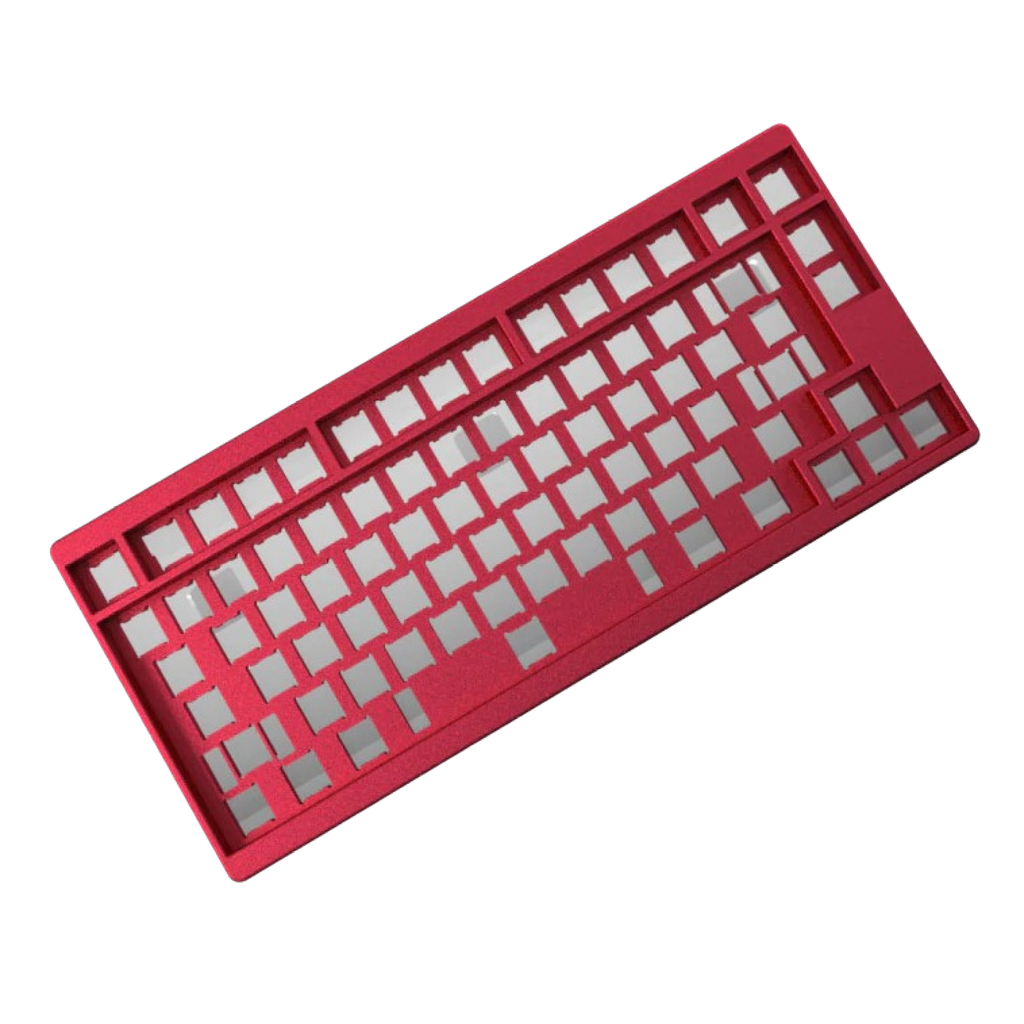

• Case material: Aluminium
• Bottom material: Acrylic
• Angle: 6 degrees
• Weight: 1.36 kg

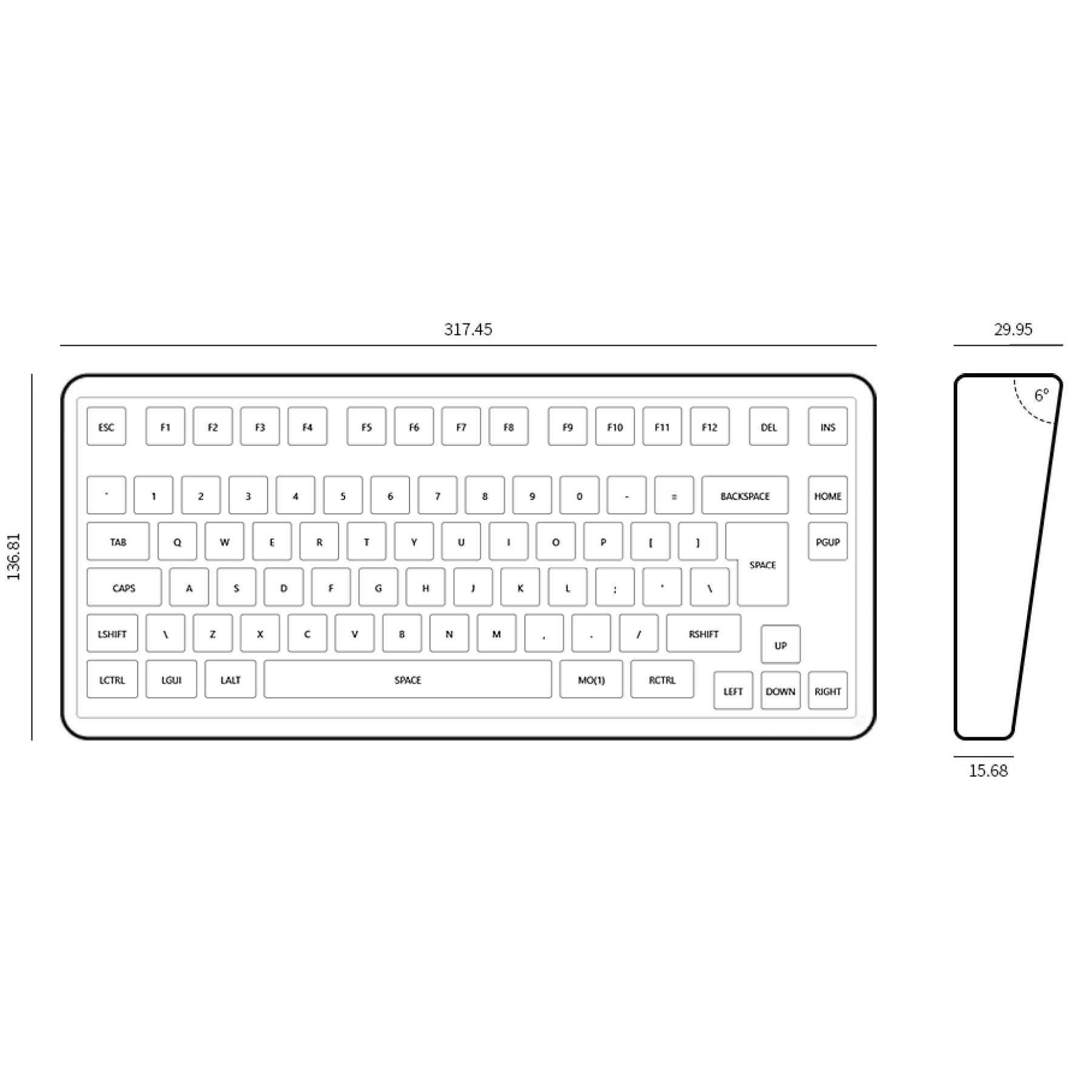

• Dimensions: Width 14.2cm x length 31.3cm
• Integrated plate ANSI layout or ISO layout

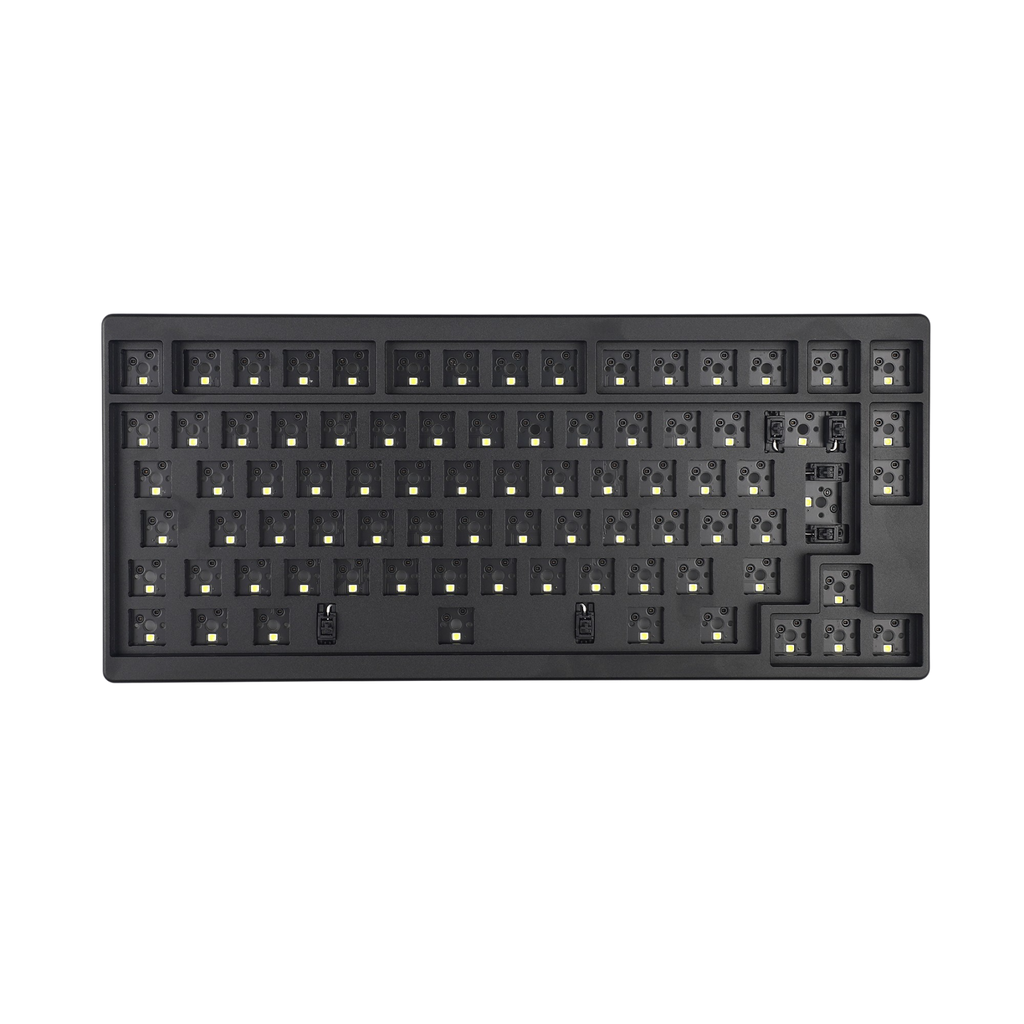

• Per-key white LED & underglow RGB
• Connectivity: USB-C
• QMK/VIA programmable

Included:

• 1 * Top case (Aluminium)
• 1 * Bottom case (Acrylic)
• 1 * Brass counterweight

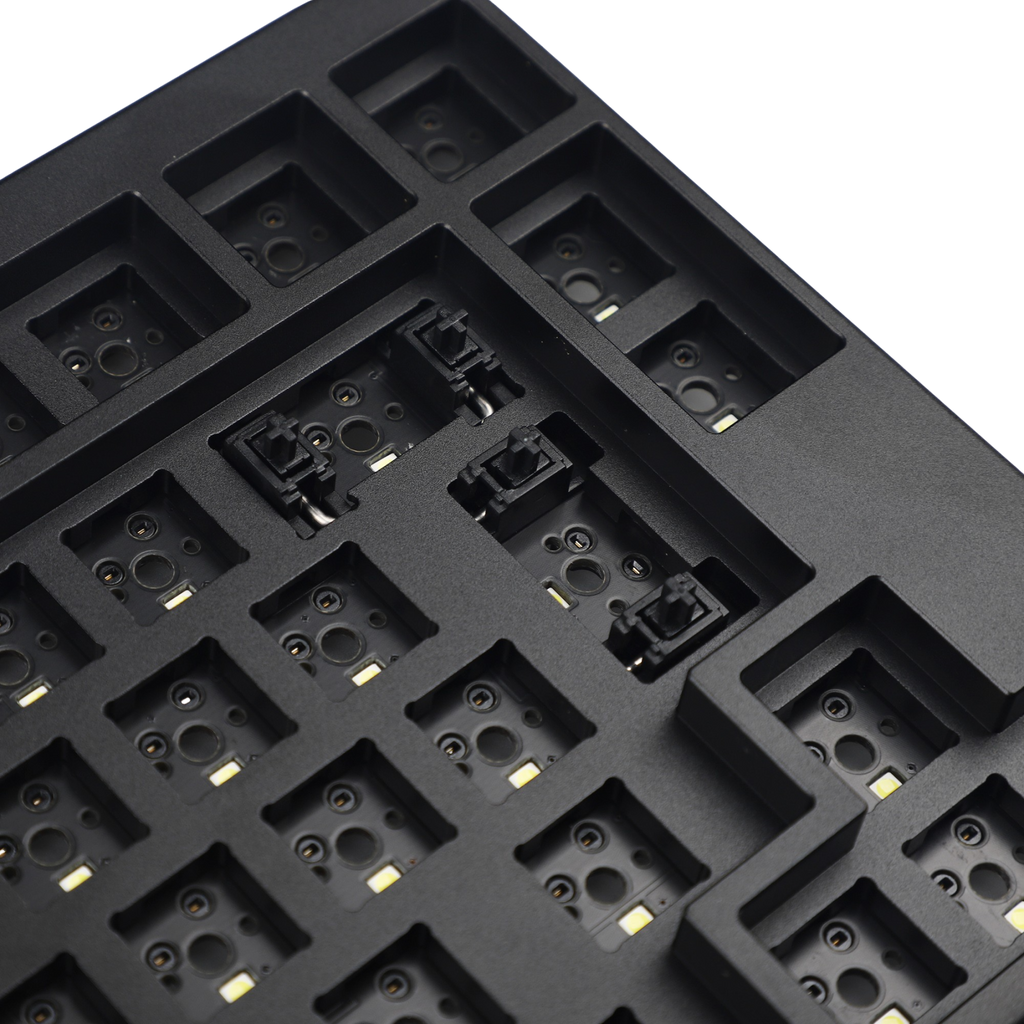

• 1 * Kailh Hot swap PCBA
• 6 * Phillips screws(M2x10)
• 14 * Gold-plated cross screw(M2X4)
• 2 * Electric resistance
• 3 * Kailh Sockets
• 4 * Stabilizer(ANSI)
• 3 * stabilizer(ISO)
• 1 * USB Type-c cable
• 1 * Silicone rubber feet

QMK Manuals - ANSI

VIA Manuals - ANSI

QMK Manuals - ISO

VIA Manuals - ISO
