Name: Lotus80 Keyboard Kit by FoxLab - Group-Buy
Brand: KEYGEM
Price: 365.55 EUR
Availability: InStock

Lotus80 Keyboard Kit by FoxLab - Group-Buy

Hello everyone,

This is Fox Lab. It’s been a year long since Time65 GB, I'm back to introduce a new themed custom keyboard from our Nature Series—the LOTUS 80%.

Start - End: 2nd July 2025 - 17th August 2025

Shipping Estimate: Q4 2025

Design Concept:

The lotus has long symbolized purity, elegance, and Zen philosophy. Drawing inspiration from this, we fused Eastern aesthetics with modern industrial design. Centered on minimalist contours and symmetrical beauty, we eliminated superfluous decorations to create a keyboard that balances visual appeal and functionality.

Our Nature Series emphasizes subtractive design, stripping away homogenized industrial elements. The goal was to achieve simplicity while retaining thematic sophistication and distinctiveness.

Addons: Here

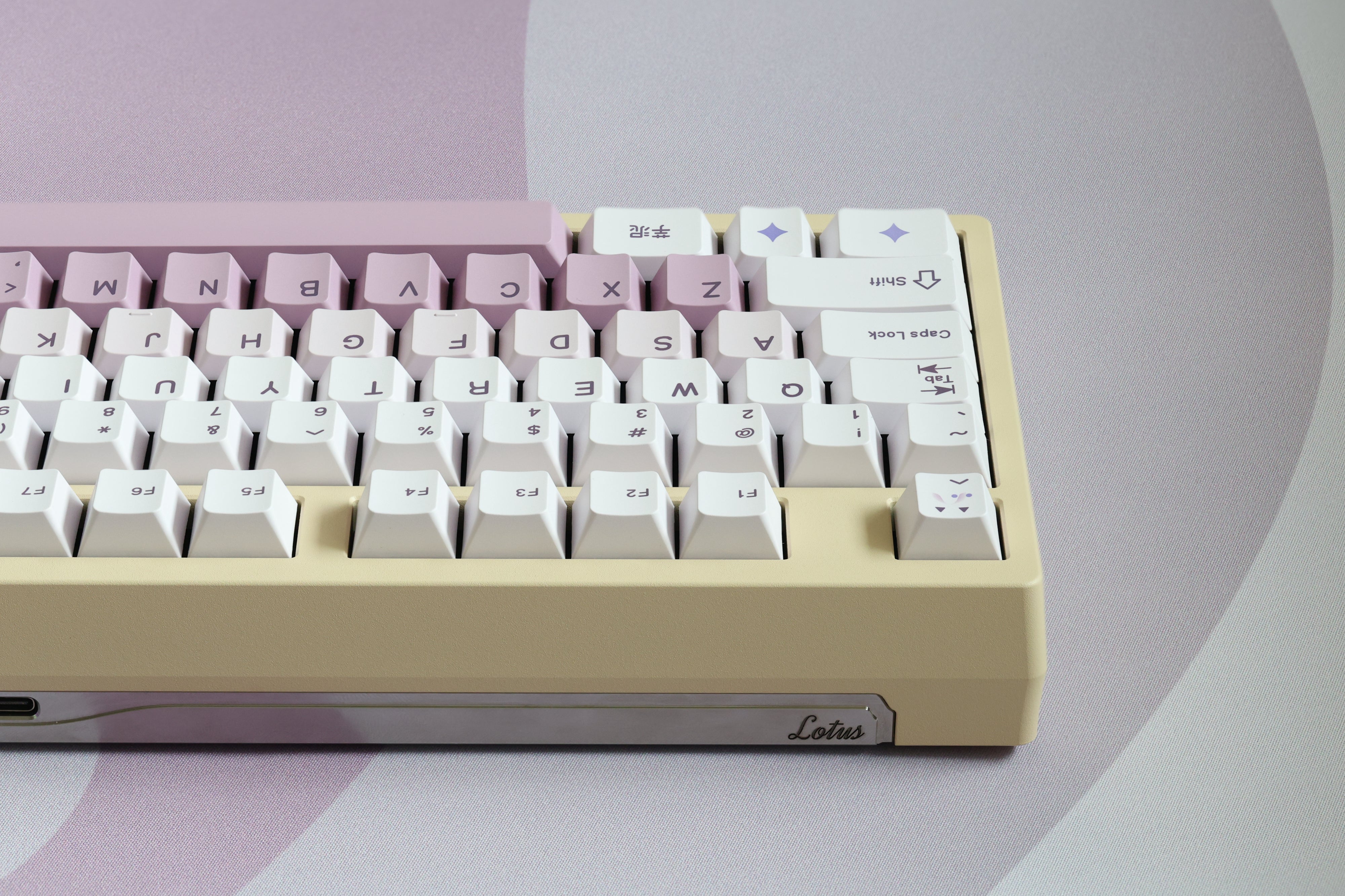

Front Design:

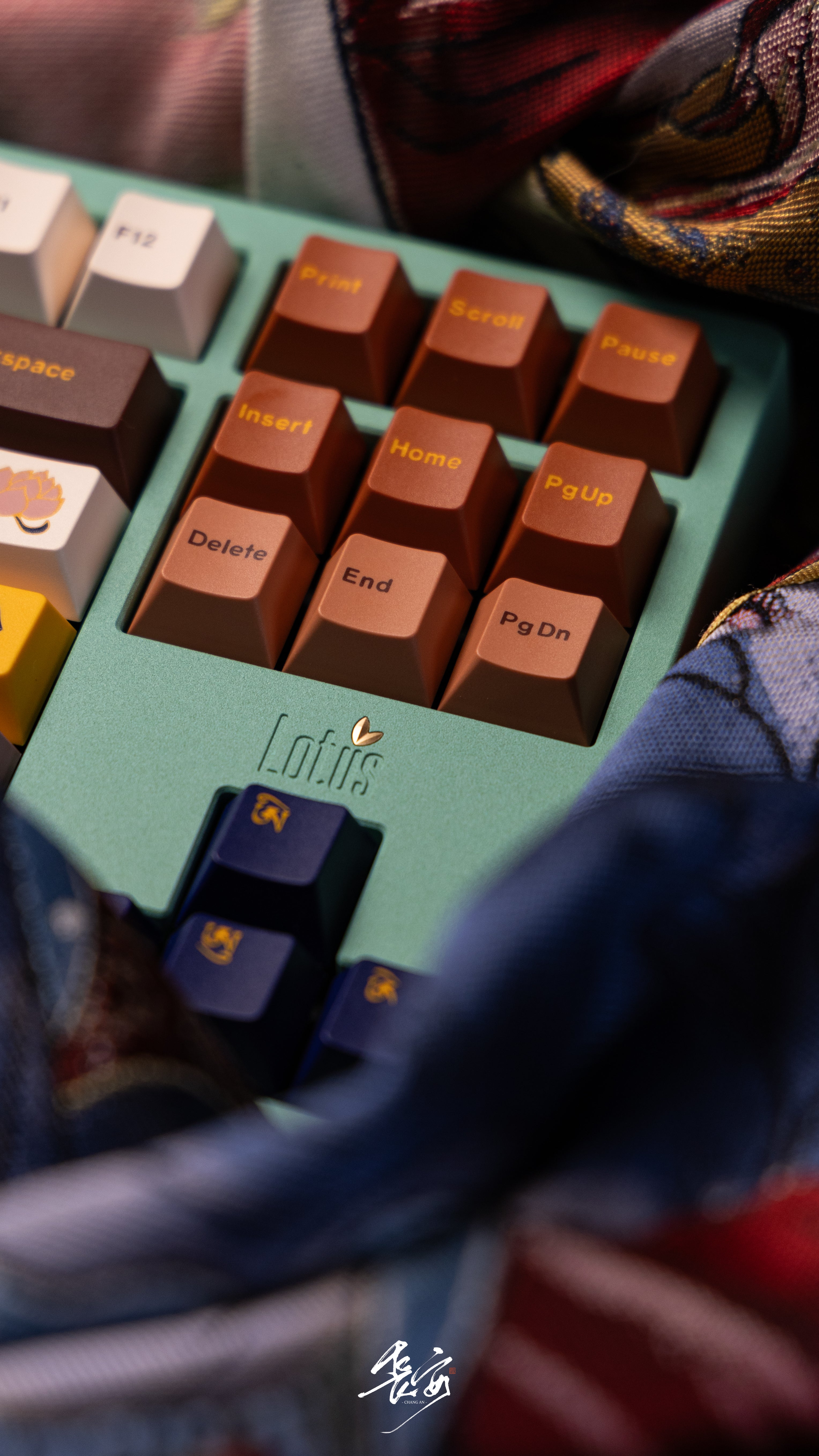

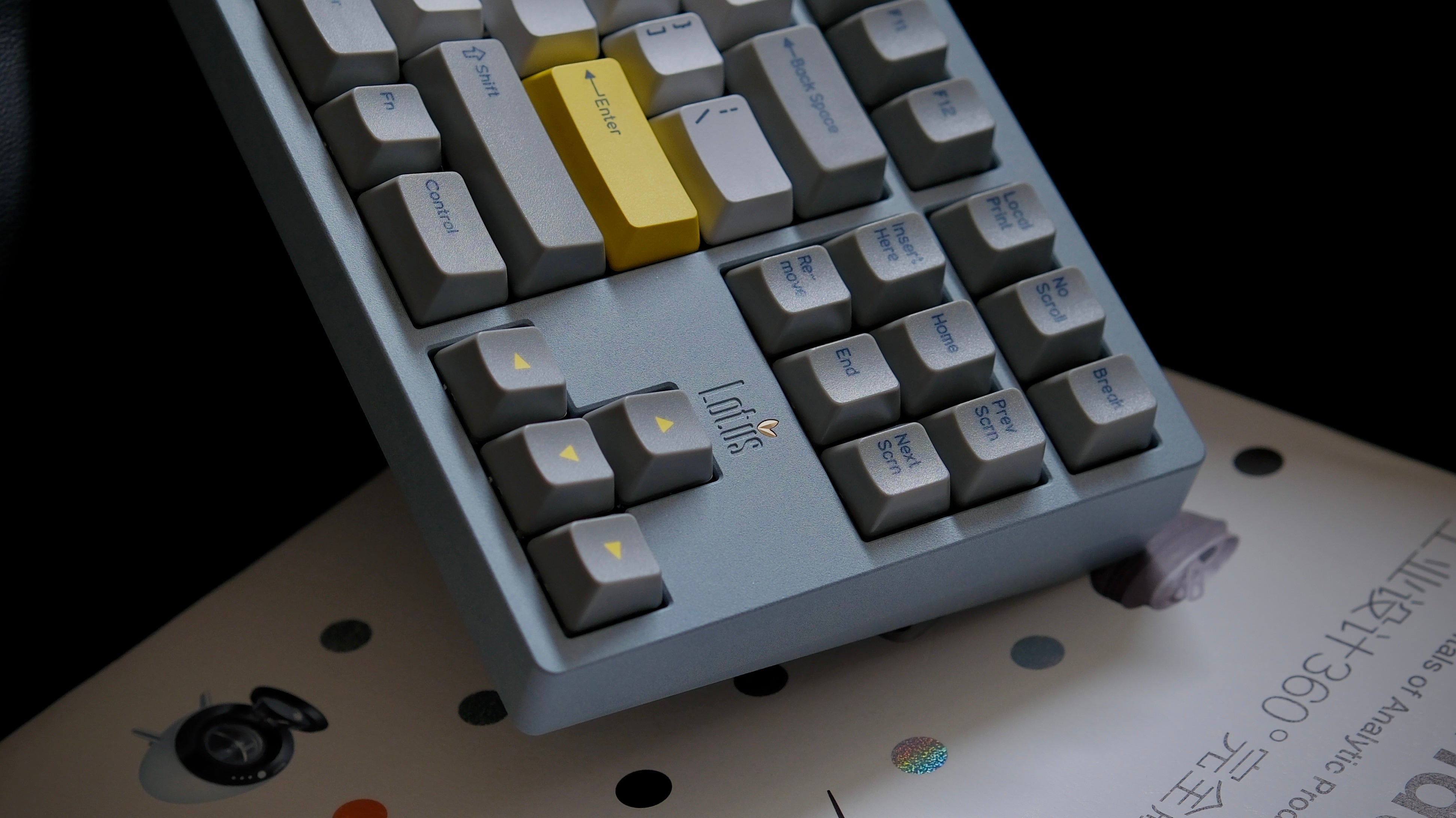

Since the lotus theme doesn’t lend itself well to RGB lighting, we opted for an understated approach—a finely engraved logo paired with a lotus-leaf emblem to adorn the front. Unlike our previous Sunset with ultra-thin bezels, the LOTUS features moderately sized borders to complement its elegant and grand aesthetic.

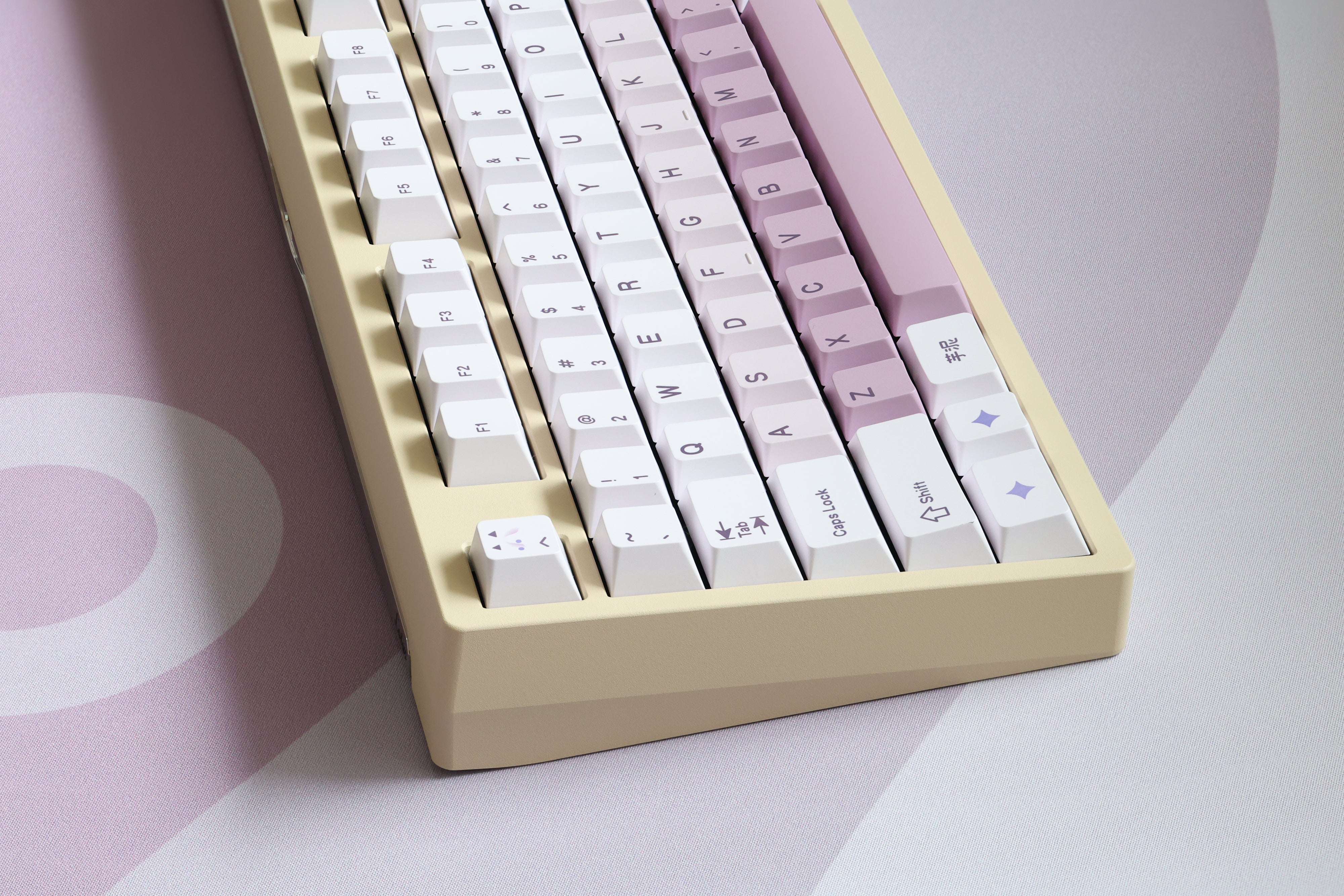

Side Profile:

The sides employ a gently concave, curved-edge design, mimicking the natural unfurling of lotus leaves. The smooth transitions offer a refined tactile experience while reducing visual bulk.

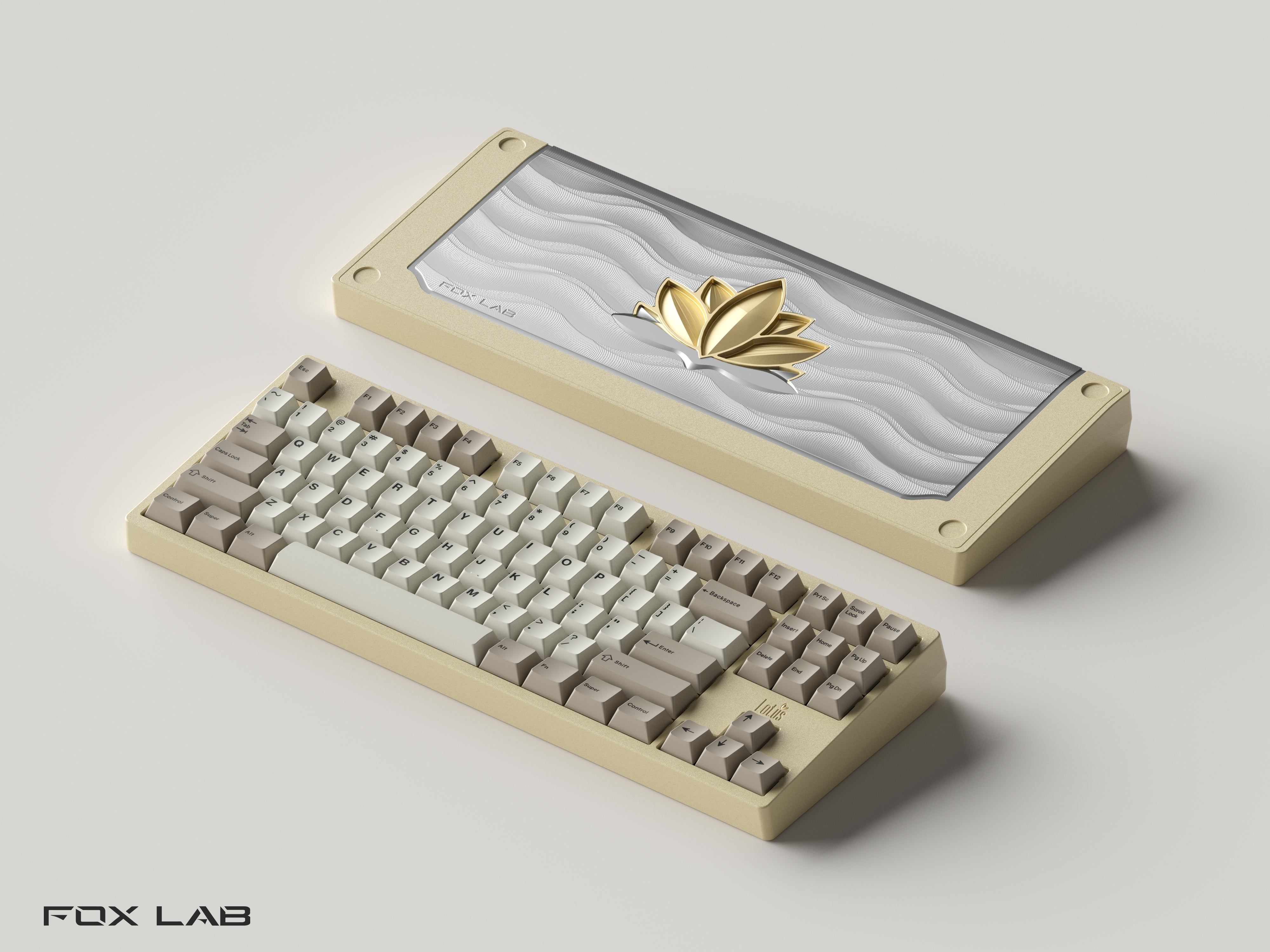

Weight Design (Bottom):

Small Weight (Lotus Motif): Made of brass, the multi-layered petals radiate from a circular base, creating a 3D relief effect that mimics overlapping lotus petals.

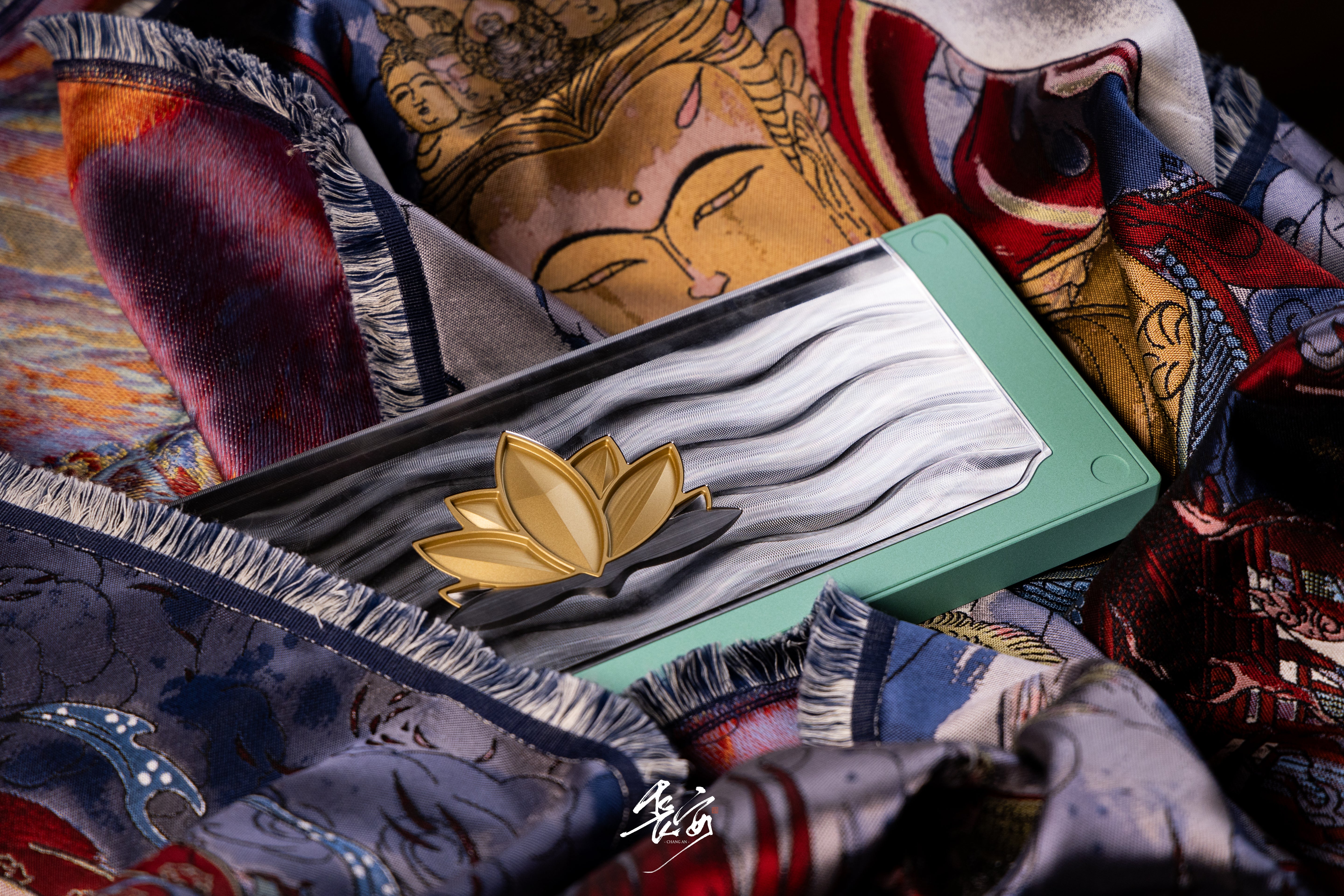

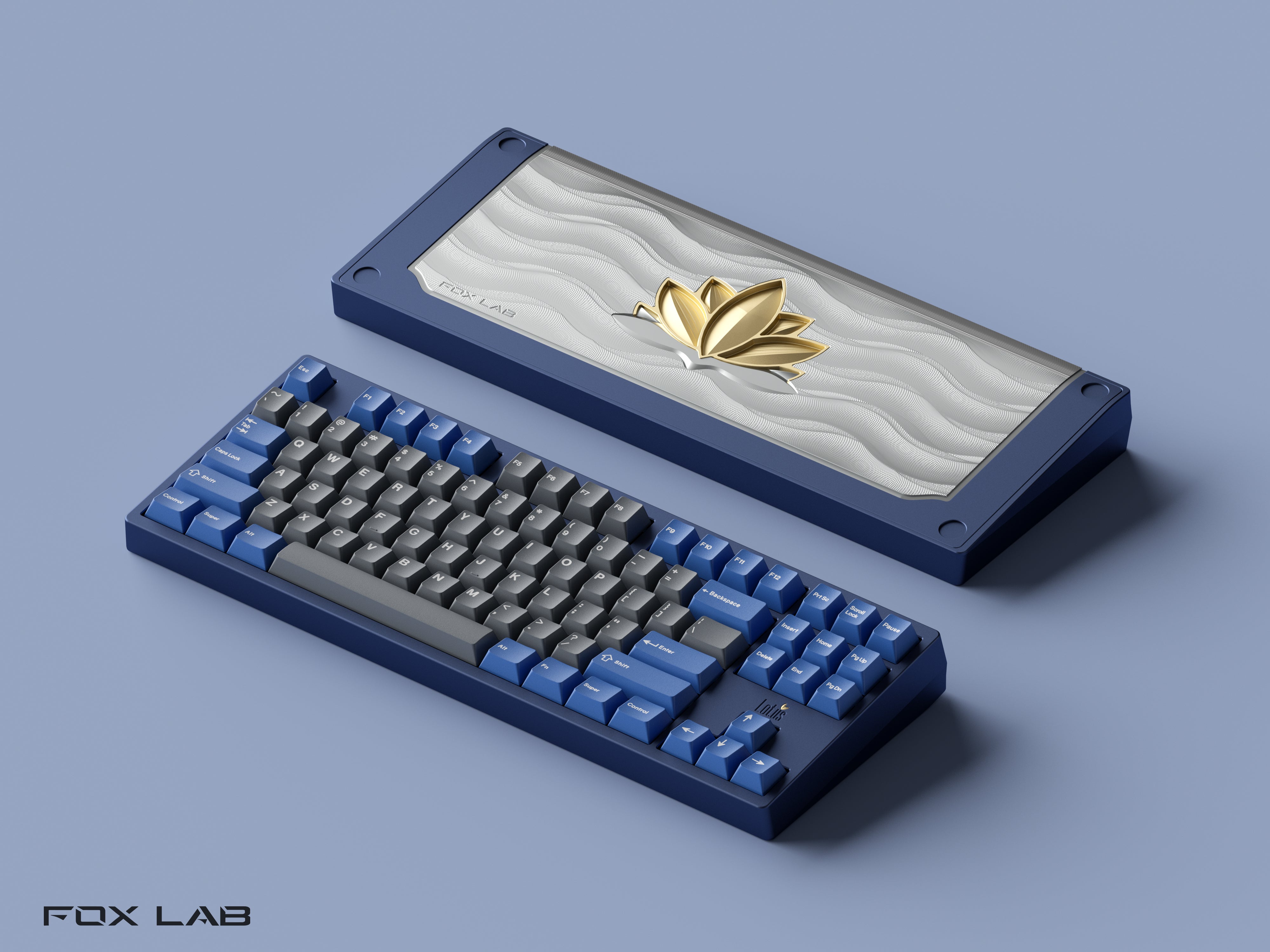

Back Design:

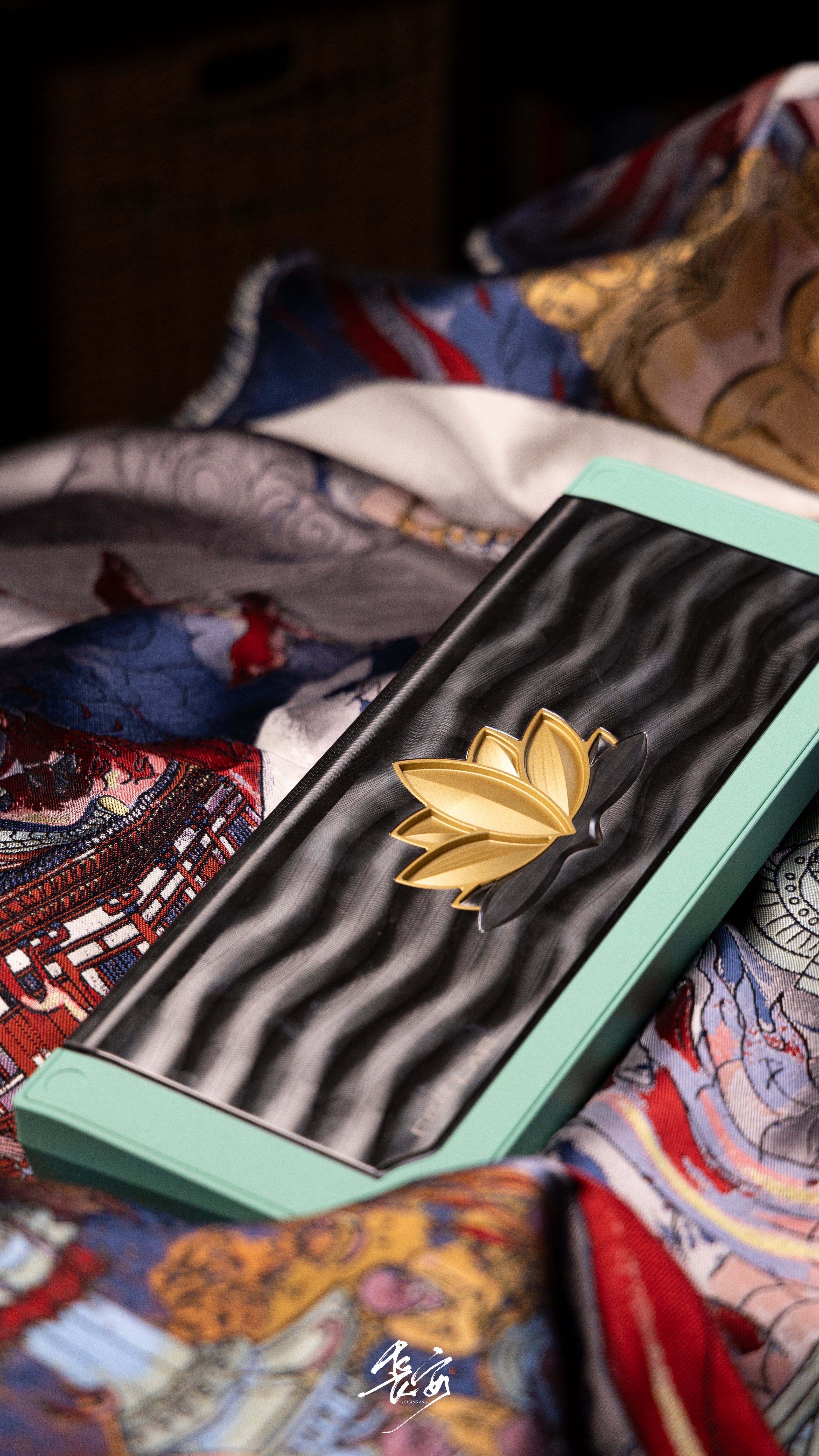

Large Weight (Backplate): Crafted from stainless steel, the center features a curved lotus-platform design that echoes the petals above. The interplay of two contrasting metals forms a complete lotus, embodying elegance, purity, and Zen-inspired aesthetics. The layered petals and symmetry exude a quiet luxury, further enhanced by the heft of brass and stainless steel.

Specifications:

Typing Angle: 7°
Front Height: 19.22mm
Unbuilt Weight: 3.4kg
Mounting: TOP
PCB Options: Soldered / Hot-swap (1.6mm uncut)

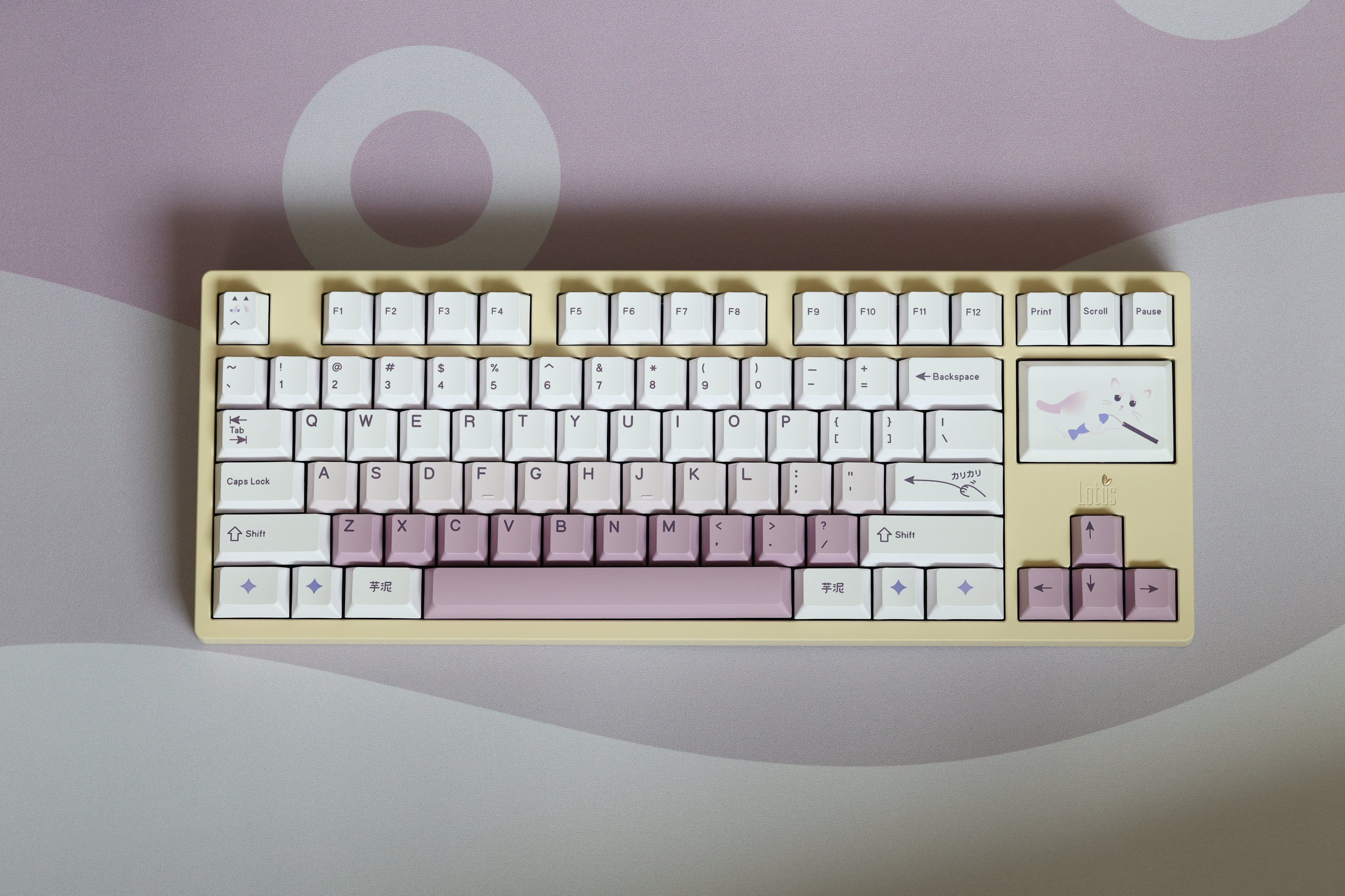

Layout: WK/WKL
Plate: Uncut Aluminum Plate
Back Weight:
- Large Weight: Stainless steel, silver, wave-knurled texture (raw)
- Lotus Petals: Brass, Gold, fingerprint-resistant oil coating
- Lotus Leaves: Stainless steel, Silver, raw (unfinished)

Solder PCB:

Hotswap PCB:

Structural Design:

To maintain a clean look, we used internal screw fastening (hidden screws) instead of visible mounts. The keyboard features a two-layer construction (technically three due to the stainless steel backplate).

Mounting Style: TOP Mount

While the custom keyboard scene has explored various soft-mounting styles (e.g., gasket), we returned to the classic TOP mount for this build. Why? Because sometimes, sticking to the original, uncompromising feel aligns better with the spirit of customization—OG and unyielding to trends.

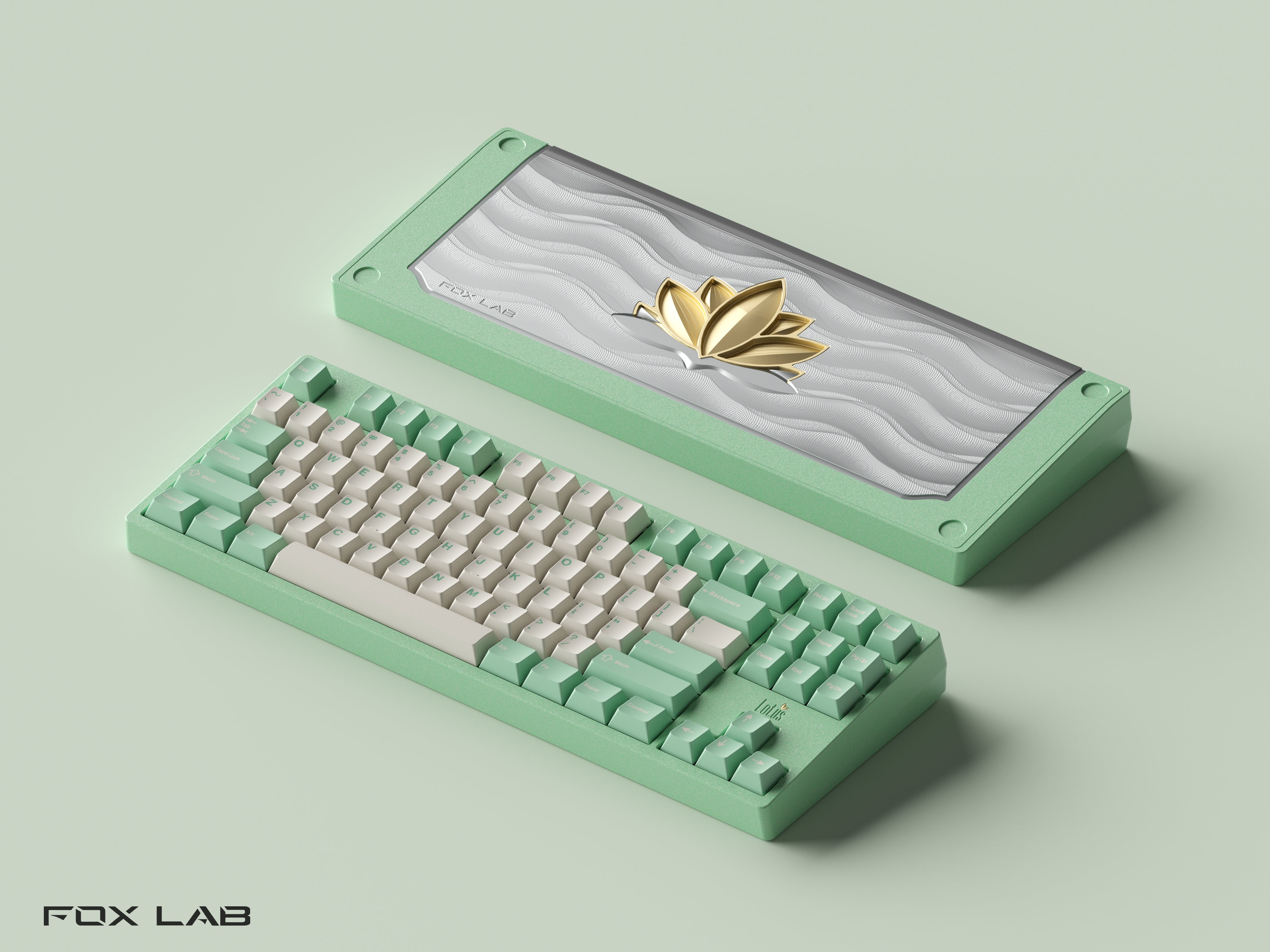

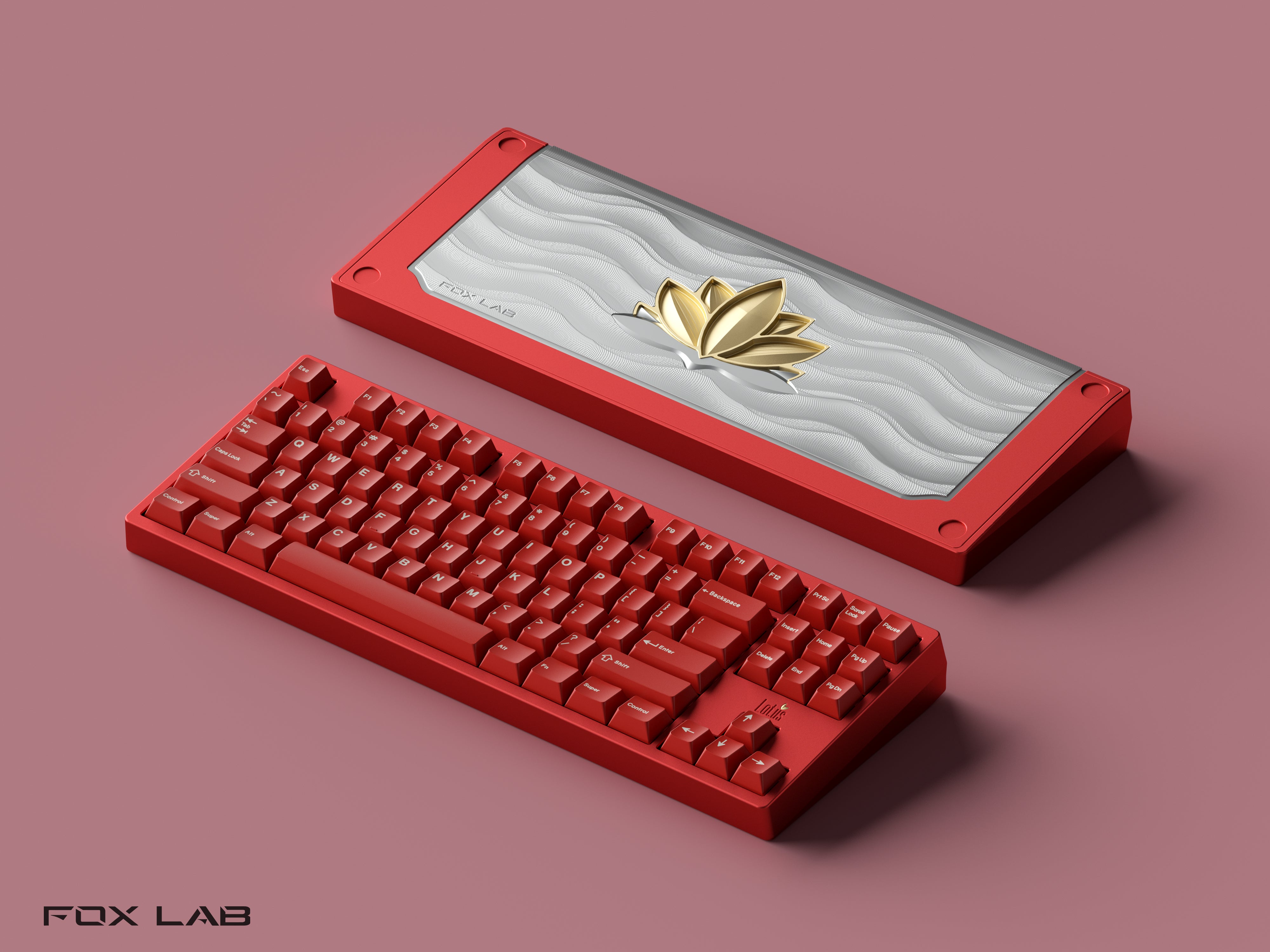

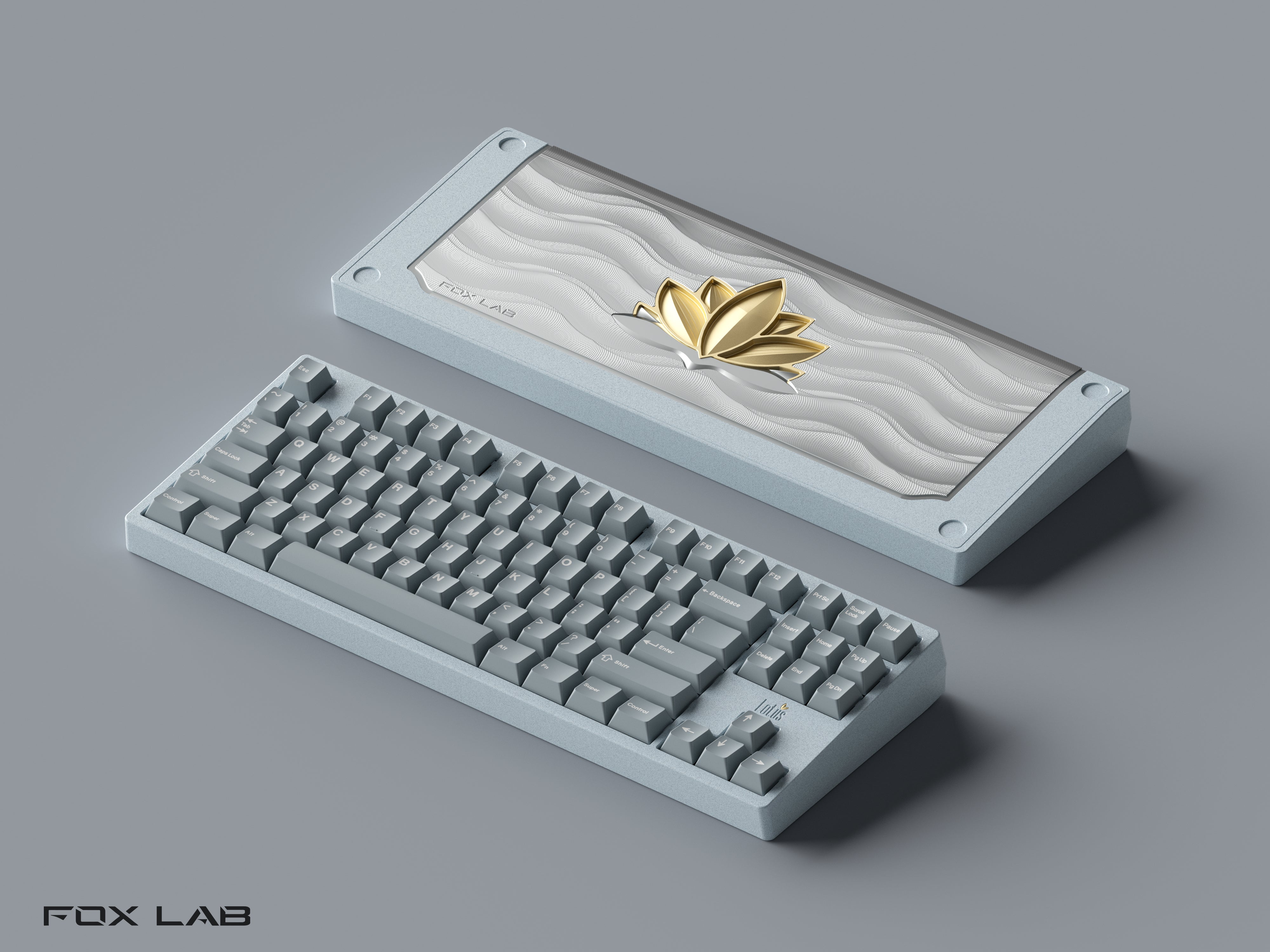

Colour Options:

Eight Colour options, top & bottom case in the same colour

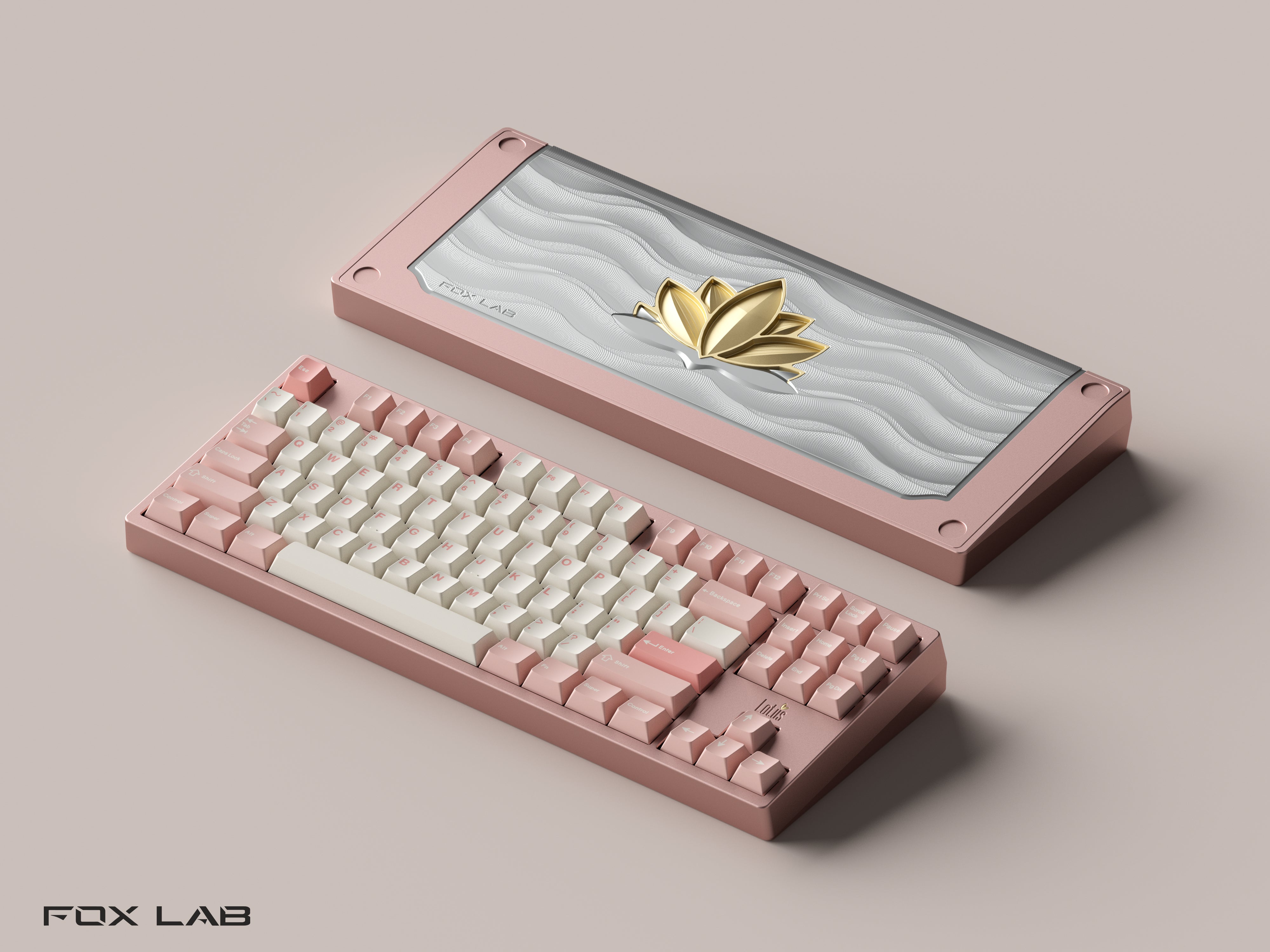

- Anodised Champagne Pink

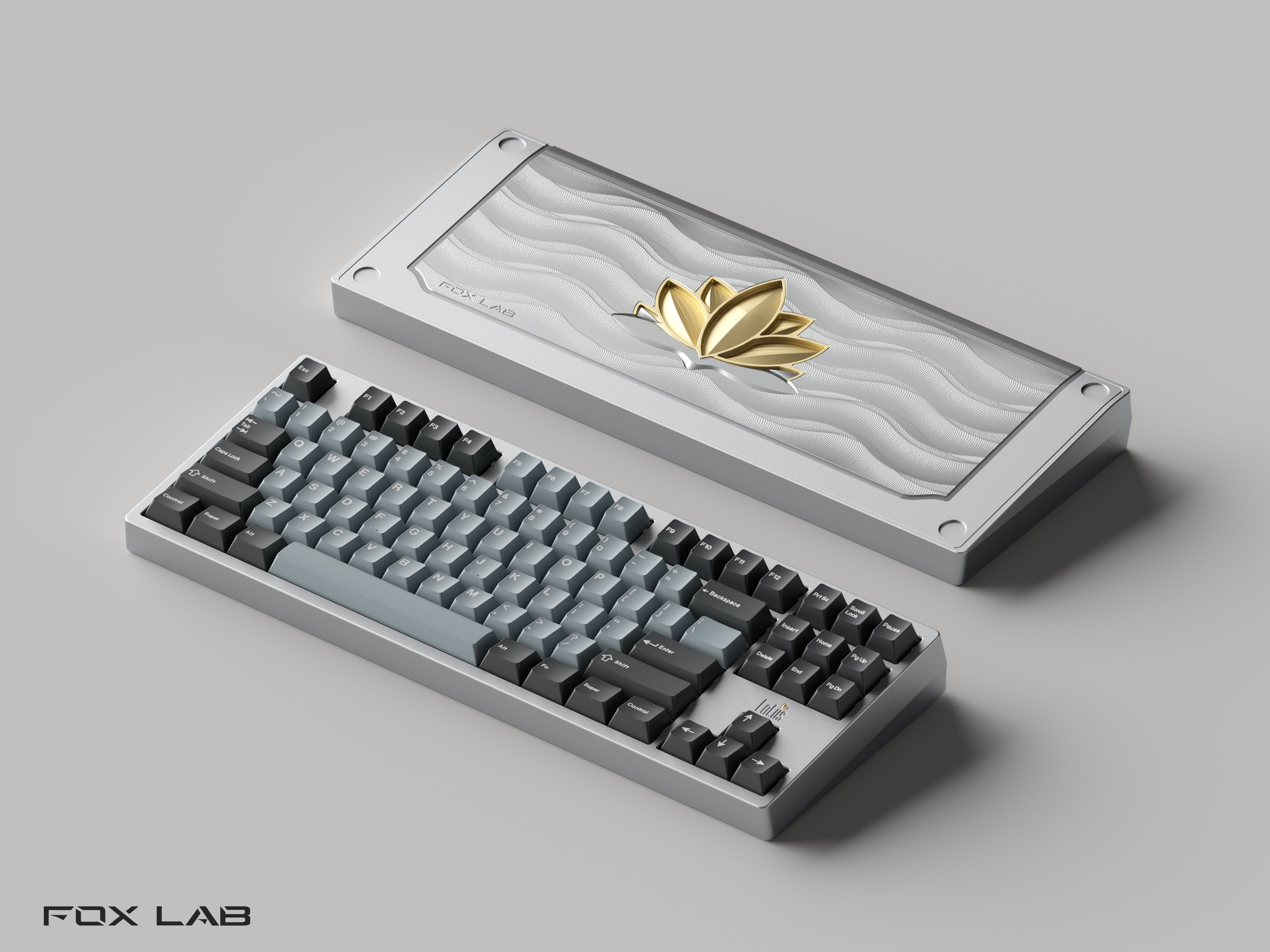

- Anodised Silence Silver
- Anodised Nautical Blue

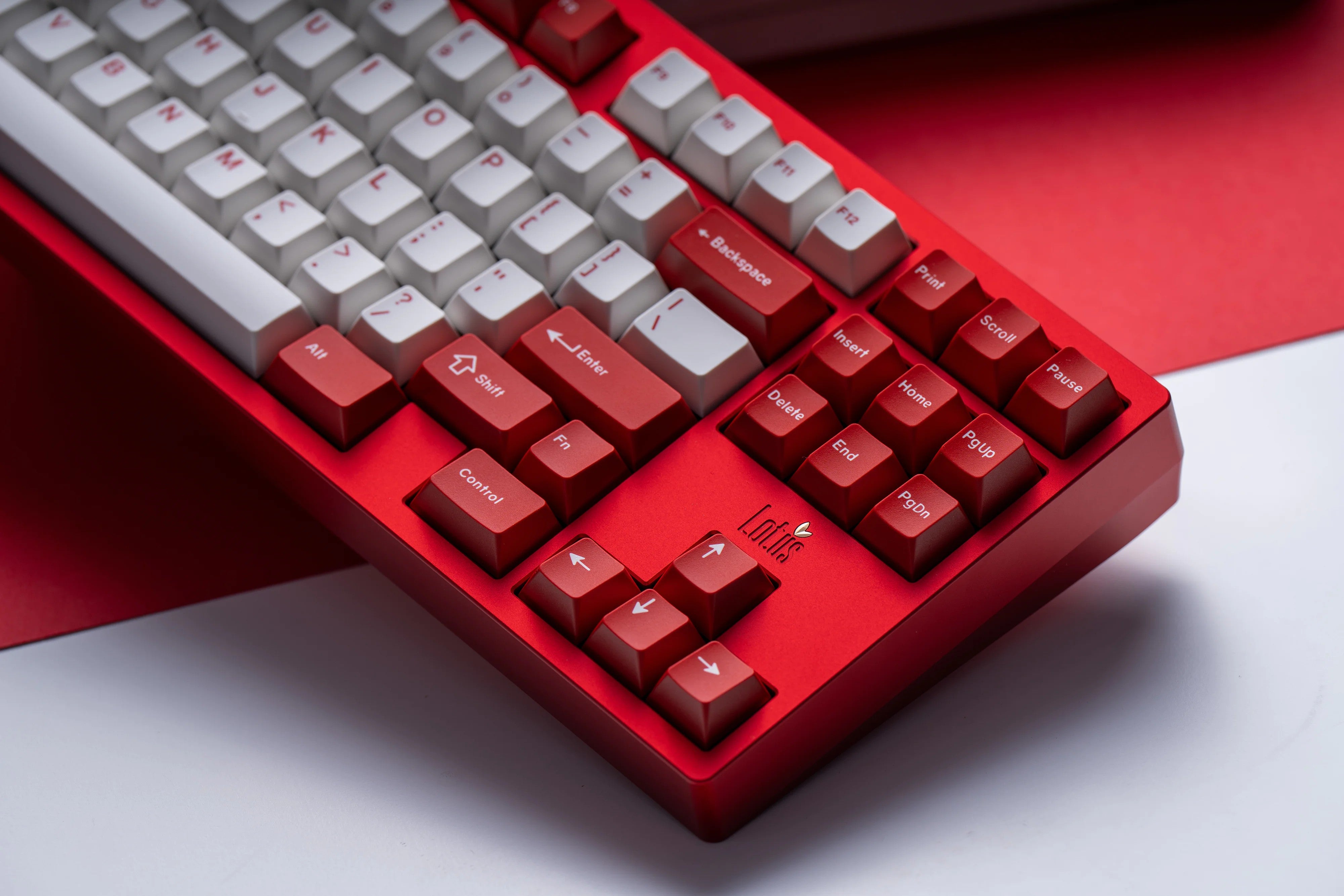

- Anodised Silk Red

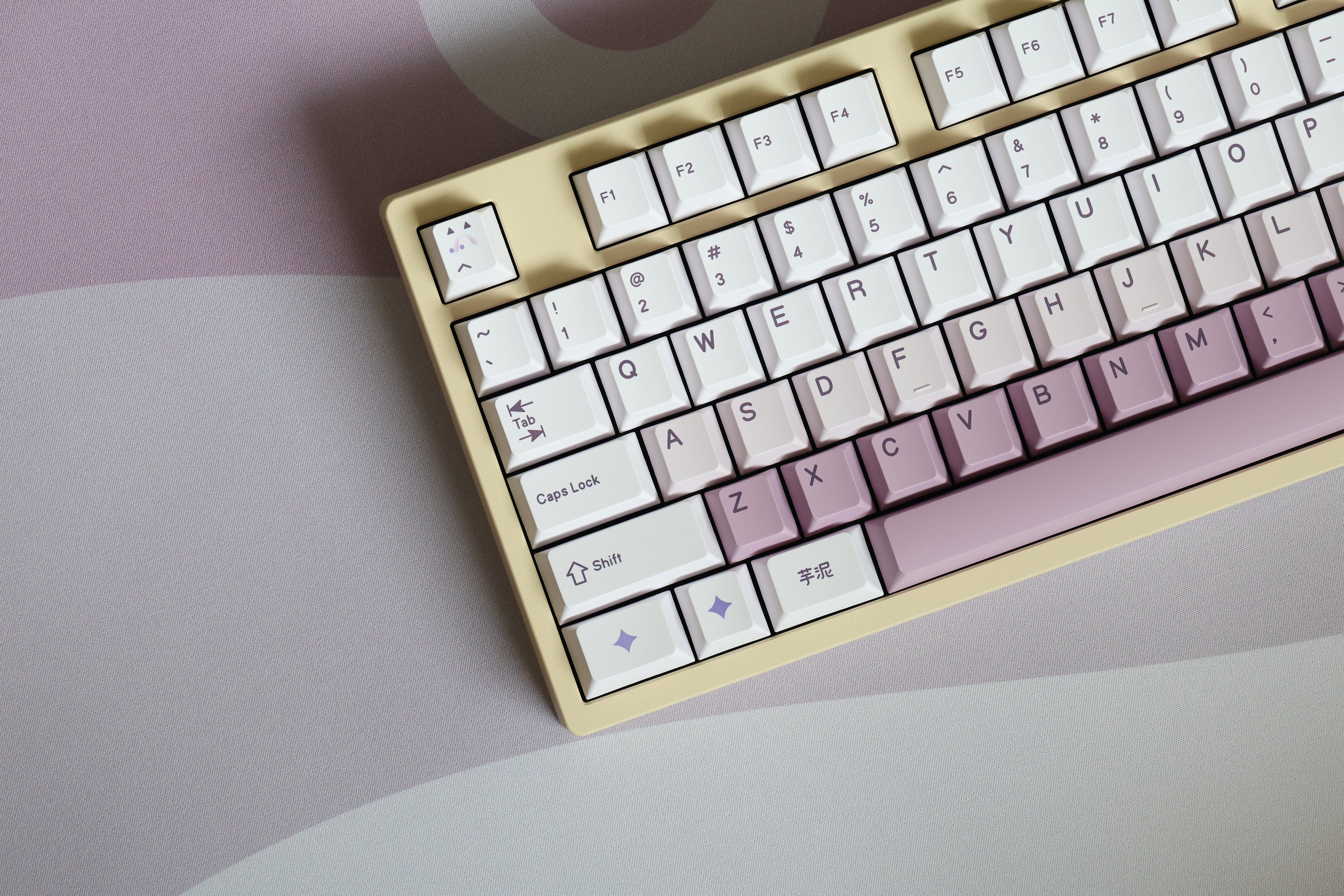

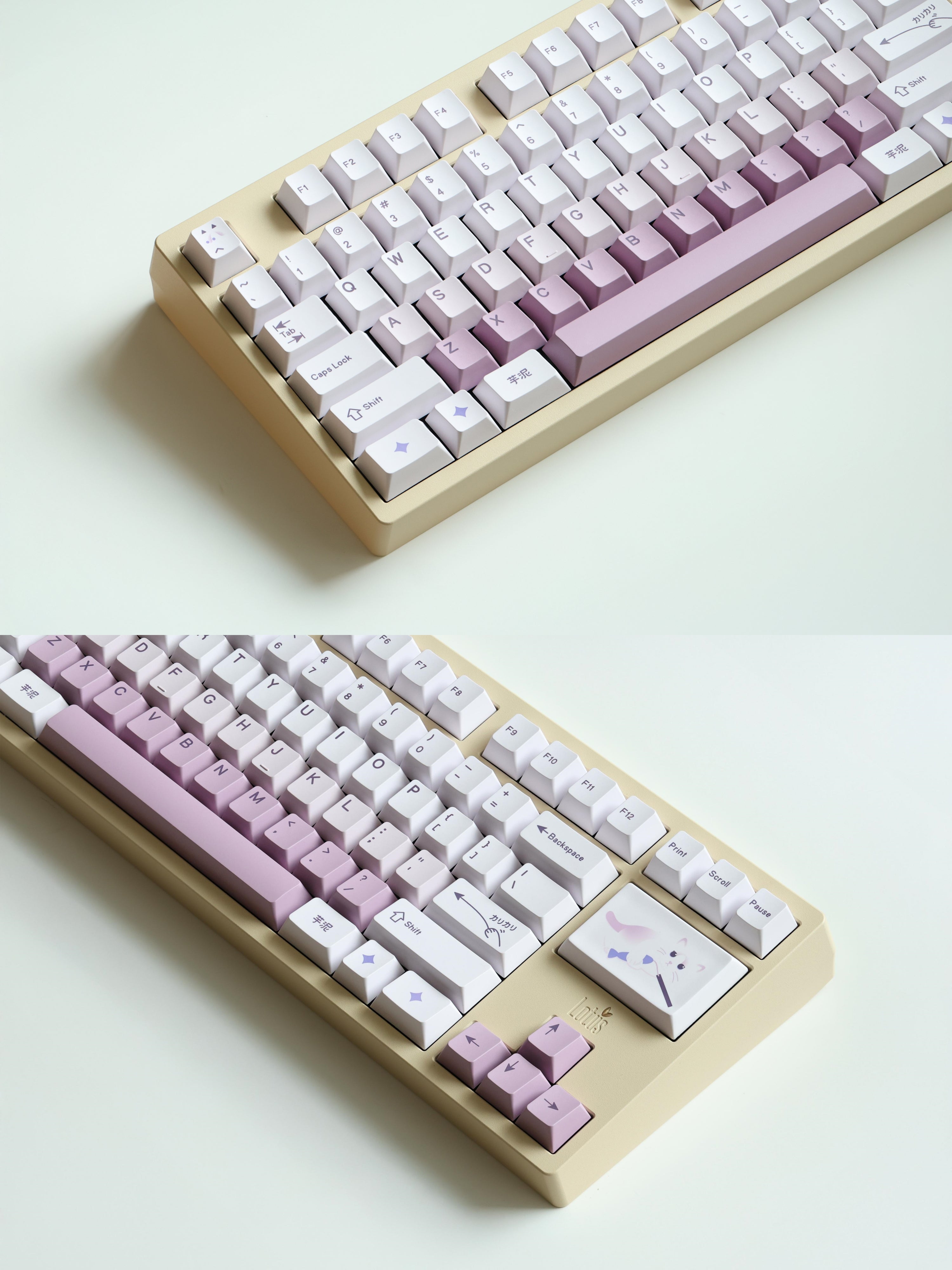

- Coating Cream Yellow

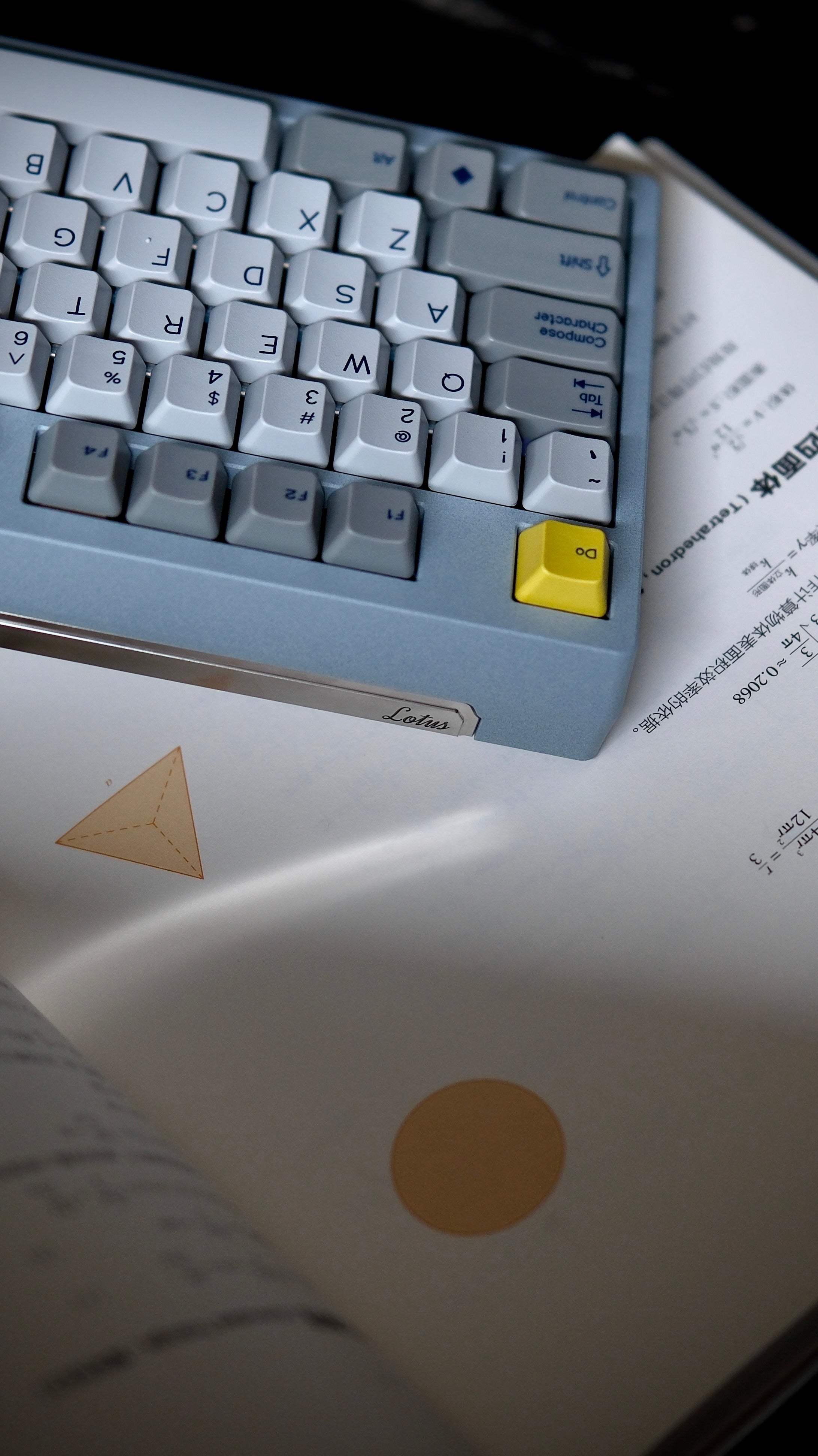

- Coating Grey-Blue
- Coating Seafoam Green

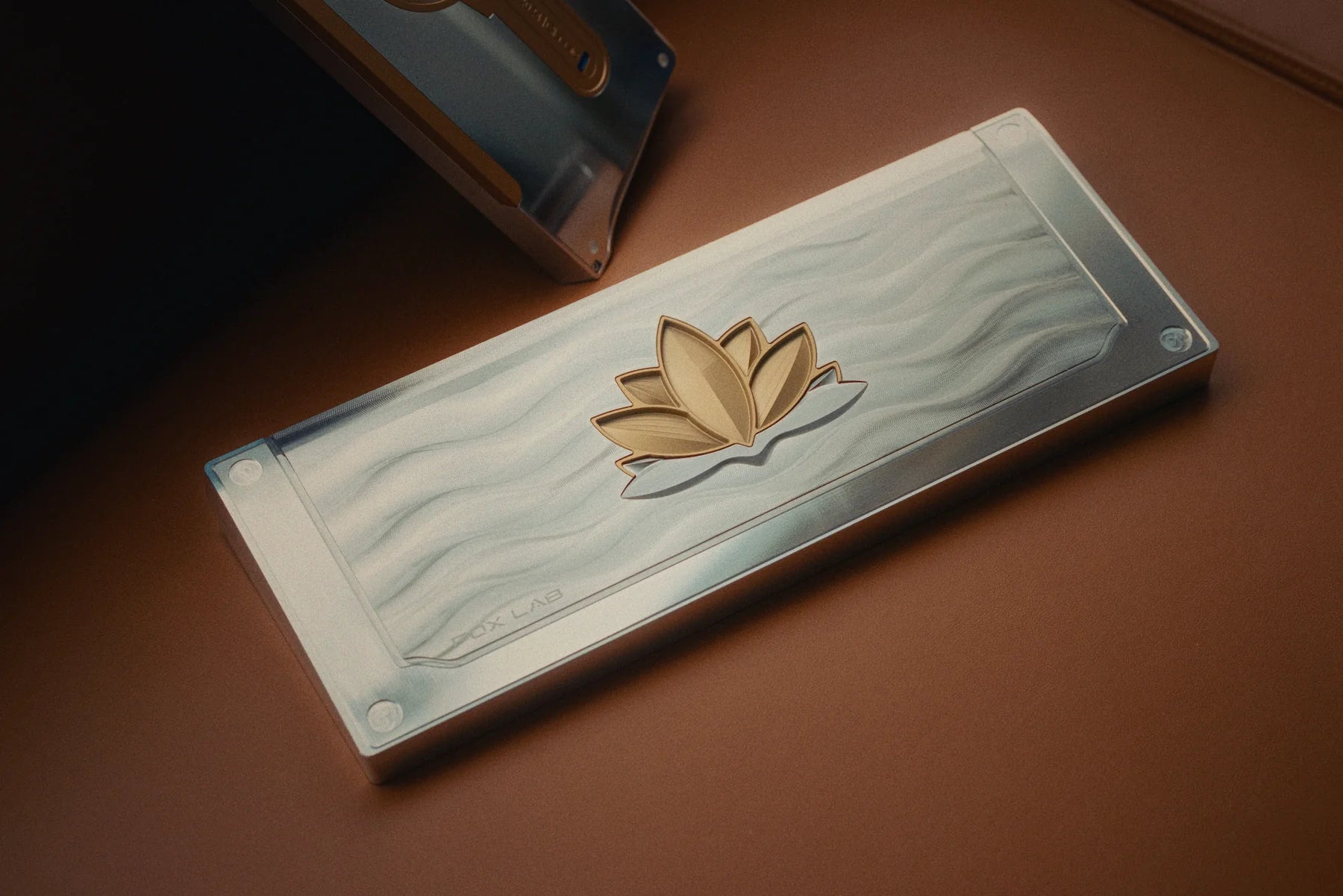

- Raw (Features visible machining marks, prone to scratches/ fingerprints. Choose carefully)

Whats included:

Keyboard case (top/bottom/weights, aluminum plate) ×1
PCB ×1, magnetic daughterboard ×1
3.5mm Poron mid-layer foam ×1
0.5mm anti-static bottom foam ×1
Plate foam ×2, case foam ×6
Non-slip feet ×4
Screws

Vendors:

The USA and Rest of the world: Click Clack
OCE: TORO
Canada: Unikeys
UK: Prototypist
SEA: KTechs
