Luminkey80

Latency data

• Wired: 2 millisecond
• 2.4G: 6 millisecond
• Wireless: 40 milliseconds

Polling rate

• Wired: 1000Hz
• 2.4G: 1000Hz
• Wireless: 125Hz

Specifications:

• Size: 159x136x19mm
• Typing Angle: 7°
• Layout: 80% TKL ANSI/ISO
• Mounting: Gasket Mount
• Programming Support: QMK / VIA
• Cable type: Type-C Data Cable

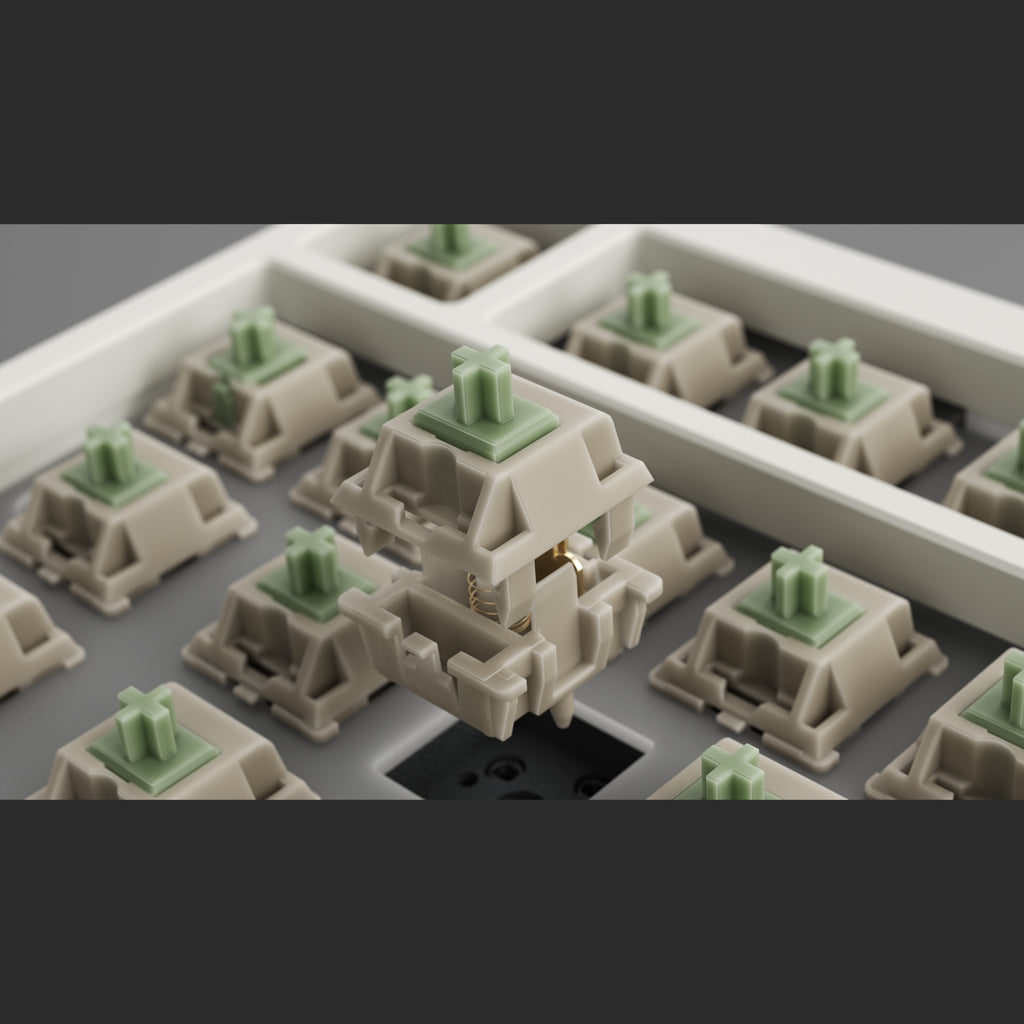

• Switches: LUMINKEY Sylva Linear Switches
• Stabilizer: Gateron Stabilizers
• Connectivity: Wireless/2.4G/Wired
• Compatible System: Windows/MacOS
• PCB: 1.6mm Hot-swap
• Plate: 1.5mm PC Plate

Material

• Case: 6063 CNC Aluminum

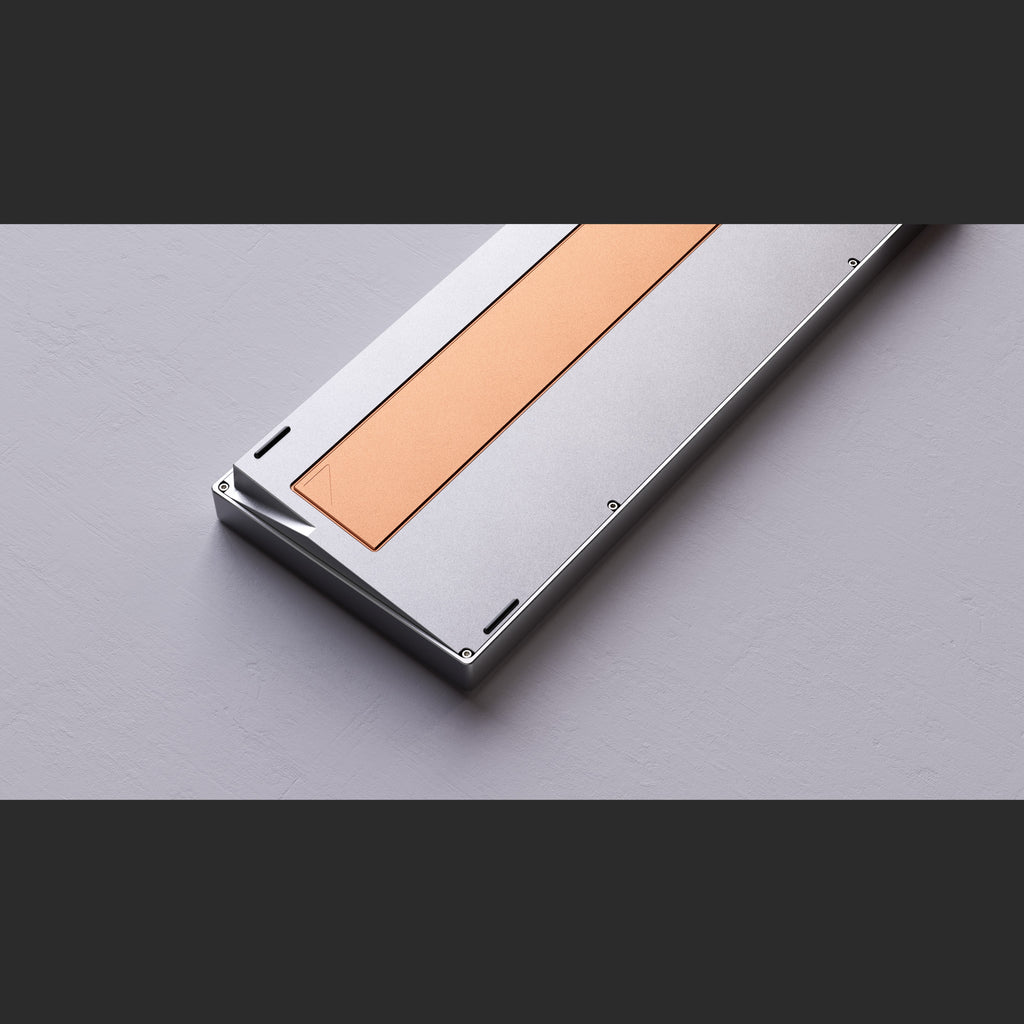

• Weight: Copper

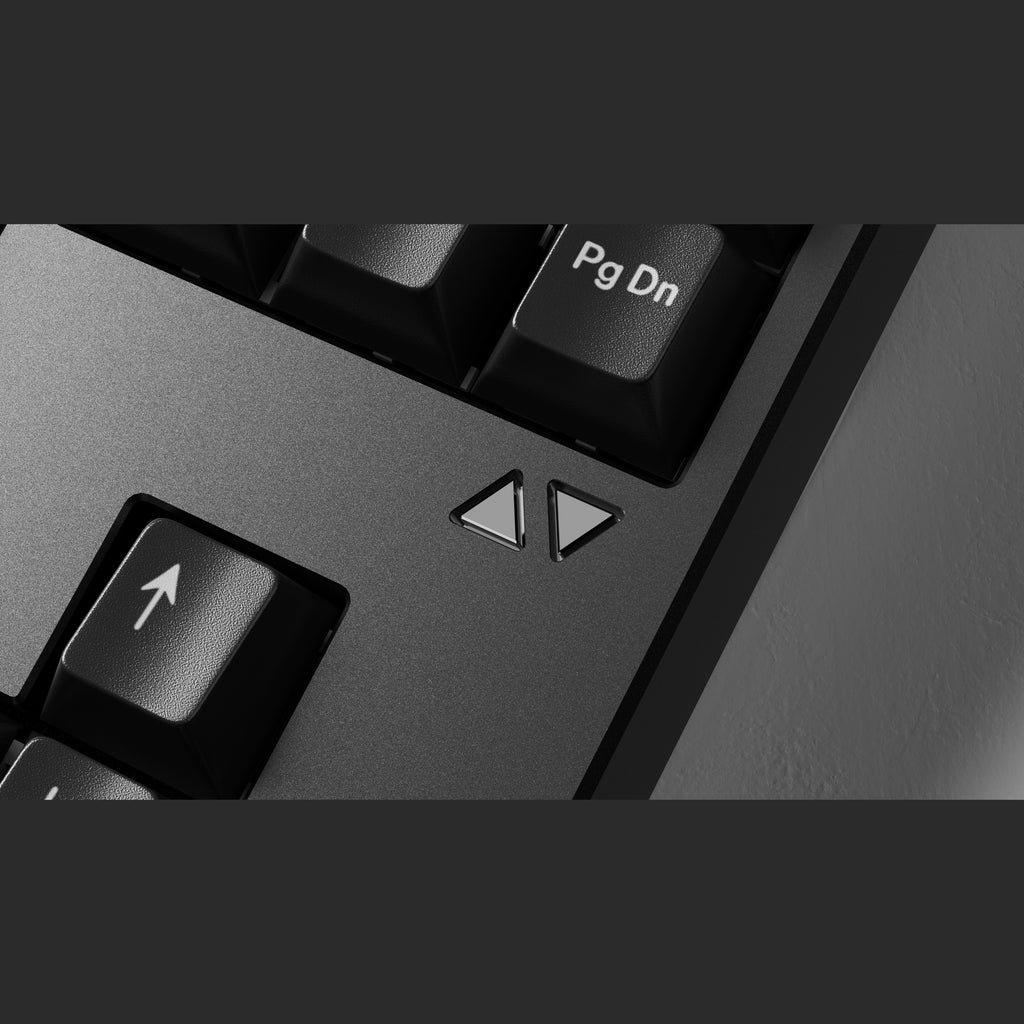

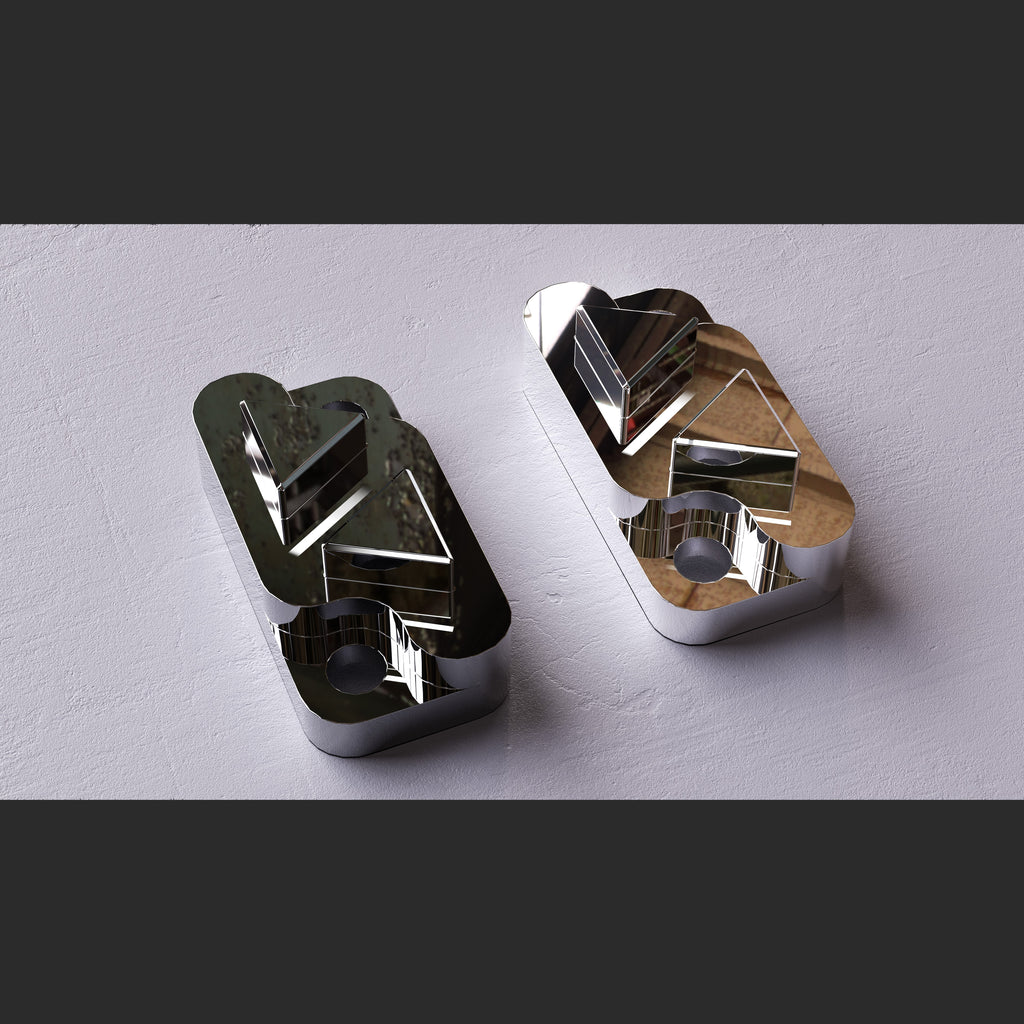

• Badge: Copper

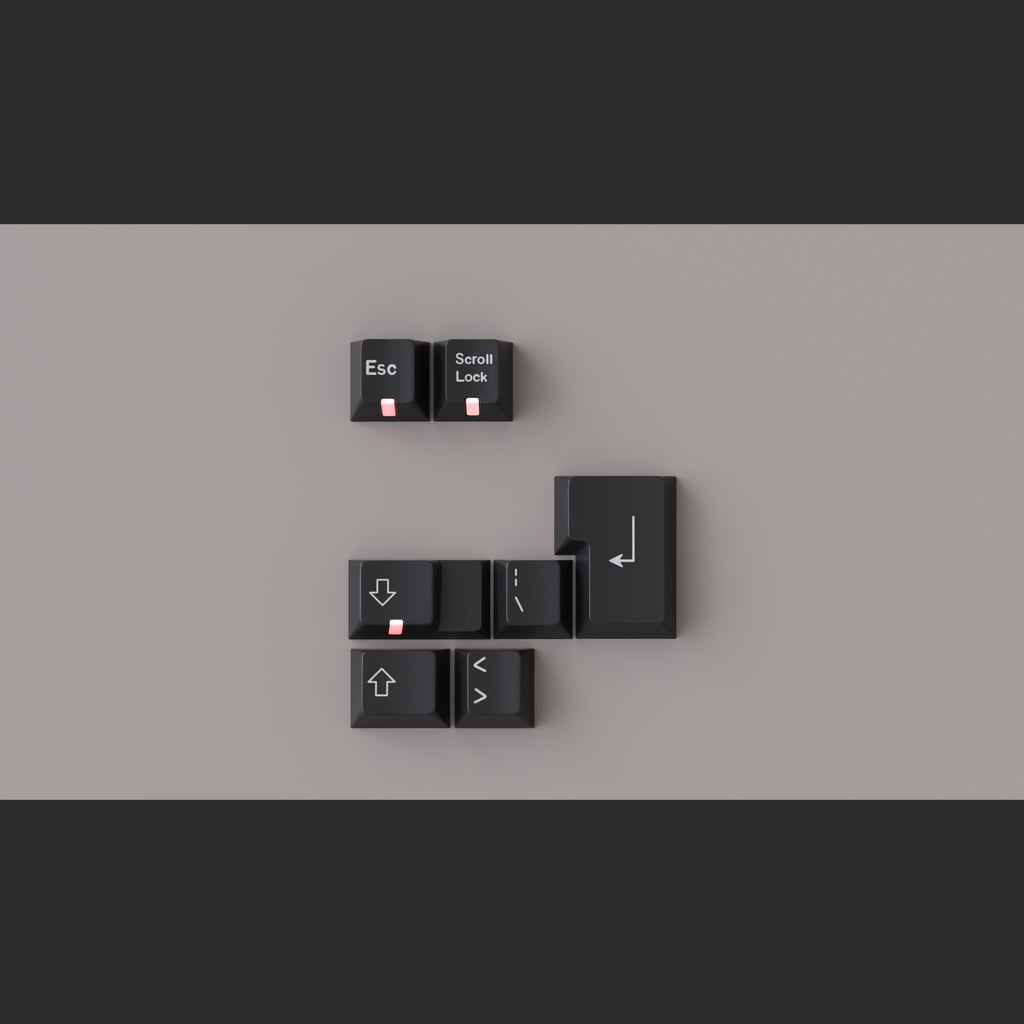

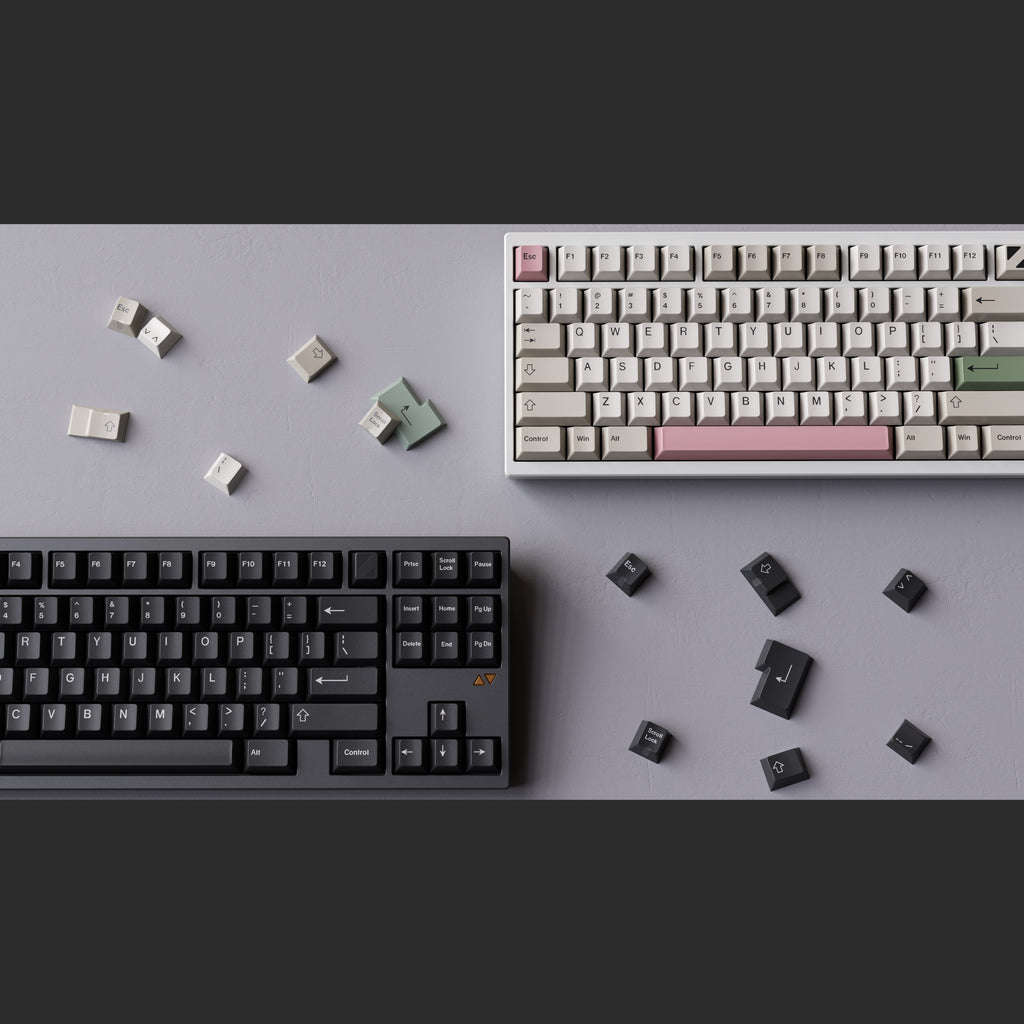

• Keycaps: PBT Double-shot Keycaps (WOB/9009)

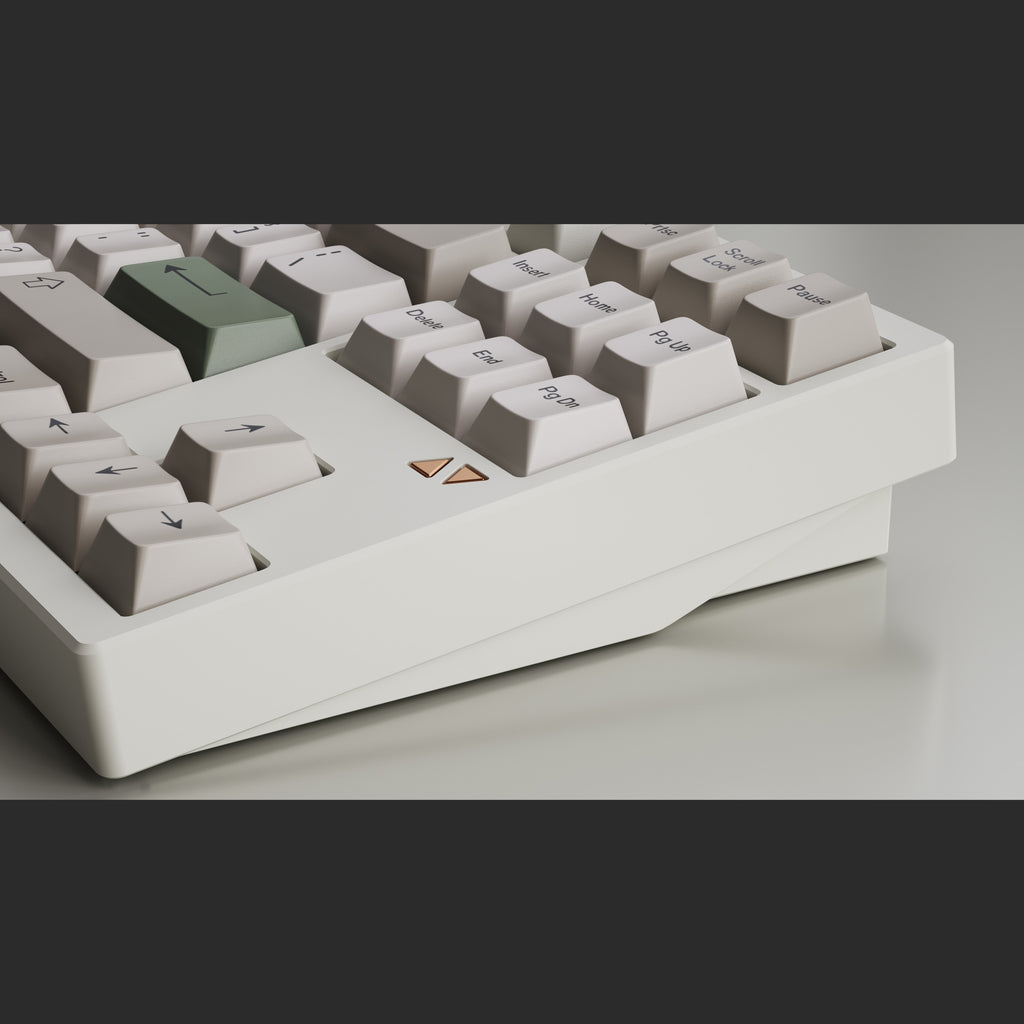

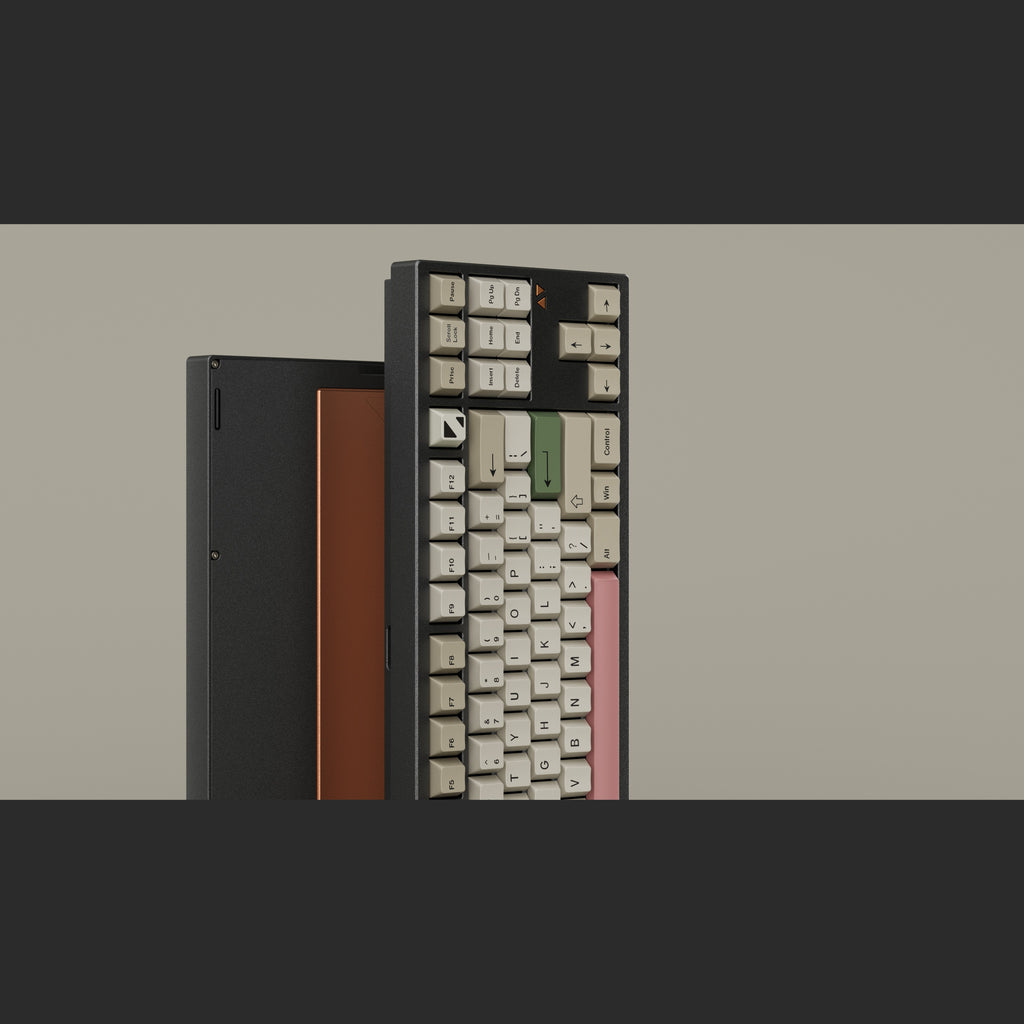

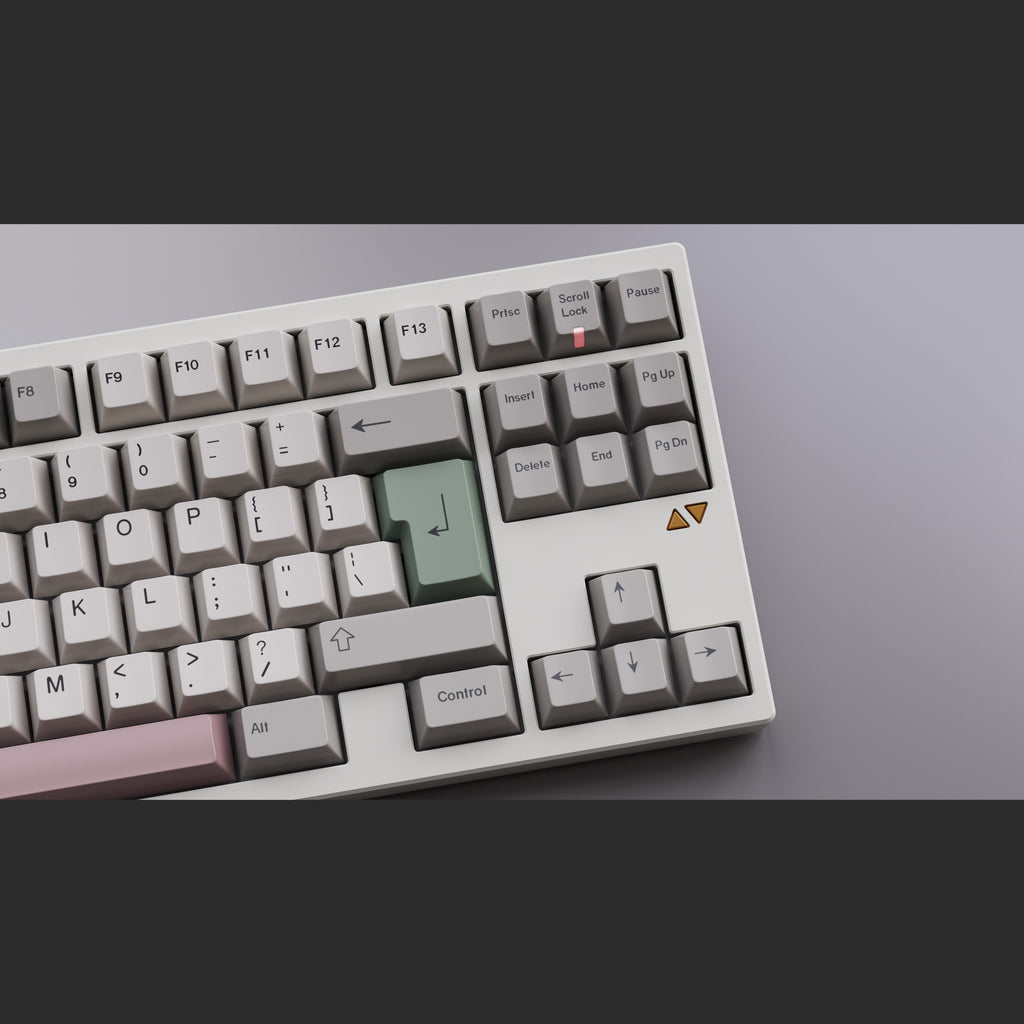

• Color: Ano-Black/ Ano-Silver/ E-Retro White

Pre-Built Kit:

• 1*top case,
• 1*bottom case,
• 1*weight,
• 1*pcb,
• 1*type-c daughter board,
• 1*plate,
• 1*foam kit,
• 1*switch puller&keycaps puller,
• 1*screwdriver,
• 1*USB cable，

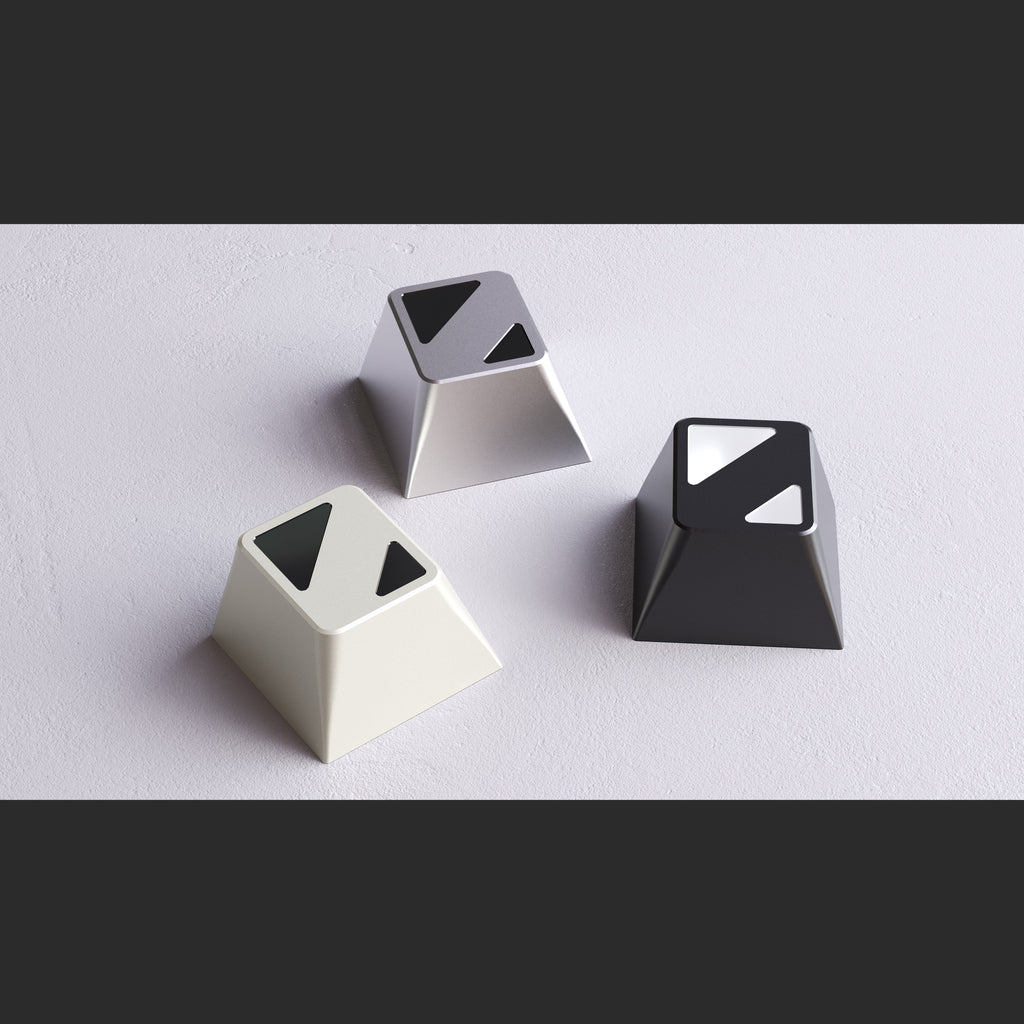

• 1*aluminum artisan keycap,
• a set of stabilizer
• a set of switches,
• a set of keycaps

Barebone Kit:

• 1*top case,
• 1*bottom case,
• 1*weight,
• 1*pcb,
• 1*type-c daughter board,
• 1*plate,
• 1*foam kit,
• 1*switch puller&keycaps puller,
• 1*screwdriver,
• 1*USB cable，
• a set of stabilizer
• 1*aluminum artisan keycap

Specification of the Switches:

• Manufacturer: GATERON
• Switch type: Linear
• Cover: Nylon
• Stem: POM
• Bottom: Nylon
• Spring: Stainless steel (gold-plated)
• Total travel: 3.7±0.3mm
• Operating force: 48±gf
• Total travel force: 55±20gf

Vendors:

• Australia: Allcaps
• Australia: Dailyclack
• Indonesia: Mechaland
• Korea: Laein
• Korea: Monstargears
• Philippines: Zion Studios
• Singapore: iLumkb
• Singapore: Ktechs
• Singapore: Pantheonkeys
• Taiwan: Inpad
• Thailand: Ntchkeys
• USA: Cannonkeys
• USA: Mechanical keyboards
• USA: Keebs for all
• Vietnam: The Keebs
