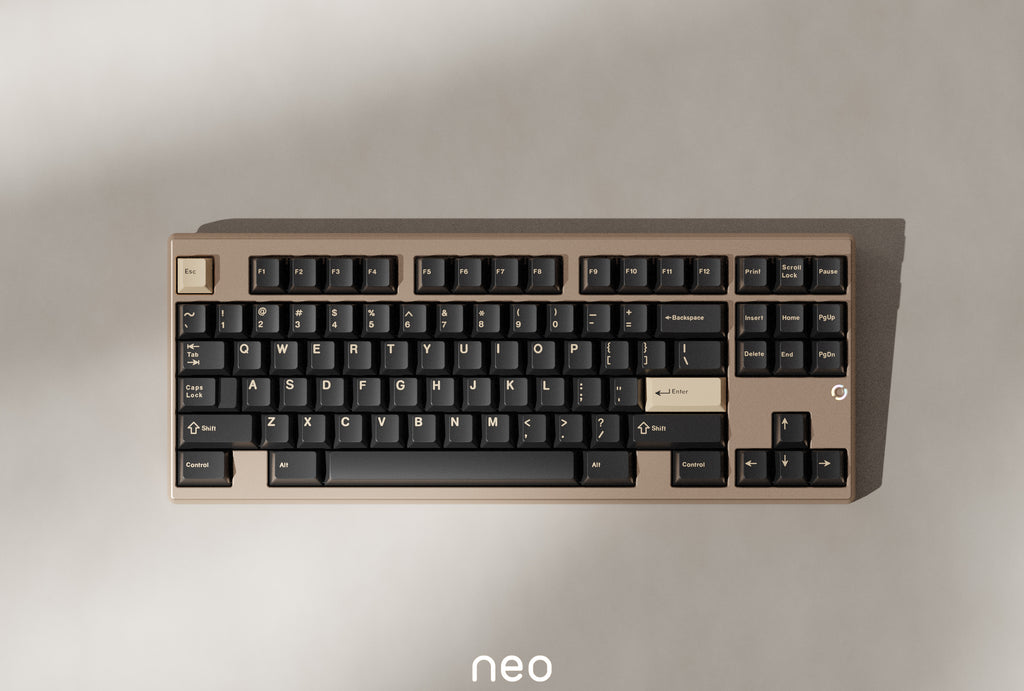

Neo80

PCB Options - All VIA-compatible

• Tri-mode Hotswap PCB (Non-flex Cut)
• 1.6mm thick
• Support USB-C, Bluetooth, and 2.4GHz connection

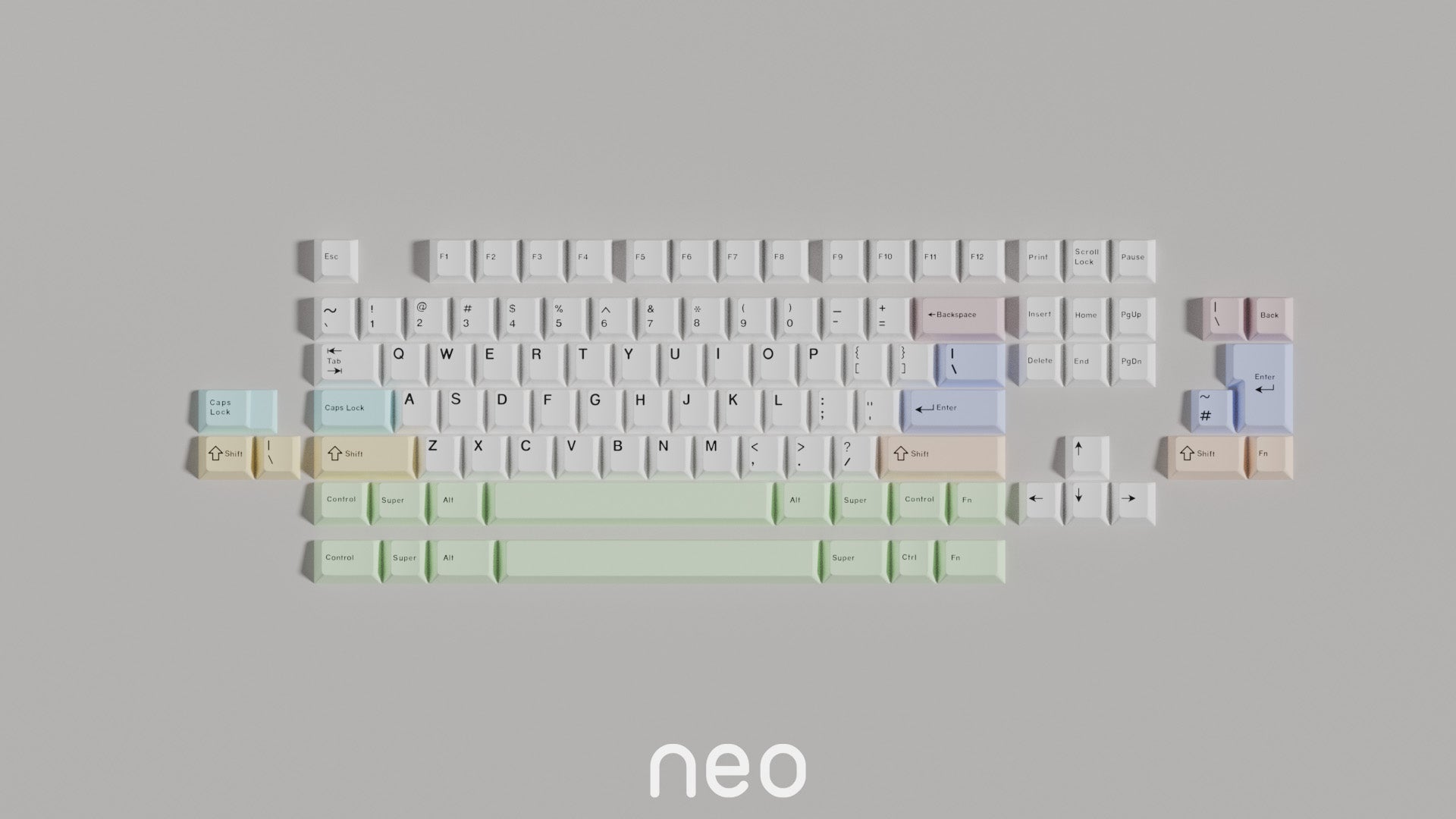

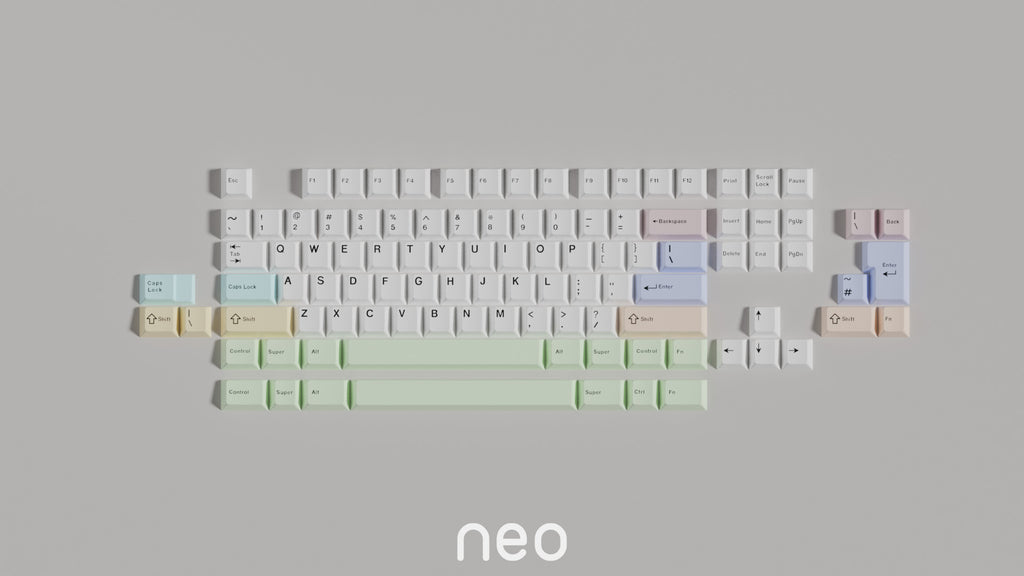

• Support both ANSI and ISO layout
• NKRO
• Polling rate: 1000Hz in wired and 2.4Ghz mode; 125Hz in BT mode
• NO Per-key RGB
• Wired Hotswap PCB (Non-flex Cut)
• 1.6mm thick
• USB-C connection only
• Support both ANSI and ISO layout
• NKRO
• Polling rate: 1000Hz
• NO Per-key RGB
• Solder PCB (Non-flex Cut)
• 1.6mm thick
• USB-C connection only
• Support both ANSI and ISO layout
• NKRO
• Polling rate: 1000Hz
• NO Per-key RGB

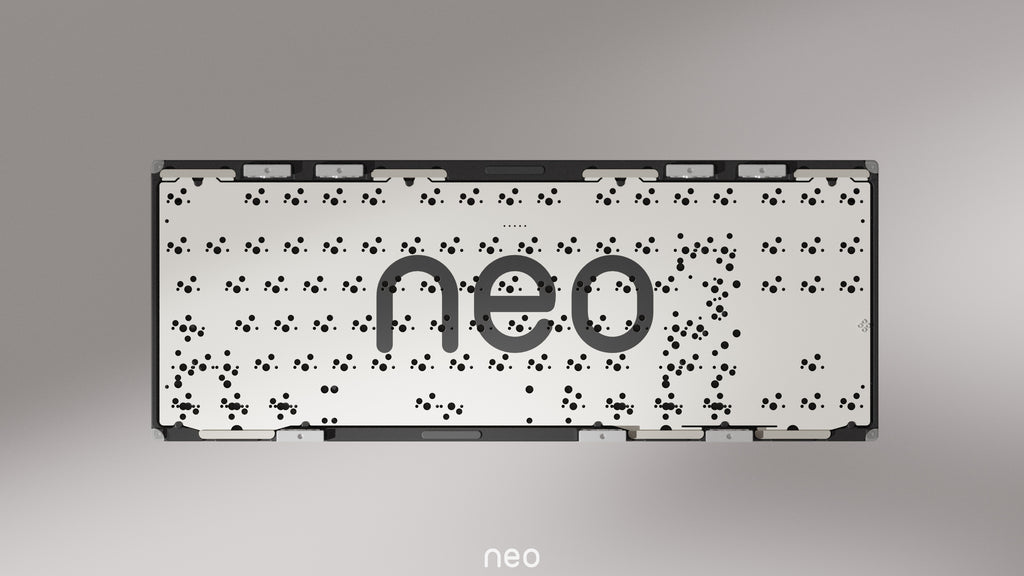

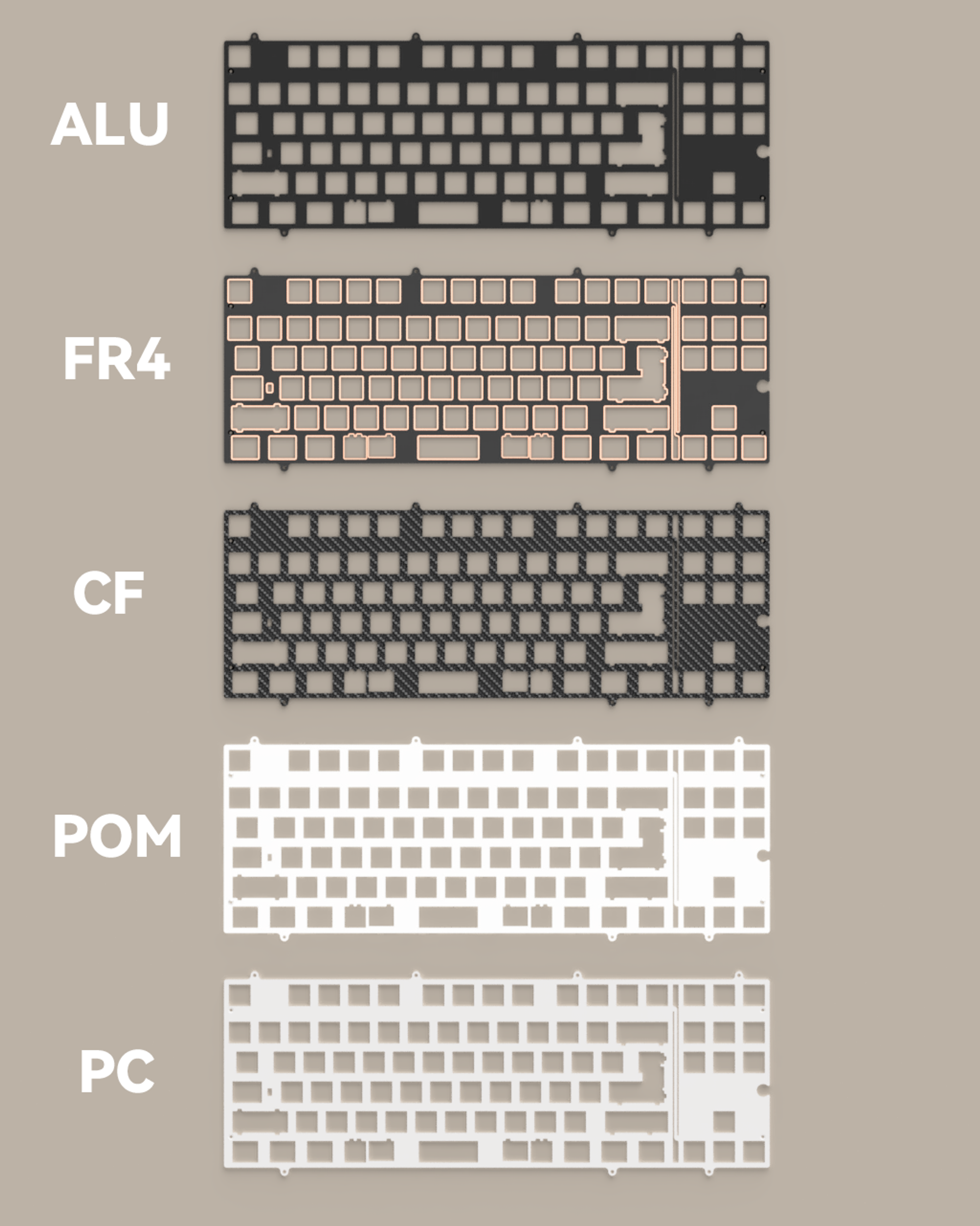

Plates with distinctive characters

Hard ———————————————> Soft:

Carbon Fiber > Aluminum > FR4 > POM > PC

Clack ———————————————> Thock:

Carbon Fiber > Aluminum > FR4 > POM > PC

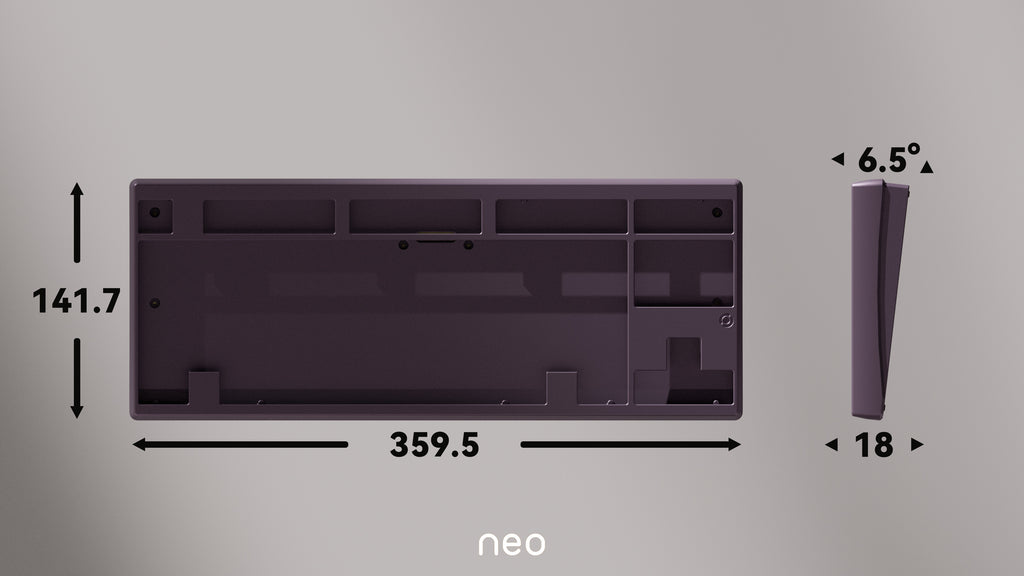

Specifications

• Typing angle：6.5 degree

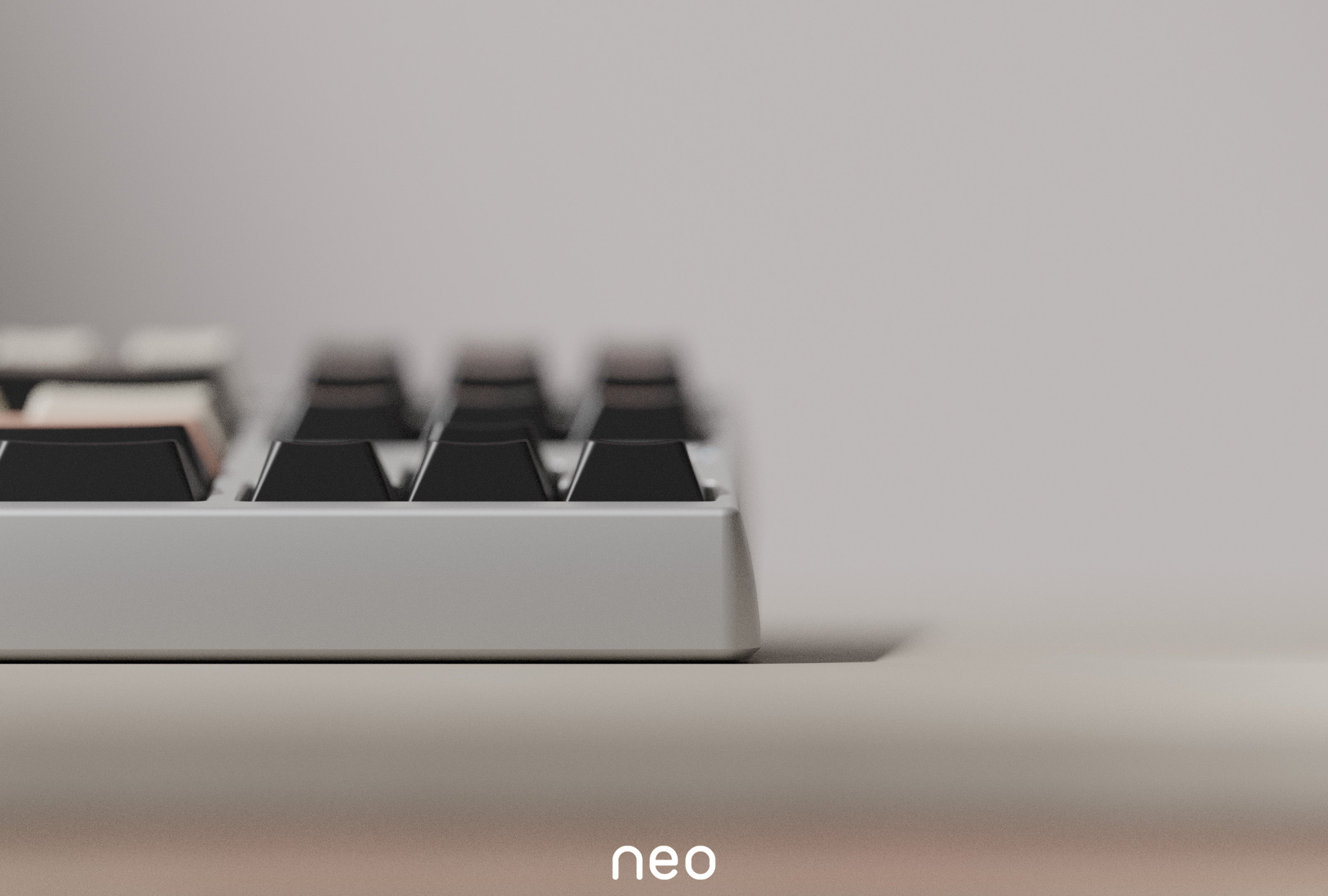

• Front height：18 mm
• Size：359.5mm * 141.7 mm
• Weight:
• with copper weight: 1.72kg before assembly, 2.22kg after assembly
• with stainless steel weight: 1.7KG before assembly, 2.2kg after assembly

Content List

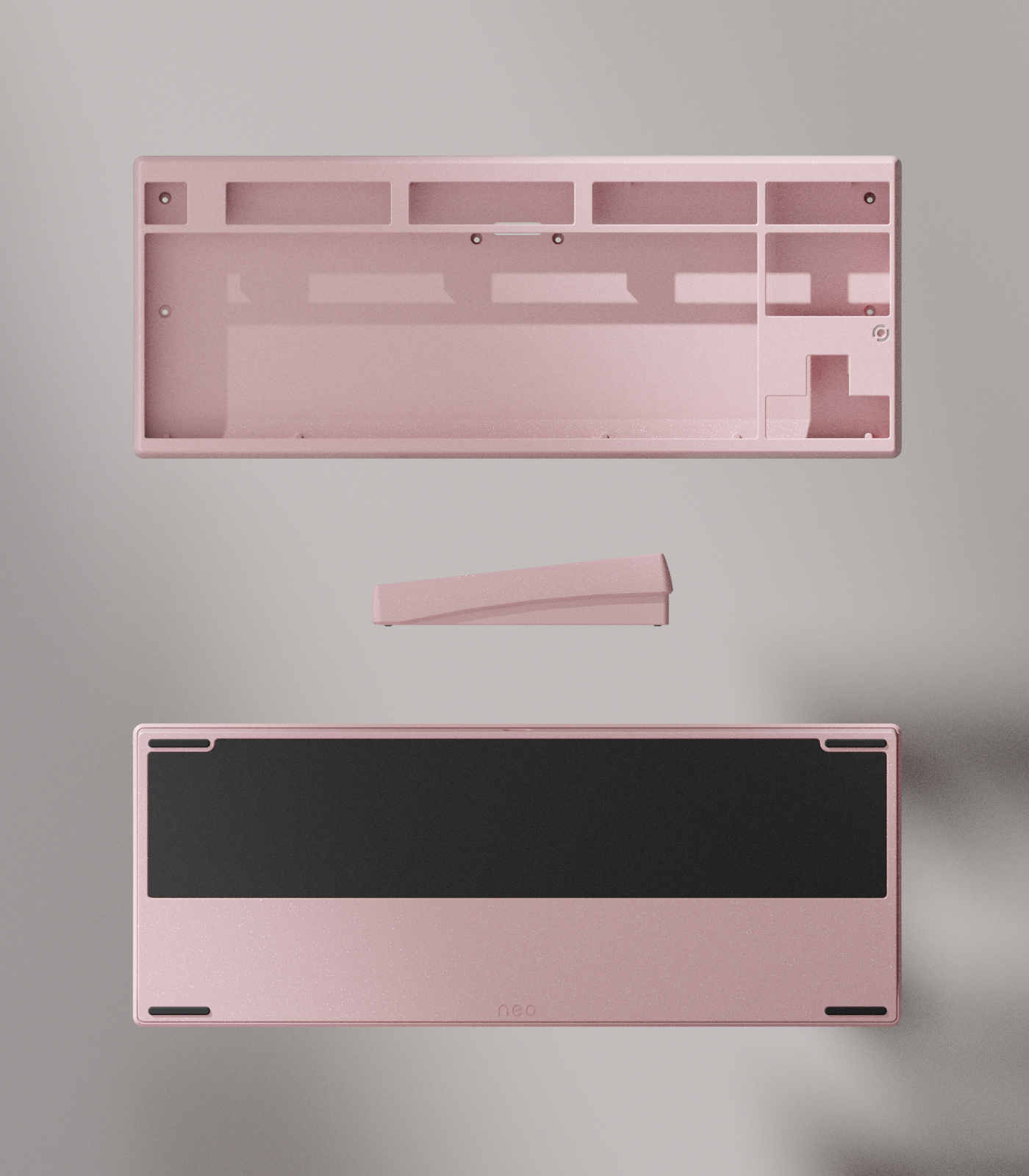

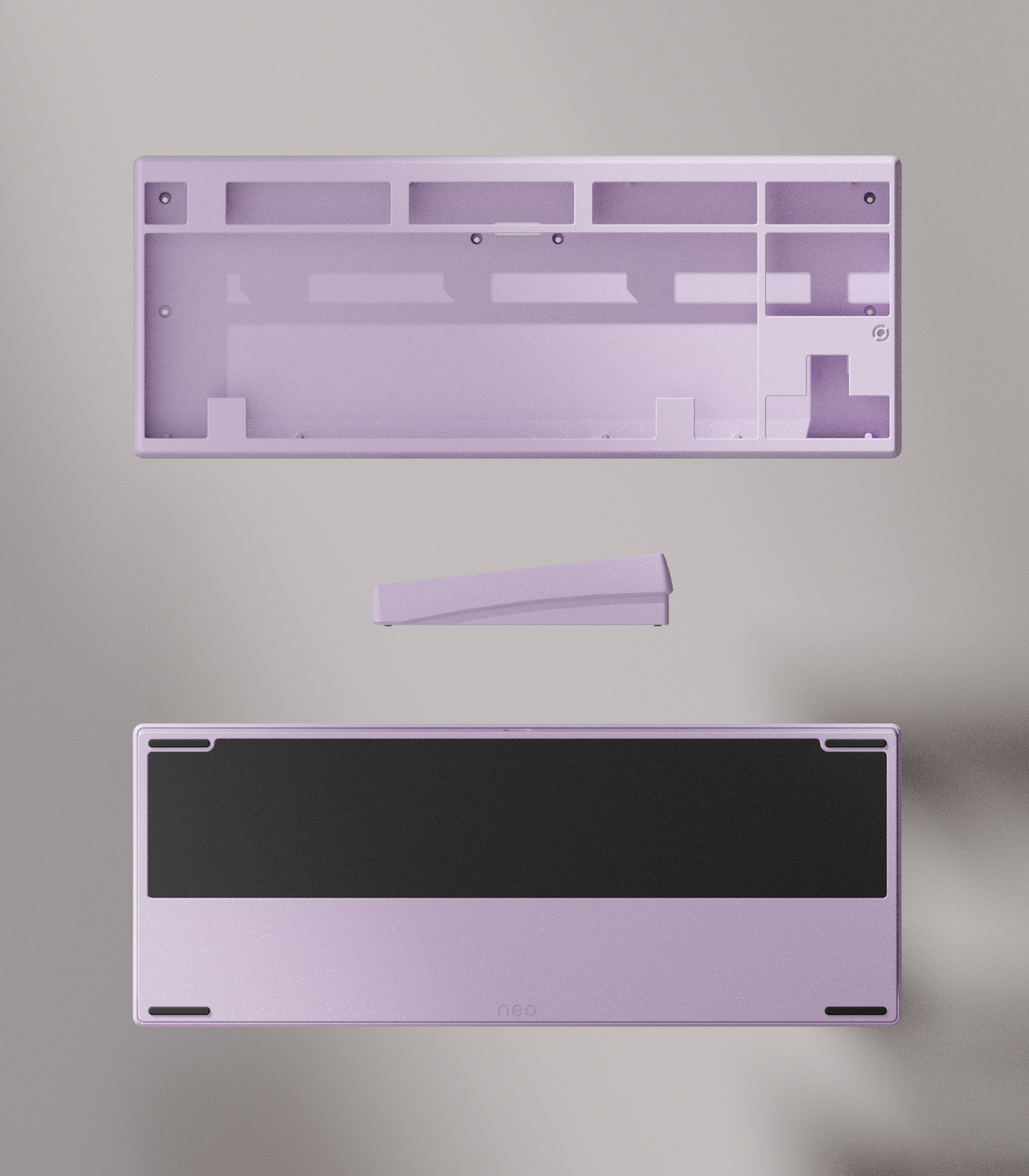

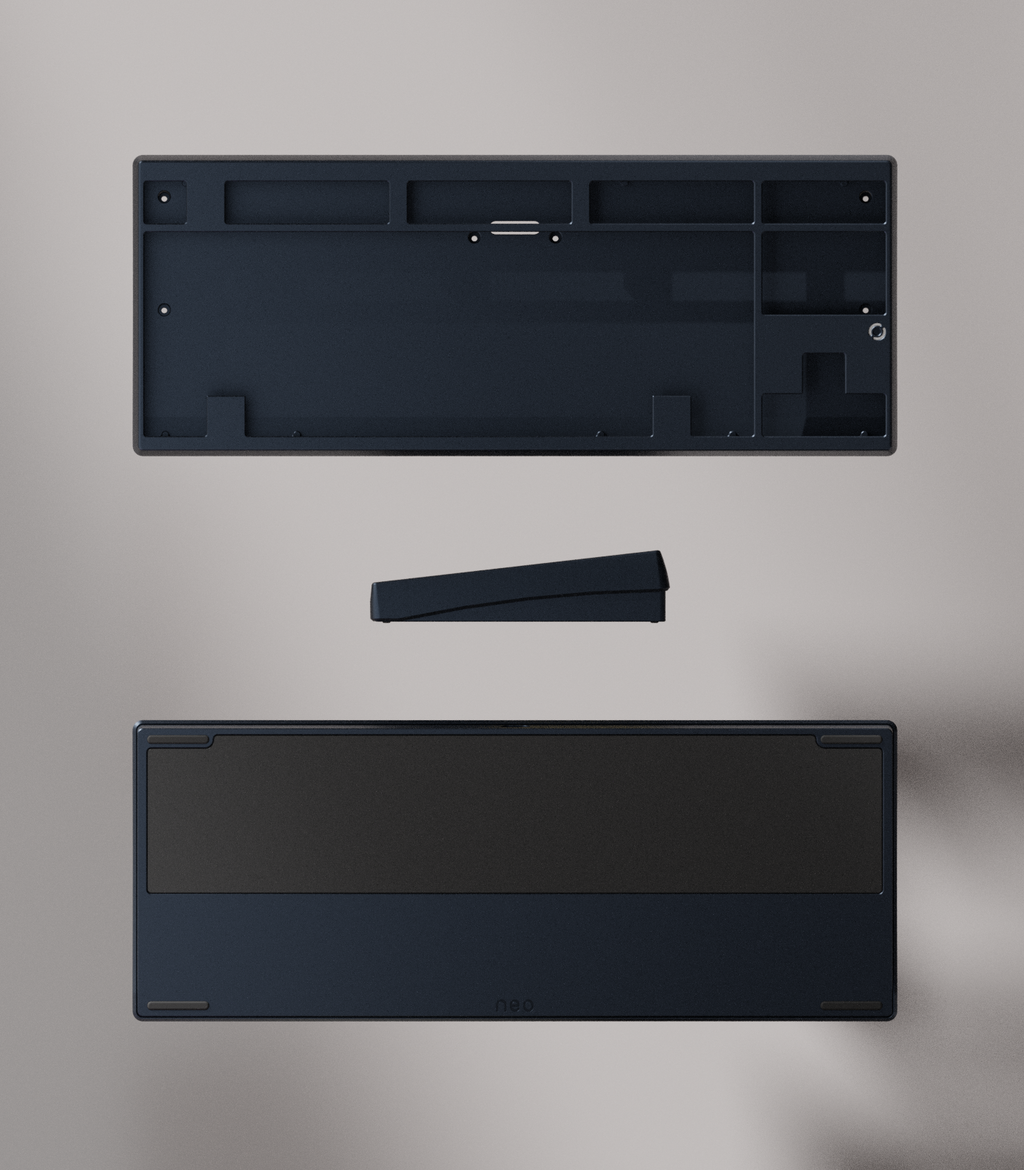

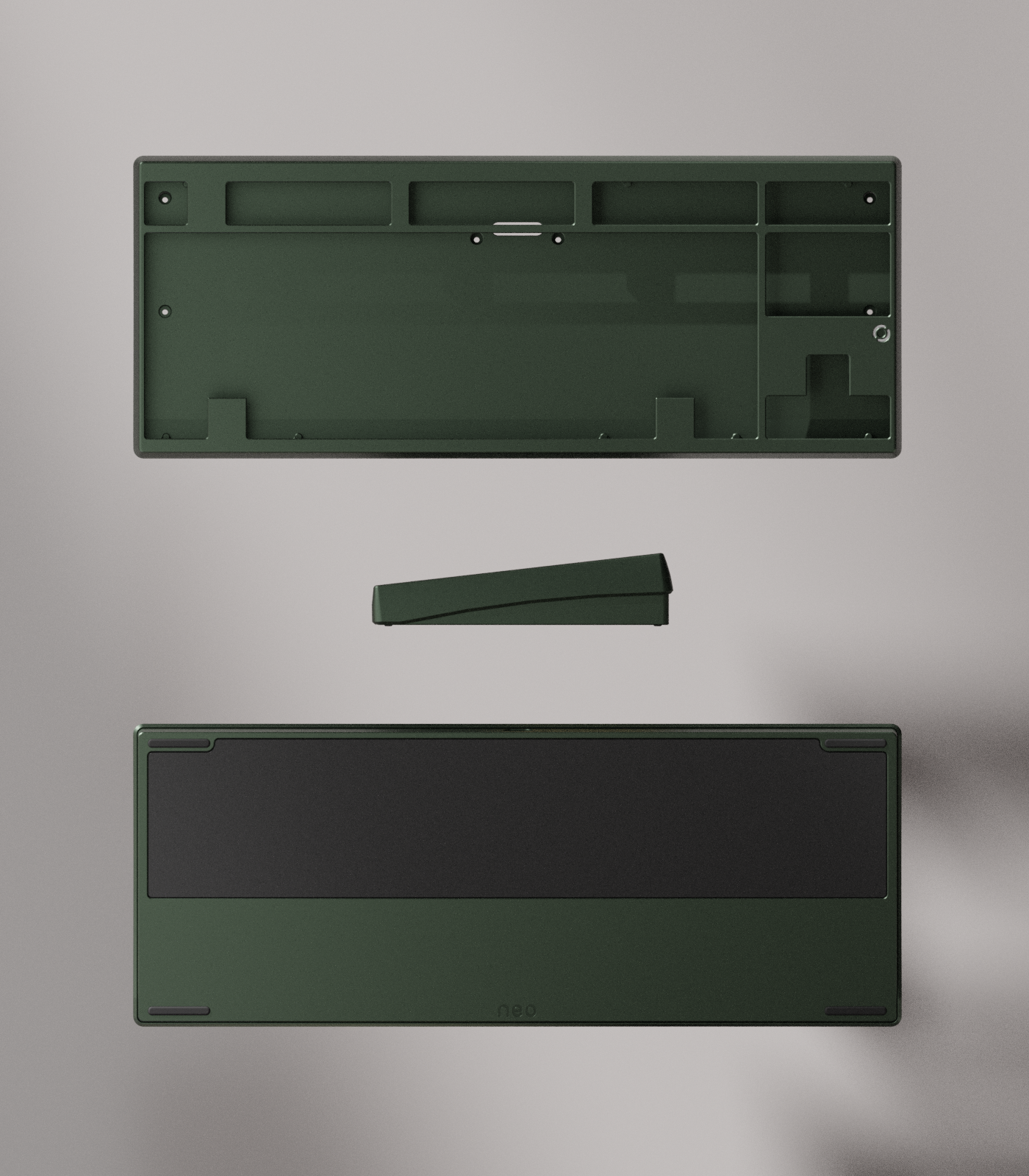

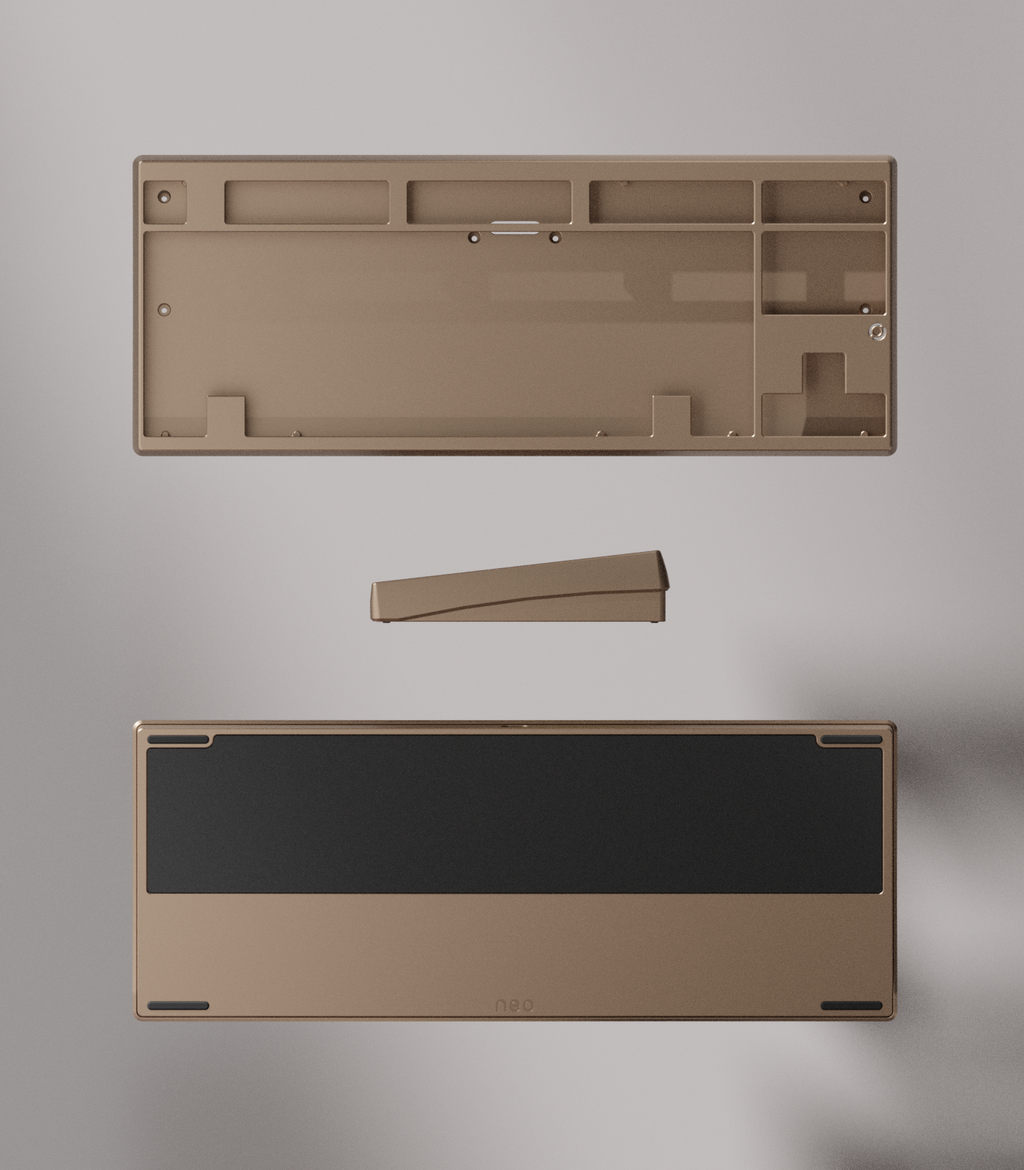

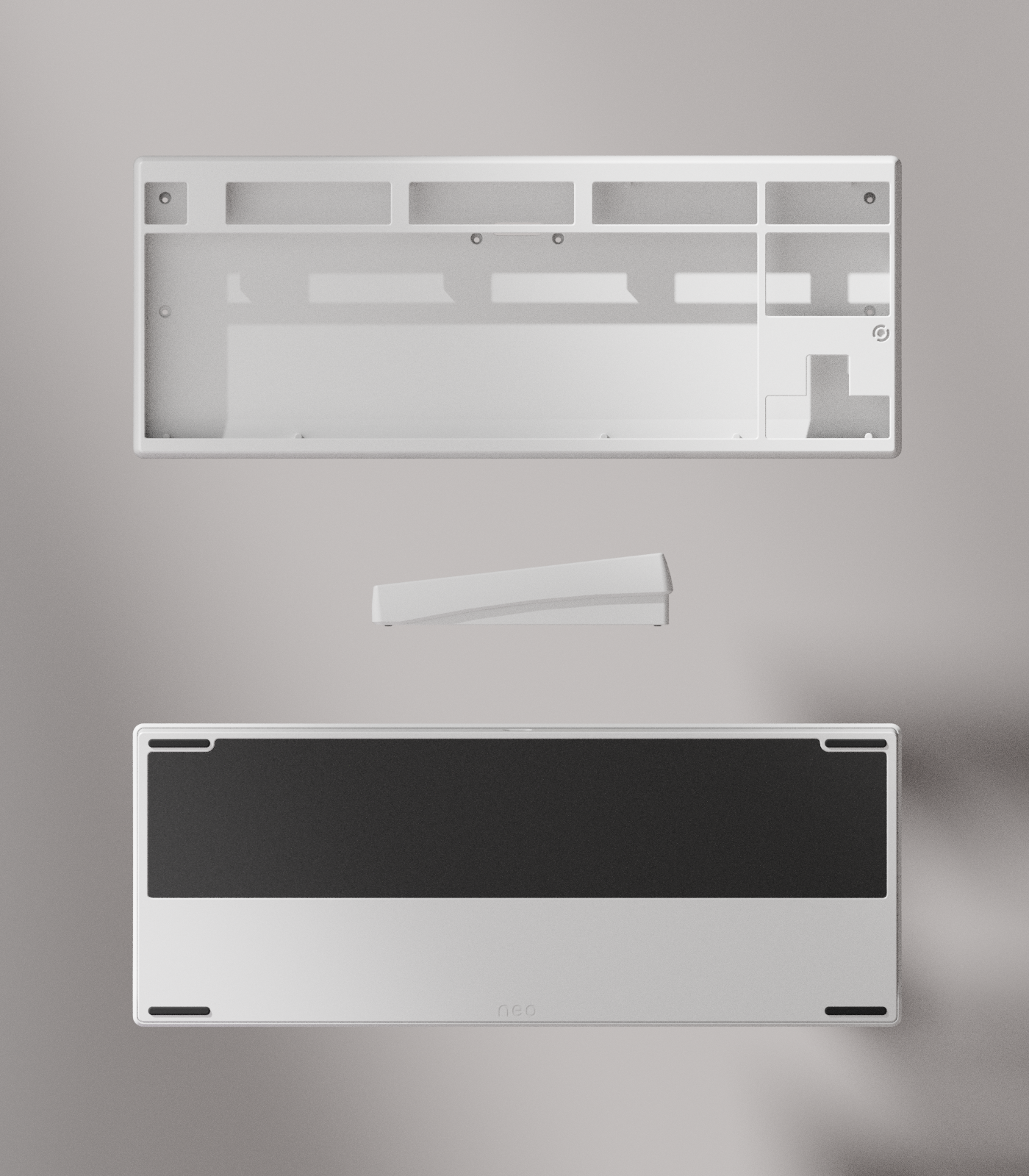

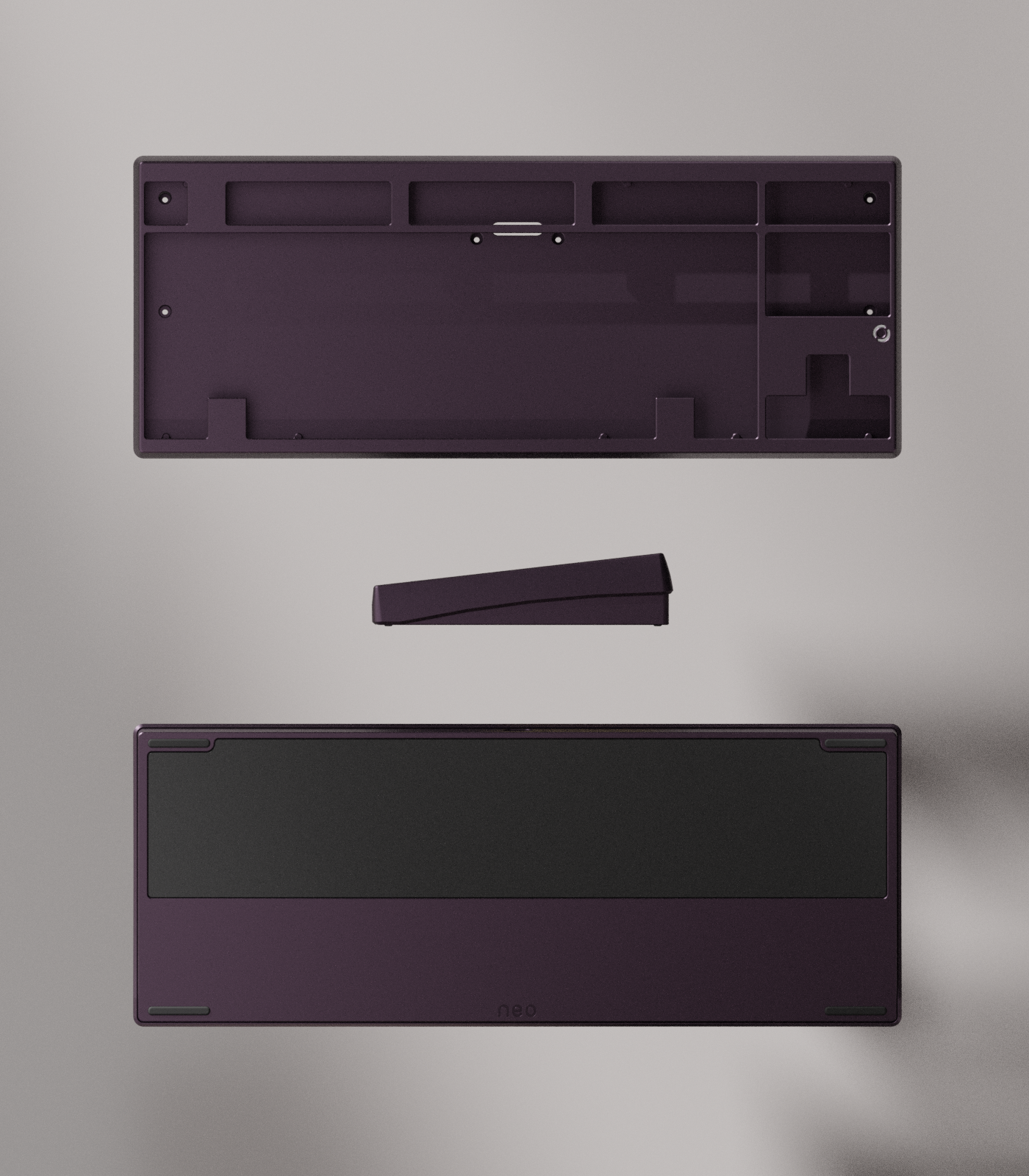

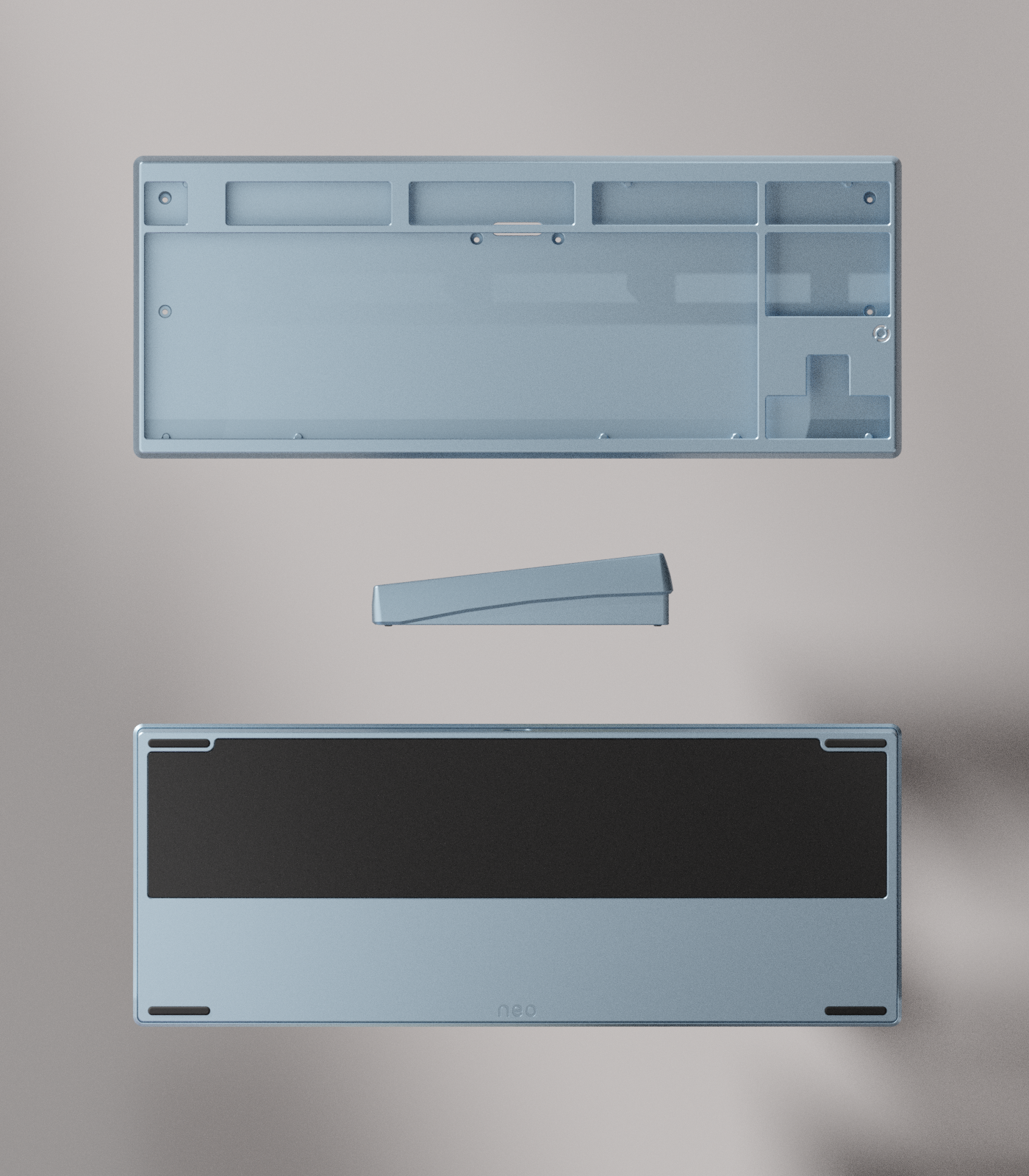

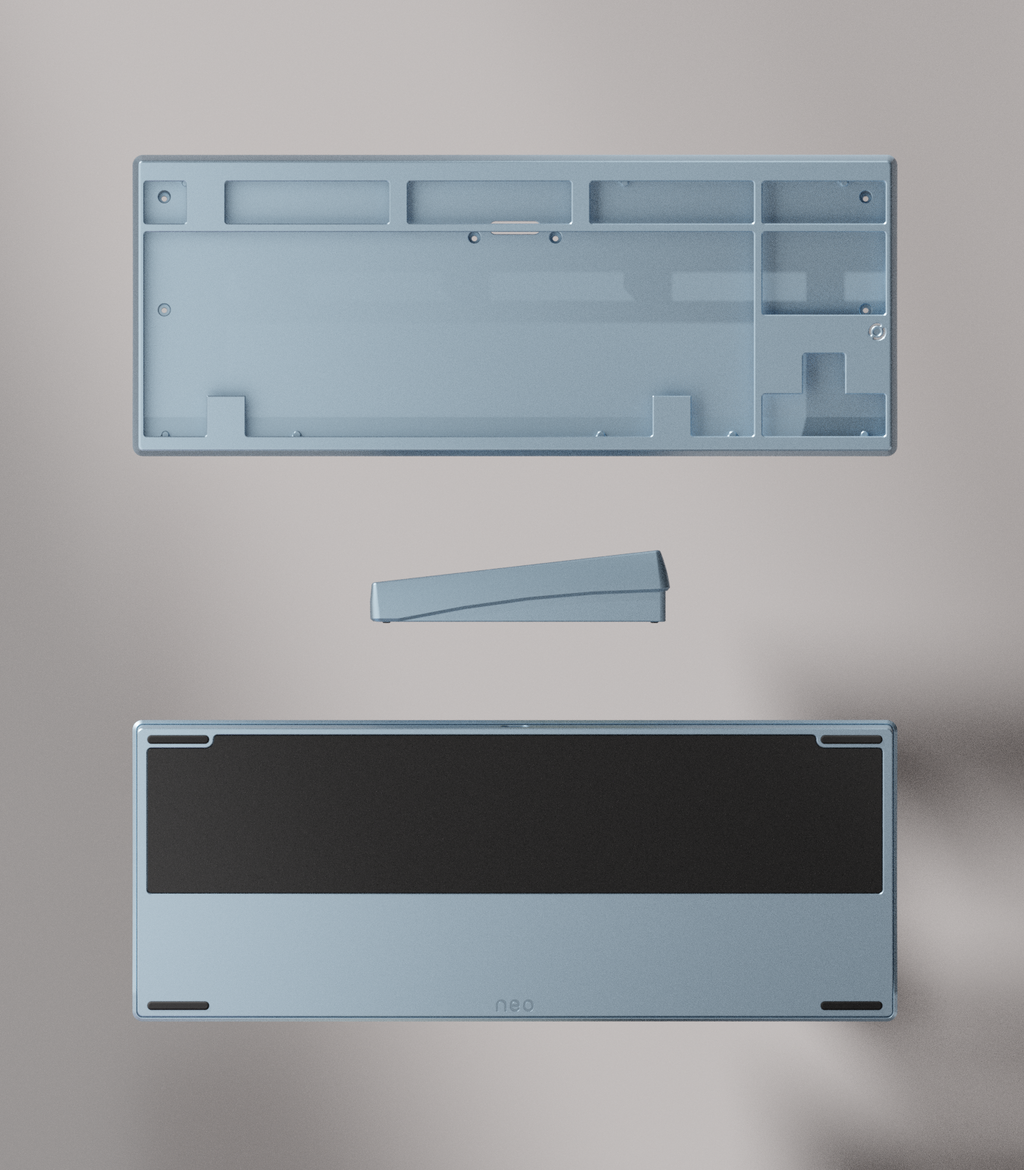

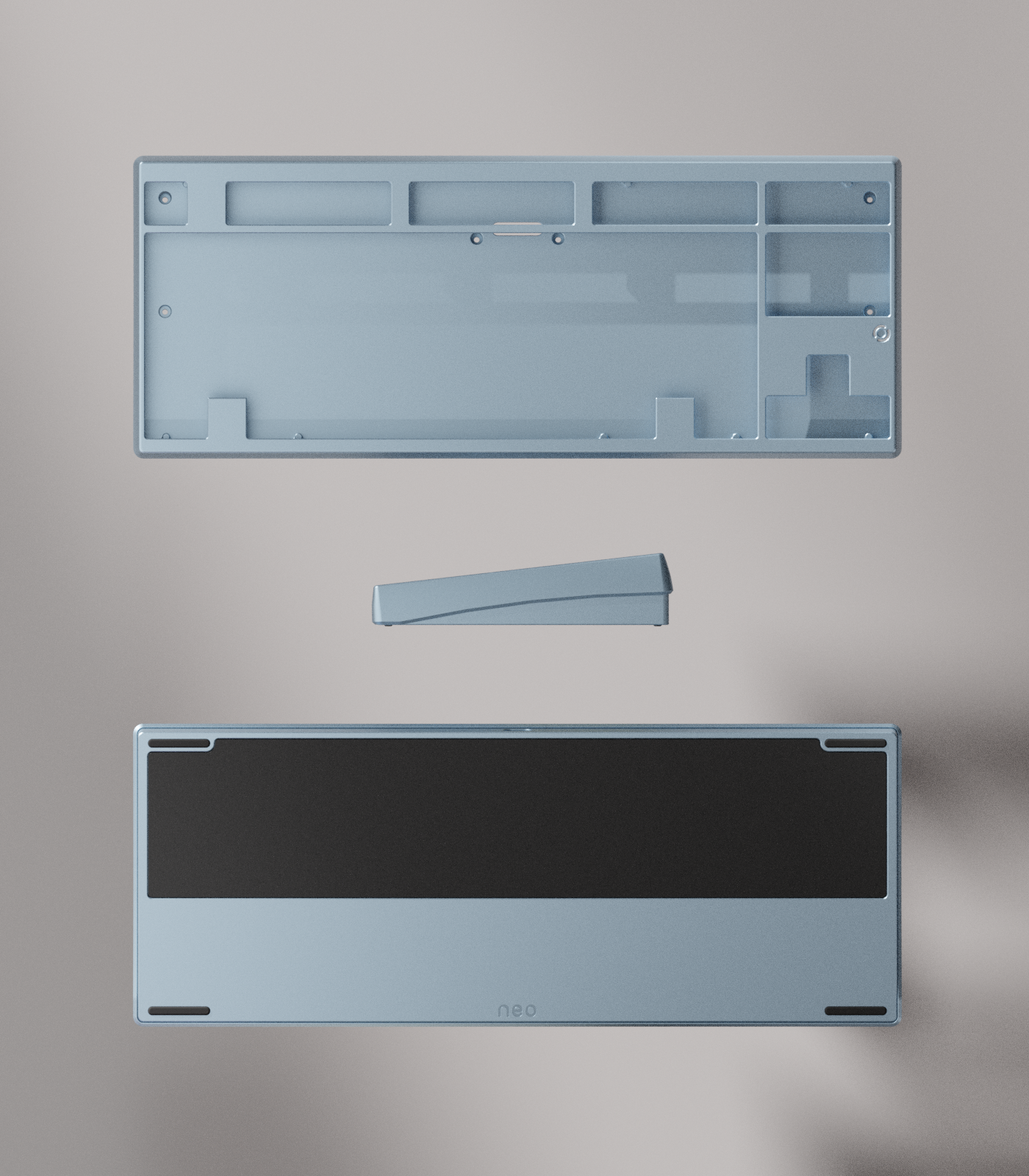

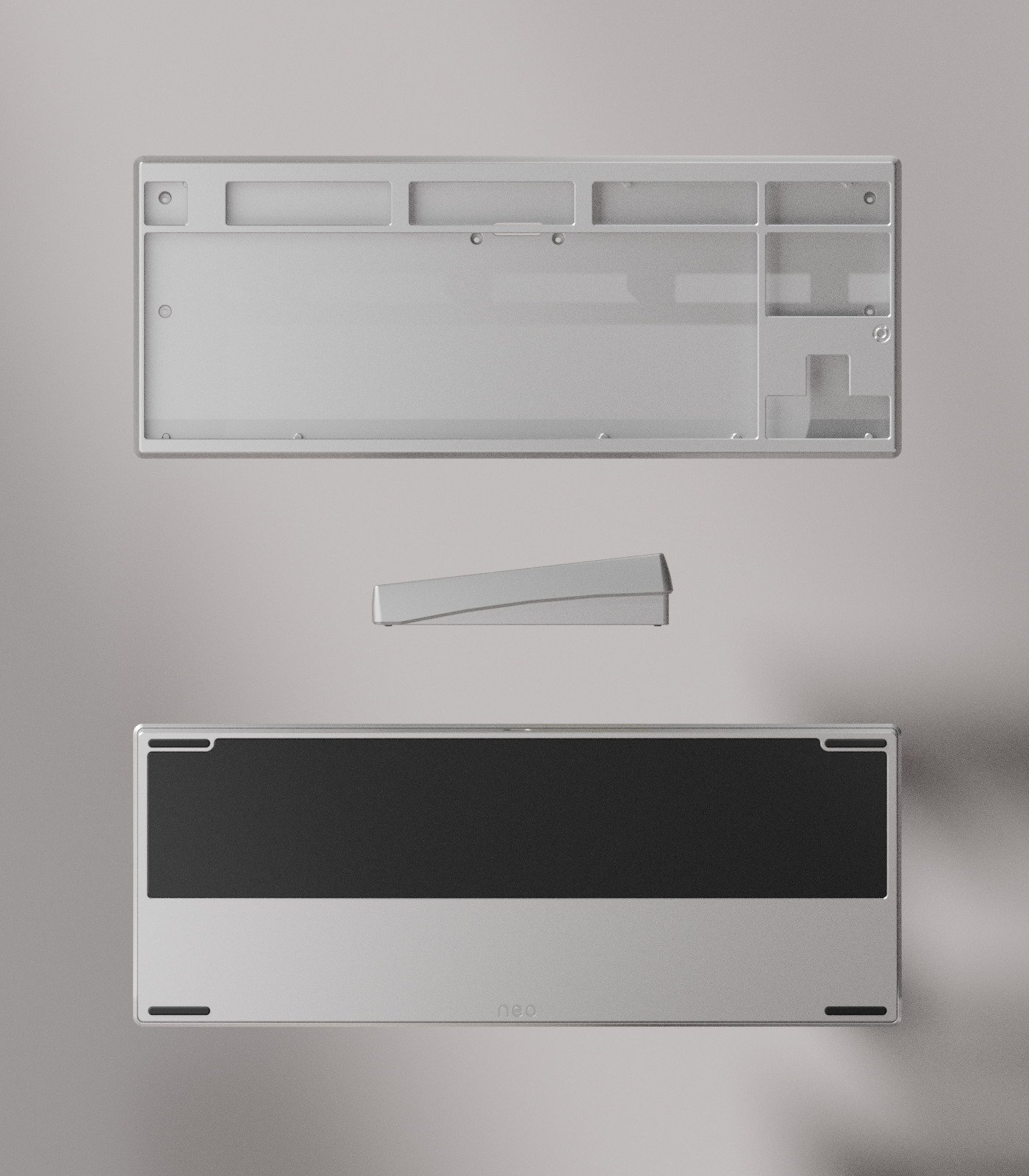

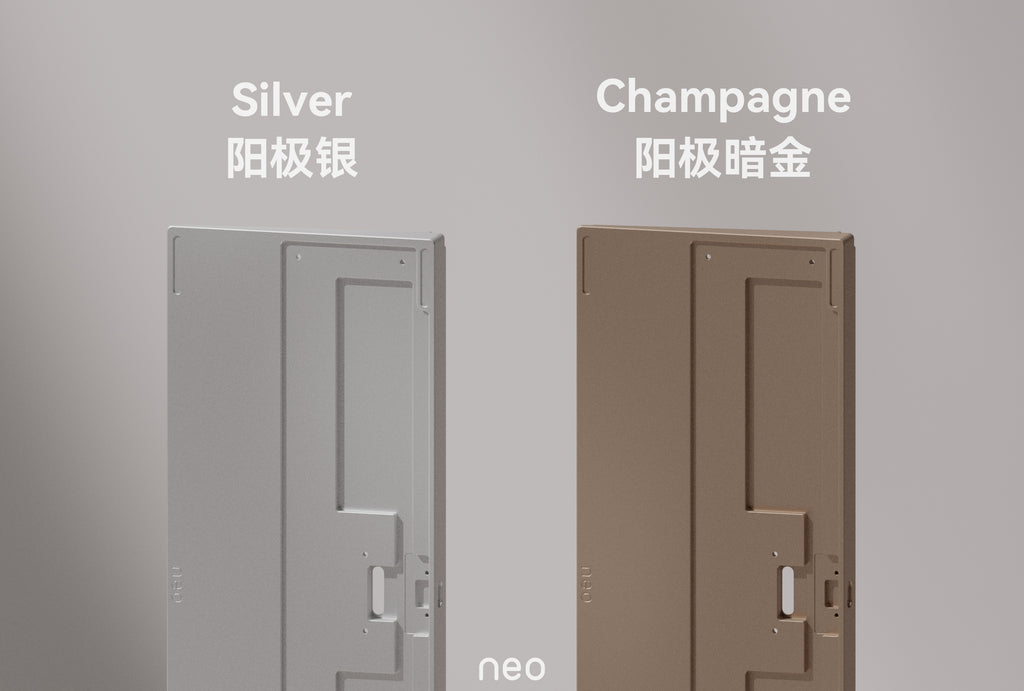

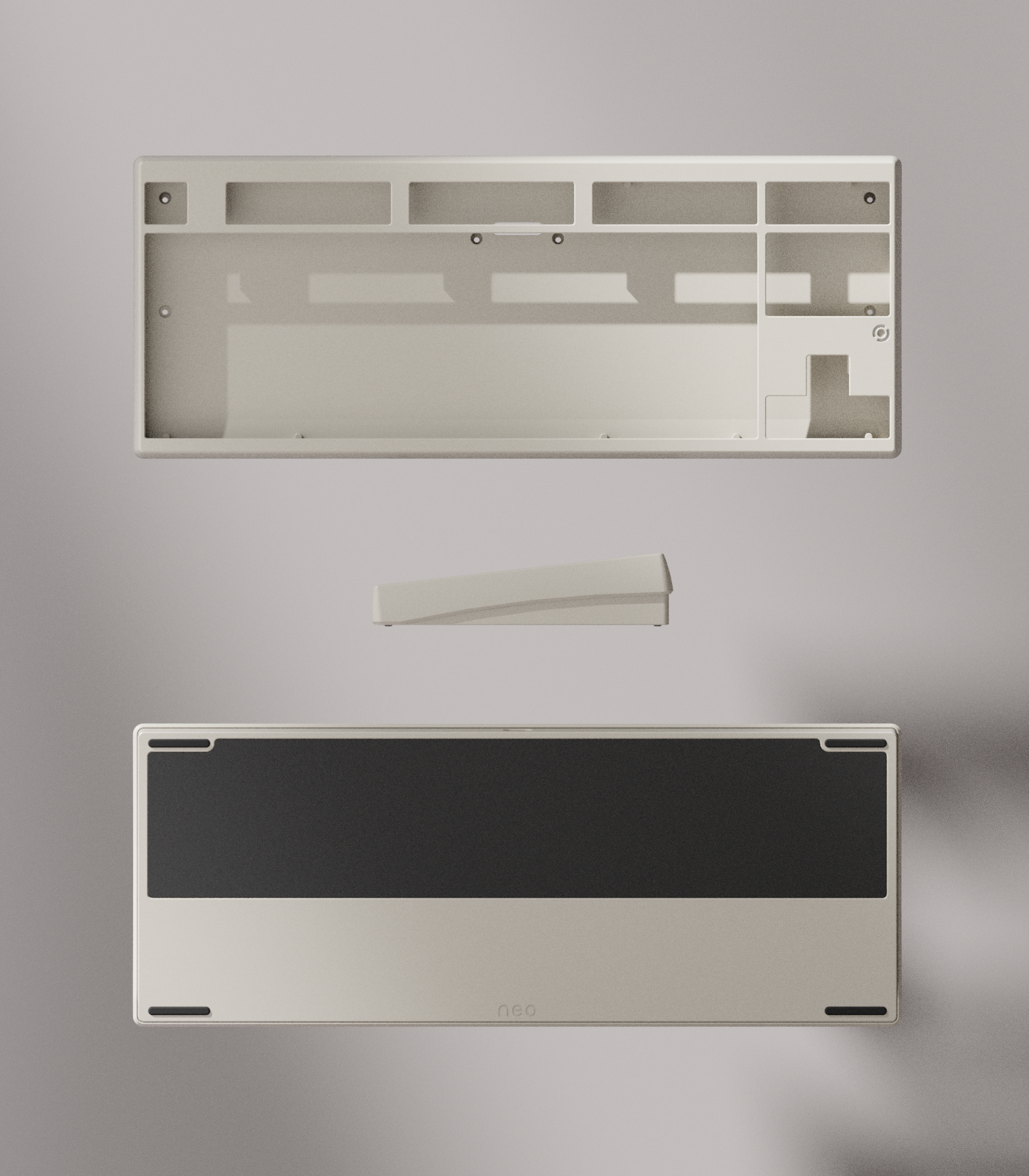

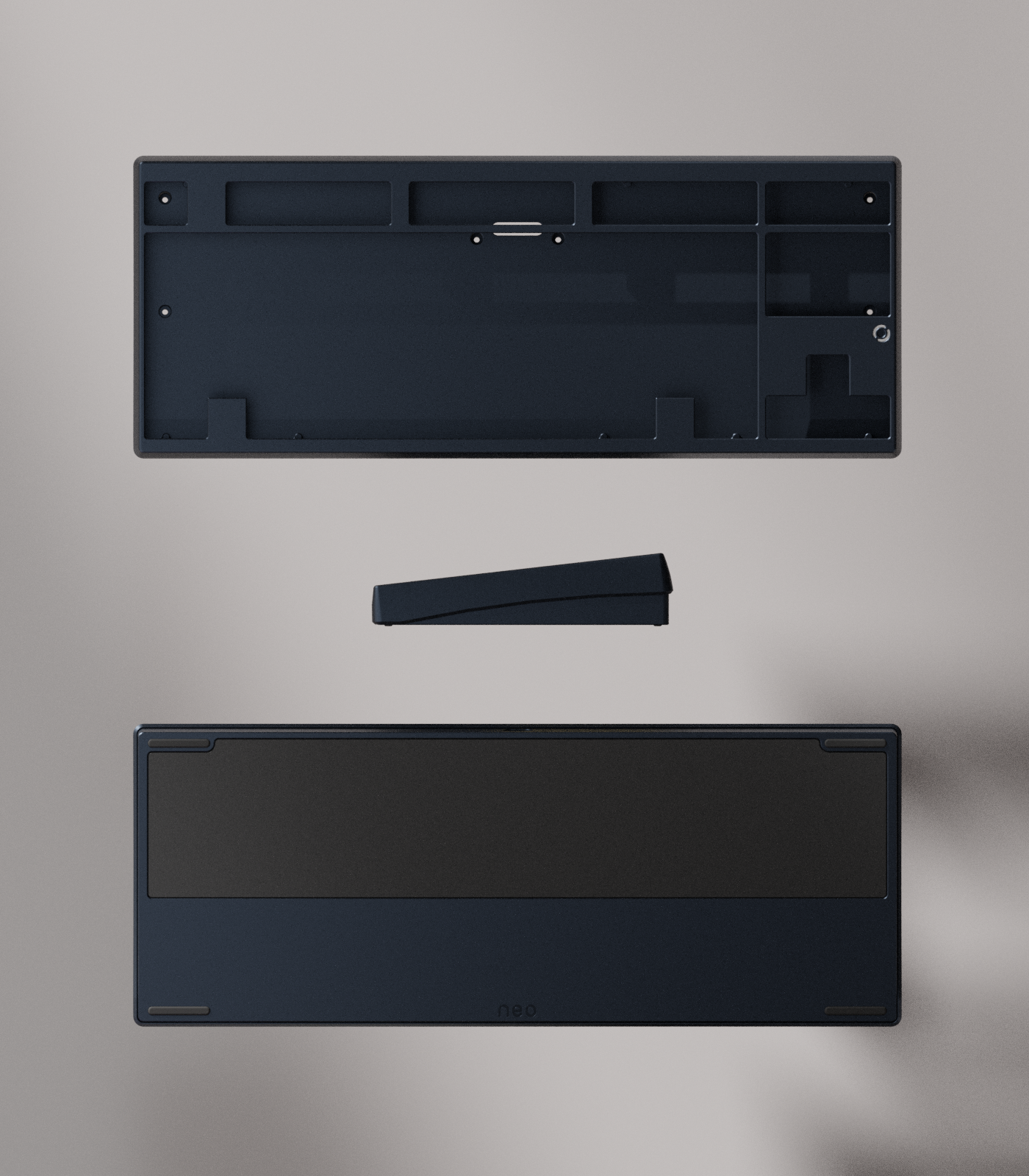

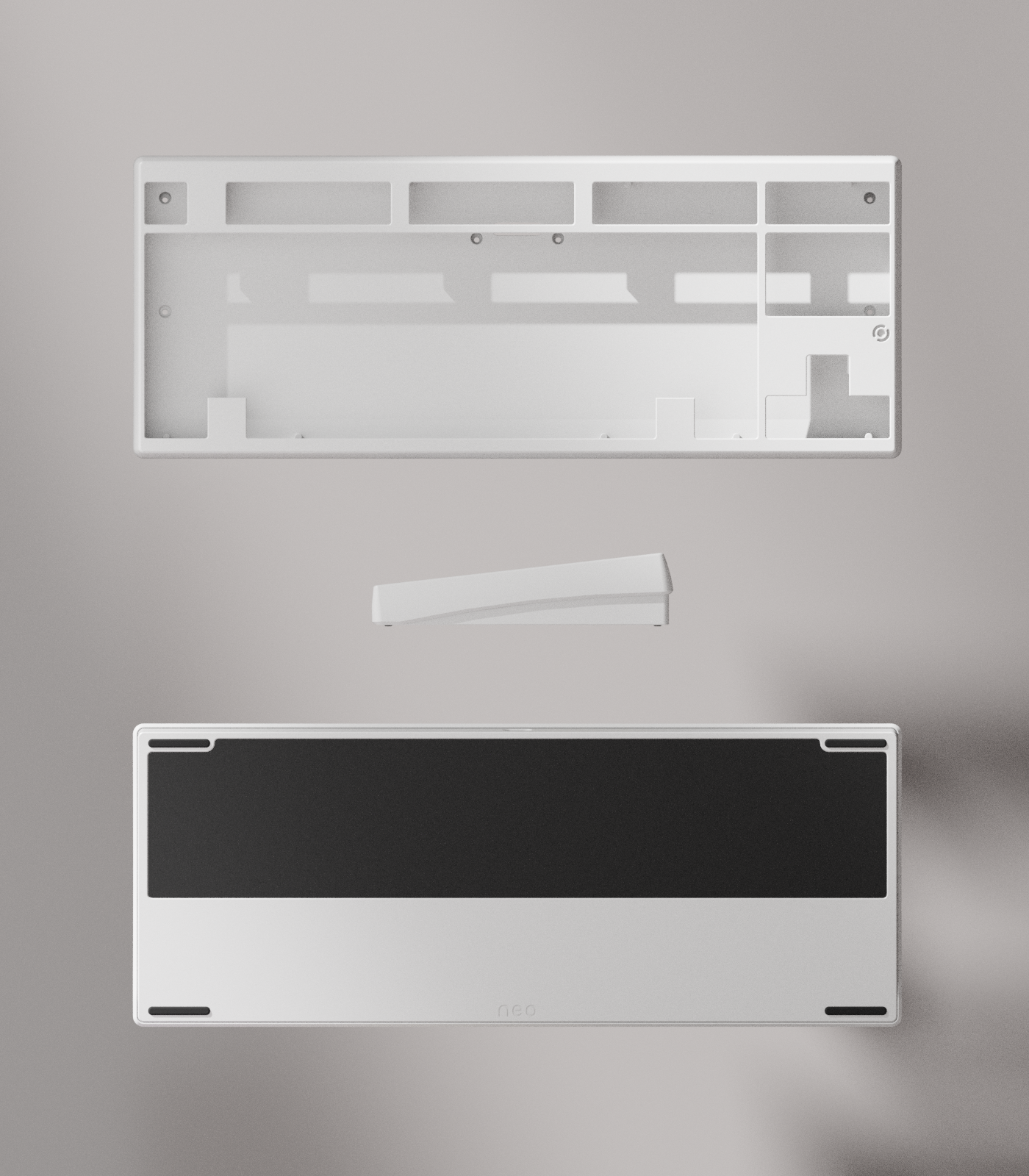

• Case (Top + Bottom)

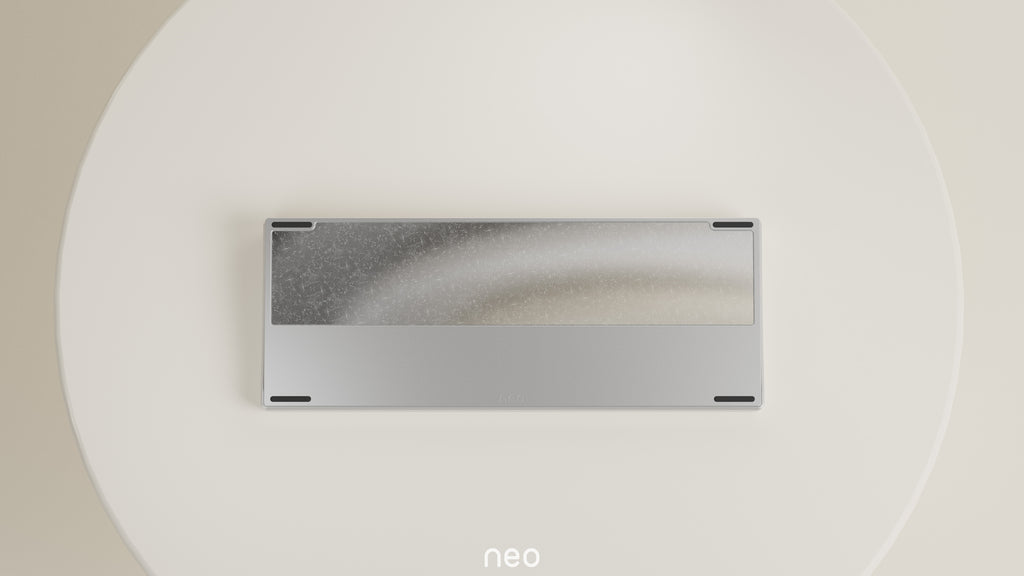

• Including one pre-installed external weight of your choice
• Two 2200 mAh batteries will be installed inside of the bottom case for orders with Tri-mode PCBs
• Orders with wired PCBs or solder PCBs will receive fillers for the battery compartments
• PCB kit
• PCB of your choice
• 1x PE sheet
• x PCB Foam
• Standoffs
• Tri-mode PCB comes with a 2.4Ghz dongle
• Plate of your choice (or plateless with solder PCB)
• Poron case foam

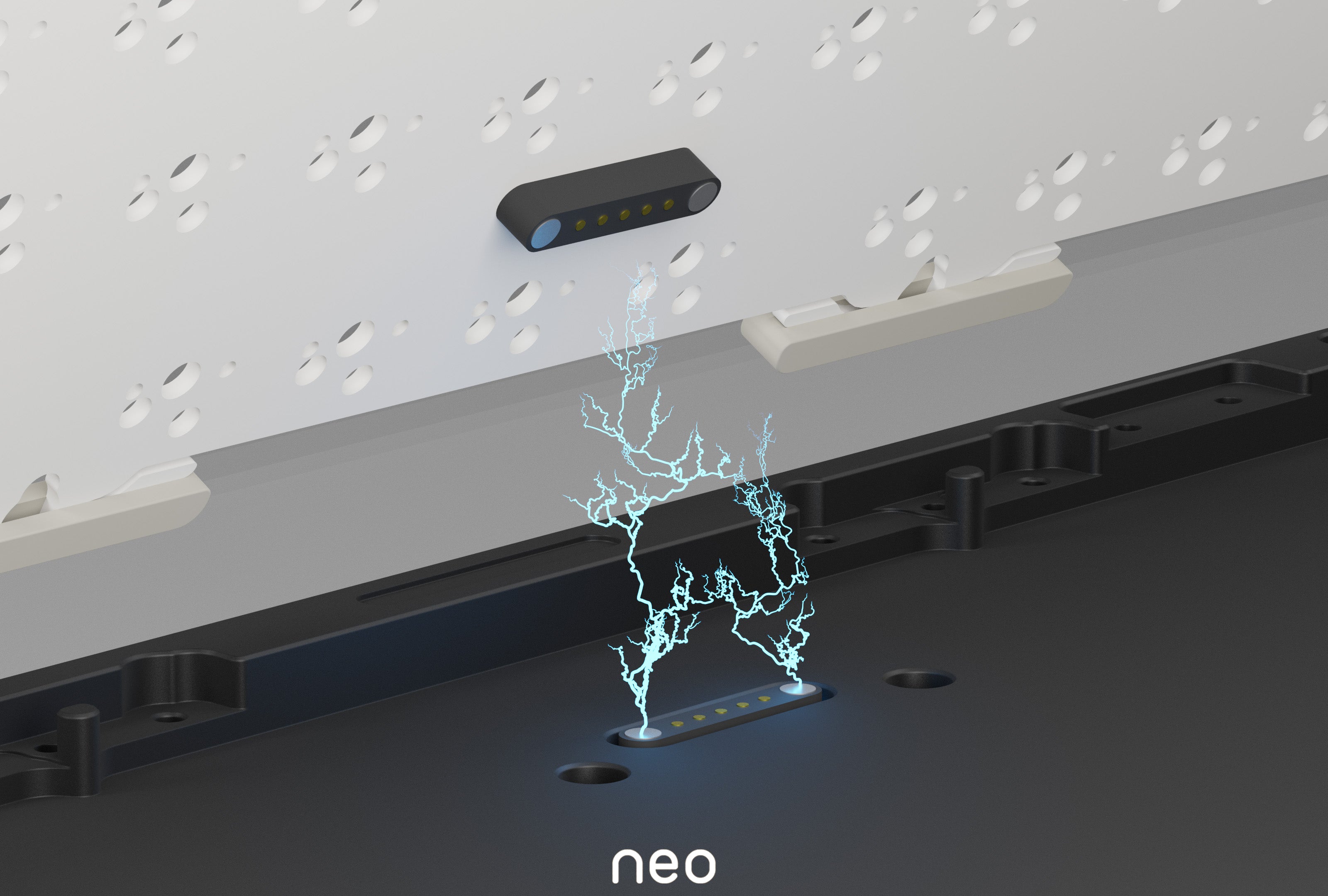

• PCB Daughterboard - installed
• Case corner protectors - installed
• Gasket jackets + gasket dumbbells
• Brass pillars + washers
• O-ring (30 duro) x 1
• Rubber feet

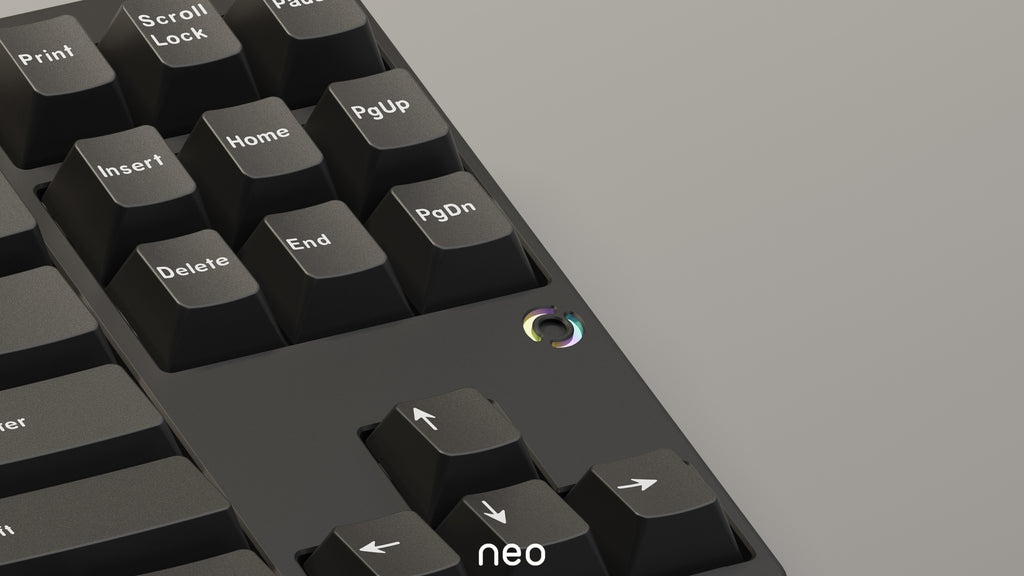

• LED diffuser
• Free Gifts (Not covered by warranty):
• Keyboard carrying case
• 1x Keycap & Switch puller
• 1 set of 80% PCB clip-in NeoStab
• USB-C cable
